Netra 150 Server Hardware Installation Manual

Using the LCD Panel for Initial Configuration

You can go through a partial initial configuration using the LCD panel on the front of the Netra 150 server.

To Prepare for Configuration
  1. Obtain the following configuration information for your site:

    • Host name for your Netra server

    • System administrator alias members

    • Root password

    • Administration Web Server password

    • LAN interface information (host address and netmask for a TCP/IP network, or network number and frame type for an SPX/IPX network [Netra Internet 150 server only])

    • Date and Time

    Refer to the Netra User's Manual if you need help obtaining this information.

To Perform the Initial Configuration Using the LCD Display
  1. Turn the power switch at the rear of the Netra 150 server to the ON ([boxv ]) position (Figure 1-12).

    Figure 1-12 Powering On the Netra NFS 150 Server

    Graphic

    When you first power on the Netra 150 server, the LCD display will wait for input indefinitely until you do one of the following:

    • Input the IP address and netmask through the LCD, or

    • Press Return on the console keyboard.

  2. Familiarize yourself with the LCD display at the front of the Netra 150 server (Figure 1-13).

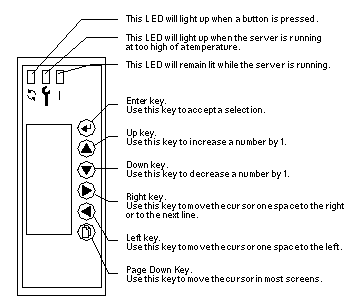

    Figure 1-13 Netra 150 Server LCD Display

    Graphic

  3. Select the LCD orientation of the Netra 150 server.

    Figure 1-14 LCD Display Orientation

    Graphic

    1. If you have a Netra 150 tower server, the default orientation is already set for the tower version. Go to Step 4.

    2. If you have a rack-ready Netra 150 server, press the Enter key to select the horizontal orientation. Go to Step 4.

  4. Wait several minutes until the IP Entry screen is displayed.

  5. At the IP Entry screen (Figure 1-15), enter the Netra 150 server's IP address.

    Figure 1-15 LCD Display's IP Entry Screen

    Graphic

    1. Use the Up and Down arrow keys to increase or decrease the number for the highlighted IP address digit by 1.

    2. Use the Left and Right arrow keys to move the cursor through the digits of the IP address.

      Note that you must enter a "0" when you have a blank spot in the IP address, so an IP address of 123.123.1.123 would look like this on the LCD display:

      Figure 1-16 Sample IP Address in the LCD Display

      Graphic

    3. Press the Enter key when you have completed inputting the IP Address.


      Note -

      If you entered an incorrect IP address, you will see an error screen. Press the Enter key to go back to the IP Entry screen.


  6. At the Mask Entry screen (Figure 1-17), enter the Netra 150 server's network mask address.

    Figure 1-17 LCD Display's Mask Entry Screen

    Graphic

    1. Use the Up and Down arrow keys to increase or decrease the number for the highlighted network mask address digit by 1.

    2. Use the Left and Right arrow keys to move the cursor through the digits of the network mask address.

      Note that you must enter a "0" when you have a blank spot in the network mask address, just as you did when entering the IP address.

    3. Press the Enter key when you have completed inputting the network mask Address.


      Note -

      If you entered an incorrect network mask address, you will see an error screen. Press the Enter key to go back to the Mask Entry screen.


If you have entered the correct addresses, you will now see the status screen on the LCD display (Figure 1-18).

Figure 1-18 LCD Display's Status Screen

Graphic

To Complete the Initial Configuration
  1. Start a browser on a client PC on the LAN.

  2. Open the following URL in the browser:


    http://netra_host_address:81


    A password window is displayed.

  3. Enter setup for the User ID; then enter setup for the Password.

    The Netra Welcome page is displayed.

  4. Select the Administration option.

    The Initial Configuration page is displayed with the remaining configuration tasks.

  5. Select the highlighted Host Name option.

    The Host Name Administration page is displayed.

  6. Enter the name for the Netra server.

    A message saying the Netra server needs to be restarted is displayed. You can restart the Netra server once you finish configuring it.


    Note -

    If you choose to restart the Netra server immediately, you must repeat the initial login sequence (notice that the new host name is used) to bring you to the Initial Configuration page. At this point, the Host Name option will not show as one of the remaining configuration tasks. Proceed to the next administration module.


  7. Use the Forward Arrow icon at the bottom of the page to go directly to the next configuration task.

  8. Complete the System Administrator Alias, Root Password, Administration Web Server, and Date and Time configuration tasks.


    Note -

    When you reach the Change Root Password screen during the initial configuration, press Return in the Current Root Password field, leaving it blank. When you reach the Administration Web Server screen during the initial configuration, enter setup in the Current Administration Password field.



    Note -

    If you change the Administration Web Server password, you must reauthenticate the browser connection.


  9. If you have a Netra NFS 150 server, complete the Performance Tuning configuration task (the Performance Tuning configuration task will not appear for the Netra Internet 150 server).

    Performance tuning tunes the Netra NFS 150 server to deliver the most optimal throughput (NFS operations/second) at as low a response time as possible for the amount of installed memory and the number of disks configured.

  10. Use the Forward Arrow icon to go to the Main Administration page.

    The Main Administration page is displayed.

To Complete the Configuration
  1. Use the displayed modules to perform any further system configuration tasks (such as setting up mail aliases, configuring a name service, or setting routing options).

    Refer to the relevant chapters in the Netra User's Manual for more information on each administration module.

  2. Once the Netra server is completely configured, save the configuration information as follows:

    1. Insert a blank diskette into the diskette drive at the front of the Netra 150 server (Figure 1-19).

      Figure 1-19 Inserting the Configuration Diskette

      Graphic

    2. Select System Administration: Save and Restore Configuration.

    3. Select Save configuration to diskette.

      This saves your configuration to the diskette.

  3. If you did not restart the Netra server after entering the host name, do the following:

    1. Select System Administration: Restart and Shutdown.

      The Shutdown Administration page is displayed:

    2. Select the Restart option.

      Your Netra server will be restarted with the new configuration.

  4. If you have a Netra NFS 150 server, from the Main Administration page, select Network File System (NFS) Administration:Performance Tuning (this link will not appear for the Netra Internet 150 server).

    • If you see the message saying that your Netra NFS server is tuned but requires a reboot, then you must reboot your Netra NFS 150 server for the performance tuning to take effect.

    • If you see the message "The Netra NFS server is already tuned," then your Netra NFS 150 server has been performance tuned and no further action is required.
