Viewing and Modifying SNMP Properties

You view or modify SNMP configuration properties in the SNMP Configuration page. You reach this page through the Proxy Cache Administration page. See Chapter 3, Loading the Proxy Cache Administration Page," for instructions on loading this page.

To Configure SNMP Properties

1. In the Proxy Cache Administration page, click the SNMP Configuration link.

   The SNMP Configuration page is displayed, as shown in Figure 5-1.

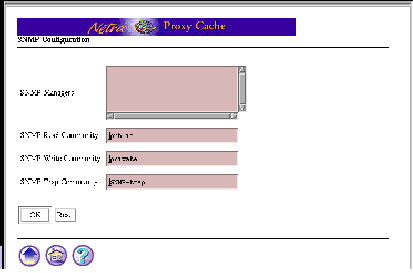

   Figure 5-1 SNMP Configuration Page




2. In the SNMP Configuration Page, add the hostname(s) of machines that are to receive SNMP traps.

   In the current release host names can not contain a . (period) and, therefore, cannot contain a domain name.

3. Enter values or accept defaults for the following fields:

   • SNMP Read Community

   • SNMP Write Community

   • SNMP Trap Community

4. Click OK.

   A page is displayed indicating the success or failure of your change. If a change fails, the page is redisplayed with the error indicated. Correct the error and click OK again. With some errors a new page, containing an error message, is displayed. If this occurs, click the Back button on your browser to return to the SNMP Configuration page.
