Default Disk Partitions

Table 17-2 lists the disk partitions on the two internal drives of a Netra Proxy Cache Server. You cannot change the disk partitioning without affecting the operation of the server.

If you experience a disk failure, the procedure described in Appendix A, System Recovery," automatically re-creates the partitions specified in Table 17-2.

Table 17-2 Disk Partitions for Netra Proxy Cache Server

File System/Mount Point	Disk/Slice	Size
/	c0t0d0s0	600 MB
/var (including proxy cache service logs)	c0t1d0s0	600 MB
swap	c0t0d0s1	128 MB
swap	c0t1d0s1	128 MB
overlap	c0t0d0s2	4092 MB
overlap	c0t1d0s2	4092 MB
/var/opt/SUNWcache/cache1	c0t0d0s6	3044 MB (or rest of disk, whatever that number might be)
/var/opt/SUNWcache/cache2	c0t1d0s6	3044 MB (or rest of disk, whatever that number might be)

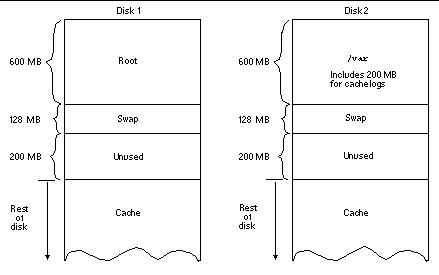

The disk layout for the Netra Proxy Cache Server is illustrated in Figure 17-1.

Figure 17-1 Disk Partitioning
