Netscape Mail Server Administrator's Guide

Working with system settings

This chapter discusses Netscape Messaging Server configuration. Although the minimum set of mandatory configuration decisions are taken care of during installation, some refinements can enhance your email system by optimizing the Messaging Server for your specific needs.

This chapter provides information on the forms found in the Messaging Server's System Settings menu of forms. They include:

The Messages form

 The Messages form allows you to compose and enable default messages for host finger information; vacation, reply and echo auto-reply; and error actions such as when message quotas are exceeded. Some of these default messages can be replaced when users provide their own messages--for instance, when using the User Management form to compose their own vacation message.

If the AutoReply handler is enabled and you do not have entries in this default form, users will be required to enter their own messages to activate the vacation feature. Also, server administrators will be required to specify messages for all accounts using the reply or echo feature.

The following sections describe the fields on the Messages form.

Preferred Language field

The preferred language field specifies the human language to be used to interact with the form. The default language is U.S. English, using 7-bin ASCII characters. To change the language:

Host Finger Information field

 This field contains the information provided to finger queries that don't include a username (and are therefore addressed more generally to your company or organization). This field is a good place to put miscellaneous information about your company and contact names and email addresses.

Default Vacation-Mode Reply
Message field

This field contains the vacation message that will be used if users forget to write a personalized message. If this field is left blank, the account manager won't accept a User Management form if the vacation feature is selected and no vacation message is included.

Anyone who sends messages to a user's account while the vacation setting is activated will receive one notice about the user's absence. Any subsequent messages that person sends are ignored.

Warning!
In most cases, server administrators should not replace a user's current delivery with the vacation setting when they set up the AutoReply handler for that user's account. If they do this, the user will return from vacation only to find that all of his or her email has been thrown away. Rather, the vacation setting should be used in addition to the normal delivery method, so the mail is held for the user to retrieve upon his or her return. (Users are prevented from making this mistake because the Messaging Server doesn't accept Information forms with a delivery of "Vacation" only.)

Default Echo-Mode Reply Message field

 This field typically contains a generic message for users sending messages to this address. A common use of the echo feature is to return mail addressed to people who have moved on and left no forwarding address. If this field is left blank, the account manager will require that an echo message be included when the echo feature is selected on a Mail User Information form.

The echo feature generates a message to anyone who sends a message to the account. In addition, it returns the mail (as a MIME attachment) that was sent to the account, so that the sender gets back the original message as well as the message that you entered.

The echo feature, like the vacation feature, is intended to inform people about the status of the account they have contacted.

Default Reply-Mode Reply Message field

You can use this field to specify a message that can be used to advise the sender to contact the server administrator. If this field is left blank, the account manager will require a reply message when the reply feature is selected. It's usually best to leave this field blank.

The reply feature is useful for special accounts that are created to disseminate information of one kind or another. You can create a place where people can get files, analogous to a File Transfer Protocol (FTP) site on the Internet.

`Quota Exceeded' Message field

You can use this field to specify a message to advise senders that mail is undeliverable because the recipient's mailbox has reached its quota.

The SMTP Channel Aliases form

If all mail servers in your organization are Netscape Messaging Servers, and all use a common LDAP Directory Server, then the information in the Directory Server's user and group entries is sufficient for internal mail routing within the organization. In other cases, there are two recommended ways for the Messaging Server to route mail to dissimilar mail systems: SMTP channel aliases and Forward Delivery (an option in the Mail User Information form).

If you are using the LDAP Directory Server to administer multiple Messaging Servers in your mail system, the recommended procedure for forwarding messages from one host to another is to use the Addresses for Forward Delivery field in the Administration Server's Mail User Information form. There are two advantages to using this approach. First, forwarding information is centralized. You don't have to replicate the information in each Messaging Server configuration. Second, forwarding is automatic in the sense that you enter the forwarding address while setting up a user's mail account, and messages are forwarded without any further intervention.

The alternative to using the LDAP Forward Delivery option is to use an SMTP channel alias. SMTP channel aliases also handle incoming messages that are forwarded to another Messaging Server on a different host. However, SMTP channel aliases are not centralized: you must set up aliases on a per-server basis. Nor are SMTP channel aliases automatic: once you set up a user's mail account, you still need to create the aliases for that user "by hand."

SMTP channel aliases are required in mail systems that do not take advantage of a centralized LDAP Directory Server, or in a "mixed" mail system that includes non-LDAP-aware mail servers, such as sendmail.

SMTP channel aliases are specific to the SMTP channel. Whenever a message enters the Messaging Server system destined for one of the listed SMTP channel aliases, the address is immediately rewritten and the message delivered to the new address at a remote host. The message is delivered to the remote machine without ever being seen by the Account handler. SMTP channel aliases are used extensively when a site sets up a mail hub through which all incoming messages are routed before being delivered to the intended user's host machine.

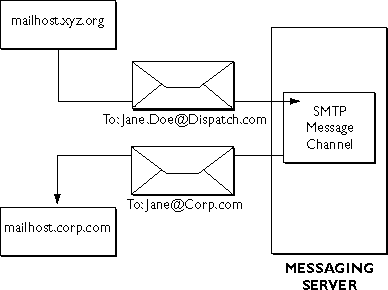

Figure 2.1 shows an SMTP channel alias in action. In the figure, someone of the XYZ organization occasionally sends mail to Jane Doe at Dispatch.com. Let's say, however, that Jane has recently left Dispatch.com to move to another building. To help Jane continue to receive her mail, an SMTP channel alias was set up for her using the SMTP Channel Aliases form:

<Jane.Doe@Dispatch.com> <Jane@Corp.com>

Whenever a message arrives addressed to Jane.Doe@Dispatch.com, the address is replaced with her new address. The message is then forwarded to its new destination, Corp.com.

An SMTP channel alias.

Setting up an SMTP channel alias

You can use the SMTP Channel Aliases form to set up aliases for the SMTP mail channel. To reach this form, choose System Settings | Aliases.

To set up an SMTP channel alias address, fill out the incoming and outgoing addresses and submit the form. Each line is a separate alias where you enter first the address for which the SMTP channel will accept messages followed by the address to which it will redirect these messages.

You must set up aliases one address at a time. For example, if Jane Doe leaves Dispatch.com to take a higher position in Washington, D.C., and her account at Dispatch.com has the following primary and alias addresses (all of which she uses), you will have to set up an alias for each of these addresses:

The SMTP Aliases form also provides the option of specifying a simple text file with which to import Channel Alias data in the form of a list of entries, instead of entering the data directly on the form. The text file must contain entries in the same syntax as if you were entering the data directly in the SMTP Aliases form.

Note
The filename you enter in the Import Channel Alias Table field should be an absolute path to a file on the system on which the Administration Server is running.
It does not matter if the field not selected has any content. For example, if the manual input option is selected and a filename is present in the Filename field, the input will not be taken from the file listed.

The SMTP Channel Options form

 You can use the SMTP Channel Options form to configure the SMTP mail channel. This form is used to configure a variety of options specific to the SMTP channel but is not used to set channel aliases. This form includes configuration for the most common Messaging Server error, Unknown Local Account. It also includes the SMTP Mail Routing table.

The following sections describe the fields on the SMTP Channel Options form.

Maximum Number of MTA Hops field

Use this parameter to prevent infinite mail loops. Usually a mail loop is caused by having two email accounts on different machines that forward mail to one another. Fortunately, these loops can be detected and stopped because each MTA stamps all incoming messages as "Received." By counting the number of Received lines in the message header, the MTA can determine how many "hops" the message took to get there. If the number of hops exceeds the maximum specified in this field, the server administrator receives an error report. The recommended range for this parameter is 30 or more.

Note
This error action can be customized with the Unknown Local Account field.

SMTP Rewrite style field

 You have the option of rewriting the addresses in messages that are transmitted on the SMTP channel. Use this field to specify how the Messaging Server rewrites addresses before transmitting messages on the SMTP channel. The SMTP rewrite options available are:

Defer Delivery to remote hosts field

 This field is used to determine when mail is delivered. Normally, when a message needs to be delivered to another machine over the Internet, the Messaging Server attempts to deliver it immediately and queues it only if there is a problem. Setting this option to Yes causes the Messaging Server to instead queue all outgoing mail and attempt delivery only when it processes the queue. The Messaging Server processes the queue on intervals that you indicate in the Queued Mail Processing Interval field of the System Configuration form. This feature is useful if your system has only intermittent access to the Internet.

Verify each recipient's address field

This field is used to verify each recipient's address when accepting messages. When this option is set to Yes, the Messaging Server verifies each address listed as a recipient. Non-local addresses and addresses in mailing lists are not verified. The default setting for this option is No.

SMTP Mail Routing Table field

Mail can be routed to a machine other than the destination in the address using this optional field. This is done with a routing table. Normally rerouting is used only when a firewall prevents direct access to the destination mail server or when mail needs to be sent through a gateway to another network, such as a Unix to Unix Copy Protocol (UUCP) network.

The routing table is consulted only after the Messaging Server has determined--first through Channel Aliases, then an LDAP lookup, and finally NIS--that the address is not for a local mail account. The SMTP Mail Routing table is consulted before DNS/MX records.

The format for table entries is

*.domain:gateway.other_domain

An asterisk is used as a wildcard that will match any string of characters. In the example above all mail addressed to any machine or subdomain (because of the *) within the domain is routed to gateway.other_domain instead. The gateway then sends the mail to the machine indicated by the address. For example, to configure the Messaging Server to route mail to a UUCP gateway, you might use the following entry:

*.uucp:uucp.gateway.host

(You should, of course, substitute the actual address for your UUCP gateway in the place of uucp.gateway.host.)

Similarly, to route mail to a Fidonet gateway, you would use an entry similar to this:

*.fidonet:fidonet.gateway.host

You can set up a default route so that all mail goes to a single machine by using a single asterisk, as in this example:

*:mail.hub.machine

Note
Use a default route only if it is absolutely necessary (as in a firewall situation) because it puts an additional burden on the mail hub machine and can slow it down.

Example:


*.example.com:*

example.com:hub.example.com

*:firewall.example.com

Unknown Local Account, Maximum MTA Hops Exceeded, and Disk Quota Exceeded fields

 You can use these fields to specify what should be done with an undeliverable message. You select one or more options by clicking the button next to each item. Each of these error actions can assume appropriate combinations of the following values:
Return

 Returns original message to sender.

Hold

 Holds message for server administrator action (such as return to sender, resubmit with correction, or delete the message).

Notify

 Sends notification of error to server administrator.

Log

 Documents error in log file.

Inappropriate combinations, such as "log" by itself (which would log the error but delete the mail), should be avoided. You will probably always want to include a "return" entry or a "hold" and "notify" combination as part of your choices.

The Unknown Local Account error means that a message was addressed to a local domain but didn't correspond to an email account or channel. The bad address could be a typographical error, or it could be a sign that you should set up an alias for a local user at the "bad" address (because people seem to think it is a reasonable address). Unless you get a prohibitive volume of unknown local account errors, you should set this on "notify" and "hold," especially if you're upgrading from a different mail system. This setting lets you know about each error and lets you intervene by resubmitting the message, creating a new alias, returning the message to its sender, or throwing it away. Because many administrators prefer not to deal with bad addresses (because of the large volume they receive), the default is "return."

The Max Hops Exceeded error usually occurs because of a mail loop. Mail loops are fairly serious problems and need to be resolved as soon as possible. Accordingly, the strongly recommended setting for this error is "notify" and "hold" so that you can reconfigure the responsible account and resubmit the message to verify that the problem has been corrected.

The Disk Quota Exceeded error occurs when a message arrives for a user whose disk quota has been exceeded. For this situation you probably want to choose the "return" and "notify" settings.

The System Configuration form

The System Configuration form lets you

The following sections describe the fields on the System Configuration form.

Address Completion Domain field

When mail arrives for a recipient whose address doesn't contain a domain, the domain specified in this field is added to the recipient's address. If no domain is specified here, the hostname of the machine running the Messaging Server is assumed. For example, if this field is set to your domain name, mail addressed to <user> will be sent to <user@your.domain>.

In some cases there is an advantage to configuring the address completion domain to add your domain rather than your host address. When your system uses hostname hiding, a name@domain format will often fare better than a name@host.domain address completion.

Note
Some mail clients won't send mail that doesn't have a complete address. In this case, mail sent to <user> will not be deliverable, and users must be instructed to type the whole address for each message sent, even when it's local.

Local Mail Domains field

This field is a list of all the mail domains that this machine handles exclusively. If a domain is listed here and mail comes in with an address within that domain, the message is delivered locally to an account, referred to the server administrator, or returned to the sender (if no account is found for the recipient). If a domain isn't listed here, this machine isn't the primary mail handler for that domain. (However, it can still receive mail for addresses in the unlisted domain if an account is set up with an appropriate alias.)

This field helps determine when a message gets bounced. Specifically, if a server has this set and cannot resolve an address, it bounces the message.

Queued Mail Processing Interval field

Messages that can't be delivered immediately are placed in a message queue. The system attempts to deliver queued messages at regular intervals as specified here in seconds. Typical intervals are from 30 minutes (1,800 seconds) to two hours (7,200 seconds).

Maximum Mail Queue Time field

Messages that can't be delivered in a timely manner are eventually returned to the sender with an error message. Use this parameter to set the maximum amount of time that a message remains in the queue before it's returned. Internet standards recommend at least four or five days for this. The minimum is normally two or three days (to accommodate a problem that occurs over a weekend, or to provide ample time to fix the problem).

Lookup Client Machine Names field

Enable this option (by choosing Yes) if you want to have the Messaging Server perform a name lookup (through the DNS) on all connecting client machines. If you enable this option, machines will be referred to by their domain names; otherwise they will be referred to by their Internet Protocol (IP) addresses. Places where these names show up include the process table, the log file, and "Received" lines in message headers. If you handle a large volume of messages, be aware that selecting this option will slow down the Messaging Server.

Default Maximum Number of
Concurrent POP3/SMTP Sessions field

This default covers the number of SMTP, POP3, and finger processes that can run at one time. Specific processes are counted, not the total of all three. Because this is a default, it's used only if the defaults for those modules aren't specified. The recommended default is 20, which is enough for most systems. However, if you're doing something like serving many users with POP3, you should set the maximum run count for the POP3 module higher.

Default Maximum Number of
Concurrent IMAP4 Sessions field

This default covers the number of IMAP4 server processes that can run at one time. Because this is a default, it's used only if the defaults for those modules aren't specified. You should set this value higher than the maximum for POP3/SMTP sessions, as IMAP4 sessions generally persist longer than the others.

Default Maximum Number of
Concurrent Local Sessions field

This is the default for non-network processes such as the account handler. This default is applied only if a limit isn't specified in the configuration of a specific module. The recommended default is 5. If you need to assess the local processes and what they do, refer to Appendix A, "Messaging Server architecture".

Minimum Free Disk Space field

This field allows you to specify the minimum free disk space required to allow the Messaging Server to accept messages. A "0" means unlimited. The Messaging Server rejects all messages received if not enough disk space is available.

Default User Disk Quota field

This field allows you to specify a disk quota to apply to all users who do not have their own disk quota set. A "0" means unlimited. The Messaging Server rejects all messages received once the quota is reached and not enough disk space is available.

Recommended Account Management URL for Mail Users field

This field lists the recommended URL to gain access to the Messaging Server. The default entry is determined by information provided during installation.

This URL is provided to any mail client, such as Messenger 4.0 or greater, requesting it with a special POP/IMAP command. (With Messenger 4.0, the command is Edit|Manage Mail Account.) The URL is the location where end users can point their browsers in order to administer their mail accounts.

LDAP Bind Account field

This field allows you to change the LDAP Bind Account that the Messaging Server uses to query the user directory. Here are some reasons why you might need to change the LDAP bind account:

To change the LDAP Bind Account:

  1. Enter the new account name in the "LDAP Account to bind with" text field.

  2. Enter your LDAP Account Password.

  3. Enter the password again.

  4. Click OK.

NT Server Account Password field
NT
The fields described in this section are available only on the Windows NT version of Messaging Server 3.5.
If you have changed the password of the Windows NT user identity that the Messaging Server assumes when it runs, you must enter the new password in the NT Server Account Password field:

  1. Type the new password in the NT Account Password field.

  2. Retype the new password in the NT Account Password (again) field.

  3. Click OK.

This informs the Messaging Server of the change in password.

The Single Copy On/Off form

This form allows you to turn the single-copy message store feature on or off and to set the minimum message size.

If you turn on single-copy message store, the Messaging Server stores a single copy of any message sent to multiple recipients, rather than one copy per recipient. The advantage of turning on single-copy message store is that it conserves disk space. If you turn single-copy message store off, messages will be delivered normally, with a copy stored in each recipient's mailbox. The advantage of turning single-copy message store off is better performance.

This field is set to "off" by default to favor performance.

The Minimum Message Size option is a performance-tuning parameter. Every operating system allocates a minimum number of bytes for a file (cluster size) regardless of the bytes in the file. (For example, it may allocate 2K bytes to store 2 bytes). If the minimum message size is small compared to the cluster size, space is wasted; if the minimum message size is large, then there is no single copy for all messages of smaller size, and again space is wasted. The optimal value can only be determined by a trade-off between the cluster size and the type of mail traffic at your server.

You will need to restart the Messaging Server for any changes to take effect.

The Message Stores form

This form is used to specify each directory on disk that contains a message store. The message store that a given user's mailbox is in is determined by the contents of the Messaging Server field in that user's Mail Information form. If a user's message store is different from the ones listed here, that user cannot have the Single Copy feature enabled. If a user's message store is left unspecified, the default message store is used.

Note:
If Single Copy is turned on, the default message store and all message stores listed on the form have single copy enabled.

The Unix Mail form
Unix
This form is used to specify the interface to the Unix mail system and to select program delivery options.
The Local Mail Delivery Program field lets you specify the default Unix program used to deliver mail to any account that specifies Unix delivery in the Delivery Options field of the user's Mail User Information form. The default for this field is /bin/mail.

Program delivery options let you limit use of program delivery to the user and group specified in the Safe User ID and Safe Group ID fields for running root programs.



LDAP Routing Configuration

The LDAP Routing Configuration form enables you to specify options for:

Note:You should shut down your server before specifying configuration changes on this form.

Specifying Alternate Search Methods

When the mail server receives a message, it searches the LDAP directory for an entry that matches the recipient address given in the message envelope. By default, the server looks for an exact match as specified in the mail or mailAlternateAddress attribute.

If an exact match cannot be found, you can expand the list of possible matches by specifying one or more of the following search methods. If you specify all search methods, the server tries each method in the order listed until a match is found:

The default setting is search by user id (uid).

Note. Search features have a slight impact on performance.

Search for Custom Domain

Assume Joe has two addresses with his ISP: joe@isp.com and a custom domain address, joecorp.com.

To enable Joe to receive mail addressed to anything@joecorp.com:

  1. In the Mail User Information form, add an Alternate Email Address for Joe as follows: @joecorp.com


  2. Add the MX records in DNS as necessary to indicate the desired messaging server for the custom domain

Search Using Truncated Domain

In a network environment, you might want the option of ignoring the host name when searching for an address.

For example, assume the following:

With this feature enabled, the server can ignore the host name when searching in the directory for the correct address. Consequently, Joe can receive messages addressed to both joe@foo.airius.com and joe@airius.com.

Note. You should use this feature only if user accounts are not specific to a particular host. For example, if user@host1.domain.com, user@host2.domain.com, and user@domain.com are considered different accounts, you should not enable this feature.

Search by User ID (uid)

The server can search by uid only if 1) the domain in the address matches one of the host values specified for the MessageHostName parameter or 2) the domain is configured as a Local Mail Domain.

Thus each user's uid attribute in LDAP is a valid email address for that user in an address such as uid@LocalDomain or uid@MessageHostName.

Note. Do not use this feature if you do not want the user's uid to be treated as a valid email address.

Configuring Envelope Rewrite Rules

When a mail server receives a message, it determines whether the message is addressed to a local account (resides on this server) or a remote account (resides on another server). If the account resides on a remote server, the mail server routes the message to the remote server.

You can specify how the server addresses the message in the envelope (that is, in the SMTP protocol dialog) before routing it to the remote server. (The server does not rewrite the message header.)

You can specify one or more of the following methods. The server tries each method in the order listed until it is able to compose a new address using the indicated attributes from the account's LDAP entry.

If the server is unable to compose a new address (because the necessary attributes are not available or because no search methods are selected), the envelope address is not changed. However, if the "ignore host name" search method is tried, the truncated address is used instead of the original address.

The default method is use the uid and the LDAP mailHost attribute.

Note. If neither the mailRoutingAddress or mailHost values is available, the server cannot route to a given LDAP entry. The server will either 1) reject the message or 2) try to handle the message locally. If the LDAP entry is a mail group or an account with forwarding addresses, the server will resend the message to the group members or forwarding addresses, respectively.

mailRoutingAddress Attribute

The mailRoutingAddress attribute method specifies a specific mail routing address. This method is most useful for LDAP entries that represent mail accounts on non-Netscape mail servers or gateway systems.

You must also modify the user's LDAP entry (by using ldapmodify) to include the  mailRoutingAddress attribute. For example: mailRoutingAddress=joesmith@judge.mcom.com.

The mailRoutingAddress attribute differs from mailForwardingAddress attribute as follows:

Note. This method incurs a slight performance penalty.

Note. If you are using Netscape Directory Server, version 1.03 or later, this attribute is already included in the directory schema. If you are using an earlier version of the directory server, you will need to add this attribute to the schema.

Combine uid and mailHost Attributes

The method combines the uid attribute and the mailHost attribute found in the LDAP directory.

For example, mail arrives on one server for Joe_Smith@airius.com. The server determines that this mail belongs to jsmith whose mail account is on judge.airius.com. The server rewrites the envelope address to jsmith@judge.airius.com then relays the message to judge.airius.com.

This method is most likely to work properly if the uid search method is employed on the next server.

Note. Some sites prefer that only explicit addresses (that is, those addressed specifed by the mail and mailAlternateAddress attributes) are valid email addresses for users. You should not use this method if the local policy does not consider uid a valid email address.

Combine Local Part and mailHost Attribute

This method combines the local part of the original address and combines it with the mailHost attribute value to create the new address. For example, Customer_Servive@airius.com becomes Customer_Service@judge.airius.com. This method is useful to support entities, such as mail groups, that do not have a uid.

Note. This method is not used if the "custom domain" method is used to resolve the address.

Many SMTP installations prefer that addresses routed internally within the network be host-specific. This feature is most likely to work properly if the "ignore host name" search method is in use on the next server, or if all user accounts have a matching email address explicitly specified.

You should not use this method unless, for each address of each user (as specified with the mail and mailAlternateAddress attributes), changing the domain part to a specific host does not create ambiguity about the message recipient. For example, suppose the mail server mail5.airius.com has three different users: joe@division1.airius.com, joe@division2.airius.com, and joe@airius.com. In this scenario, joe@airius.com would receive mail addressed to the other users, if the "local part at mailHost" method is used.
