Note | |
---|---|
Kodo also includes the
|
Within a container, you will typically use injection
to access an EntityManagerFactory
.

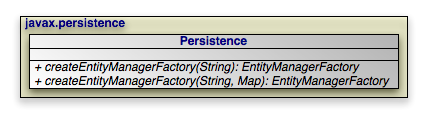

Applications operating of a container, however, can use the
Persistence
class to obtain
EntityManagerFactory
objects in a vendor-neutral
fashion.
public static EntityManagerFactory createEntityManagerFactory (String name); public static EntityManagerFactory createEntityManagerFactory (String name, Map props);
Each createEntityManagerFactory
method searches
the system for an EntityManagerFactory
definition
with the given name. Use null
for an unnamed factory.
The optional map contains vendor-specific property settings used to further
configure the factory.
persistence.xml
files define
EntityManagerFactories
. The
createEntityManagerFactory
methods search for
persistence.xml
files within the META-INF
directory of any CLASSPATH
element. For example, if
your CLASSPATH
contains the conf
directory, you could place an EntityManagerFactory
definition in conf/META-INF/persistence.xml
.
The persistence.xml
file format obeys the following
Document Type Descriptor (DTD):
<!ELEMENT persistence (persistence-unit*)> <!ELEMENT persistence-unit (description?,provider?,jta-datasource?, non-jta-datasource?,(class|jar-file|mapping-file)*, exclude-unlisted-classes?,properties?)> <!ATTLIST persistence-unit name CDATA #REQUIRED> <!ATTLIST persistence-unit transaction-type (JTA|RESOURCE_LOCAL) "JTA"> <!ELEMENT description (#PCDATA)> <!ELEMENT provider (#PCDATA)> <!ELEMENT jta-datasource (#PCDATA)> <!ELEMENT non-jta-datasource (#PCDATA)> <!ELEMENT mapping-file (#PCDATA)> <!ELEMENT jar-file (#PCDATA)> <!ELEMENT class (#PCDATA)> <!ELEMENT exclude-unlisted-classes EMPTY> <!ELEMENT properties (property*)> <!ELEMENT property EMPTY> <!ATTLIST property name CDATA #REQUIRED> <!ATTLIST property value CDATA #REQUIRED>
The root element of a persistence.xml
file is
persistence
, which then contains one or more
persistence-unit
definitions.
Each persistence unit describes the configuration for the entity
managers created by the persistence unit's entity manager factory.
The persistence unit can specify these elements and attribtues.
name
: This is the name you pass to the
Persistence.createEntityManagerFactory
methods described above. The name attribute is required.
transaction-type
: Whether to use managed
(JTA
) or local
(RESOURCE_LOCAL
) transaction management.
provider
: If you are using a third-party
JPA vendor, this element names its implementation of the
PersistenceProvider
bootstrapping
interface.
Note | |
---|---|
Set the |
jta-data-source
: The JNDI name of a JDBC
DataSource
that is automatically enlisted
in JTA transactions. This may be an XA
DataSource
.
non-jta-data-source
: The JNDI name of a JDBC
DataSource
that is not enlisted
in JTA transactions.
mapping-file
*: The resource names of
XML mapping files for entities and embeddable classes.
You can also specify mapping information in an
orm.xml
file in your META-INF
directory. If present, the orm.xml
mapping file will be read automatically.
jar-file
*: The names of jar files containing
entities and embeddable classes. The implementation will scan
the jar for annotated classes.
class
*: The class names of entities and
embeddable classes.
properties
: This element contains nested
property
elements used to specify
vendor-specific settings. Each property
has a name attribute and a value attribute.
Note | |
---|---|
The Reference Guide's Chapter 2, Configuration describes Kodo's configuration properties. |
Here is a typical persistence.xml
file for a
non-EE environment:
Example 6.1. persistence.xml
<?xml version="1.0"?> <persistence> <persistence-unit name="kodo"> <provider> org.apache.openjpa.persistence.PersistenceProviderImpl </provider> <class>tutorial.Animal</class> <class>tutorial.Dog</class> <class>tutorial.Rabbit</class> <class>tutorial.Snake</class> <properties> <property name="kodo.ConnectionURL" value="jdbc:hsqldb:tutorial_database"/> <property name="kodo.ConnectionDriverName" value="org.hsqldb.jdbcDriver"/> <property name="kodo.ConnectionUserName" value="sa"/> <property name="kodo.ConnectionPassword" value=""/> <property name="kodo.Log" value="DefaultLevel=WARN, Tool=INFO"/> </properties> </persistence-unit> </persistence>
