This appendix explains the use of the Enriched data exchange facility. This includes a description of operation, and the structure of the database tables it uses.
The Enriched data exchange facility enables you to combine the data gathered by RUEI with other data sources. These could include, for instance, Customer Relationship Management (CRM) or Business Intelligence (BI) systems. Using this functionality, you can produce customized analysis of your web environment using your own BI tooling, as well as integrate RUEI's rich set of collected data with offline data to obtain greater insight into what drives your sales and revenue.
The facility works by exporting the data collected every 1-minute period to a database. By default, the data is exported to the same database instance as used by the Reporter. However, it is strongly recommended that you configure an alternative database instance for enriched data export. Access to data in the export database is available via SQL. The procedure to do this is fully described in the Oracle Real User Experience Insight Installation Guide.
What Data is Available for Export?
The information captured during the monitoring of network traffic is available to you via reports and the Data Browser. Broadly, it contains two types of information: application-related and service-related information. For each type, detailed information across a wide variety of dimensions is available.
In addition to the user experience data gather by RUEI, KPI data can also be exported for customized analysis. This facility enables deep-dive analysis of the performance of your network environment and business-critical applications.
As described later in this section, you can customize the content of the exported data to include information not normally collected by RUEI. For example, the contents or value of visitors' shopping baskets.
Controlling the Availability of Exported Data
The amount of data available in the export database is controlled via the Enriched data exchange retention setting in the defined Reporter data retention policies. These are fully explained in Section 12.10.1, "Defining Reporter Retention Policies". The structure of the database tables used within the export database are described in Appendix S, "Enriched Data Export Facility". Access
Example BI Implementation Using Enriched Data Exchange

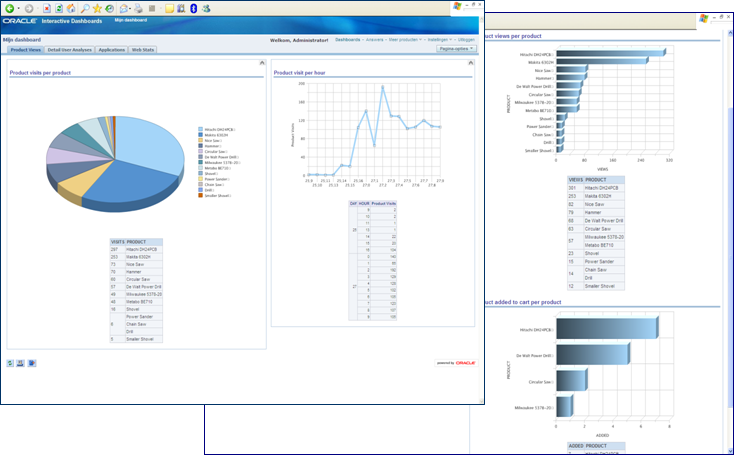

This section presents an outline of a BI solution utilizing data from the Enriched data exchange facility. In this case, it makes use of Oracle Business Intelligence foundation (part of the Oracle Fusion Middleware product family). Its schematic structure is shown in Figure S-1.

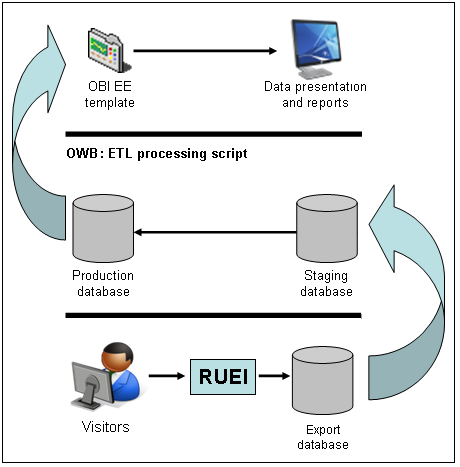

Figure S-1 Schematic Overview of Data Warehouse Staging Area
The framework is based on Oracle Warehouse Builder (OWB). The RUEI-captured data is exported to a database. From the export database, it is uploaded via SQL scripts to a staging database. This then populates the production database. Once in the production DWH, the RUEI data is available through a wide variety of reports and dashboards. An example of these reports is shown in Figure S-2.
Enabling and Disabling Enriched Data Exchange
To enable the Enriched data exchange facility, do the following:

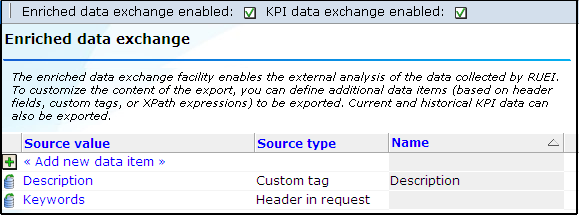

Select Configuration, then Applications, and then Enriched data exchange. The screen shown in Figure S-3 appears.
Use the Enriched data exchange enabled/disabled check box to specify whether the Enriched data exchange facility should be enabled. Use the KPI data exchange enabled/disabled check box to specify whether the export of KPI data should be enabled. By default, both are disabled. Note that the availability of export data is determined by your Reporter data retention polices (see Section 12.10.1, "Defining Reporter Retention Policies").
Optionally, you can define additional data items to be included in the exported enriched data. Typically, these are elements in the client request or server response headers that are not normally collected by RUEI, but which you want included in the exported data. To do so, click Add new item. The dialog shown in Figure S-4 appears.

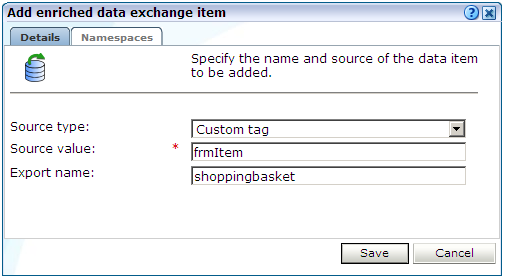

Figure S-4 Add Enriched Data Export Item Dialog
Use the Source type menu to define how the required item should be identified within the data collected by RUEI, and the scope of the search. You can specify to search within the client request header or server response header, using either a literal search or an XPath expression, or to search within a custom page-tagging implementation for a specific tag. Further information about support for custom page-tagging schemes is available in Appendix A, "Tagging Conventions".
Use the Source value field to specify the specific argument or element from which the data item's value should be taken.
Use the Export name field to specify the name to be assigned to the data item. This becomes the item's element name. In the case of a custom tag, this will appear in the CONTENT
column in the BI__BIDATA_MASTER
(see Table S-2) in the format &
name
=
value
=
. Similarly, XPath expression items would be reported in the REQUEST_HEADERS
or REPLY_HEADERS
columns. Note that the Export name field is not available if you select a header-related option in the Source type menu. In this case, the name of the header is used in the appropriate column. When ready, click Save. The new item, if found in the monitored traffic, will start to appear in the reported data within 5-10 minutes.
If your definition makes use of an XPath expression, click the Namespaces tab to define the namespaces it uses. The use of XPath expressions is described in Appendix F, "Working with XPath Queries".
Existing data items can be modified by right-clicking them within Figure S-3, and selecting Edit. You can also select Remove to delete it, or select Remove all to delete all currently defined items.
Be aware that the SQL queries used to access exported data can place a significant performance overhead on the export database. For this reason, it is recommended that you pay particular attention to the following points:
Try to limit the number of SQL queries run during a 1-minute period to a minimum. In particular, try to avoid querying the same data more than once.
Use simple SQL queries to access the required data. If particular table columns are not required, they should be dropped from the returned query.
If large volumes of data are required to be handled, you should consider the use of a separate export database. The procedure to configure an alternative database is fully described in Appendix B of the Oracle Real User Experience Insight Installation Guide.
This section explains the structure of the database tables generated by RUEI for Enriched data exchange. The table used for KPI data export is explained in Section S.3, "KPI Data Exchange Database Table Structures". These tables are located in the database (local or remote) used by your RUEI installation. They can be accessed through SQL queries.
When designing your SQL queries, it is recommended that you start by examining the relevant period table (such as WG__BIDATA_PERIOD
or WG__BIDATA_USERFLOW_PERIOD
) to see whether data for a required period has been exported. If available, you can then use the combination of PROCESSOR_ID
, PERIOD_ID
, and PAGEVIEW_ID
to access the other tables. In the case of KPI-related data, only PERIOD_ID
is required.
Due to the scalability of RUEI, most tables contains a PROCESSOR_ID
column. It indicates that data for a given interval was successfully exported from the specified Processing Engine system. This column does not appear in the KPI-related tables because KPI data is exported from the Reporter, and not from Processing Engine systems. Note that if your RUEI installation does not include any configured Processing Engines, only one row is created for each interval, with PROCESSOR_ID
reported as 0
.
The STAMP
column indicates the 1-minute interval during which the data export was triggered. As data is purged from the database, according to the specified Enriched data exchange retention policy (see Section 12.10.1, "Defining Reporter Retention Policies"), rows are removed from this table. Similarly, rows are added to the table every one minute. Note that a new row will only appear in the table if exporting of the associated 1-minute period has been completed. The availability of export data is determined by the Enriched data exchange retention setting described in Section 12.10.1, "Defining Reporter Retention Policies".
In the tables described in the following sections, columns of type VARCHAR
(such as CLIENT_REGION
) are dimensions, while those of type NUMBER
(such as DYNAMIC_NETWORK_TIME
) are data counters. An explanation of both is available in Appendix E, "Summary of Data Items".
The WG__BIDATA_PERIOD
table (Table S-1), provides an outline of the available exported page data. While the export data tables do not enforce referential integrity, the combination of the PERIOD_ID
(minutes since 1970 UTC) and PROCESSOR_ID
columns provides a link to other related tables.
The actual export page data is held in the WG__BIDATA_MASTER
table, shown in Table S-2. Within each PERIOD_ID
and PROCESSOR_ID
combination, each page view receives a unique ID, which is incremented for each page view. When a new PERIOD_ID
and PROCESSOR_ID
combination is encountered, the PAGEVIEW_ID
numbering re-starts from 1. The STAMP
column specifies the page view's true timestamp, rather than a 1-minute interval. Other columns specify the page view's properties. Note that the SESSION_ID
column provides a link to the viewed pages within specific sessions.
Table S-2 WG__BIDATA_MASTER Table
Column | Type |
---|---|
|
NUMBER |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
NUMBER |
|
NUMBER |
|
VARCHAR2 (4000 BYTE) |
|
NUMBER |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
NUMBER |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
NUMBER |
|
VARCHAR2 (4000 BYTE) |
|
NUMBER |
|
VARCHAR2 (4000 BYTE) |
|
NUMBER |
|
NUMBER |
|
NUMBER |
|
NUMBER |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
NUMBER |
|
VARCHAR2 (4000 BYTE) |
|
TIMESTAMP |
|
NUMBER |
|
NUMBER |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
VARCHAR2 (4000 BYTE) |
|
NUMBER |
|
VARCHAR2 (4000 BYTE) |
|
NUMBER |
