Using Oracle Mobile Field Service - Wireless

This chapter covers the following topics:

Introduction

Oracle Mobile Field Service - Wireless enables field service technicians access to information necessary to perform work at a customer's site.

Not only can technicians view their daily schedule of tasks, they can also perform many other functions, such as ordering parts, creating and scheduling follow-up tasks, creating service requests, and accessing the Knowledge Base for potential solutions to common customer issues. The Oracle Mobile Field Service - Wireless application also enables technicians to access their daily schedule of tasks even when not in the network service area.

Optionally, technicians can use Mobile Field Service - Wireless to get directions to a job site.

User Interface

The Mobile Field Service - Wireless application provides a consistent user experience through a common look and feel (same color palette, same art direction), and through similar interaction behaviors.

Important: To display the Springboard user interface instead of the Main menu, you must set the profile option 'Oracle Applications Look and Feel' to profile value 'Alta Look and Feel', which will render the Alta screen.

Support for Blackberry™ Devices

The Mobile Field Service - Wireless application user interfaces are certified for use on common mobile application devices, such as iOS and Android devices.

Pages containing tables are provided with width for the columns.

Choose between Images and Buttons

The Mobile Field Service - Wireless application provides you the ability to choose between images and buttons for the user interfaces. The value of the Profile Option CSFW: Use Icons for buttons determines whether icons or buttons appear:

For more information about setting Profile Options, see the Oracle Mobile Field Service Implementation Guide.

Dependencies

Mobile Field Service - Wireless has these dependencies:

Multiple Responsibilities

Multiple responsibilities features can be applied to fulfill the following needs:

Getting Started

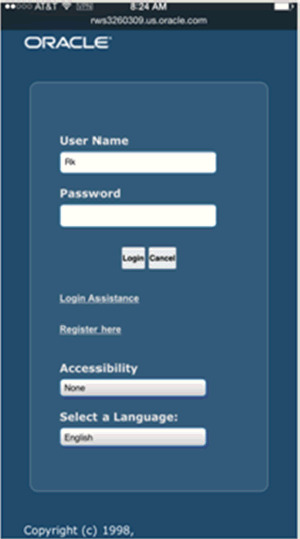

You can use single sign on (SSO) authentication for the Mobile Field Service - Wireless application, for which the authentication will be only once. For information on creating a single sign on, see the Oracle Mobile Field Service Implementation Guide.

the picture is described in the document text

Once logged in, the technician will view the Home Page based on the CSFW: Home Page profile option, which includes a list of hypertext links that provide access to the available functionality. This list includes the following links:

The Logout button at the top right of the Task List screen returns you to the Oracle Application Login page.

To navigate through the user interface (UI), the technician will use standard point-and-click functionality. The Mobile Field Service - Wireless application uses standard Oracle HTML functionality, whereby buttons and links are enabled, fields can be entered, and lookups can be used to select values for those fields that are list of value (LOV)-enabled.

When a technician logs into the Mobile Field Service - Wireless application, the home page main menu might also display the following notification message: "Your schedule has been updated. Please save offline schedule." This message occurs anytime there is a task assignment status change or time change to an assigned service request, or if a new task has been assigned to the technician. The message is a hypertext link and, by clicking it, the technician can view their updated daily schedule.

The next time the technician connects to the network through the wireless device, the notification will appear indicating a change. The technician can then view the change and save it as an updated offline schedule.

When you save a task list as an offline schedule, the task information is stored as a static HTML page and contains no active links or buttons. It is for view-only purposes.

Business Process

The field service technician is equipped with a wireless device, in most cases a Medium Form Factor PDA device.

Oracle Mobile Field Service Wireless is used together with the other wireless products and is not intended to replace these products. It will make the retrieval of task related information easier, because most field technicians carry phones with them. A connection with the wireless network is necessary for the application to operate.

Mobile Field Service Wireless supports the following business process flow.

  1. The call center agent creates a request and an Oracle Field Service task.

  2. The planner schedules a task and dispatches it to the most suitable field service technician.

    From this moment the field service technician can use the Oracle Mobile Field Service Wireless application to retrieve and update task and task-related information, to order parts, create new service requests, create follow-up tasks, and schedule them.

  3. The field service technician logs into the Oracle Mobile Field Service Wireless application.

  4. The field service technician retrieves their agenda for the current working day.

    If the current day is not applicable, the field service technician can choose another date. Navigation options are Next and Previous day. The technician can navigate days in both directions one at a time. After the field service technician selects one of these options, this date becomes the current day.

  5. The field service technician can now do the following:

    • View customer information.

      Field service technicians can inquire on the customer information concerning the selected task. They can also select customer telephone numbers and use them to call the customer.

    • View and update task information.

      Field service technicians can inquire on the task information concerning the selected task. They can change the resolution and the status of the selected task.

    • Enter debrief information for the task.

      When a field service technician works on a task, they have the ability create a debrief for that task after they have completed part or all of the task duties. A technician can add labor, material, and expense lines to the task, as well as capture counter readings and travel information.

    • Capture a customer signature.

      Technicians can capture a customer signature during the Debrief process, provided that they are using one of the medium form devices that is supported by Oracle. After a signature is captured during debrief, it is sent to the Field Service Core Debrief application, where it can be viewed as an attachment.

    • View service request information.

      Field service technicians can inquire on the request information concerning the selected task.

    • Submit the resolution of the task.

      Field service technicians can change the resolution of the selected task and update the problem code. The resolution list is extracted from the back office application. The technicians will be asked to close the task. If they close the task, the status of the task will be set to Closed.

    • Submit the change of task assignment status.

      If the CSFW: Update Schedulable Task profile is set to Yes, field service technicians can change the assignment status of a selected task, including that of a schedulable task. If the profile is set to No, technicians can only view the task. The task list is extracted from the back office application. When the assignment status of the task is set to Closed, the screen returns to the agenda.

    • Access the Knowledge Base.

      The technician can access the company information repository for potential solutions to problems experienced in the field.

    • Order Parts.

      The technician can order parts for a task.

    • Perform an Advanced Parts Search.

      The technician can search for parts from their own sub-inventories, from coworker's sub-inventories, or from a field warehouse.

    • Create service request and task.

      When the technician is at the customer site and if the customer reports a new problem, then the technician can create a service request on behalf of the customer.

      The technician can also create a task and assign the task to themselves by selecting: Work On It or Self Schedule options.

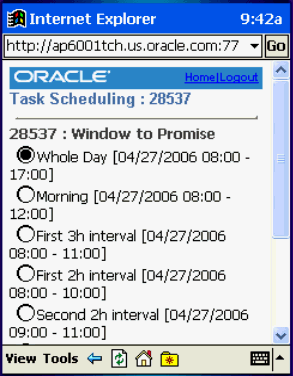

      Alternatively, the technician can also provide the window of time to the customer and enable them to pick a schedule time that is suitable for them. In this scenario, the task may or may not be assigned to the technician.

Viewing, Managing, and Updating Your Tasks

The Mobile Field Service - Wireless application provides field service technicians a link to critical information needed to perform their duties at a customer site. Typically, field service technicians are assigned one or more tasks to perform. The Mobile Field Service - Wireless application enables technicians to quickly view those tasks they're scheduled to perform today and also enables them to search for all tasks, or tasks that are assigned for a different day.

When viewing Today's Task or any other list of tasks returned from a Task Search, the information will be displayed based on the Preferences.

For example, you may want to display the Scheduled Start Time and the Customer Address in the search results. The possible attributes you can display are the following: Customer address, scheduled start time, and task number.

For more information on setting up your home page or setting all Wireless profile options, see the Implementing Mobile Field Service - Wireless chapter in the Oracle Mobile Field Service Implementation Guide.

The following task-related procedures are available to a field service technician through the Mobile Field Service - Wireless application:

Viewing Today's Tasks

Use this procedure to view the current day's task information.

the picture is described in the document text

Prerequisites

Steps

  1. Field Service Wireless responsibility. From the main menu, click the Today's Task hypertext link.

    the picture is described in the document text

    A screen labeled with the current date opens and displays a list of all the tasks scheduled to be addressed by the technician for that day. The tasks are displayed based upon the Task Display profile option and appear as hypertext links.

  2. For task details, click the link of the task you want to view.

    A screen appears displaying the task number and some of the task details such as, task assignment status, customer name, service request number, task name, priority, scheduled start, access hours, planned effort, and notes.

    If there is a parts requirement associated with the task, this field will display as well. You can click the hypertext link to see the Parts Requirement details.

    For each requirement, you can view and change the Address Type, based on which the Ship to address is displayed. The CSP: Parts Requirement Default Ship To Address profile determines the default value of the Ship to Address Type. You can select from any one of the following values:

    Customer, Task, Special, Third Party, and Technician Address.

    You can select the Ship To Address Type from the list with the following values

    • Technician Addresses: All active usable addresses setup in the Addresses tab of the Resource Addresses and Sub-inventories window.

    • Task Address: The incident address displayed for the task from the Service Request.

    • Customer Addresses: Displays all Ship To addresses associated with the customer.

  3. If you want to change the task assignment status, in the Status field, select the status you want to assign to the task (Working, Canceled, and so on) from the drop-down list and click Done to save the new assignment status.

    Additional Information: The list of valid statuses that the task can transition to depends on the current task status, responsibility, and task type. For example, the list of statuses for a task type of 'Field Service Repair' is different from a task type of 'Personal'. The list of valid task statuses that can be selected are based on the transition rule that is mapped to the responsibility and task type when Status Transition rules are defined.

  4. If you want to add a note to the service request, click the Add notes hypertext link. You can also view existing notes, if any, by clicking the relevant hypertext link.

  5. If you want to view service request attachments, click the Attachment icon.

    The Attachment icon only appears if there are associated attachments.

    The Attachment List screen appears displaying the attachment file name, size, and description. If you are launching a laptop or a desktop, then you can have attachments of any file type, such as: .jpeg, .bmp, .doc, .pdf, .xls, .gif, web page, or a short text. Click the attachment name to download and view the attachment.

    Note: In case of iOS devices, the options of attachments are limited. In iPhone, you can attach only photo or video.

  6. If you want to add a note to the task, click the Add notes hypertext link. You can also view existing notes, if any, by clicking the relevant hypertext link.

    Note: From the task details page of any task list in Today's Task, you can perform a variety of updates, such as adding debrief information, ordering parts, creating follow up tasks, and so on, by using the drop-down menu that is displayed with the task details. For more information, see Update an Existing Task.

Performing a Task Search

Use this procedure to perform a task search.

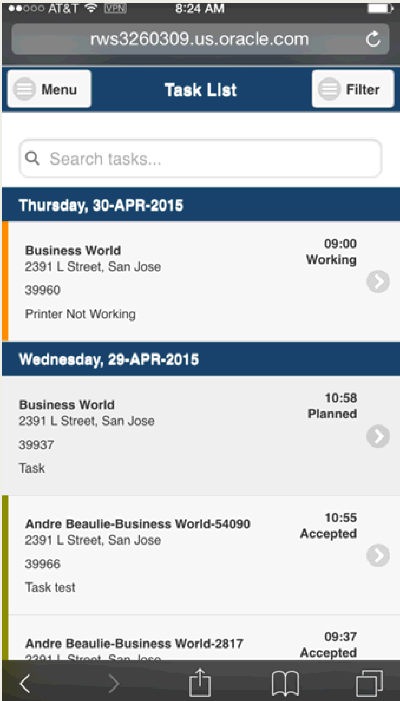

Task List Screen

The task list screen groups all the tasks based on the scheduled date in descending order. They are color coded based on the status. It offers easy access to the Springboard (which is the Menu icon) and the task views (which is the Filter icon). Field engineers can access additional task filters using the Filter icon to select appropriate task views, such as:

  1. Open Task

  2. Today's Open Task

  3. Assigned Task

  4. Personal Task

  5. Created Task

Prerequisites

To Perform a Simple Task Search

  1. From the main menu, click the Task Search hypertext link.

    The Task Search screen appears.

  2. Select a Search For option.

    Options are:

    • Open Tasks: Lists all the open tasks assigned to the technician.

    • Assigned Tasks: Lists all the tasks assigned to the technician either open or closed.

    • Personal Tasks: Lists all the personal tasks for the technician.

    • Created Tasks: Lists all the tasks created by the technician.

  3. Select your task search criteria. You can filter your search for a task by using any of the following criteria that appear on the page:

    • Task Number

    • Service Request

    • Status

    • Date

    • Customer Name

  4. Click OK to perform the search.

    If you want to view all tasks, simply click OK and do not enter any search criteria.

    Note: It is also possible to search for a task using Task Assignment Status and the Customer Name in the basic search screen.

    The Search Results screen displays a list of all the tasks that match the search requirement. The results that display are dependent on the settings in the CSFW: Task Display 1, 2, and 3 profile options.

  5. Click the hypertext link of the Task in which you want to view the details.

    The Task Details page appears. From this page you can view and update various task details just as you can while viewing task details from the Today's Task menu option.

To Perform an Advanced Task Search

  1. From the main menu, click the Task Search hypertext link.

    The Task Search screen appears.

  2. Select a Search For option.

    Options are:

    • Open Tasks

    • Assigned Tasks

    • Created Tasks

  3. Select your task search criteria. You can filter your search for a task by using any of the following criteria that appear on the page:

    • Task Number

    • Service Request

    • Status

    • Date

    • Customer Name

  4. Click the Advanced Task Search icon located at the bottom of the screen.

    Advanced search criteria fields appear on the screen and the title of the screen is changed to Advanced Task Search.

  5. Select additional search criteria to filter the tasks that you are searching for. Advanced search criteria are:

    • Priority

    • Start and End Date range

    • Account Number

    • Serial Number

    • Service Tag

    • Item Instance

  6. Click OK to perform the search.

    The Search Results screen displays a list of all the tasks that match the search requirement. The results that display are dependent on the settings in the CSFW: Task Display 1 and 2 profile options.

Updating an Existing Task

You can update key aspects of an existing task that has been assigned to you through Oracle Mobile Field Service - Wireless. You can access existing tasks through the Today's Task entry point, or by using the Task Search functionality.

You can make several updates to an existing task. The updates you can make include: updating the task assignment status, adding notes to the task, adding an attachment, adding debrief lines, updating additional task information, updating the scheduled start date and time, and viewing the task details report.

Note: When adding notes to either a task or a service request, the note type options are determined during the setup process in CRM Foundation. Those note types related to a task are mapped to the Task Manager, which can only be viewed when adding a note to a task. Notes related to the service request are mapped to the service request, and can only be viewed when adding a note to a service request.

Once you have retrieved a task's details, use the following procedure to update the task assignment status, to add notes, and to add attachments.

Prerequisites

Steps

  1. To update the task assignment status, from the Task Details screen, select the status you want to assign to the task from the drop-down list.

    Main Menu or Springboard > Task Search > Task Details

    Main Menu or Springboard > Today's Task > Task Details

    The available status values display such as, Completed, Accepted, Rejected, Working, Cancelled. The possible status values that appear are based on the Task Status Transition Rule mapped to the current responsibility and task type. The task type, current task status and responsibility will collectively determine the next status that the task can transition to.

    Based on the task assignment status, a color code is displayed on the left hand side of the Task Details pane.

  2. Click Save to save the new task assignment status.

    Note: If a task is assigned to a service request that has products associated with it that include counter readings, upon changing the task assignment status to "Completed" a notification is generated asking the user if they want to "Capture Readings for the Following Counters?" and lists the products as a hypertext link. To capture the counter readings, click the hypertext link and enter the counter reading details. For more information, see Recording Counter Readings

  3. To add a note, tap the Add hypertext link in the Notes field.

    The Add Note screen appears.

  4. Select the Type of note you are adding from the drop-down list.

    For example, Callback, Conversation, Date Change, and so on.

  5. Select a note Status from the drop-down list. Possible values include: Public, Private, and Publish.

  6. Enter the text of the note in the Descriptions text box.

  7. When you have finished with the note, tap OK.

    After the note is added, the Task Details screen is opened again. In the Notes field, you can now look at the note you added by tapping the View hypertext link. Furthermore, all notes attached to a task can be viewed and multiple notes are designated by a numerical value next to the View link. For example, if there are two notes attached to a task, you will see "(2)View" in the Notes field.

  8. To view an existing note, tap the View hypertext link.

    The Notes screen appears and displays a list of the notes associated with the task. This hypertext link displays the date and time when the note was created, the name of the resource who created the note, and the first few words of the note description. You can also create a new note for the task by clicking the New Note button.

  9. Click the hypertext link of the note you want to view.

    The note details are displayed.

  10. To add an attachment, scroll to the Attachments region and tap Add in the Service Request field.

    The The Service Request: x screen appears.

  11. From the LOV, select Attach File, Attach Text, or Attach URL.

    For this subflow, assume that you picked Attach File. The Add Attachment: x screen appears.

  12. In the Attachment Summary region, enter values for Title, Description, and Category. Browse and select the desired file. Tap OK.

    Note: If you select a file, the attachment options are limited in iOS devices. In case of an iPhone, you can attach either a photo or a video.

    The Add Attachment: x screen reappears.

  13. Adjust the title and description if necessary, and tap OK.

    The application uses its built-in Wireless server to upload the file to the E-Business Suite Enterprise server.

  14. Tap Report in the Task Details screen to view the task report. This report displays service information, task details, debrief information for material, labor, and expense, and duration of the task.

    Tap Signature in the Task Details screen to get the customer sign off on the task. If a signature already exists for the task, it is displayed with the date and the customer who signed off the report. Else, you can capture the electronic signature of the customer for completion of the task. You can send a hard copy of the report by printing it or send it by email to the customer.

Recording Counter Readings

A technician can record counter readings during a service call if the task assignment they are working on is associated with a service request on a product requiring counter readings.

Use this procedure to record counter readings.

Steps

  1. From the Task Details screen, select Counters from the drop-down menu.

    The Counter details screen appears displaying the product name and the Current Reading.

  2. In the New Reading field, record the counter reading for the product.

  3. Optionally, enter a Reset Reason.

  4. Optionally, enter a Reset Reading.

  5. Click Done when you have finished recording the counter readings.

Adding Debrief Lines to a Task

As a technician, you have the ability to debrief the task after you perform the job at a customer site. MFS application allows you to add Labor, Material (Install and Return), and Expense lines to the task.

Add Labor Line: You can add a labor line to report how much labor time is involved in the completion of a task. You can also enforce mandatory labor debrief by adding business rules to a labor line without which you cannot close the task.

Add Install Line: You can report on installed material and recovered items using Material Install. This helps you to plan for the supply of service parts, to maintain the installed base, and to generate an invoice for the materials used. Tapping on the Add Install Line you can create material install lines to a task.

Add Return Line: Tapping Add Return Line enables you to create material return line and capture debrief lines when items are removed from the customer site. Such items may be worn out parts or that which has to be retired. You can view, edit, and create material lines.

Add Expense Line: Material Expense screen is used to capture all expenses incurred during a task. You can create multiple expense lines for a task. Technicians cannot modify expense lines that have been submitted to Charges, but can add new expense lines for the task, if it is not closed.

Adding a Labor Line

You can create a labor line to report the labor time involved in the completion of a task. Oracle Mobile Field Service - Wireless enables you to add labor lines regardless of the task status. The application can also enforce mandatory labor debrief by which you cannot complete or close a task until you create a labor line.

  1. Navigate to the Task List screen and tap the desired task.

    the picture is described in the document text

  2. Select Debrief from the list of actions.

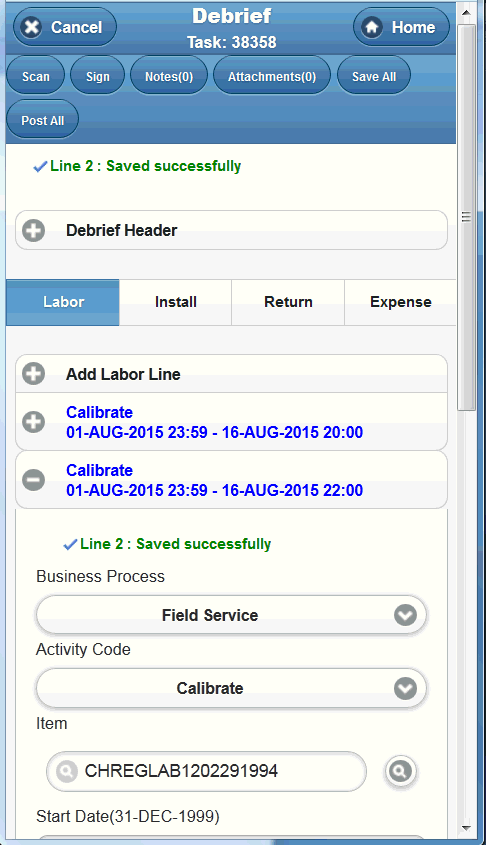

    The Debrief screen opens.

  3. In the Debrief Header region, click the Labor tab.

  4. Tap the Add Labor Line field.

    The Add Labor Line region displays the default business process, activity code, and the start and end dates, which can be changed.

    For the labor service activity if you select the Update Actuals check box in the Service Activities and Billing Types window or the Service Activity Details page, the actual start and end date on the service request task region is updated based on the labor start and end time.

    For a task if there are multiple labor lines with the Update Actuals check box selected, then the actual start and end date on the service request task region is the sum of start and end dates of those lines. In case the task is assigned to multiple resources, then the task duration is calculated as the sum of all the resources' start and end dates.

    If you do not want the labor charge line to be calculated based on the actual start and end date specified in the task region, then do not select the Update Actuals check box in the Service Activities and Billing Types window or the Service Activity Details page.

  5. Tap the search icon of the Item field and select the labor item.

  6. Specify the Start Date and the End date for the labor activity.

  7. Specify the Start Time and the End Time for the labor activity. The hour values are depicted in the 24-hour clock format.

  8. In the Duration field, enter the amount of labor time required to complete the task.

  9. Select the unit of time that describes the labor duration from the UOM list of values.

  10. Select the reason that best describes the state of the labor report item from the Reason list of values (optional).

  11. Tap the Save button.

    The Debrief screen opens. The labor report item along with the start and finish times appear on the screen.

    the picture is described in the document text

Adding an Install Line

When a field service technician works on a task, they have the ability create a debrief for that task after they have completed part or all of the task duties. The Mobile Field Service - Wireless application leverages the Oracle Field Service's Debrief module for this purpose. A technician can add labor, material, and expense lines to the task. Each of these debrief lines contains a list of fields that must be entered when adding that particular line to the task.

The following lists the required fields for each type of line:

The Mobile Field Service - Wireless application also supports loaner transactions, whereby the field technician is installing a part at the customer site, which will serve as a temporary replacement part while the original is fixed. In this case, you will need to set up Service Activity Codes for material items of type Loaner.

Plus, the Mobile Field Service - Wireless application enables technicians to capture travel related information for their individual task assignments. Technicians have the ability to capture travel information such as, travel distance and travel time.

For complete details on using Oracle Field Service Debrief, see the Oracle Field Service User Guide.

  1. Navigate to the task details page of the task you want to update. You can locate the task either through the Task Search function, or by using Today's Task functionality.

  2. Select one of the following options from the menu and click Go.

    • Debrief - The Debrief summary screen appears. The screen will display the Customer Name and Debrief Number.

    • Debrief: Assigned Parts - You can view this menu option only if there are parts requirement for the task. The Material Line screen appears displaying the material debrief details.

    • Debrief: Barcode Scan - This option enables technicians to scan serial numbers or item numbers. The Scan Barcode screen appears

  3. Optionally, if the Service Request has been resolved, select a Resolution Code from the drop-down menu and click Save.

    Resolution codes are set up in Oracle TeleService and are user definable to meet your business needs.

  4. If you want to add a summary of your work, enter some free form text in the Resolution Summary text box.

    This information is reflected back on the Service Request window in Oracle TeleService and displays in the Resolution Summary section.

  5. If you want to update the problem code, select a Problem Code from the drop-down menu and click Save.

    Problem codes are set up in Oracle TeleService and are user definable to meet your business needs.

  6. If you want to update the problem summary, enter some free form text in the Problem Summary text box.

    This information is reflected back on the Service Request window in Oracle TeleService and displays in the Problem Summary section.

  7. In the Debrief Details section, under the Edit Line Types section, there are hypertext links for Expense, Labor, and Material lines. To the right of each of these lines, there is an Add hypertext link. Click Add on the line you want to add to the debrief.

    The Details screen appears. This screen will display the relevant fields associated with each of the Debrief lines.

  8. Fill in the fields with your debrief information for the line you selected.

    These fields will render dynamically, based upon the Debrief line selection that you make, in other words, Expense, Labor, or Material.

  9. If you are entering Material line information:

    For Regular Installation:

    Enter the following information:

    • Usage Type - The usage type for regular installations is Used.

    • Business Process

    • Activity Code

    • Item

    • Description

    • Quantity

    • Reason

    • Date

    Based on your setting for the CSF: Enable Return Routing in Debrief profile option, you can enter material debrief lines for parts with a usage type of Used, Unused, or Defective on Arrival. For more information on this profile, see the Oracle Field Service Implementation Guide.

    For Used parts, the business process and activity code fields are rendered. If you select Unused or DOA, fields used in return routing are displayed instead. These fields are the destination subinventory and organization, shipping address, and shipment number, waybill number, and carrier. For more information refer to the section For Assigned Parts.

    Note: If you set up Routing Rules in Spares Management for this return type of excess or defective, the Destination Organization, To Subinventory, and Return Ship to Address fields are displayed.

    You can additionally, enter the carrier, waybill number, and shipment number. If routing rules are not defined, the technician's default defective subinventory and organization are populated.

    Apart from the Usage Type specific fields, information for other material line fields are populated with the default values for the material item as recorded in Installed Base. These include the item number and description, serial number, default technician usable subinventory, quantity, unit of measurement, service date, operational status, revision, instance, and reason for transaction.

    You can add additional material lines by clicking the Add Install Lines option.

    For Assigned Parts:

    Enter the following information:

    • Business Process

    • Activity Code

    • Usage Type - If you select Defective on Arrival (DOA) or Unused as the Usage Type, then enter additional details such as Destination Organization and Destination Subinventory.

    • Serial Number - Enter the Serial Number in any of the following ways:

      • Barcode Scanning: The Barcode scanner icon is enabled when the cursor is in the Serial Number field. This icon is enabled in the virtual keyboard of the device if a barcode scanner is integrated with the application.

      • Free Form Entry: You can enter free form serial number by typing the serial number.

      • Drop-down LOV: You can also select the serial number from the LOV.

    • Quantity - By default, the quantity displayed is 1. You can change the quantity if the item is not serial controlled.

    For Barcode Scanned Parts:

    Tap the Barcode Scan button to open the Barcode scan screen. This screen enables technicians to scan either an item number or a serial number.

    After the scanning process completes, technicians can choose whether they need to Install or Return the scanned parts. The system then validates the serial number or item number. In a single round trip, the system validates the scanned serial numbers or item number against the technician's trunk stock and retrieves the following information:

    • Item Number

    • Item Description

    • On Hand Quantity

    • Locator Control (if the item is Locator controlled)

    • Lot Control

    After the serial number or item number validation is complete, you can edit the following information:

    • Usage Type

      • If you select Defective on Arrival (DOA) or Unused, then enter additional information including Destination Organization, Destination Subinventory, Waybill Number, and Shipment Number.

      • If you select regular install debrief, where the usage type is “Used”, then you must enter the information mentioned above excluding Destination Organization and Destination Subinventory.

    • Serial Number

    • Business Process

    • Service Activity Code

      • In case of install type debrief, the default service activity code with line category of “Order” is displayed.

      • In case of return type debrief, the default service activity code with line category of “Return” is displayed.

    You can also create a material install debrief line from the Returns screen based on the return item number and serial number. If the item is not serial controlled, then the debrief information is displayed based on the return item number.

  10. For a recovered part, additional information displayed include recovered item number, recovered item serial number, recovered instance, and recovered part disposition if applicable. If the profile CSF: Validate Part Replacement in Debrief is set to Yes, then the installed part is validated against the recovered part and if they are same, the CSF: Update Debrief Lines concurrent program posts material debrief information to Oracle Inventory

  11. Click Save to save the changes to the debrief line.

  12. Click Post to post the debrief line. Click Post All to post all debrief lines.

    Note: If the part or item is serially tagged and has an Install Base serial number, you can select this serial number from the list of values in the item number field. If no Install Base record exists, you can enter a serial number which creates an Install Base record when you post this debrief line and updates Inventory and the debrief record with the instance number. Technicians can choose to manually post debrief by clicking the Post Debrief icon on the Material Line screen. See figure below. This ensures that irrespective of task completion status, the CSF: Update Debrief Lines concurrent program posts material debrief information to Oracle Inventory, Install Base, and Charges, and transfer the uninstalled and recovered parts to their routing destinations.

    Note: For unused parts, the CSF: Update Debrief Lines concurrent program neither updates the Install Base nor creates charges. It merely transfers these parts to the specified destination for better utilization and reduced inventory cost.

  13. Alternatively, if entering Expense or Labor lines, click Done when you have filled in the details of the debrief line in Step 7.

    When you have added a debrief line, the hypertext name of the line (Expense, Labor, or Material) displays a numeric value next to it which indicates how many lines of that particular designation have been added.

    Example

    For example, if you have added two expense lines, the hypertext link would read "Expense(2)." Clicking on that link opens the Expense Lines screen and displays some basic details of both the expense lines you added. You can click on either of the expense lines to open the Debrief Details screen and view or edit the line. You can also add another Expense line from the Expense Lines screen by clicking the Add Expense button. This process applies to Labor and Material lines as well.

Adding a Return Line

A task may require the technician to replace a part at the customer site and install a new replacement part. In this case, then you enter the details of the new replacement part in the Material Install region and the details of the old part that you removed from the customer site in the Material Return region of the Debrief tab.

  1. In the Material section - Return, click Add Return Line. This expands the Material - Return line, where the technician can enter information to create a return material line.

  2. Select a Business Process.

  3. Select a Service Activity code

  4. The sub-inventory populates with the default defective sub-inventory of the technician. If the default defective sub-inventory is not set up, then this field is populated with the technician's default usable sub-inventory.

  5. Select the Item number by clicking the Search for Item icon.

    When you click the Search for Item icon the Search and Select: Item page appears.

    Enter the item search criteria and click Go. You can search by Item, Item Description, Subinventory, or Revision.

    The system displays the Item field in the Material section, with the one selected on the Search and Select: Item page.

  6. The UOM, Operational Status, and Service Date fields default once you select the Item.

  7. Enter the quantity for the item returned in the Quantity field.

    In the case of serialized items, Quantity is set equal to 1, and the Quantity field is disabled. For nonserialized items, you can change the quantity.

  8. Enter the Serial Number, Lot, Locator, Revision, and Instance Number details depending on the item attributes.

    The list of values for these fields are validated based upon the item and sub-inventory combination.

    Note: If the item is serial-tagged, select the item from the list of values or enter a serial number. If you enter a serial number, the debrief posting program updates the Install Base instance accordingly.

  9. (Optional) Select a Reason for the material transaction from the list of values.

  10. Select the Return Reason from the list of values.

  11. Click Apply. The material line is saved.

Adding an Expense Line

Material Expenses can be your travel expenses, Hotel accommodation, and other miscellaneous expenses that you incur during the case progression. Technicians can add new expense lines for the task as long as the task assignment status is not Closed, but cannot modify expense lines that have been submitted to Charges.

To create expense lines:

  1. Navigate to the Debrief screen by tapping Debrief menu present in the Task Details screen.

  2. Tap the Expense tab.

  3. Tap the Add Expense Line menu.

  4. Enter your expense item or select the item using Search and Find icon in the Item field.

  5. Enter expense amount.

    The value in the Currency field defaults to the currency set in the profile option, JTF_PROFILE_DEFAULT_CURRENCY. Optionally you can change the value.

  6. Tap the Save icon to save the expense line.

  7. You may delete the saved debrief lines by tapping Delete icon. Delete option is available in the Action menu. Delete is not allowed once the task is completed.

Capturing Customer Signature

The Mobile Field Service - Wireless application enables you to capture a customer signature during the Debrief process on device browsers supporting HTML5. Once a signature is captured during debrief, it is sent to the Field Service Debrief application, where it can be viewed as an attachment. A service manager can view the signature as a Debrief attachment.

The following table provides a list of the wireless devices that currently support Oracle's capture customer signature functionality:

PDA Device Name Specifications
Palm Devices with Symbol Client (i.e. SPT-17xx, SPT-18xx) Web client browser is required on the device to support signature capture.
Pocket PC 2002 or higher Requires Pocket IE browser.

Generating Field Service Report and Capturing Signature

You may review your action summary using the Field Service Report after capturing the required details for a task. The Report provides a high level summary of all the required information and helps you to be certain that you have all the necessary information captured before you present it to the customer for a signature, which the customer reviews and signs. You can then generate a PDF version of the report.

To generate field service report and capture signature

  1. Navigate to the Task List screen and tap the desired task.

    Main Menu or Springboard > Task List

  2. Tap the Actions menu present on the top right side of the Task Details screen.

    the picture is described in the document text

  3. From the list of Context Actions menu that drops down tap Signature.

  4. Enter the signature in the Signature text field.

  5. Enter the name of the customer in the Name field.

  6. Tap the Save icon.

    The signature is saved with the assigned task number. You can also see the name of the customer and the date on which the document was signed on the top of the screen.

  7. Tap the Task Report from the Actions menu.

    The Service Request PDF window appears. You can either save the report or open with Adobe Acrobat to view the report.

    the picture is described in the document text

Creating a Service Request

One of the advantages that the Oracle Mobile Field Service - Wireless application offers a field service operation is the ability to create follow-up work orders in those situations when a technician recognizes the need while out in the field. For example, a field service technician can initiate a new service request from a wireless device while on a customer call at a customer site.

This option is available from either:

When creating a service request for the same customer while servicing a particular task, the Mobile Field Service - Wireless application defaults key information such as, customer name, address and contact name, if any. The customer name and address cannot be edited.

The service request type, status, and severity appear by default from profile options set up in Oracle TeleService. These values can be overridden, if necessary.

After the service request has been created, the technician can add notes to the service request, and also has an option to create a task against the service request. Once the task is created, parts requirements can be added to the task. After a service request is created with an associated task, it is picked up by the Dispatch Center and can be scheduled, either manually or through the Oracle Advanced Scheduler.

The technician also has the following options to schedule and assign the tasks:

For more information on creating service requests, see the Oracle TeleService User Guide.

Use the following procedure to create a service request from an existing task.

Steps

  1. From the Task Details screen, select Create Service Request from the drop-down menu at the bottom of the screen.

    Main Menu or Springboard > Task Search > Task Details > Create Service Request option from drop-down menu > Create Service Request

    The Create Service Request screen appears and the customer name and address from the existing service request that you were working on appear by default. The Type, Status and Severity fields also appear by default, but you can change the values, if necessary.

  2. Enter a Summary of the problem for which you are creating the service request.

  3. Select an Item, if necessary to associate with the service request.

  4. If the item is serialized, select a Serial Number.

  5. Select an Item Instance, if applicable.

  6. Select a Service Tag, if applicable.

  7. Click OK to create the service request.

    At this point you will receive a service request number and a message that the service request was successfully created. The request number screen appears and, at this point, you can add Notes to the service request or you can add a Task.

  8. To add Notes, click the Add hypertext link at the Notes field.

  9. In the Notes screen, select the Type of note, the Status of the note, and enter a text Description for the note. When you are done, click OK to add the note and return to the request number screen.

  10. To create a task for the service request, click the Add link at the New Task field.

    The Create Task screen appears which is exactly the same as the screen used to create a follow-up task. See Creating a Follow-Up Task for details.

  11. Click OK.

    You can add a parts requirement to the task, which is associated with the new service request, just as you can when creating a follow-up task. You can also create a service request from the Mobile Field Service - Wireless application main menu. In this case, you must provide all the relevant customer information.

Creating a Service Request from the Main Menu

Technicians can also create service requests from the Main Menu. In this case, technicians have the opportunity to select from among all the customers that are on their Today's Tasks list. When they navigate to the Create Service Request screen from the main menu, the Customer Name field contains all the customer names drawn from Today's Tasks list in the drop-down list.

If you are creating a service request for a customer not contained in Today's Tasks list, you must know the product Service Tag, Item Instance, or Serial Number. The Mobile Field Service - Wireless application can fill in the appropriate information if you know any of this information.

Creating a Follow-Up Task

Often times, a field service technician will recognize a need for follow-up work when completing a particular task at a customer site. For a variety of reasons such as, time constraints, parts availability, or lacking the technical expertise to address the task immediately, the technician might not be able to complete the work them self.

In these cases, a technician can create a follow-up task through the Mobile Field Service - Wireless application. When a technician creates a follow-up task:

The task is automatically associated with the customer that the original task was assigned to. The Service Request number is defaulted from the original service request as well. If there is a Parts Requirement associated with the original task, and you want to create an identical parts requirement, you can copy the parts requirement from the original task when you create the follow-up task.

If there is a skills requirement associated with the original task, it will be automatically copied over to the follow-up task. For detailed information on skills requirements, see the Creating Service Requests and Field Service Tasks chapter of the Oracle Field Service User Guide.

The task and assignment status LOV will display the initial statuses defined for the selected task type and current responsibility. The user can then choose from a list of valid initial task statuses for task creation. By default, the field will display the initial status that has been selected as the default status for that task type and/or responsibility.

Use the following procedure to create a follow-up task.

Prerequisites

Steps

  1. Navigate to the task details page of the task you are working on. You can locate the task either through the Task Search function, or by using Today's Task functionality.

    Main Menu or Springboard > Task Search > Task Details

    Main Menu or Springboard > Today's Task > Task Details

    the picture is described in the document text

  2. From the drop-down list at the bottom of the details page, select Follow Up Task, and then click Go.

    The Follow Up Task screen appears with the Customer name and Request Number appearing from the original task. The Status of the task appears by default as well.

  3. In the Priority field, enter the task priority.

  4. From the Task Owner Type LOV, select either Employee Resource or Group Resource. When Employee Resource is selected, the Name field LOV displays all valid resources. When Group Resource is selected, all valid resource groups that have Usage defined as “Support” are displayed.

  5. By default, the resource name defaults from the owner of the parent task. Use the LOV to change the value as required.

  6. Select a Planned Start Date for the task. You can perform this step by clicking Pick.

  7. Enter a Planned Start Time.

  8. Select a Planned End Date.

  9. Enter a Planned End Time.

  10. Enter the Planned Effort for the task.

  11. If you want to copy the parts requirement from the original task, select the Yes radio button at the Copy Requirements field.

  12. If you have any notes to add, enter them in the Notes field.

  13. Click OK to create the task.

    You can also add a parts requirement after the follow-up task has been created. Click Add Requirement to navigate to the Add New Requirement Line screen and enter the appropriate information.

Understanding Scheduling Tasks

Technicians can schedule tasks and follow-up on tasks from wireless PDA devices. The access level for the technician in the wireless device for the scheduling and assignment of a task depends on the value of the profile option CSFW: Technician Schedulable Options. Possible values for this profile option are:

Task scheduling and assignment from mobile devices supports the following business cases:

Starting Self-Assigned Tasks Immediately

Use this procedure to start work on a self-assigned task right away:

Prerequisites

Steps

  1. Select a task from the Today's Tasks list.

    See Viewing Today's Tasks.

  2. Select the Work On It option from the drop down menu, and then tap OK.

    The task is assigned to the technician and the technician can begin to work on the task.

    When the task is assigned, the task assignment status ID will appear by default from the profile option CSF: Default Working Task Status setting. See the Oracle Mobile Field Service Implementation Guide.

    For example, the task status is set to "Working".

    the picture is described in the document text

Self-Scheduling Tasks

In this option, the technician selects from the scheduling options provided by the system. The task is assigned to the technician.

Use this procedure to Self-Schedule a task:

Prerequisites

Steps

  1. Select a task from the Today's Tasks list.

    See Viewing Today's Tasks.

  2. Select the Self Schedule option from the drop down menu, and then tap OK.

    Note: Alternatively, when a created task already exists in the device with the task status of “In Planning”, the technician can search for the task, select the task, and then select the Self Schedule option.

    See Performing a Task Search.

    Selecting the self schedule option provides the technician with several schedule options. The plans appear in ascending order according to cost.

    The plan options that display depend on the value set for the Profile Option CSFW: Task Max. See the Mobile Field Service Implementation Guide.

    the picture is described in the document text

  3. After the technician selects a schedule option, the task is assigned to the technician.

  4. When the task is assigned to the technician the task assignment status changes, depending on the value of the profile option “CSF: Default Assigned task status”. See the Mobile Field Service Implementation Guide.

Using Window to Promise to Schedule Tasks

Using the window to promise option, the technician provides the customer with plan option time slots, or "windows", to choose from. When the customer selects a window plan option, based on the plan option selected, and availability of resources and parts for the plan option selected, the dispatcher assigns a technician for the task. The same technician may or may not be assigned for the task.

Use this procedure to use the windows to promise option to schedule tasks:

Prerequisites

Steps

  1. Select a task from the Today's Tasks list.

    See Viewing Today's Tasks.

  2. Select the Window to Promise option from the drop down menu, and then tap OK.

    Note: Alternatively, when a created task already exists in the device with the task status of “In Planning”, the technician can search for the task, select the task, and then select the Self Schedule option.

    See Performing a Task Search.

    Selecting the window to promise option provides the technician and customers with several windows of time. The plans appear in ascending order according to cost.

    The plan options that display depend on the value you set for Profile Option CSFW: Task Max. See the Mobile Field Service Implementation Guide.

    the picture is described in the document text

  3. After the customer selects an option, the task is assigned to the technician available for the windows option selected.

  4. When the task is assigned the task assignment status changes, depending on the value of the profile “CSF: Default Planned task status for Planned task”. See the Mobile Field Service Implementation Guide.

    The access level for the technicians in the wireless device for the scheduling and assignment of a task depends on the value of the profile option: CSFW: Technicians Schedulable Options. Possible values are:

    • Work on it

    • Self Schedule

    • Window to Promise (Default)

    If Level 3 is set (Window to Promise) all three options having same or lesser level are allowed.

Using the Intelligent Mode to Schedule Tasks

In this option, the technician selects from the scheduling options provided by the system.

Use this procedure to schedule a task with the intelligent mode:

Prerequisites

Steps

  1. Select a task from the Today's Tasks list.

    See Viewing Today's Tasks.

  2. Select the Intelligent option from the drop down menu, and then tap OK.

    Note: Alternatively, when a created task already exists in the device with the task status of “In Planning”, the technician can search for the task, select the task, and then select the Self Schedule option.

    See Performing a Task Search.

    Selecting the Intelligent option provides the you and customers with several windows of technician and time. The plans appear in ascending order according to cost.

    The plan options that display depend on the value you set for Profile Option CSFW: Task Max. See the Mobile Field Service Implementation Guide.

  3. After the customer selects an option, the task is assigned to the technician available for the windows option selected.

  4. When the task is assigned the task assignment status changes, depending on the value of the profile “CSF: Default Planned task status for Planned task”. See the Mobile Field Service Implementation Guide.

    The access level for the technicians in the wireless device for the scheduling and assignment of a task depends on the value of the profile option: CSFW: Technicians Schedulable Options. Possible values are:

    • Work on it

    • Self Schedule

    • Window to Promise (Default)

    If Level 3 is set (Window to Promise) all three options having same or lesser level are allowed.

Creating a Personal task

A personal task is a notice to the dispatcher that a technician will not be available for a particular period. Personal time for appointments, meetings, training, and vacations can be reserved to prevent task assignments during that time. For example, if a technician needs to go to the dentist next week, they can create a personal task stating that they will be unavailable to perform service tasks for a certain period.

By knowing the availability, the dispatcher can schedule the technician's tasks more effectively.

Use this procedure to create a personal task:

Oracle Mobile Field Service Wireless creates a personal task and then returns you to the Main Menu. The personal task that you create will be visible in the list of tasks. You can click the task number to update it or if you know the task number, you can also search for it in the Search Task screen to open it.

  1. Navigate to the Main Menu.

  2. Click the Create Personal Task link on the Main Menu. The Create Personal Task page appears. If your home page is either "Today's Task" or "All Open Tasks", click the Personal Task link in the Action menu in the task list.

  3. Enter the subject for the personal task.

  4. Select the task type. If the CSF: Default Task Type for Personal Tasks profile option is set, the value for the task type is displayed by default. This LOV lists task types that have the Private check box enabled.

  5. Select a status for the personal task. The task and assignment status LOV will display the initial statuses defined for the selected task type and current responsibility. The user can then choose from a list of valid initial task statuses for task creation. By default, the field will display the initial status that has been selected as the default status for that task type and/or responsibility.

  6. Select a priority for the personal task.

  7. Enter the planned start and end dates and time for the personal task.

  8. The planned effort for the personal task is automatically calculated based on the start and end dates.

  9. Select the UOM for the effort.

  10. (Optional) Select the Address Type for the task. Addresses can either be a technician or a one-time address.

  11. Enter the address details if you select One-time as the address type. In case you select Technician as the address type, then you must select a value from the LOV.

  12. Enter a description for the task.

  13. Click Apply.

Viewing Install Base Product Configuration

The Oracle Mobile Field Service - Wireless application integrates with Oracle Install Base to provide the install base configuration for an instance, against which a service request was initially logged.

Oracle Install Base is designed to track serialized and non-serialized item instances for products, providing for:

The Mobile Field Service - Wireless application enables a technician to view all the parent-child relationships related to a particular installed instance of an item. If, for example, a product (say a computer system) is installed at a customer site, and it is comprised of several other related components (monitor, hard drive, modem, and so on), then the install base view enables a technician to view the relationship between all of these components.

The wireless application provides support for internal assets. This functionality was developed to cater to the needs of the field service organizations that can provide service to internally owned assets as well as to customer products.

Typical examples of this case include:

Technicians can create tasks even when the service request incident address does not refer to a party site. This extends support for service of assets in locations that are not owned by or assigned to a specific party.

For more information, see the Oracle Install Base User's Guide.

Use this procedure to view the Install Base configuration of an item associated with a service request:

Prerequisites

Steps

  1. Navigate to the Task Details page.

    Main Menu or Springboard > Task Search > Task Details

    Main Menu or Springboard > Today's Task > Task Details

    From the Task Details page, click the hypertext link Request number.

    The Service Request screen appears.

  2. In the Item field, if the item number is a hypertext link, then click it.

    The IB Configuration screen for the selected item appears. This screen displays details about the item such as, Item Instance number, Item number, Item Description, Quantity, Status, and also a spread table with all the related child Item Instances. The table includes the Item Instance number, the Item number, status, and serial number, if any.

    If there is an icon to the left of the Item Instance number, this indicates that there are children items related to this item instance.

  3. Click the icon to see the item instances related to that particular child item instance.

  4. When you are finished, click Done.

Viewing and Scheduling Unassigned/Assigned Tasks (Decentralized Scheduling)

Mobile Field Service Wireless application enables field engineers to view and schedule unassigned tasks that belong to their group from the technician dashboard in addition to viewing only those tasks that are assigned to them. This functionality enhances a technician's productivity by taking up additional work after completing the work assigned to them. Additionally, this allows them to view tasks of other technicians (co-workers) who are members of the group. Two task search options such as Group Unassigned Tasks and Group Assigned Tasks in Task Search screen help in effective assignment of tasks. To enable this feature, you must add two new function securities such as SHOW_GROUP_UNASSIGN_TASKS and SHOW_GROUP_OTHER_TECH_OPEN_TASKS to the appropriate responsibility. These functional securities allow the field technicians to view assigned and unassigned tasks that belong to their group. Therefore it also reduces the Field Dispatchers work load substantially.

You can access this feature from the Task Search screen in the Home screen or Springboard. You have two additional options in the Search By field of the Task search screen. They are:

To schedule unassigned tasks or reassign group tasks

  1. Navigate to the Task Search screen in the Home screen or Springboard.

  2. Select the Group Unassigned Tasks option. The screen displays all unassigned tasks in your group.

    the picture is described in the document text

  3. Tap the task record to open the task details.

  4. Tap Assignee field to schedule the task.

    You can schedule the task to yourself or you can launch the scheduler in your instance to find a suitable resource. Based on the settings for the profile CSFW: Technicians Schedulable Options, the following scheduling options are displayed:

    1. Work On It - Allows the technician to assign an unasssigned task to self or reassign a task that has been assigned to a co-worker to self. The task will be assigned to the technician with Scheduled Start Date populated with SYSDATE.

    2. Self Schedule - Allows the technician to invoke Scheduler and schedule the task to self.

    3. Intelligent - Allows the technician to invoke the Intelligent scheduling mode for task assignment/reassignment.

    4. Window To Promise - Allows the technician to invoke the Window-to-Promise scheduling mode for task assignment/reassignment.

  5. You can update the schedule start and end date manually after assigning the task to self.

  6. To reassign a group task, select the Group Assigned Tasks option. The screen displays tasks currently assigned to your team members. Follow steps 3-5 to reassign the task to self.

Making Mobile Queries

After administrators define queries and download them to local devices, you can select one of the predefined queries, enter variables, and submit it to the enterprise for execution. After enterprise processing, results appear in your screen.

Complete the following steps to prepare, submit, and view a query.

Prerequisites

Steps

  1. Tap the Mobile Query icon in the icon region.

    The Mobile Queries screen appears.

  2. Either tap a seeded query from the Query List LOV or tap an already saved query from the Query Name field.

  3. Advance to the next screen, Submit Mobile Query.

    A detailed description of the selected query appears in the Desc field. Then the cursor moves to the first query variable required.

  4. Enter values for query variables until no more are required.

  5. Tap the send icon to transmit your query.

    When the enterprise has responded, a message appears in the Mobile Query Instances screen that says that a reply is available.

  6. Tap the reply to display it in the mobile query results screen.

Performing a Parts Search

The ability to find parts quickly is a critical element of a successful field service operation. The Oracle Mobile Field Service - Wireless application enables a technician to search for parts throughout the organization, including those trunk stocks of other technicians, the central warehouse and, if he has multiple sub-inventories assigned to him, he can search his other sub-inventories as well.

After the appropriate parts are located, the Mobile Field Service - Wireless application enables the technician to make an internal transfer, create a move order transfer of parts, or to create an internal order.

The Mobile Field Service - Wireless application leverages Oracle Spares Management's advanced parts search functionality, including the consideration of alternative or superseded parts in the search. Optionally, the Mobile Field Service - Wireless application also uses the Oracle Field Service's geo-coding element to locate the nearest technician for parts availability, based on distance and time, providing that the technician has a verifiable "installed at" address.

The parts search functionality is a two-step process. First you locate the parts needed to fulfill the order, either through your own alternative sub-inventories, a coworker's sub-inventory, or the warehouse. Once you have located the parts, the next step is to place an order.

Using Radius Search Capabilities

The Mobile Field Service - Wireless application leverages Oracle's geo-coding capabilities, which gives technicians the ability to limit the search for items from coworkers' trunk-stock to those coworkers who are within a specified radius. Radius search is an optional feature of the Mobile Field Service - Wireless application. The measurement unit is set with the profile option "CSFW: Default Distance Unit," which enables you to set the distance unit for measurement purposes. The available values are: Mile or Kilometer.

To use the radius search capabilities, one of the technicians task must be in an assignment status of "Working" and the customer site must have a valid geo-code address. This enables the geo-code to determine where to begin the radius search. For coworkers to be considered in this search, they must also have valid geo-code installed at addresses.

For more information on setting up the geo-code functionality, see the Oracle Field Service Implementation Guide.

Use the following procedures to perform a parts search.

Prerequisites

To Set Search Preferences

  1. Navigate to the Technician Search preferences screen:

    Main Menu or Springboard > Technician Search Preferences

  2. In the Distance field, enter the maximum distance from your location to perform the search. If you enter no value, the distance defaults to the value of the Max Distance profile.

  3. Use the following table to indicate your preferences.

    Label Action
    My Inventory If this box is selected, search results will include your own inventory.
    Other Technicians If this box is selected, search results will include the inventory of other technicians.
    Manned Warehouses If this box is selected, search results will include the inventory of manned warehouses that are open.
    Alternate Parts If this box is selected, search results will include the inventory of supersessions and substitute parts. Alternate parts will appear in the search results in blue font.
    Include Closed If this box is selected, search results will include the inventory of closed stocking sites for both warehouses and technicians. Closed stocking sites in the search results will appear in red font.
    Ship Set If this box is selected, search results will include only the stocking sites that have all parts required.

  4. Tap Go to save your preferences.

To Perform a Part Search

  1. Navigate to the Part Search screen.

    • Main Menu or Springboard > Part Search

    • Main Menu or Springboard > Task Search > Task Details > Part Search

    The Parts Search screen appears with your default search preferences applied. You can change them as required. If you came from the Task Details screen, then your task information is also carried forward here.

    Note: The Part Search option in the Task Details screen is based on the selected task type. This option is displayed if this option is enabled for the selected task type.

  2. Select the Item number, of the item you want to find.

    The item description appears by default.

  3. Enter the Quantity of the item you need. The quantity of 1 appears by default.

  4. Tap Add another item to add the item to the Items Entered list and to start the definition of another item.

  5. Enter a value for Need Date/Time.

    If you launched this screen from the Task Details screen, then enter the scheduled start date and time of the task or the current date and time, whichever is later. Otherwise enter the current date and time.

  6. Enter locational or positional information.

    Distance represents the radius for the search from the Ship to Address or, if selected, your current address. Your current address is defined by the current task or GPS.

    Address Type can be a task address, a technician address, or a customer address.

  7. Select the sources in which you want to search for the item by selecting the appropriate check boxes.

    The options are the same as those that you had when you defined your search preferences, and those preferences appear here by default.

  8. If this screen shows a task associated with this search and you want to create a parts requirement for the parts and quantities listed, then tap Part Requirement.

    The part requirement number appears on this screen.

  9. Click Search to begin the search.

    The Search Results screen appears and displays which stocking sites have the items based on the search parameters, distance, and address selected.

To Perform an On Hand Quantity Part Search

  1. Select the Item number of the item you want to search for.

    Note: Item is the only field required when performing an on hand quantity search.

  2. Enter an item Revision number, if applicable. The Revision number field will not appear if the item has no revisions.

  3. Select the On Hand option.

    Note: The other search criteria fields (Include Alternate Parts, Quantity, and Warehouse, My subinventories, and My co-workers check boxes) that appear on the screen do not pertain to the on hand quantity search.

  4. Click Search to begin the search.

    The Search Results screen displays all the on hand quantities for locations based on the information in the Planner's Desktop. The results screen displays the Location and for that location the On Hand Good quantity and On Hand Bad quantity.

    For information on the Planner's Desktop, see the Oracle Spares Management User Guide.

Creating a Parts Requirement

Complete the following steps to order a part:

  1. On the Task Details screen, click Parts Search.

    Note: The Part Search option in the Task Details screen is based on the selected task type. This option is displayed if this option is enabled for the selected task type.

  2. Select the address type from the drop-down list. You can select the task address, technician's address, customer address, or special address as the address type. If you select the Special Address option, then enter the address information in the Special Address page.

  3. Enter the Ship to address.

  4. Select the desired part from the table.

    If you know the information for a specific part, you can enter this in the Item field.

    The part you select appears in the New Order screen.

    The New Order screen opens with a default address in the Ship To field and the current date in the Need By field.

  5. Click Order.

    A message appears stating the requirement number and prompting you to continue. You will want to remember this part number in case you want to reference the part order status in the future.

    The CSP: Initial Status of Internal Order profile determines the initial status of the parts order when the order is created in the Scheduler process If the technician accepts the task, the status of the order changes from Entered to Booked.

  6. Click OK in the prompt.

    The part you selected is added to the part order and appears under the Parts Requirement region.

  7. Tap the Receive option to display the Receive Parts screen, In the Receive Parts screen, tap the Receive option to receive parts for all orders created for the task. For more information on receiving parts, see Receiving Parts.

Ordering Parts

Using the Mobile Field Service - Wireless application, you order parts to replenish a technicians trunk stock or to fill a specific need for a particular customer. Ordering parts using this application leverages the Oracle Spares Management application. The ordering process is closely integrated with the search process and automates the creation of the appropriate type of order.

An internal order to fill a parts requirement enables you to ship the necessary parts to a field technician at the specified "ship to" address. You can check for part availability within the supply chain and, if the part is not available, you can also check if there are any alternate parts. These include both substitute and superseded parts.

You can create an order from the search results and the order type will be automatically selected based on the Ship From and Ship To inventory organizations and with the source as a warehouse or another technician.

The search results are used to select the source and create either an order or a reservation. The following order type alternatives are used:

The following variables determine the order type for the parts search and ordering:

Use the following procedure to order parts through the Mobile Field Service - Wireless application:

Prerequisites

To order a part

  1. Search for the desired part and navigate to the Search Results screen. For details on doing this, see "To Perform a Search."

    The Search Results screen displays which stocking sites have the items based on the search parameters, distance, and address selected.

    Additional Information: If a stocking source is closed, then it appears in red font. If a stocking source is a supersession or substitute, then it appears in parentheses.

  2. Tap the hyperlink for a stocking site to see its details on the Stocking Site Details screen. This screen displays the site details including the address, work hours, contact details, and the shipping details including ship to contact and the shipping method.

  3. Tap Done to return to the Search Results screen.

  4. Select the check box for the source and item that you want to use.

  5. Tap Order.

    The application determines the appropriate order type and generates it.

    Additional Information: Note: The Follow-Up Task button is optionally available on this screen by using security functionality. Tapping Follow-Up Task creates a follow-up task and parts requirement if a parts requirement was not previously created. See "Creating a Follow-Up Task" for more information.

Creating an Internal Transfer

In many field service operations, a technician may have multiple sub-inventories assigned to him within the same organization. The Mobile Field Service - Wireless application enables a technician to search all sub-inventories that reside in the same organization as the default sub-inventory for available parts. If a technician performs a parts search and finds that the necessary parts are in one of his other sub-inventories, he can create an internal transfer.

Creating a Move Order

In the event that a field service technician performs a parts search and the required parts can be found in the trunk stock of another field technician working in the same organization, they can create a move order to fill this request.

Note: To create a move order, the coworker's sub-inventory most be in the same organization as the technician's default sub-inventory.

When creating a move order that is associated to a particular task, the task assignment status should be "Working" during the search.

Follow this procedure to create a move order.

Prerequisites

Steps

  1. After you have performed the search for a part, navigate to the search results screen.

    This screen displays the item number, the name of the resource, the quantity available, the subinventory that contains the part, and the phone number.

  2. Click on the hypertext linked name of the resource that you want to create the move order from.

    The Move Order screen appears. This includes the resource name and phone number, the source sub-inventory and the quantity of parts.

  3. In the Destination field, select the sub-inventory that you want to receive the move order parts shipment.

  4. Add any comments you want to the move order.

  5. Click Create.

    You can view the move order by navigating to the Orders - In link from the main menu.

Creating an Internal Order

Technicians can create an internal order if their parts search includes warehouses that are located within the same organization as their default sub-inventory.

You can include substitute and superseded parts in the search by selecting the Alternate Parts check box.

Note: This internal order functionality works exactly the same as it does in the Field Service Spares Management module and returns the same results.

When performing an advanced parts search, the Mobile Field Service - Wireless application matches the "required" number of parts with the "available" number of parts in a warehouse. The application creates the parts requirement for the lesser of the two numbers.

Use the following procedure to create an internal order.

The profile CSP: Initial Status of Booked Order is used to determine the initial status of the parts order when the internal order is created in Field Service – Wireless after searching for the required part.

Steps

  1. After you have performed the search for a part, navigate to the search results screen.

    This screen displays the item number, the name of the warehouse, the arrival date and the shipping method.

  2. Click on the hypertext linked name of the warehouse that you want to create the internal order from.

    The Internal Order screen appears. This includes read only values for the source of the parts, the destination of the part, item number, UOM, and quantity.

  3. In the Location field, select the location where you want the parts shipped. The default value is either the customer's installed at address, or the technician's default address. You can change this value.

  4. Select a Need By Date for the parts.

  5. Enter the Time by which you need the parts.

    This is a 24-hour military clock and should be represented as hh:mm. So, if you need the parts at 8 a.m., enter 08:00.

  6. Click Submit to create the internal order.

    If you do not have ATP functionality enabled, the Mobile Field Service - Wireless application will still create a parts requirement, but it will not create the internal order. The internal order can be created by the dispatcher at a later time.

Receiving Parts

You initiate the receiving process in the Inbound Orders and Reservations screen. You can also use this screen to initiate a view of an order or reservation.

To Receive Parts

  1. Navigate to

    • Main Menu, then click Receive Parts. This displays the Inbound Orders and Reservations screen. This screen lists all your open orders and reservations. Reservations are used to receive sub-inventory transfers and inter organization transfers, or

    • Task Details screen, then select Receive Parts from the context sensitive actions list. This displays the inbound orders and reservations for the selected task.

    This screen shows a list of all your open orders and reservations. Reservations are used to receive sub-inventory transfers and inter organization transfers.

  2. Select the type of order from the Orders list. The order may be of type Parts Requirement Orders or Purchase and Internal Orders. Parts Requirement Orders lists reservations and internal orders associated with the parts requirement. Purchase and Internal Orders lists orders that are not associated with parts requirement.

  3. Select a single order or reservation to view or receive.

  4. Tap View to view the order or reservation.

    The Inbound Order screen appears.

  5. Select the check box of the order lines whose balance due you want to cancel. A check box is disabled if a shipment is in transit.

  6. Tap Apply to cancel the balance due on the selected order lines.

  7. Tap Back to return to the Inbound Orders and Reservations screen.

  8. Select the check box of any single order or reservation that you want to receive and tap Receive.

    The Receive Parts screen appears. You use it to transact receipts from suppliers and other inventory locations. You can also use it to close orders short and cancel reservations.

    This screen shows a list of all lines on the shipment, order, or reservation. Use this screen to enter actual quantities received when they are different from the shipment quantity or order quantity. Over shipments consistent with receiving rules for your organization are supported.

    If an item is received that is not on the shipment and is not serialized, then report the situation to the dispatcher, logistics coordinator, analyst, or other designated user who will reconcile your inventory with the source inventory location. Ultimately both locations require stock adjustment transactions.

  9. If you want a value for Sub-Inventory that is different from the default, then select it from the LOV.

  10. Optionally, select a shipment to receive if there is more than one.

  11. Enter a value for Receive Quantity if it is different from the default.

  12. Select the Close Short check box to cancel the balance due on a line. A check box is disabled if a shipment in in transit.

  13. Tap Receive.

    If no serial controlled part has been received, then the application processes the receive transaction and displays a receiver number at the top of screen. If a serial controlled part has been received, then the Receive - Serial Numbers screen appears for further steps.

  14. Enter or scan the serial numbers received.

    Important: When a serial number is received that is not in the shipment, then the following message appears on the screen: “Serial number not in shipment." When you encounter this message, you cannot receive the invalid serial number until the serial number discrepancy is resolved. Return to the previous screen, change the quantity received, return to the Receive - Serial Numbers screen, and receive the valid serial number.

  15. Tap Next.

    The application transacts the receipt, returns to the Receive Parts screen, and displays the receiver number at the top of the screen.

Returning Parts

Excess parts are defined as those parts whose inventory balance is greater than the maximum level defined in the Authorized Stock List (ASL) in Spares Management. You can view the excess list information such as, item number, unit of measure, sub inventory, and condition type.

Spares Management return routing rules are used to display the destination for excess return in the Mobile Field Service -Wireless application. A parts return routing rule is defined by a source, a routing parameter, and a destination.

Refer to the Overview: Parts Return section in the Oracle Spares Management User Guide for more information.

Mobile Field Service - Wireless displays the excess parts list on a medium screen form. The technician will be able to invoke the excess parts list by clicking the Excess Returns link from the main menu.

The following information displays on the Excess Return screen:

The excess parts information is generated by the scheduled Create Excess List concurrent program that is executed in Spares Management.

For more information on Excess Parts Lists, see the Oracle Spares Management User Guide.

Use the following procedure to return parts:

Prerequisites

To Return Parts with a Consolidated Shipment

  1. From the Main Menu, tap Parts Returns.

    Main Menu or Springboard > Parts Return

    The Parts Return screen appears. This screen displays all the sub-inventories assigned to you and all the parts contained in each of these sub-inventories. The title area of the screen includes the date that the return list was created.

    You use this page to initiate excess or defective returns by selecting a source sub-inventory. You can also select the consolidation option, which provides for multiple parts and quantities to be included in a single shipment. When the consolidation option is not selected, each piece will be a single shipment. This example flow uses the consolidation option.

  2. Select a sub-inventory from the Source LOV.

  3. Select the Consolidation check box.

    Selecting this option means that multiple pieces will be included in the shipment.

    The Part Details screen appears when there is only one destination, or the screen with a Destination Summary appears if there is more than one destination.

  4. In the Return Quantity field, enter the actual quantity of an item to be returned if it is different from the recommended quantity.

  5. Tap Next.

    If an item is serialized, then the Parts Return - Serial Numbers screen appears. If the item is not serialized, then the Parts Return - Create Order screen appears.

  6. If the Parts Return - Serial Numbers screen appears, then enter or scan the serial number for each item.

    Additional Information: If you enter a serial number that is not in the inventory balance, then the following message appears at the bottom of the screen: “Serial number not in inventory." When you encounter this message, the invalid serial number cannot be shipped until the discrepancy has been resolved. If there is a partial quantity on the part, then enter another serial number. If it is a total return, then go back to the previous page and reduce the return quantity by one and return to the serial numbers page. When your return to the serial numbers page, any valid serial numbers previously entered still show on the screen.

  7. Tap Next.

    The Parts Return - Create Order screen appears. You use this page to enter shipping details and create an order. In this example flow, this page is used to execute the shipment in consolidated mode where multiple parts and quantity are included in the shipment.

  8. Revise the information on this screen as needed:

    • Destination Organization

      Select a new organization if it is different from the one previously selected. Tap the Refresh button to update the ship-to address.

    • Destination Sub-Inventory

      Select a new sub-organization if it is different from the one previously selected.

    • Carrier

      Select a carrier.

    • Shipping Method

      Select a shipping method.

    • Waybill

      Enter a waybill.

    • Shipment number

      Enter a shipment number or leave the field blank and the application will assign one.

  9. Tap Create Order.

    The application creates the order and displays the order type and number on the screen.

To Return Parts without a Consolidated Shipment

  1. From the Main Menu, tap Parts Returns.

    Main Menu or Springboard > Parts Return

    The Parts Return screen appears. This screen displays all the sub-inventories assigned to you and all the parts contained in each of these sub-inventories. The title area of the screen includes the date that the return list was created.

    You use this page to initiate excess or defective returns by selecting a source sub-inventory. You can also select the consolidation option, which provides for multiple parts and quantities to be included in a single shipment. When the consolidation option is not selected, each piece will be a single shipment. This example flow does not use the consolidation option.

  2. Select a sub-inventory from the Source LOV.

  3. Clear the Consolidation check box.

    Selecting this option means that each piece is a single shipment.

    The Part Details screen appears when there is only one destination, or the screen with a Destination Summary appears if there is more than one destination.

  4. In the Return Quantity field, enter the actual quantity of an item to be returned if it is different from the recommended quantity.

  5. Tap Next.

    The Parts Return - Create Order screen appears. You use this page to enter shipping details and create an order. In this example flow, this page is used to execute the shipment in non-consolidated mode, where each shipment is a single piece.

    When the screen first appears, the value for Item is prepopulated with the first item on the list from the Part Details screen, but you can change this item if you want to do so. If the item is serial controlled, then the Serial No field is active.

  6. If the item is is serial controlled, then enter or scan the serial number of the item being shipped.

    Additional Information: If you enter a serial number that is not in the inventory balance, then the following message appears at the bottom of the screen: “Serial number not in inventory." When you encounter this message, the invalid serial number cannot be shipped until the discrepancy has been resolved. You can enter or scan another serial number if one is available.

  7. Revise the remaining information on this screen as needed:

    • Destination Organization

      Select a new organization if it is different from the one previously selected. Tap the Refresh button to update the ship-to address.

    • Destination Sub-Inventory

      Select a new sub-inventory if it is different from the one previously selected.

    • Carrier

      Select a carrier.

    • Shipping Method

      Select a shipping method.

    • Waybill

      Enter a waybill.

    • Shipment number

      Enter a shipment number or leave the field blank and the application will assign one.

  8. Tap Create Order.

    The application creates the order and displays the order type and number on the screen.

  9. Repeat the steps for this process until you have shipped all items and return quantities.

Transferring Parts

Using the Parts Transfer page, the technician can transfer parts between two subinventories.

To Transfer Parts

  1. Navigate to the Trunk Stock page. The Trunk Stock page appears.

  2. Search for the trunk stock using the subinventory or subinventory and item as the search attributes.

  3. Click the item link in the results region. The Item Details page appears.

  4. Click the Transfer action link. The Parts Transfer page is displayed if there is any quantity available to transfer. This page displays item information, the source, and the destination for the item or part.

  5. Choose a resource or the destination organization to transfer the parts to.

    If you select a resource, the Destination Organization and Subinventory LOVs will display inventories and subinventories for which the selected resource is the owner.

    You can select any inventory organization if you do not select a resource. The inventories displayed in the Destination Organization LOV are determined by the profile “CSF: Enable Destination Inventory Organization for Part Transfers.” If the profile is set to Yes, then the Destination Organization LOV displays all valid organizations. If the profile is set to No, then the Destination Organization LOV is not displayed. In the latter case, the destination organization is the same as the source organization.

  6. Click Done to initiate the transfer process.

Viewing Project Details

The Task list screen is one of the main entry points into the application. This screen displays the tasks that are assigned to the technician.

Every task in the Task List screen displays the following information to help a technician get a quick glance of the task without going into the task details.

Tap any task to open the Task Details screen.

From the Task list screen, tap on a task to open the Task Details screen. This screen displays a technician's task assignment details. You can accept or reject an assignment by updating the task's status. This screen also enables you to capture travel and labor information and report parts used and recovered, create follow up tasks. In addition, this screen also helps you to search order parts, receive parts, and capture notes.

You can also view the project information for a task on the Task Details screen. The project details can also be viewed at the debrief line level. The details that you can view are as follows:

The project related fields are hidden out of the box and can be displayed on personalization.

Accessing the Knowledge Base

About the Knowledge Base

In a field service operation that services a variety of products or makes multiple customer calls involving similar issues, it can be advantageous to record and store solutions so that technicians can access them at a later date. The Oracle Knowledge Management application provides a mechanism for recording solutions for problems and it can be accessed by the Mobile Field Service - Wireless application.

Through the Mobile Field Service - Wireless application, you can perform a general knowledge base search or you can perform a search related to a specific service request. In the latter scenario, after you choose a Knowledge Base solution, you can manually attach it to the service request and it can be viewed at any time.

If you search the Knowledge Base from the main menu, you cannot attach any solutions to a specific service request. You can only view the solutions.

The Mobile Field Service - Wireless application supports two search methods: Keyword Search and Search by Category. If you are searching the knowledge base for a specific service request, the Service Request Summary serves as the keywords in the keyword search field. You can change the keyword value, if necessary.

Category search is available only through the main menu.

For complete details on using Knowledge Management and setting up Knowledge Management functionality, see the Oracle Knowledge Management User Guide.

Note: The Mobile Field Service - Wireless application supports only text-based messages. Any Knowledge Management solution that contains dynamic links or HTML pages will not appear in the search results.

Use the following procedure to perform a knowledge management search and attach it to a particular service request.

Prerequisite: You must have Oracle Knowledge Management installed and properly configured, including category setup.

Steps

  1. Navigate to the task in which you want to perform a knowledge management search on.

    Main Menu > Task Search > Task Details > Request Number > Knowledge Base

  2. From the task details page, click the hypertext Request Number associated to the task.

    The Request Number screen appears and displays basic information associated with the Service Request (Customer name, summary, notes, and Knowledge Management).

  3. Click View in the Knowledge Base field.

    The screen displays the Keyword field, that is populated with the SR Summary information, and also the Keyword Solution table with all the solutions that are associated with the keyword.

  4. If you want to search for additional solutions, enter alternative words in the Keyword field and click Go.

    Any related solutions are displayed in the solution table, which also displays the Score(%) of the relevance of the solution, the title and the type of solution.

  5. To view a solution, click the hypertext Title of the solution you want to view.

    The details of the knowledge base solution are displayed. This information includes the symptom a customer might be experiencing, the list of potential causes of the problem, and some solutions.

  6. If you want to attach this solution to the service request, click Link.

  7. Once you have linked the Knowledge Base solution, click Done to exit.

    You can link multiple Knowledge Base solutions to the same service request. All linked solutions will appear with that particular service request in the future.

Getting Driving Directions

You can get driving directions to assist you in getting to customer sites or suppliers.

To get driving directions:

Steps

  1. Tap the map icon located in the Customer Address region in the Task Details screen.

    The Driving Direction screen appears and contains a list of addresses from all the tasks that are scheduled for the system date.

  2. Enter the starting address:

    • Tap a link in the list to select it.

    • Tap Work Address for help to select the work address.

    • Tap Other to type in the starting address.

  3. Enter the destination address by following a parallel procedure to that in step 2.

  4. Tap OK.

    The Driving Direction screen displays written directions and an associated map.

Viewing and Saving an Offline Schedule

The Oracle Mobile Field Service - Wireless application operates in a connected (network) environment. It requires having network coverage at all times for accessing the enterprise information. However if the technician's wireless device is out of coverage, they can still access the information required to complete their job at the customer site.

Field service technicians have the ability to save the schedule of task assignments and their related information for a particular date on their wireless device. The field service technicians will be able to view these pages in offline mode when coverage is unavailable.

Each time their schedule is updated or changes, a notification is sent alerting them to update their daily schedule and re-save the offline schedule.

Use this procedure to view and save offline schedules.

Steps

  1. Navigate to Today's Tasks.

    Main Menu or Springboard > Today's Task

  2. When the screen appears, use the application's "Save As" feature to save this page as a static html page.

    Save the page with a name you will recognize and save it to a local directory on the PDA.

  3. If you receive an "Update Schedule" notification, indicating that your schedule has been updated (this includes any status change, or time/date change to a task) you can re-save your schedule using the same file name you used in Step 2.

Managing Receipt of Shipments

The Oracle Mobile Field Service - Wireless application gives technicians the capability to view, confirm, and log as "completed" all their incoming part shipments. The main menu provides easy access to the list of shipments.

From the main menu, by navigating to the Receive Parts - Incoming Shipment screen, technicians can view a list of all shipments, which includes the shipment number, what organization the shipment came from, and the date shipped. By clicking a particular shipment link, the technician can view the details about that shipment.

After technicians view and confirm that shipments have been received, they can select those shipments and mark them as completed.

Use this procedure to view part shipments and log them as complete.

Steps

  1. Navigate to the Receive Parts - Incoming Shipments screen.

    Main Menu or Springboard > Receive Shipments

    A list of incoming shipments is displayed.

  2. To view the details of a particular shipment, click on the shipment link.

    The Shipment Details screen appears. This screen displays additional information about the shipment, including the vendor name, expected date of receipt, order number, item number, quantity, and so on.

  3. If the shipment has been received, click Receive Complete.

  4. Alternatively, from the main page, you can select the check box of all the shipments you have received and click Receive Complete.

Changing Passwords

Password Change Information Shared Between MFS Wireless and MFS PPC

Using the Change Password screen, you can change your password to access the Oracle Mobile Field Service - Wireless application.

To Change a Password

  1. Navigate Main Menu > Change Password.

  2. Enter the current password.

  3. Enter the new password.

  4. Enter the new password in the Verify Password field.

  5. Tap Done to change the password.

    The password has been changed. You can use the new password the next time you access the Oracle Mobile Field Service - Wireless application.

Setting Up Search Preferences:

  1. From the main menu, click Preferences.

    The Preferences page appears. The Oracle Mobile Field Service - Wireless application gives technicians the capability to set the search preferences for parts search.

  2. Enter the search parameters and create saved parameters. You select the following search preferences:

    • Distance

    • My Inventory

    • Other Technicians

    • Manned Warehouses

    • Unmanned Warehouses

    • Include Alternate Parts

    • Include Closed

    • Use On-Hand

  3. Click Done to save preferences.

Viewing Transaction History

  1. From the main menu, click Transaction History.

    The Transaction History page appears. This page enables you to enter search parameters such as; Subinventory, Transaction Type, Destination Organization, Destination Subinventory Transaction Date, Transaction Date Range, Transaction in Last Number of Days, and Item associated with the technicians sub-inventories.

  2. Click the Search button. The Transaction History: Results page displays.

    This page displays the transaction results based on your search parameters, with following information:

    • From: Subinventory

    • Transaction Type

    • Destination

    • Time

    • Item

    • Quantity

Selecting Preferences

You can define several preferences in the application as follows:

To select general preference

  1. Navigate to the Preferences screen.

    Main Menu or Springboard > Settings

    The Preferences screen displays item fields wherein you can indicate your preference by selecting a value from the LOV.

  2. Select your preference type from the Action field LOV at the bottom of the screen.

    Your options are:

    • Address & Subinventories

    • Part Search Preferences

  3. In the User Profile Defaults, select a preferred value for the items that appear.

    The item fields are:

    • Date Format – The default date format followed in the Mobile Field Service - Wireless is DD-MON-YYYY (for example, 31-DEC-1999).

    • Timezone – To set the time zone for the device.

      • Set the profile "Enable Time Zone Conversions" at the server level.

      • Set the application time zone in the Preference screen.

    • Home Page – Lists the Main Menu, Open Tasks, Today's Open Tasks, and Today's Tasks.

    • Task Display – You can choose any five values from the following list in the Task Display field and those selected five (or less) components will be displayed in the task record.

      • Customer Address – Displays the customer address

      • Duration

      • Priority – Displays the task priority

      • Resource Name

      • SR Number

      • Scheduled Start Time

      • Site Name

      • Status – Displays the task status

      • Task Number – Displays the task number

      • Task Subject – Displays the task subject

      • Task Type

    • Distance Unit – You have the option to select either Miles or Kilometers.

    • Use Icons – Select Yes to display icons instead of buttons.

    • Max Results Per Page – Indicates the maximum number of records to be displayed at a time. This is used for pagination in task search and counter history results.

    • Attachment Limit – Specifies the maximum attachment size limit. Default is 1024 kB.

  4. Tap the Save icon to save your preferences.

    the picture is described in the document text

Viewing Technician Calendar

Oracle Mobile Field Service integrates with the calendar application on wireless devices(smartphones/tablets/pda) to retrieve task related information for field service personnel. This integration ensures that all task information is stored locally in read only format and is accessible even when there is no coverage in the area. This will allow the technician to always know where the next task is, when it is scheduled and what the work is about. It also helps them to identify any empty slot during the working hours for a day and put missing information into the system as well as create time entries.

Technicians can use the calendar to do the following:

Note: This feature is not available in the Mobile Field Service Store & Forward application (i.e., offline applications)

To use the Calendar tool to view tasks and events

  1. Login to the Mobile Field Service wireless application on your handheld device.

  2. Register the iCalendar url on your wireless device.

    • In IOS devices, navigate to the Preferences UI of the MFS wireless application and click on the iCalendar link to register the phone/tablet.

    • For android devices, user must copy the link and register it on the Google Calendar manually.

  3. Sync the calendar application to fetch all the task details.
