Enterprise Managerを拡張して、クリティカル・イベント、パフォーマンスの問題、エラー状態および統計について、WebサービスおよびJMXインスツルメント処理されたアプリケーションを監視できます。
WSDLおよびJMX対応のターゲットを監視するEnterprise Managerの機能により、監視操作と管理操作を統合できます。Enterprise Managerフレームワークに追加された場合、通知、ジョブ、レポート作成などのEnterprise Manager機能がこれらのターゲットに自動的に拡張されます。
この章の内容は次のとおりです。
Enterprise Managerを使用して、Webサービス管理インタフェース、JMXインスツルメント処理されたアプリケーションおよびサーバーを公開するターゲット、そしてスタンドアロンJava仮想マシン(JVM)ターゲットを監視すると、メタデータ・プラグインを介して新しいターゲット・タイプを定義することになります。
メタデータ・プラグインの作成は、4つの基本手順から構成されます。
プラグインに追加するターゲット・メタデータ・ファイルおよびデフォルトの収集ファイルを生成します。
1つ以上のプラグインのターゲット定義ファイルを含むOracleプラグイン・アーカイブを作成します。単一のアーカイブに複数のプラグインが含まれる場合があります。
Enterprise Managerにプラグインをインポートします。
適切な管理エージェントにプラグインをデプロイします。
これらの各手順の詳細は、第14章「プラグインの検証、パッケージ化およびデプロイ」を参照してください。
ターゲット監視の手順は、次の各項で説明しています。
第19.2項では、標準メッセージング・プロトコルを使用してネットワーク上で通信する外部インタフェースを公開するソフトウェア・コンポーネントについて説明します。
第19.4項では、JMX MBeanを使用してインスツルメント処理された、OC4Jで稼働するJ2EEアプリケーションについて説明します。
第19.5項では、JMX MBeanを使用してインスツルメント処理された、J2SE5.0以上で稼働するスタンドアロンのJavaアプリケーションについて説明します。
第19.6項では、Oracle WebLogicアプリケーション・サーバー9.x 以上で稼働するJMXアプリケーションについて説明します。
第19.4項および第19.5項では、データの収集に関連するMBeanを紹介し、Enterprise ManagerでMBeanをメトリックとして定義する場合に役立つ情報を提供することにより、JMX対応カスタム・アプリケーションのメタデータ・ファイルとデフォルトの収集ファイルの生成方法について説明します。スタンドアロンのJavaアプリケーションがJMXを介してインスツルメント処理されていない場合でも、第19.7.3項で定義するように組込みJVMターゲット・インスタンスを直接作成することにより、そのアプリケーションが稼働しているJVMもモニターできます。
メタデータ・ファイルおよびデフォルトの収集ファイルを作成したら、通常のメタデータ・プラグイン・メカニズムに従ってプラグインをデプロイし、Javaアプリケーション・ターゲット・タイプのターゲット・インスタンスを作成できます。
Webサービスは、疎結合されたソフトウェア・コンポーネントであり、Webサービス定義言語(WSDL)を介して外部インタフェースを公開します。これらのコンポーネントは、Simple Object Access Protocol(SOAP)と呼ばれる標準メッセージング・プロトコルを使用してネットワーク上で通信します。管理エージェントのWebサービスFetchlet(ID WSFを含む)によってSOAP通信がサポートされます。
前提条件
そのホストに管理エージェント・バージョン12.1.0.0.0以降がインストールされていること。
Oracle Management Server(OMS)バージョン12.1.0.0.0以降が管理エージェントと通信していること。
Webサービス・インタフェースを介して監視するターゲット・タイプを定義すると、WSDLインタフェースをサポートするリソースからメトリックを収集するのに必要なターゲット定義ファイルを作成することになります。
ターゲット・メタデータ
デフォルト収集
Enterprise Managerでは、使いやすいWebサービス・コマンドライン・ツールが提供されており、これらの必要なファイルを自動的に生成することにより、プラグインの作成が容易になります。情報は、管理エージェントに統合されたWebサービスfetchletで取得されます。
コマンドライン・ツールは、すべての操作について指定されたWSDLファイルを解析することで動作し、起動する1つ以上の操作を選択できるようにします。WSDLファイルに複数のポート・タイプが指定されている場合、ツールにはいずれか1つのポート・タイプの選択を求めるプロンプトが表示されます。操作は、パラメータとともにリストされます。Webサービスの操作は、次の4つのタイプのいずれかです。
一方向
リクエスト・レスポンス
請求レスポンス
通知
リクエスト・レスポンス操作タイプは、特に役立ちます。選択された操作には、プリミティブまたは複雑なパラメータや結果が含まれます。Webサービスの呼出し結果が表に表示されます(ツールにより、表の列のラベルの入力を求めるプロンプトが表示されます)。XPath式を指定することで、結果の属性をフィルタ処理することもできます(生成されたターゲットのメタデータのRowType
プロパティ、例19-3を参照)。フィルタ属性は、関連する属性がわずかしかない場合の複雑な戻り型に役立ちます。
Webサービス・コマンドライン・ツールでは、次のバインディングおよびエンコーディング・スタイルのWebサービスがサポートされます。
DOC/リテラル
DOC/ラップ
RPC/エンコーディング
WebサービスCLIコマンドライン・ツールの構文は次のとおりです。
emctl wscli [-metadata | -help] [-options]
コマンドは、次のオプションを受け入れます。
-wsdl=file | URL: WSDLファイルまたはURL(必須)
-username=user ID: WSDLが保護される場合のユーザー名
コマンドライン・ツールには、WebサービスのWSDLを特定するためにWSDLファイル名またはURLが必要です。たとえば、CalculatorサービスのWebサービスのWSDL URLは次のようになります。
http://localhost:44861/CalWS/CalculatorPort?WSDL
コマンド・ツール・スクリプトでは、実行するEnterprise Managerホーム・ディレクトリ(EM_HOME)にアクセスする必要があります。ツールは、デフォルトでORACLE_HOMEに設定されます(この環境変数は、ツールを使用する前に適切に設定しておきます)。
ツールは、すべてのポート・タイプおよびバインディング(HTTP get/post、SOAPなどのサポートされているプロトコル)に対して指定されたWSDLを解析して、すべての操作をリストします。WSDLに複数のポート・タイプがある場合は、最初にポート・タイプを選択するプロンプトが表示されます。
コマンドライン・ツールでは、Enterprise Managerで必要なメタデータがターゲット監視の目的でWSDLファイルから生成されます。このツールを実行する場合、WSDLファイルまたはURLに対する読取り権限および生成されるファイルを適切なディレクトリに保存する権限のみが必要です。
例19-1に、ターゲット・メタデータ・ファイルおよび収集ファイルを生成するためにコマンドライン・ツールに渡されるサンプルWSDLファイルを示します。
例19-1 サンプルWSDLファイルCalculatorService.wsdl
<?xml version="1.0" encoding="UTF-8"?> <!-- Published by JAX-WS RI at http://jax-ws.dev.java.net. RI's version is Oracle JAX-WS 2.1.5. --> <wsdl:definitions xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/" xmlns:tns="http://tests.jaxws.oracle.com/" xmlns:ns0="http://www.oracle.com/jaxws/tests" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:mime="http://schemas.xmlsoap.org/wsdl/mime/" xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:soap12="http://schemas.xmlsoap.org/wsdl/soap12/" name="CalculatorService" targetNamespace="http://tests.jaxws.oracle.com/"> <wsdl:types> <xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0" targetNamespace="http://www.oracle.com/jaxws/tests/types"> <xs:complexType name="calculatorFaultInfo"> <xs:sequence> <xs:element name="number" type="xs:int"/> <xs:element name="reason" type="xs:string" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:schema> <xs:schema xmlns:ns1="http://www.oracle.com/jaxws/tests/types" xmlns:tns="http://www.oracle.com/jaxws/tests" xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0" targetNamespace="http://www.oracle.com/jaxws/tests"> <xs:import namespace="http://www.oracle.com/jaxws/tests/types"/> <xs:element name="CalculatorException" nillable="true" type="tns:CalculatorException"/> <xs:element name="CalculatorWrapperException" nillable="true" type="ns1:calculatorFaultInfo"/> <xs:complexType name="CalculatorException"> <xs:sequence> <xs:element name="Message" type="xs:string"/> <xs:element name="Number" type="xs:int"/> <xs:element name="Reason" type="xs:string"/> </xs:sequence> </xs:complexType> </xs:schema> <schema xmlns="http://www.w3.org/2001/XMLSchema" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:tns="http://tests.jaxws.oracle.com/" targetNamespace="http://tests.jaxws.oracle.com/"> <xsd:complexType name="add"> <xsd:sequence> <xsd:element name="arg0" type="xsd:int"/> <xsd:element name="arg1" type="xsd:int"/> </xsd:sequence> </xsd:complexType> <xsd:element name="add" type="tns:add"/> <xsd:complexType name="addResponse"> <xsd:sequence> <xsd:element name="return" type="xsd:int"/> </xsd:sequence> </xsd:complexType> <xsd:element name="addResponse" type="tns:addResponse"/> <xsd:complexType name="square"> <xsd:sequence> <xsd:element name="arg0" type="xsd:int"/> </xsd:sequence> </xsd:complexType> <xsd:element name="square" type="tns:square"/> <xsd:complexType name="squareResponse"> <xsd:sequence> <xsd:element name="arg0" type="xsd:int"/> </xsd:sequence> </xsd:complexType> <xsd:element name="squareResponse" type="tns:squareResponse"/> <xsd:complexType name="checkNumber"> <xsd:sequence> <xsd:element name="arg0" type="xsd:int"/> </xsd:sequence> </xsd:complexType> <xsd:element name="checkNumber" type="tns:checkNumber"/> <xsd:complexType name="checkNumberResponse"> <xsd:sequence> <xsd:element name="return" type="xsd:boolean"/> </xsd:sequence> </xsd:complexType> <xsd:element name="checkNumberResponse" type="tns:checkNumberResponse"/> </schema> </wsdl:types> <wsdl:message name="addInput"> <wsdl:part name="parameters" element="tns:add"/> </wsdl:message> <wsdl:message name="addOutput"> <wsdl:part name="parameters" element="tns:addResponse"/> </wsdl:message> <wsdl:message name="squareInput"> <wsdl:part name="parameters" element="tns:square"/> </wsdl:message> <wsdl:message name="squareOutput"> <wsdl:part name="parameters" element="tns:squareResponse"/> </wsdl:message> <wsdl:message name="checkNumberInput"> <wsdl:part name="parameters" element="tns:checkNumber"/> </wsdl:message> <wsdl:message name="checkNumberOutput"> <wsdl:part name="parameters" element="tns:checkNumberResponse"/> </wsdl:message> <wsdl:message name="CalculatorWrapperException"> <wsdl:part name="CalculatorWrapperException" element="ns0:CalculatorWrapperException"/> </wsdl:message> <wsdl:message name="CalculatorException"> <wsdl:part name="CalculatorException" element="ns0:CalculatorException"/> </wsdl:message> <wsdl:portType name="Calculator"> <wsdl:operation name="add"> <wsdl:input xmlns:ns1="http://www.w3.org/2006/05/addressing/wsdl" message="tns:addInput" ns1:Action=""/> <wsdl:output xmlns:ns1="http://www.w3.org/2006/05/addressing/wsdl" message="tns:addOutput" ns1:Action=""/> </wsdl:operation> <wsdl:operation name="square"> <wsdl:input xmlns:ns1="http://www.w3.org/2006/05/addressing/wsdl" message="tns:squareInput" ns1:Action=""/> <wsdl:output xmlns:ns1="http://www.w3.org/2006/05/addressing/wsdl" message="tns:squareOutput" ns1:Action=""/> </wsdl:operation> <wsdl:operation name="checkNumber"> <wsdl:input xmlns:ns1="http://www.w3.org/2006/05/addressing/wsdl" message="tns:checkNumberInput" ns1:Action=""/> <wsdl:output xmlns:ns1="http://www.w3.org/2006/05/addressing/wsdl" message="tns:checkNumberOutput" ns1:Action=""/> <wsdl:fault name="CalculatorWrapperException" message="tns:CalculatorWrapperException"/> <wsdl:fault name="CalculatorException" message="tns:CalculatorException"/> </wsdl:operation> </wsdl:portType> <wsdl:binding name="CalculatorSoapHttp" type="tns:Calculator"> <soap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/> <wsdl:operation name="add"> <soap:operation soapAction=""/> <wsdl:input> <soap:body use="literal"/> </wsdl:input> <wsdl:output> <soap:body use="literal"/> </wsdl:output> </wsdl:operation> <wsdl:operation name="square"> <soap:operation soapAction=""/> <wsdl:input> <soap:body use="literal"/> </wsdl:input> <wsdl:output> <soap:body use="literal"/> </wsdl:output> </wsdl:operation> <wsdl:operation name="checkNumber"> <soap:operation soapAction=""/> <wsdl:input> <soap:body use="literal"/> </wsdl:input> <wsdl:output> <soap:body use="literal"/> </wsdl:output> <wsdl:fault name="CalculatorWrapperException"> <soap:fault name="CalculatorWrapperException" use="literal" encodingStyle=""/> </wsdl:fault> <wsdl:fault name="CalculatorException"> <soap:fault name="CalculatorException" use="literal" encodingStyle=""/> </wsdl:fault> </wsdl:operation> </wsdl:binding> <wsdl:service name="CalculatorService"> <wsdl:port name="CalculatorPort" binding="tns:CalculatorSoapHttp"> <soap:address location="http://localhost:8888/CalWSBA/CalculatorPort"/> </wsdl:port> </wsdl:service> </wsdl:definitions>
例19-2では、例19-2「サンプルWSDLファイルCalculatorService.wsdl」で示したWSDLファイルが使用されます。最初にツールは、すべてのポート・タイプおよびバインディング(HTTP get/post、SOAPなどのサポートされているプロトコル)に対してWSDLを解析して、すべての操作をリストします。WSDLに複数のポート・タイプがある場合は、最初にポート・タイプを選択するプロンプトが表示されます。
コマンドライン・ツールを開始するには、次のようにします。
$AGENT_HOME/binディレクトリに移動します。
次のコマンドを実行します。
$ emctl wscli -metadata -wsdl=/tmp/CalculatorWS.wsdl
起動後に、コマンドライン・ツールは、例19-2「サンプルWebサービス・コマンドライン・ツール・セッション」に示すように、必要な情報を求めるプロンプトを自動的に表示します。コマンドライン・ツール・セッションを終了する必要がある場合は、任意の時点で[Ctrl]+[C]を押して終了できます。セッション情報は保存されません。
例19-2 サンプルWebサービス・コマンドライン・ツール・セッション
Oracle Enterprise Manager 12c Release 1 Cloud Control 12.1.0.1.0 Copyright (c) 1996, 2011 Oracle Corporation. All rights reserved. OracleHome : /oracle/oms/agent EMDROOT : /oracle/oms/agent Generate Metric Metadata for Web Service Monitoring Reading WSDL Document at /tmp/CalculatorWS.wsdl...done. ==> Enter the metadata file name [/tmp/target/metadata/CalculatorService.xml] : * Selected Service: CalculatorService * Selected Port: CalculatorPort All operations for the selected Port "CalculatorPort": [1] squareResponse square(int arg0) [2] checkNumberResponse checkNumber(int arg0) [3] addResponse add(int arg0, int arg1) ==> Enter the index [1-3] of operation to select: 1 * Selected Operation: squareResponse square(int arg0) Define new metric group: ==> Enter the name for this metric group [square]: Return value(s) for the selected operation: [1] //ns0:squareResponse/arg0 <int> ==> Enter the index [1-1] of metric to display: 1 ==> Enter the name for this metric [arg0]: SquareResult ==> Enter the label for this metric [SquareResult]: ==> Is this a key metric <y/n>? [n] : ==> Do you want to create threshold for this item <y/n>? [n] : Setup operation Argument: square.arg0 <type:int> ==> Enter value [%square.arg00001%] : ==> Do you want to use jps-config-jse.xml <y/n>? [n] : ==> Do you want to add User/Password Credential <y/n>? [n] : y ==> Enter the name for User/Password credential set [UserCredentialSet01] : ==> Do you want to add SSL TrustStore Credential <y/n>? [n] : ==> Do you want to add SSL KeyStore Credential <y/n>? [n] : ==> Do you want to add KeyStore Credential <y/n>? [n] : ==> Do you want to add Encryption Key Credential <y/n>? [n] : ==> Do you want to add Signature Key Credential <y/n>? [n] : ==> Is this metric group for periodic collection <y/n>? [y] : The following units are for collection frequency: [1] Min [2] Hr [3] Day ==> Enter the index [1-3] of unit for this collection: 1 ==> Enter the frequency of collection in Min: 30 ==> Do you want to add another metric group <y/n>? [n] : Files Generated: - Target Metadata file: /tmp/target/metadata/CalculatorService.xml - Target Collection file: /tmp/target/metadata/CalculatorServiceCollection.xml
コマンドライン・ツールは、例19-3に示すように、CalculatorService
ターゲット・タイプの監視に必要なメタデータを生成します。
例19-3 CalculatorServiceターゲット・メタデータ・ファイル
<!DOCTYPE TargetMetadata SYSTEM "../dtds/TargetMetadata.dtd"> <TargetMetadata META_VER="1.0" TYPE="CalculatorService"> <Display> <Label NLSID="NLSID_CALCULATOR_SERVICE">CalculatorService</Label> <ShortName NLSID="NLSID_CALCULATOR_SERVICE">CalculatorService</ShortName> <Description NLSID="NLSID_CALCULATOR_SERVICE">CalculatorService</Description> </Display> <Metric NAME="square" TYPE="TABLE"> <Display> <Label NLSID="NLSID_SQUARE">square</Label> </Display> <TableDescriptor> <ColumnDescriptor IS_KEY="FALSE" NAME="SquareResult" TYPE="STRING"> <Display> <Label NLSID="COL_SQUARE_RESULT">SquareResult</Label> </Display> </ColumnDescriptor> </TableDescriptor> <QueryDescriptor FETCHLET_ID="WSF"> <Property NAME="ProxyHost" SCOPE="INSTANCE" OPTIONAL="TRUE">ProxyHost</Property> <Property NAME="ProxyPort" SCOPE="INSTANCE" OPTIONAL="TRUE">ProxyPort</Property> <Property NAME="SecurityPolicy" SCOPE="INSTANCE" OPTIONAL="FALSE">square.SecurityPolicy</Property> <Property NAME="ServiceEndpoint" SCOPE="INSTANCE" OPTIONAL="FALSE">square.ServiceEndpoint</Property> <Property NAME="ServiceName" SCOPE="GLOBAL" OPTIONAL="FALSE">ns0:CalculatorService</Property> <Property NAME="PortName" SCOPE="GLOBAL" OPTIONAL="FALSE">ns0:CalculatorPort</Property> <Property NAME="OperationName" SCOPE="GLOBAL" OPTIONAL="FALSE">square</Property> <Property NAME="MessageType" SCOPE="GLOBAL" OPTIONAL="FALSE">SOAP</Property> <Property NAME="SOAPBindingStyle" SCOPE="GLOBAL" OPTIONAL="FALSE">DOCUMENT</Property> <Property NAME="SOAPBindingUse" SCOPE="GLOBAL" OPTIONAL="FALSE">LITERAL</Property> <Property NAME="ParameterStyle" SCOPE="GLOBAL" OPTIONAL="FALSE">WRAPPED</Property> <Property NAME="SOAPVersion" SCOPE="GLOBAL" OPTIONAL="FALSE">SOAP_1_1</Property> <Property NAME="Namespace" SCOPE="GLOBAL" OPTIONAL="FALSE"><![CDATA[[ns0="http://tests.jaxws.oracle.com/"]]]></Property> <Property NAME="RowType" SCOPE="GLOBAL" OPTIONAL="FALSE">//ns0:squareResponse/arg0</Property> <Property NAME="ColType" SCOPE="GLOBAL" OPTIONAL="FALSE">SquareResult:STRING</Property> <Property NAME="Payload" SCOPE="GLOBAL" OPTIONAL="FALSE"><![CDATA[<soap:Envelope xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/"> <soap:Body xmlns:ns1="http://tests.jaxws.oracle.com/"> <ns1:square> <arg0>%square.arg00001%</arg0> </ns1:square> </soap:Body> </soap:Envelope>]]></Property> <Property NAME="UserCredential" SCOPE="GLOBAL" OPTIONAL="FALSE">UserCredentialSet01</Property> <CredentialRef NAME="UserCredentialSet01">UserCredentialSet01</CredentialRef> </QueryDescriptor> </Metric> <CredentialInfo> <CredentialType NAME="CSFKeyCredential"> <Display> <Label NLSID="CRED_TYPE">CSF-Key Credential Type</Label> </Display> <CredentialTypeColumn NAME="CSFKey"> <Display> <Label NLSID="CRED_C_S_F_KEY">Alias CSF Key</Label> </Display> </CredentialTypeColumn> </CredentialType> <CredentialType NAME="AliasCredential"> <Display> <Label NLSID="CRED_TYPE">Alias Credential Type</Label> </Display> <CredentialTypeColumn NAME="Alias"> <Display> <Label NLSID="CRED_ALIAS">Alias (i.e. username, encryption key, signature key, etc)</Label> </Display> </CredentialTypeColumn> <CredentialTypeColumn NAME="Password"> <Display> <Label NLSID="CRED_PASSWORD">Password for the alias</Label> </Display> </CredentialTypeColumn> </CredentialType> <CredentialSet NAME="UserCredentialSet01" USAGE="MONITORING"> <AllowedCredType TYPE="CSFKeyCredential"/> <AllowedCredType TYPE="AliasCredential"/> </CredentialSet> </CredentialInfo> <InstanceProperties> <InstanceProperty NAME="ProxyHost" CREDENTIAL="FALSE" OPTIONAL="TRUE"> <Display> <Label NLSID="PROP_PROXY_HOST">Proxy Server Name</Label> </Display> </InstanceProperty> <InstanceProperty NAME="ProxyPort" CREDENTIAL="FALSE" OPTIONAL="TRUE"> <Display> <Label NLSID="PROP_PROXY_PORT">Proxy Server Port</Label> </Display> </InstanceProperty> <InstanceProperty NAME="square.SecurityPolicy" CREDENTIAL="FALSE" OPTIONAL="FALSE"> <Display> <Label NLSID="PROP_SQUARE_SECURITY_POLICY">[square] Authentication/Web Service Policy</Label> </Display> </InstanceProperty> <InstanceProperty NAME="square.ServiceEndpoint" CREDENTIAL="FALSE" OPTIONAL="FALSE"> <Display> <Label NLSID="PROP_SQUARE_SERVICE_ENDPOINT">[square] Web Service Endpoint URL</Label> </Display> </InstanceProperty> <InstanceProperty NAME="square.arg00001" CREDENTIAL="FALSE" OPTIONAL="FALSE"> <Display> <Label NLSID="PROP_SQUARE_ARG00001">[square] square.arg0</Label> </Display> </InstanceProperty> </InstanceProperties></TargetMetadata>
コマンドライン・ツールは、例19-4に示すように、必要な収集ファイルも生成します。
例19-4 デフォルトの収集ファイルCalculatorService
<!DOCTYPE TargetCollection SYSTEM "../dtds/TargetCollection.dtd"> <TargetCollection TYPE="CalculatorService"> <CollectionItem NAME="square"> <Schedule> <IntervalSchedule TIME_UNIT="Min" INTERVAL="30"/> </Schedule> </CollectionItem> </TargetCollection>
ツールによってターゲット・メタデータ・ファイルおよび収集ファイルが生成されたら、Oracleプラグイン・アーカイブを作成できます。詳細は、第14.4項「プラグイン・アーカイブの作成」を参照してください。
Enterprise Manager 12c以降では、WS-Management(WS-MAN)準拠リソースは、fetchlet WSManagementFetchletを使用してモニターできます。
fetchletは、WS-Transferプロトコルを使用してWS-MANリソースと通信します。このプロトコルは、管理対象リソースがサポートする必要がある多くの管理操作を定義します。ただし、現在のリリースでfetchletがサポートするのは、WS-Transfer GET操作のみです。
注意: WS-Managementの監視の規格については、DMTFのWebサイト『Web Services Management』を参照してください。
|
前提条件
そのホストに管理エージェント・バージョン12.1.0.0.0以上がインストールされていること。
Oracle Management Server(OMS)バージョン12.1.0.0.0以上が管理エージェントと通信していること。
Enterprise Managerでは、使いやすいWS-Management CLIコマンドライン・ツールが提供されており、必要なターゲットのメタデータ・ファイルやデフォルトの収集ファイルを自動的に生成することにより、新しい管理プラグインの作成が容易になります。情報は、管理エージェントに統合されたWSManagementFetchletで取得されます。
WS-Managementインタフェースをサポートするリソースでは、XML Schema Definition(XSD)表現を使用してそのモデルに固有の要素を記述し、WSDLのように、Webサービスにアクセス可能な公共のリンクとしてXSDを公開する必要があります。
コマンドライン・ツールは、管理対象のWS-MANリソースの指定のXSDファイルを解析することで機能し、関連のリソース・プロパティを選択して監視メトリックを構築するプロンプトを表示します。
WS-Management CLIコマンドライン・ツールの構文は次のとおりです。
Usage: emctl wsmancli [-metadata | -help] [-options]
コマンドは、次のオプションを受け入れます。
-schema=file | URL: リソースのXSDファイルまたはURL [必須]
-username=user ID : スキーマが保護される場合のユーザー名
コマンドライン・ツールには、リソース・スキーマを特定するためにXSDファイル名またはURLが必要です。たとえば、Traffic Light WS-ManagementサービスのXSD URLは次のようになります。
http://localhost:8888/TrafficLight?xsd
コマンド・ツール・スクリプトでは、実行するEnterprise Managerホーム・ディレクトリ(EM_HOME)にアクセスする必要があります。ツールは、デフォルトでORACLE_HOMEに設定されます(この環境変数は、ツールを使用する前に適切に設定しておきます)。
コマンドライン・ツールでは、Enterprise Managerで必要なメタデータがターゲット監視の目的でリソースXSDから生成されます。このツールを実行する場合、XSDファイルまたはURLに対する読取り権限および生成されるファイルを適切なディレクトリに保存する権限のみが必要です。
例19-5に、ターゲット・メタデータ・ファイルおよび収集ファイルを生成するためにコマンドライン・ツールに渡されるサンプルXSDファイルを示します。
例19-5 サンプルXSDファイルTrafficLight.xsd
<?xml version="1.0" encoding="UTF-8"?><xs:schema targetNamespace="http://schemas.wiseman.dev.java.net/traffic/1/light.xsd" elementFormDefault="qualified" blockDefault="#all" xmlns:tl="http://schemas.wiseman.dev.java.net/traffic/1/light.xsd" xmlns:xs="http://www.w3.org/2001/XMLSchema"> <xs:complexType name="TrafficLightType"> <xs:sequence> <xs:element name="name" type="xs:string"/> <xs:element name="color" type="xs:string"/> <xs:element name="x" type="xs:int"/> <xs:element name="y" type="xs:int"/> </xs:sequence> </xs:complexType> <xs:element name="trafficlight" type="tl:TrafficLightType"/> </xs:schema>
コマンドライン・ツールを開始するには、次のようにします。
$AGENT_HOME/binディレクトリに移動します。
次のコマンドを実行します。
$ emctl wsmancli -metadata -schema= http://localhost:8080/Traffic?xsd
起動後に、コマンドライン・ツールでは、例19-6「サンプルWS-Management CLIコマンドライン・ツール・セッション」に示すように、必要な情報を求めるプロンプトが自動的に表示されます。コマンドライン・ツール・セッションを終了する必要がある場合は、任意の時点で[Ctrl]+[C]を押して終了できます。セッション情報は保存されません。
例19-6 サンプルWS-Management CLIコマンドライン・ツール・セッション
Oracle Enterprise Manager 12c Release 1 Cloud Control 12.1.0.0.0 Copyright (c) 1996, 2011 Oracle Corporation. All rights reserved. OracleHome : /oracle/oms/agent EMDROOT : /oracle/oms/agent Generate Metric Metadata for WS-Management Resource Monitoring Reading Resource XSD Document at http://localhost:8080/Traffic?xsd...done. ==> Enter the name for this target type: TrafficLight ==> Enter the metadata file name [/tmp/target/metadata/TrafficLight.xml] : Define new metric group name: ==> Enter the name for this metric group: trafficLight WS-Addressing namespaces: [1] http://www.w3.org/2005/08/addressing [2] http://schemas.xmlsoap.org/ws/2004/08/addressing ==> Enter the index [1-2] to select: 1 SOAP Envelope namespaces: [1] http://www.w3.org/2003/05/soap-envelope [2] http://schemas.xmlsoap.org/soap/envelope/ ==> Enter the index [1-2] to select: 1 Resource properties: [1] trafficlight:color [2] trafficlight:name [3] trafficlight:x [4] trafficlight:y ==> Enter the index [1-4] of property to display: 2 ==> Enter the name for this metric [name]: ==> Enter the label for this metric [name]: ==> Is this a key metric <y/n>? [n] : y ==> Do you want to add another metric <y/n>? [n] : y Resource properties: [1] trafficlight:color [2] trafficlight:x [3] trafficlight:y ==> Enter the index [1-3] of property to display: 1 ==> Enter the name for this metric [color]: ==> Enter the label for this metric [color]: ==> Is this a key metric <y/n>? [n] : ==> Do you want to create threshold for this item <y/n>? [n] : ==> Do you want to add another metric <y/n>? [n] : y Resource properties: [1] trafficlight:x [2] trafficlight:y ==> Enter the index [1-2] of property to display: 1 ==> Enter the name for this metric [x]: ==> Enter the label for this metric [x]: ==> Is this a key metric <y/n>? [n] : ==> Do you want to create threshold for this item <y/n>? [n] : ==> Do you want to add another metric <y/n>? [n] : y Resource properties: [1] trafficlight:y ==> Enter the index [1-1] of property to display: 1 ==> Enter the name for this metric [y]: ==> Enter the label for this metric [y]: ==> Is this a key metric <y/n>? [n] : ==> Do you want to create threshold for this item <y/n>? [n] : ==> Enter comma-separated list of Selector elements: name ==> Do you want to add User/Password Credential <y/n>? [n] : y ==> Enter the name for User/Password credential set [UserCredentialSet01] : ==> Is this metric group for periodic collection <y/n>? [y] : The following units are for collection frequency: [1] Min [2] Hr [3] Day ==> Enter the index [1-3] of unit for this collection: 1 ==> Enter the frequency of collection in Min: 30 ==> Do you want to add another metric group <y/n>? [n] : Files Generated: - Target Metadata file: /tmp/target/metadata/TrafficLight.xml - Target Collection file: /tmp/target/metadata/TrafficLightCollection.xml
コマンドライン・ツールは、例19-7に示すように、ターゲット・タイプTrafficLightの監視に必要なメタデータを生成します。
例19-7 TrafficLightターゲットのメタデータ・ファイル
<!DOCTYPE TargetMetadata SYSTEM "../dtds/TargetMetadata.dtd"> <TargetMetadata META_VER="1.0" TYPE="TrafficLight"> <Display> <Label NLSID="NLSID_TRAFFIC_LIGHT">TrafficLight</Label> <ShortName NLSID="NLSID_TRAFFIC_LIGHT">TrafficLight</ShortName> <Description NLSID="NLSID_TRAFFIC_LIGHT">TrafficLight</Description> </Display> <Metric NAME="trafficLight" TYPE="TABLE"> <Display> <Label NLSID="NLSID_TRAFFIC_LIGHT">trafficLight</Label> </Display> <TableDescriptor> <ColumnDescriptor IS_KEY="TRUE" NAME="name" TYPE="STRING"> <Display> <Label NLSID="COL_NAME">name</Label> </Display> </ColumnDescriptor> <ColumnDescriptor IS_KEY="FALSE" NAME="color" TYPE="STRING"> <Display> <Label NLSID="COL_COLOR">color</Label> </Display> </ColumnDescriptor> <ColumnDescriptor IS_KEY="FALSE" NAME="x" TYPE="STRING"> <Display> <Label NLSID="COL_X">x</Label> </Display> </ColumnDescriptor> <ColumnDescriptor IS_KEY="FALSE" NAME="y" TYPE="STRING"> <Display> <Label NLSID="COL_Y">y</Label> </Display> </ColumnDescriptor> </TableDescriptor> <QueryDescriptor FETCHLET_ID="WSManagementFetchlet"> <Property NAME="ProxyHost" SCOPE="INSTANCE" OPTIONAL="TRUE">ProxyHost</Property> <Property NAME="ProxyPort" SCOPE="INSTANCE" OPTIONAL="TRUE">ProxyPort</Property> <Property NAME="SecurityPolicy" SCOPE="INSTANCE" OPTIONAL="TRUE">trafficLight.SecurityPolicy</Property> <Property NAME="ResourceURL" SCOPE="INSTANCE" OPTIONAL="FALSE">trafficLight.ResourceURL</Property> <Property NAME="To" SCOPE="INSTANCE" OPTIONAL="FALSE">trafficLight.To</Property> <Property NAME="OptionSet" SCOPE="INSTANCE" OPTIONAL="TRUE">trafficLight.OptionSet</Property> <Property NAME="Locale" SCOPE="INSTANCE" OPTIONAL="TRUE">trafficLight.Locale</Property> <Property NAME="MaxEnvelopeSize" SCOPE="INSTANCE" OPTIONAL="TRUE">trafficLight.MaxEnvelopeSize</Property> <Property NAME="OperationTimeout" SCOPE="INSTANCE" OPTIONAL="TRUE">trafficLight.OperationTimeout</Property> <Property NAME="Namespace" SCOPE="GLOBAL" OPTIONAL="FALSE"><![CDATA[[ns1="http://schemas.wiseman.dev.java.net/traffic/1/light.xsd"][ns0="http://www.w3.org/2001/XMLSchema"][wsa="http://www.w3.org/2005/08/addressing"][env="http://www.w3.org/2003/05/soap-envelope"]]]></Property> <Property NAME="RowType" SCOPE="GLOBAL" OPTIONAL="FALSE"> //ns1:trafficlight/ns1:name,//ns1:trafficlight/ns1:color,//ns1:trafficlight/ns1:x,//ns1:trafficlight/ns1:y</Property> <Property NAME="ColType" SCOPE="GLOBAL" OPTIONAL="FALSE">name:STRING,color:STRING,x:STRING,y:STRING</Property> <Property NAME="ReplyTo" SCOPE="GLOBAL" OPTIONAL="FALSE">http://www.w3.org/2005/08/addressing/role/anonymous</Property> <Property NAME="Action" SCOPE="GLOBAL" OPTIONAL="FALSE">http://schemas.xmlsoap.org/ws/2004/09/transfer/Get</Property> <Property NAME="TransferOperation" SCOPE="GLOBAL" OPTIONAL="FALSE">GET</Property> <Property NAME="SelectorSet" SCOPE="GLOBAL" OPTIONAL="FALSE">[name,%trafficLight.name%]</Property> <Property NAME="UserCredential" SCOPE="GLOBAL" OPTIONAL="FALSE">UserCredentialSet01</Property> <CredentialRef NAME="UserCredentialSet01">UserCredentialSet01</CredentialRef> </QueryDescriptor> </Metric> <CredentialInfo> <CredentialType NAME="CSFKeyCredential"> <Display> <Label NLSID="CRED_TYPE">CSF-Key Credential Type</Label> </Display> <CredentialTypeColumn NAME="CSFKey"> <Display> <Label NLSID="CRED_C_S_F_KEY">Alias CSF Key</Label> </Display> </CredentialTypeColumn> </CredentialType> <CredentialType NAME="AliasCredential"> <Display> <Label NLSID="CRED_TYPE">Alias Credential Type</Label> </Display> <CredentialTypeColumn NAME="Alias"> <Display> <Label NLSID="CRED_ALIAS">Alias (i.e. username, encryption key, signature key, etc)</Label> </Display> </CredentialTypeColumn> <CredentialTypeColumn NAME="Password"> <Display> <Label NLSID="CRED_PASSWORD">Password for the alias</Label> </Display> </CredentialTypeColumn> </CredentialType> <CredentialSet NAME="UserCredentialSet01" USAGE="MONITORING"> <AllowedCredType TYPE="CSFKeyCredential"/> <AllowedCredType TYPE="AliasCredential"/> </CredentialSet> </CredentialInfo> <InstanceProperties> <InstanceProperty NAME="ProxyHost" CREDENTIAL="FALSE" OPTIONAL="TRUE"> <Display> <Label NLSID="PROP_PROXY_HOST">Proxy Server Name</Label> </Display> </InstanceProperty> <InstanceProperty NAME="ProxyPort" CREDENTIAL="FALSE" OPTIONAL="TRUE"> <Display> <Label NLSID="PROP_PROXY_PORT">Proxy Server Port</Label> </Display> </InstanceProperty> <InstanceProperty NAME="trafficLight.SecurityPolicy" CREDENTIAL="FALSE" OPTIONAL="TRUE"> <Display> <Label NLSID="PROP_TRAFFIC_LIGHT_SECURITY_POLICY">[trafficLight] Authentication/Web Service Policy</Label> </Display> </InstanceProperty> <InstanceProperty NAME="trafficLight.ResourceURL" CREDENTIAL="FALSE" OPTIONAL="FALSE"> <Display> <Label NLSID="PROP_TRAFFIC_LIGHT_RESOURCE_U_R_L">[trafficLight] Resource URL (wsman:ResourceURL)</Label> </Display> </InstanceProperty> <InstanceProperty NAME="trafficLight.To" CREDENTIAL="FALSE" OPTIONAL="FALSE"> <Display> <Label NLSID="PROP_TRAFFIC_LIGHT_TO">[trafficLight] Network Address of the service (wsa:To)</Label> </Display> </InstanceProperty> <InstanceProperty NAME="trafficLight.OptionSet" CREDENTIAL="FALSE" OPTIONAL="TRUE"> <Display> <Label NLSID="PROP_TRAFFIC_LIGHT_OPTION_SET">[trafficLight] Set of wsman:Option. Format: [<OptionName1>, value:<value1>, type:<type1>, mustComply:<true|false>][<OptionName2>, value:<value2>, type:<type>, mustComply:<true|false>][...]</Label> </Display> </InstanceProperty> <InstanceProperty NAME="trafficLight.Locale" CREDENTIAL="FALSE" OPTIONAL="TRUE"> <Display> <Label NLSID="PROP_TRAFFIC_LIGHT_LOCALE">[trafficLight] wsman:Locale (RFC 3066 language code). Format: e.g. en-US</Label> </Display> </InstanceProperty> <InstanceProperty NAME="trafficLight.MaxEnvelopeSize" CREDENTIAL="FALSE" OPTIONAL="TRUE"> <Display> <Label NLSID="PROP_TRAFFIC_LIGHT_MAX_ENVELOPE_SIZE">[trafficLight] wsman:MaxEnvelopeSize in Octets. Format: e.g. 8192</Label> </Display> </InstanceProperty> <InstanceProperty NAME="trafficLight.OperationTimeout" CREDENTIAL="FALSE" OPTIONAL="TRUE"> <Display> <Label NLSID="PROP_TRAFFIC_LIGHT_OPERATION_TIMEOUT">[trafficLight] wsman:OperationTimeout. Format: e.g. PT30S</Label> </Display> </InstanceProperty> <InstanceProperty NAME="trafficLight.name" CREDENTIAL="FALSE" OPTIONAL="FALSE"> <Display> <Label NLSID="PROP_TRAFFIC_LIGHT_NAME">[trafficLight] Value for the Selector "name"</Label> </Display> </InstanceProperty> </InstanceProperties> </TargetMetadata>
コマンドライン・ツールは、例19-8「デフォルトの収集ファイルTrafficLight」に示すように、必要な収集ファイルも生成します。
例19-8 デフォルトの収集ファイルTrafficLight
<!DOCTYPE TargetCollection SYSTEM "../dtds/TargetCollection.dtd"> <TargetCollection TYPE="TrafficLight"> <CollectionItem NAME="trafficLight"> <Schedule> <IntervalSchedule TIME_UNIT="Min" INTERVAL="30"/> </Schedule> </CollectionItem> </TargetCollection>
コマンドライン・ツールによってターゲットのメタデータ・ファイルおよび収集ファイルが生成されたら、メタデータ・プラグイン・アーカイブを作成できます。第14.4項「プラグイン・アーカイブの作成」を参照してください。
Java Management Extensions(JMX)フレームワークは、ユーザーが内部動作を確認できるようにすることで、JMXインスツルメント処理されたアプリケーションの管理性を向上します。アプリケーションおよびインフラストラクチャの内部動作は、Managed Bean(MBean)と呼ばれるモジュール形式のプラグインを通じて確認できます。MBeanは、アプリケーション、コンポーネント(Enterprise Java-Beanなど)またはその他のリソースと統合され、属性(値)および操作を公開します。
10.2の管理エージェントに付属するOJMX fetchletを使用すると、Oracle Application Server 10.1.3以上にデプロイされたJMXインスツルメント処理されたアプリケーションで主要なメトリックを監視できます。fetchletは、JMXを介した監視機能を、J2EE(OC4J)サーバー自体のJ2EE 1.4準拠Oracleコンテナに拡張します。
JMXインスツルメント処理されたアプリケーション/サーバーをEnterprise Managerで監視すると、Enterprise Managerが管理プラグインを介して監視できる新しいターゲット・タイプを定義することになります。Webサービスのwscli
コマンドライン・ツールと同様に、Enterprise Managerには、ターゲットのメタデータ・ファイルおよび収集ファイルの生成を自動化するためのjmxcli
コマンドライン・ツールが用意されています。
前提条件
JMX対応のアプリケーションがデプロイされた特定のホスト上で、Enterprise Managerでターゲットとして監視する必要のあるOracle Application Server 10.1.3インスタンスが稼働していること。
そのホストに管理エージェント・バージョン10.2.0.2以上がインストールされていること。
Oracle Management Server(OMS)バージョン10.2.0.2以上が管理エージェントと通信していること。
既知の制限事項
現在、jmxcliツールおよびOJMX fetchletでは、ターゲットOC4Jインスタンス上のデフォルトのMBeanserverで使用可能な(システムおよびアプリケーションで定義された)MBeanの参照および監視のみ行うことができます。jmxcliツールは基本的に、属性と、OpenTypeである操作のパラメータおよび戻り値を処理します。たとえば、SimpleType、CompositeType、TabularType、およびSimpleTypeの配列などです。
Webサービスの場合と同様に、JMXコマンドライン・ツール(jmxcli)では、必要なターゲット定義ファイル(メタデータとデフォルトの収集ファイル)の作成が容易になります。ツールは、MBeanServerとユーザーをつなぐオフライン構成ユーティリティであり、使用可能なMBeanを参照できます。また、以降のツールの呼出しで既存のファイル・セットにメトリックを追加することもできます。
コマンドライン・ツール・セッション中に、特定のMBeanを選択し、続いてEnterprise Managerがこれらの値を収集するためにこれらのMBeanに対して定期的に取得または起動する必要のある目的の属性/統計値または操作を選択します。ツールは、1つ以上のEnterprise Managerメトリック(列あり)としてのこれらの収集された値のパッケージ化の定義を支援し、またメトリック収集間隔を指定できるようにします。
JMXコマンドライン・ツール構文は、OC4J上のJMX対応ターゲットの場合、次のようになります。以前のリリースから使用法が変更されていることに注意してください。cli
は、管理エージェントのemctl
ユーティリティに統合されています。
cdAgent Instance Home
/bin emctl jmxcliTARGET_HOME
[ -hhostname
-pport
-uusername
-ccredential/password
-wwork directory
-etrue/false
[-mMBeanName
| -djmx_domain
| -smBeanPattern
] ]
TARGET_HOMEは、Oracleホーム・ディレクトリ10.1.3以降のOracle Application Server Container for J2EE(OC4J)です。
jmxcli
コマンドは、次のオプションを受け入れます。
-h: OC4Jのホスト名。デフォルト: localhost。
-p: OC4JのRMI/RMISポート。デフォルト: 23791。
アプリケーション・サーバー10.1.3.0以上のインスタンスのORACLE_HOME/opmn/binディレクトリからopmnctl status -1
を実行し、MBeanのデプロイ対象となったOC4JのRMIポートを突き止めます。
-u: OC4Jの有効なユーザー名。デフォルト: oc4jadmin。
-c: -u
オプションで指定されたOC4Jユーザーに関連付けられているパスワード。デフォルト: なし。パスワードを指定しない場合、パスワードの入力を求められます。
-w: JMXコマンドライン・ツールで作成されたメタデータ・ファイルおよびデフォルトの収集ファイルが置かれるディレクトリ。デフォルト: 現在のディレクトリ。コマンドライン・ツールを起動する場合は、サブディレクトリを作成してファイルを追加するために、このディレクトリに対する書込み権限が必要です。メタデータ・ファイルおよびデフォルトの収集ファイルがそのディレクトリにすでに存在する場合は、元のファイルに追加するか元のファイルを上書きするかを選択できます。
-e: OC4JへのRMIS接続が有効になっているかどうか(trueまたはfalse)。デフォルト: false。
3つのパラメータ(-m
、-d
または-s
)のいずれかを指定して、MBeanServerで使用可能なMBeanのサブセットを取得することもできます。デフォルトでは、これらの3つのパラメータのいずれも指定されていない場合は、MBeanServer上のすべてのMBeanが表示され、そこから選択できます。
-m: 取得して検証する必要のある必須のMBeanのMBean ObjectName。これが複数のMBeanと一致するObjectNameパターンの場合は、パターンと一致するすべてのMBeanのリストが表示され、処理するMBeanを一度に1つずつ選択できます。
-d: MBeanを取得して検証する必要のある必須アプリケーションのMBeanドメイン。たとえば、アプリケーション(myApp)のすべてのMBeanを参照するとします。このアプリケーションのMBeanは、JMXドメインmyAppで使用できます。
-s: メトリックの定義の基にするMBeanの既存のセットと一致するMBeanパターン。-s
パラメータを使用すると、類似するタイプの複数のMbeanからJMX属性/統計を一括して取得することができます。
-s
パラメータを指定した場合、このjmxcli
セッション時に作成されるメトリックは、Enterprise Managerコンソールに複数行の表で表示されます。この表の1行は、指定したパターンと一致する各MBeanを表し、MBean ObjectNameがキー列になります。たとえば、-s 'oc4j:j2eeType=Servlet,*'
と指定した場合、作成されるメトリックの行は複数になり、1行がObjectNameパターンに一致する各サーブレットを表します。MBean ObjectName列に加えて、jmxcli
セッション時に選択された、操作の戻りオブジェクトの属性またはフィールドになる列があります。
JMXコマンドライン・ツールを開始するには、次のようにします。
$AGENT_HOME/bin
ディレクトリに移動します。
次のコマンドを実行します。
emctl jmxcli Oracle Home of the target 10.1.3 or greater OC4J
[OPTIONS]
起動後は、例19-10に示すように、コマンドライン・インタフェースによって必要な情報を求めるプロンプトが自動的に表示されます。JMXコマンドライン・ツール・セッションを終了する必要がある場合は、任意の時点で[Ctrl]+[C]を押して終了できます。セッション情報は保存されません。
例19-10 JMXCLIセッションのサンプル
oracleHome=/ade/sparmesw_10202_ssm/oracle targetHome=/scratch/shiphomes/oc4j/1013_SOA_M1/ The Port is 12404 Connecting to server: localhost:12404 Connecting as user: oc4jadmin Enter the password: Obtained 1 MBeans matching pattern oc4j:J2EEApplication=orabpel,name="ServerBean",*. Enter the target type for this metric: [myJ2EEApp] myBPELApp
これは、Enterprise Manager内に表示される新規J2EEアプリケーションのターゲット・タイプです。
Enter the target version: [1.0] Enter the target metadata file: [./metadata/myBPELApp.xml]
これは、jmxcliが生成するメタデータ・ファイルの場所です。ターゲットのメタデータ・ファイルとデフォルトの収集ファイルが作成されるディレクトリに対する書込み権限が必要です。
Enter the default collections file: [./default_collection/myBPELApp.xml] The file ./metadata/myBPELApp.xml already exists. Do you want to overwrite the existing file, append to it, or quit <o/a/q>? [a] a Appending to existing file: ./metadata/myBPELApp.xml. The available targets are: 0: Identifies a deployed stateless session bean (oc4j:EJBModule="ejb_ob_engine",J2EEApplication=orabpel,J2EEServer=standalone,j2eeType=StatelessSessionBean,name="ServerBean") Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 0
jmxcliの呼出し時に指定された-m <MBeanパターン>に複数のMBeanが一致した場合、そのパターンに一致するすべてのMBean ObjectNameが、コマンドライン・セッションのこの部分でリスト表示されます。この時点で、リストからいずれかのMBean ObjectNameを選択できます。最初のMBeanのメトリックを作成後、このjmxcliセッションを終了せずに前述のリストから別のMBeanを選択できます。
前述の-mパターンに一致しない別のMBeanのメトリックを追加する場合、セッションを終了して、後者の(パターンが一致しない)MBeanのMBean ObjectName/パターンで別のjmxcliセッションを開始し、以前のjmxclセッションの元のターゲットのメタデータ・ファイルとデフォルトの収集ファイルに追加されるMBeanのメトリックを作成する必要があります。この方法では、複数のjmxcliセッションから作成されたメトリックを同じターゲットのメタデータ・ファイルとデフォルトの収集ファイルに必要に応じて追加できます。
Following metric source types are available for selected target(s): 0: JMX Attributes 1: JMX Operations 2: J2EE Statistics Enter the index of your choice or press <Ctrl-C> to quit: 2 Statistics are: 0: CreateCount 1: ejbCreate()ClientActive 2: ejbCreate()ClientTime 3: ejbRemove()ClientActive 4: ejbRemove()ClientTime 5: MethodReadyCount 6: RemoveCount 7: setSessionContext(javax.ejb.SessionContext)ClientActive 8: setSessionContext(javax.ejb.SessionContext)ClientTime Select one or more items as comma-separated indices: 0,6 JavaBean is : CreateCount 0: count 1: description 2: lastSampleTime 3: name 4: startTime 5: unit
これは、統計コールCreateCountが単純なデータ型ではなく、前述のプロパティを持つJavaBeanパターンであることを示します(これらのプロパティを指定します)。
Select one or more items as comma-separated indices: 0 JavaBean is : RemoveCount 0: count 1: description 2: lastSampleTime 3: name 4: startTime 5: unit Select one or more items as comma-separated indices: 0 Number of possible columns in the resultant metric are 2. Enter the name for this metric column at index=0 : [countOfCreateCount] createCount
ここでは、意味のある名前を指定できます。名前を指定しない場合、JMXコマンドライン・ツールでデフォルトの名前が生成されますが、この名前がすべての状況に適しているとは限りません。
Is this column a KEY Column <y/n>? [n]
操作の属性や戻り値がTabularDataの場合のように、複数の行が戻される状況では、選択した1つ以上のメトリックを「キー」列として指定する必要があります。
Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [createCount] Enter the NLSID for column: [createCount] Enter the UNIT for column "createCount": [count] Do you want to create a threshold for this column <y/n>? [n] y Creating threshold!! Following operators are available for creating thresholds: 0: GT 1: EQ 2: LT 3: LE 4: GE 5: CONTAINS 6: NE 7: MATCH
この列に対してしきい値を作成するには、演算子を指定してから、クリティカルまたは警告アラートのトリガーとなる値を指定します。
Enter the index of your choice or press <Ctrl-C> to quit: 0 Enter the CRITICAL threshold: [NotDefined] 100 Enter the WARNING threshold: [NotDefined] 85 Enter the number of occurrences that trigger threshold: [6] 3
これは、アラートのトリガーとなる前述のクリティカルまたは警告値の連続発生数です。
Enter the message to be used when threshold is triggered: [createCount is %value% and has crossed warning (%warning_threshold%) or critical (%critical_threshold%) threshold.] Enter NLSID for the message used when threshold is triggered: [createCount_cond] Enter the name for this metric column at index=1 : [countOfRemoveCount] removeCount Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [removeCount] Enter the NLSID for column: [removeCount] Enter the UNIT for column "removeCount": [count] Do you want to create a threshold for this column <y/n>? [n] Enter the name of this metric: ServerBeanStats Enter the label for this metric: [ServerBeanStats] Do you want periodic collection for this metric <y/n>? [n] y
リアルタイムのみのメトリックの場合のようにメトリックを定期的に収集する必要がない場合は、noを指定できます。
Enter the collection interval in seconds: 60 Periodic collection interval is: 60 seconds. Do you want to create another metric <y/n>? [n] y The available targets are: 0: Identifies a deployed stateless session bean (oc4j:EJBModule="ejb_ob_engine",J2EEApplication=orabpel,J2EEServer=standalone,j2eeType=StatelessSessionBean,name="ServerBean") Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 0
複数のMBeanが(jmxcliの起動時に指定された)-mオプションのMBeanパターンと一致する場合は、このコマンドライン・セッションの次の反復のために前述のリストから別のMBeanを選択できます。
Following metric source types are available for selected target(s): 0: JMX Attributes 1: JMX Operations 2: J2EE Statistics Enter the index of your choice or press <Ctrl-C> to quit: 0 Attributes are: 0: activeInstances Return Value: int 1: activeInstancesHighWaterMark Return Value: int 2: eventProvider Return Value: boolean 3: maxInstances Return Value: int 4: minInstances Return Value: int 5: ObjectName Return Value: javax.management.ObjectName 6: stateManageable Return Value: boolean 7: statisticsProvider Return Value: boolean 8: stats Return Value: javax.management.j2ee.statistics.Stats 9: transactionTimeout Return Value: int Select one or more items as comma-separated indices: 0,3,4 Number of possible columns in the resultant metric are 3. Enter the name for this metric column at index=0 : [activeInstances] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [activeInstances] Enter the NLSID for column: [activeInstances] Enter the UNIT for column "activeInstances": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name for this metric column at index=1 : [maxInstances] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [maxInstances] Enter the NLSID for column: [maxInstances] Enter the UNIT for column "maxInstances": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name for this metric column at index=2 : [minInstances] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [minInstances] Enter the NLSID for column: [minInstances] Enter the UNIT for column "minInstances": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name of this metric: ServerBeanCount Enter the label for this metric: [ServerBeanCount] Do you want periodic collection for this metric <y/n>? [n] y Enter the collection interval in seconds: 300 Periodic collection interval is: 300 seconds. Do you want to create another metric <y/n>? [n] n Written the metadata xml file: ./metadata/myBPELApp.xml. Updated the default collection file for myBPELApp at location ./default_collection/myBPELApp.xml. Exiting...
JMXコマンドライン・ツールによってターゲット・メタデータ・ファイルおよび収集ファイルが生成されたら、Oracleプラグイン・アーカイブを作成できます。前述のコマンドライン・ツール・セッションから生成された各ファイルのサンプルを、例19-11および例19-12に示します。
例19-11 生成されたターゲット・メタデータ・ファイル
<!DOCTYPE TargetMetadata SYSTEM "../dtds/TargetMetadata.dtd"> <TargetMetadata META_VER="1.0" TYPE="myBPELApp" CATEGORY _PROPERTIES="VersionCategory"> <Display> <Label NLSID="myBPELAppNLSID">myBPELApp</Label> <ShortName NLSID="myBPELAppShortName">myBPELApp</ShortName> <Description NLSID="myBPELAppDescription">myBPELApp</Description> </Display> <Metric NAME="ServerBeanStats" TYPE="TABLE"> <Display> <Label NLSID="ServerBeanStats">ServerBeanStats</Label> </Display> <TableDescriptor> <ColumnDescriptor NAME="createCount" TYPE="NUMBER"> <Display> <Label NLSID="createCount">createCount</Label> <Unit NLSID="count">count</Unit> </Display> </ColumnDescriptor> <ColumnDescriptor NAME="removeCount" TYPE="NUMBER"> <Display> <Label NLSID="removeCount">removeCount</Label> <Unit NLSID="count">count</Unit> </Display> </ColumnDescriptor> </TableDescriptor> <QueryDescriptor FETCHLET_ID="OJMX"> <Property NAME="machine" SCOPE="INSTANCE">HTTPMachine</Property> <Property NAME="OracleHome" SCOPE="INSTANCE">OracleHome</Property> <Property NAME="oc4jInstanceName" SCOPE="INSTANCE" OPTIONAL="TRUE">OC4JInstanceName</Property> <Property NAME="jvmId" SCOPE="INSTANCE" OPTIONAL="TRUE">JVMId</Property> <Property NAME="mgmtWebSite" SCOPE="INSTANCE" OPTIONAL="TRUE">MgmtWebSite</Property> <Property NAME="authuser" SCOPE="INSTANCE" OPTIONAL="TRUE">authUser</Property> <Property NAME="authpwd" SCOPE="INSTANCE" OPTIONAL="TRUE">authPasswd</Property> <Property NAME="metric" SCOPE="GLOBAL">ServerBeanStats</Property> <Property NAME="delimiter" SCOPE="GLOBAL">|</Property> <Property NAME="name" SCOPE="GLOBAL">getStatistics</Property> <Property NAME="signature" SCOPE="GLOBAL">objectName,statNames,languageCode,countryCode</Property> <Property NAME="returnType" SCOPE="GLOBAL">arrayOfComplexObjectBean</Property> <Property NAME="dontAddDefaultRowKey" SCOPE="GLOBAL">true</Property> <Property NAME="columnOrder" SCOPE="GLOBAL">/CreateCount/count,/RemoveCount/count</Property> <Property NAME="arguments" SCOPE="GLOBAL"> <![CDATA[<arguments> <argument> <value>oc4j:EJBModule="ejb_ob_engine",J2EEApplication=orabpel,J2EEServer=standalone,j2eeType=StatelessSessionBean,name="ServerBean"</value> </argument> <argument> <value>CreateCount</value> <value>RemoveCount</value> </argument> <argument> <value>en</value> </argument> <argument> <value>US</value> </argument> </arguments>]]> </Property> </QueryDescriptor> </Metric> <Metric NAME="ServerBeanCount" TYPE="TABLE"> <Display> <Label NLSID="ServerBeanCount">ServerBeanCount</Label> </Display> <TableDescriptor> <ColumnDescriptor NAME="activeInstances" TYPE="NUMBER"> <Display> <Label NLSID="activeInstances">activeInstances</Label> </Display> </ColumnDescriptor> <ColumnDescriptor NAME="maxInstances" TYPE="NUMBER"> <Display> <Label NLSID="maxInstances">maxInstances</Label> </Display> </ColumnDescriptor> <ColumnDescriptor NAME="minInstances" TYPE="NUMBER"> <Display> <Label NLSID="minInstances">minInstances</Label> </Display> </ColumnDescriptor> </TableDescriptor> <QueryDescriptor FETCHLET_ID="OJMX"> <Property NAME="machine" SCOPE="INSTANCE">HTTPMachine</Property> <Property NAME="OracleHome" SCOPE="INSTANCE">OracleHome</Property> <Property NAME="oc4jInstanceName" SCOPE="INSTANCE" OPTIONAL="TRUE">OC4JInstanceName</Property> <Property NAME="jvmId" SCOPE="INSTANCE" OPTIONAL="TRUE">JVMId</Property> <Property NAME="mgmtWebSite" SCOPE="INSTANCE" OPTIONAL="TRUE">MgmtWebSite</Property> <Property NAME="authuser" SCOPE="INSTANCE" OPTIONAL="TRUE">authUser</Property> <Property NAME="authpwd" SCOPE="INSTANCE" OPTIONAL="TRUE">authPasswd</Property> <Property NAME="metric" SCOPE="GLOBAL">ServerBeanCount</Property> <Property NAME="delimiter" SCOPE="GLOBAL">|</Property> <Property NAME="name" SCOPE="GLOBAL">getAttributes</Property> <Property NAME="signature" SCOPE="GLOBAL">objectName,attributeNames,languageCode,countryCode</Property> <Property NAME="returnType" SCOPE="GLOBAL">arrayOfComplexObjectBean</Property> <Property NAME="dontAddDefaultRowKey" SCOPE="GLOBAL">true</Property> <Property NAME="columnOrder" SCOPE="GLOBAL">/activeInstances,/maxInstances,/minInstances</Property> <Property NAME="arguments" SCOPE="GLOBAL"> <![CDATA[<arguments> <argument> <value>oc4j:EJBModule="ejb_ob_engine",J2EEApplication=orabpel,J2EEServer=standalone,j2eeType=StatelessSessionBean,name="ServerBean"</value> </argument> <argument> <value>activeInstances</value> <value>maxInstances</value> <value>minInstances</value> </argument> <argument> <value>en</value> </argument> <argument> <value>US</value> </argument> </arguments>]]> </Property> </QueryDescriptor> </Metric> <Metric NAME="Response" TYPE="TABLE"> <Display> <Label NLSID="Response">Response</Label> </Display> <TableDescriptor> <ColumnDescriptor NAME="Status" TYPE="NUMBER"> <Display> <Label NLSID="Status">Status</Label> </Display> </ColumnDescriptor> </TableDescriptor> <QueryDescriptor FETCHLET_ID="OJMX"> <Property NAME="machine" SCOPE="INSTANCE">HTTPMachine</Property> <Property NAME="OracleHome" SCOPE="INSTANCE">OracleHome</Property> <Property NAME="oc4jInstanceName" SCOPE="INSTANCE" OPTIONAL="TRUE">OC4JInstanceName</Property> <Property NAME="jvmId" SCOPE="INSTANCE" OPTIONAL="TRUE">JVMId</Property> <Property NAME="mgmtWebSite" SCOPE="INSTANCE" OPTIONAL="TRUE">MgmtWebSite</Property> <Property NAME="authuser" SCOPE="INSTANCE" OPTIONAL="TRUE">authUser</Property> <Property NAME="authpwd" SCOPE="INSTANCE" OPTIONAL="TRUE">authPasswd</Property> <Property NAME="metric" SCOPE="GLOBAL">Response</Property> <Property NAME="delimiter" SCOPE="GLOBAL">|</Property> <Property NAME="name" SCOPE="GLOBAL">getAttributes</Property> <Property NAME="signature" SCOPE="GLOBAL">objectName,attributeNames,languageCode,countryCode</Property> <Property NAME="returnType" SCOPE="GLOBAL">arrayOfComplexObjectBean</Property> <Property NAME="dontAddDefaultRowKey" SCOPE="GLOBAL">true</Property> <Property NAME="columnOrder" SCOPE="GLOBAL">/state</Property> <Property NAME="arguments" SCOPE="GLOBAL"> <![CDATA[<arguments> <argument> <value>oc4j:J2EEServer=standalone,j2eeType=J2EEApplication,name=orabpel</value> </argument> <argument> <value>state</value> </argument> <argument> <value>en</value> </argument> <argument> <value>US</value> </argument> </arguments>]]> </Property> </QueryDescriptor> </Metric> <InstanceProperties> <InstanceProperty NAME="HTTPMachine"> <Display> <Label NLSID="dms_HTTPMachine_iprop">Machine name</Label> </Display> </InstanceProperty> <InstanceProperty NAME="OracleHome"> <Display> <Label NLSID="dms_OracleHome_iprop">Oracle home path</Label> </Display> </InstanceProperty> <InstanceProperty NAME="OC4JInstanceName" OPTIONAL="TRUE"><Display><Label NLSID="OC4JInstanceNameiprop">OC4JInstanceName</Label></Display>home</InstanceProperty> <InstanceProperty NAME="JVMId" OPTIONAL="TRUE"><Display><Label NLSID="JVMId_iprop">JVMId</Label></Display>1</InstanceProperty> <InstanceProperty NAME="MgmtWebSite" OPTIONAL="TRUE"><Display><Label NLSID="MgmtWebSite_iprop">MgmtWebSite</Label></Display>default-web-site</InstanceProperty> <InstanceProperty NAME="URI" OPTIONAL="TRUE"><Display><Label NLSID="URI">URI</Label></Display>/JMXSoapAdapter/JMXSoapAdapter</InstanceProperty> <InstanceProperty NAME="authUser" OPTIONAL="TRUE"> <Display> <Label NLSID="dms_authUser_iprop">Username for Basic authorization</Label> </Display> </InstanceProperty> <InstanceProperty NAME="authPasswd" OPTIONAL="TRUE" CREDENTIAL="TRUE"> <Display> <Label NLSID="dms_authPasswd_iprop">Password for Basic authorization</Label> </Display> </InstanceProperty> <InstanceProperty NAME="Version" OPTIONAL="TRUE"><Display><Label NLSID="oc4j_version_iprop">Version of myBPELApp</Label></Display>1.0</InstanceProperty> </InstanceProperties> </TargetMetadata>
例19-12 生成されたメトリック収集ファイル
<!DOCTYPE TargetCollection SYSTEM "../dtds/TargetCollection.dtd"> <!-- This file is generated by Collector at 2011-04-28 12:11:55 --> <TargetCollection TYPE="myBPELApp" INCLUDE_DEFAULT="TRUE"> <CollectionItem NAME="ServerBeanStats" UPLOAD="YES"> <Schedule> <IntervalSchedule INTERVAL="60" TIME_UNIT="Sec"/> </Schedule> <MetricColl NAME="ServerBeanStats"> <Condition COLUMN_NAME="createCount" CRITICAL="100" WARNING="85" OPERATOR="GT" OCCURRENCES="3" MESSAGE="createCount is %value% and has crossed warning (%warning_threshold%) or critical (%critical_threshold%) threshold." MESSAGE_NLSID="createCount_cond"/> </MetricColl> </CollectionItem> <CollectionItem NAME="ServerBeanCount" UPLOAD="YES"> <Schedule> <IntervalSchedule INTERVAL="300" TIME_UNIT="Sec"/> </Schedule> <MetricColl NAME="ServerBeanCount"> </MetricColl> </CollectionItem> <CollectionItem NAME="Response" UPLOAD="YES"> <Schedule> <IntervalSchedule INTERVAL="30" TIME_UNIT="Sec"/> </Schedule> <MetricColl NAME="Response"> <Condition COLUMN_NAME="Status" CRITICAL="1" WARNING="NotDefined" OPERATOR="NE" OCCURRENCES="2" MESSAGE="Status is %value% and has crossed warning (%warning_threshold%) or critical (%critical_threshold%) threshold." MESSAGE_NLSID="Status_cond"/> </MetricColl> </CollectionItem> </TargetCollection>
ターゲットのステータス情報がEnterprise Managerコンソールに正しく表示されるためには、クリティカルしきい値が設定された「ステータス」という名前の列を持つ「レスポンス」というメトリックを定義する必要があります。メトリック値がクリティカルしきい値を下回っている場合、このタイプのターゲット・インスタンスのステータスはコンソールに「稼働中」(使用可能)として表示されます。しきい値を超えている場合、ターゲット・ステータスはコンソールに「停止中」として表示されます。
「レスポンス」メトリックは別のjmxcli
セッションで作成できます(以前のセッションで作成されたメタデータ・ファイルおよび収集ファイルにメトリックを追加します)。例19-13に、以前に生成されたメタデータ・ファイルおよび収集ファイルに新しいコマンドライン・セッションから「レスポンス」メトリックを追加する方法を示します。
例19-13 「レスポンス」メトリックの追加
./emctl jmxcli /scratch/shiphomes //oc4j/1013_PRODUCTION/ -p 12403 -c welcome1 -m 'oc4j:j2eeType=J2EEApplication,n ame=orabpel,*' oracleHome=/ade/sparmesw_10202_ssm/oracle targetHome=/scratch/shiphomes//oc4j/1013_PRODUCTION/ The Port is 12403 Connecting to server: localhost:12403 Connecting as user: oc4jadmin Obtained 1 MBeans matching pattern oc4j:j2eeType=J2EEApplication,name=orabpel,*. Enter the target type for this metric: [myJ2EEApp] myBPELApp Enter the target version: [1.0] Enter the target metadata file: [./metadata/myBPELApp.xml] Enter the default collections file: [./default_collection/myBPELApp.xml] The file ./metadata/myBPELApp.xml already exists. Do you want to overwrite the existing file, append to it, or quit <o/a/q>? [a] a Appending to existing file: ./metadata/myBPELApp.xml. The available targets are: 0: Identifies a J2EE application EAR that has been deployed (oc4j:J2EEServer=standalone,j2eeType=J2EEApplication,name=orabpel) Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 0 Following metric source types are available for selected target(s): 0: JMX Attributes 1: JMX Operations Enter the index of your choice or press <Ctrl-C> to quit: 0 Attributes are: 0: allAccessibleGroups Return Value: java.util.Set 1: allAccessibleUsers Return Value: java.util.Set 2: applicationRootDirectoryPath Return Value: java.lang.String 3: archivePath Return Value: java.lang.String 4: childApplicationNames Return Value: [Ljava.lang.String; 5: childApplications Return Value: [Ljavax.management.ObjectName; 6: dataSourcesDescriptor Return Value: java.lang.String 7: deploymentDescriptor Return Value: java.lang.String 8: ejbClassLoaderPath Return Value: java.lang.String 9: eventProvider Return Value: boolean 10: groups Return Value: java.util.Set 11: iiopStubs Return Value: [B 12: metricRulesDescriptor Return Value: java.lang.String 13: Modules Return Value: [Ljavax.management.ObjectName; 14: objectName Return Value: java.lang.String 15: ohsRouting Return Value: boolean 16: parentApplication Return Value: javax.management.ObjectName 17: parentApplicationName Return Value: java.lang.String 18: properties Return Value: java.util.Properties 19: proprietaryDeploymentDescriptor Return Value: java.lang.String 20: proxyInterfaceSQLObjects Return Value: [Ljava.lang.String; 21: routingId Return Value: java.lang.String 22: Server Return Value: javax.management.ObjectName 23: sharedLibraryImports Return Value: [Loracle.oc4j.admin.management.shared.SharedLibraryImport; 24: startTime Return Value: long 25: state Return Value: int 26: stateManageable Return Value: boolean 27: statisticsProvider Return Value: boolean 28: syntheticWebModules Return Value: oracle.oc4j.admin.management.shared.WebModule 29: users Return Value: java.util.Set 30: webSite Return Value: java.lang.String 31: webSiteBindings Return Value: java.util.Map Select one or more items as comma-separated indices: 25 Number of possible columns in the resultant metric are 1. Enter the name for this metric column at index=0 : [state] Status Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [Status] Enter the NLSID for column: [Status] Enter the UNIT for column "Status": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] y Creating threshold!! Following operators are available for creating thresholds: 0: GT 1: EQ 2: LT 3: LE 4: GE 5: CONTAINS 6: NE 7: MATCH Enter the index of your choice or press <Ctrl-C> to quit: 6 Enter the CRITICAL threshold: [NotDefined] 1 Enter the WARNING threshold: [NotDefined] Enter the number of occurrences that trigger threshold: [6] 2 Enter the message to be used when threshold is triggered: [Status is %value% and has crossed warning (%warning_threshold%) or critical (%critical_threshold%) threshold.] Enter NLSID for the message used when threshold is triggered: [Status_cond] Enter the name of this metric: Response Enter the label for this metric: [Response] Do you want periodic collection for this metric <y/n>? [n] y Enter the collection interval in seconds: 30 Periodic collection interval is: 30 seconds. Do you want to create another metric <y/n>? [n] n Written the metadata xml file: ./metadata/myBPELApp.xml. Updated the default collection file for myBPELApp at location ./default_collecti on/myBPELApp.xml. Exiting... Please note that the Response metric collected in this jmxcli session would be appended to the metadata and default_collection file created in an earlier session of the tool. (User can chose to overwrite the earlier file as well if they specific the "o" option to the following prompt) Do you want to overwrite the existing file, append to it, or quit <o/a/q>? [a] a
注意: JMXインスツルメント処理されていないJavaアプリケーションが稼働するJ2SE 5.0 JVMを監視する場合は、直接第19.7.3項「スタンドアロンJavaアプリケーションまたはJVMターゲットの構成」に移動してタイプJVMのターゲット・インスタンスを作成してください。これにより、Enterprise Manager(できれば、JVMと同じホストにインストールされたEnterprise Managerエージェント)で、これらのJVMを監視できるようになります。ただし、後述する前提条件および既知の制限事項が適用されます。 |

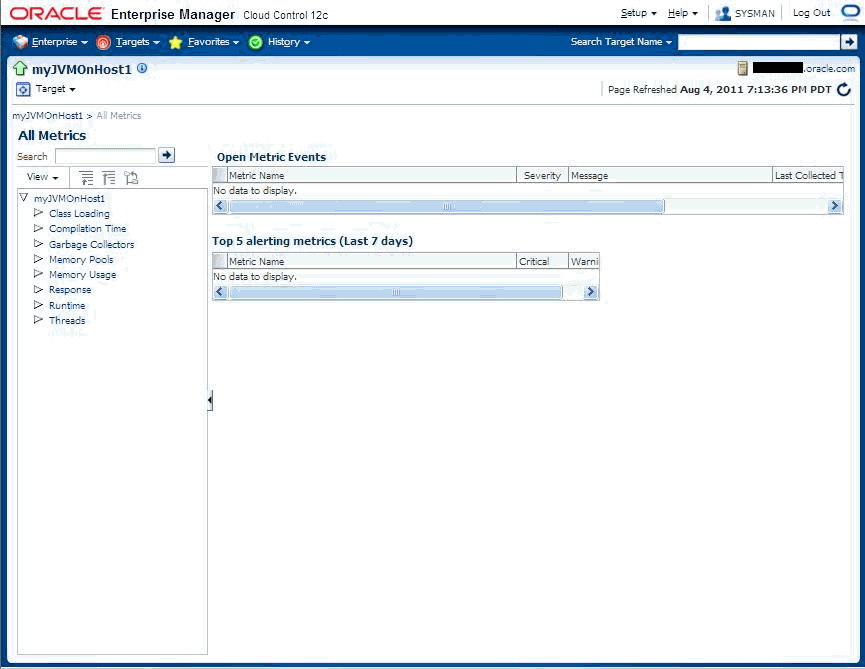

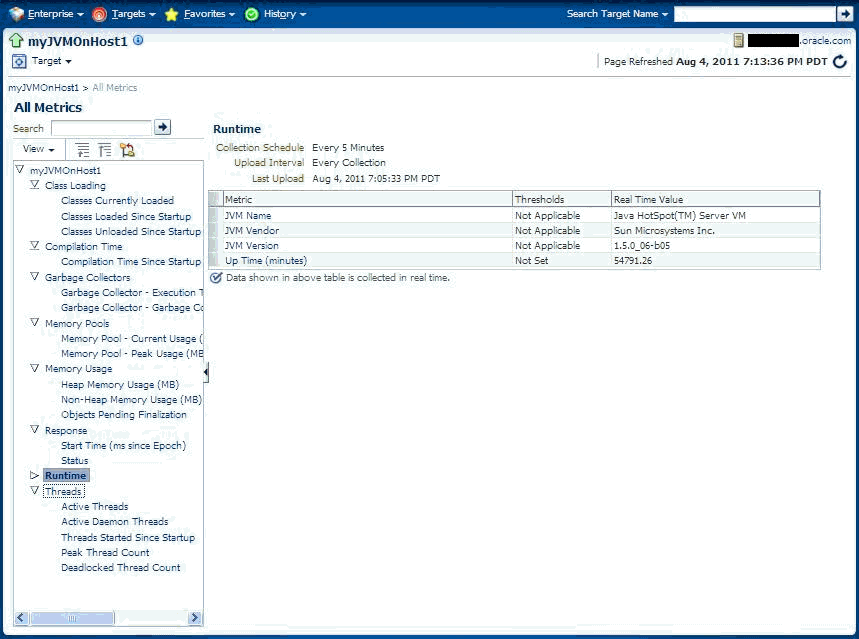

Enterprise Managerには、即時利用可能なJVMターゲット・タイプが用意されています。これを使用することで、Enterprise Managerバージョン10.2.0.3以降でリモート管理に使用できるスタンドアロンJ2SE1.5 JVMのメトリックを追加および構成できます。
Oracle Container for J2EEにデプロイされたJ2EEアプリケーションに関して、使用するスタンドアロンJavaアプリケーションではJMX MBeanを介してデータが公開される場合は、JMXコマンドライン・ツールを使用して、このようなアプリケーションをEnterprise Managerターゲット・タイプとして定義し、このターゲット・タイプのメタデータ・ファイルおよびデフォルトの収集ファイルを生成できます。Enterprise Managerエージェント(JVMと同じホストにインストールすることを推奨)からスタンドアロン・アプリケーション・ターゲットを監視できます。そのホストで実行されている複数のJVMを、同じEnterprise Managerエージェントで監視できます。
(J2SE1.5ベースの)スタンドアロンJVMでユーザー定義のMBeanからメトリックを収集し、JMX fetchletを使用してEnterprise Manager内に配置できます。fetchletは、引数および戻り値としてJMX OpenTypeを使用するユーザー定義のMBeanを含む、スタンドアロンのSun J2SE1.5(またはそれ以降)ベースのJVM用に設計されています。
前提条件
特定のホスト上で稼働するJava仮想マシンJ2SE 1.5以上のインスタンス。このJVMは、Enterprise Managerでターゲットとして監視する必要があるMBeanを介してメトリックを公開する、JMX対応アプリケーションで実行できます。アプリケーションによってMBeanが公開されない場合は、Enterprise Managerで提供される組込みJVMターゲット・タイプを使用して、JVM自体を監視できます。詳細は、第19.7.3項「スタンドアロンJavaアプリケーションまたはJVMターゲットの構成」を参照してください。
ローカル・アクセスに対して有効なJMXエージェント。JVMまたはJavaアプリケーションの起動時に、このシステム・プロパティを設定してください。
com.sun.management.jmxremote
有効なリモート・システムからの監視および管理。JVMの起動時に、このシステム・プロパティを設定してください。
com.sun.management.jmxremot.port=portNum
リモート管理用にJVMを有効化する処理の詳細は、次のドキュメントを参照してください。
http://java.sun.com/j2se/1.5.0/docs/guide/management/
agent.html#remote
そのホストに管理エージェント・バージョン10.2.0.3以降がインストールされていること。
Oracle Management Server(OMS)バージョン10.2.0.3以上が管理エージェントと通信していること。
既知の制限事項
現在、jmxcliツールでは、ターゲットJVMインスタンス上のデフォルトのプラットフォームMBeanserverで使用可能な(プラットフォームおよびアプリケーションで定義された)MBeanの参照および監視のみ行うことができます。ターゲットJVMインスタンス上のカスタムMBeanServerの監視はサポートされていません。jmxcliツールは基本的に、属性と、OpenType(SimpleType、CompositeType、TabularTypeおよびSimpleTypeの配列など)である操作のパラメータおよび戻り値を処理します。
OC4JのWebサービスやJ2EEアプリケーションの場合と同様に、コマンドライン・ツール(jmxcli)では、JMXインスツルメント処理されたスタンドアロンのJavaアプリケーションの必要なターゲット定義ファイル(メタデータ・ファイルとデフォルトの収集ファイル)の作成が容易になります。ツールは、J2SE1.5以上のJVMのMBeanServerとユーザーをつなぐオフライン構成ユーティリティであり、使用可能なMBeanを参照できます。また、以降のツールの呼出しで既存のファイル・セットにメトリックを追加することもできます。
コマンドライン・ツール・セッション中に、特定のMBeanを選択し、続いてEnterprise Managerがこれらの値を収集するためにこれらのMBeanに対して定期的に取得または起動する必要のある目的の属性/統計値または操作を選択します。ツールは、1つ以上のEnterprise Managerメトリック(列あり)としてのこれらの収集された値のパッケージ化の定義を支援し、またメトリック収集間隔を指定できるようにします。
cdAgent Instance dir
/bin emctl jmxcli -t JVM [ -lJMXServiceURL
-hhostname
-pport
-uusername
-ccredential/password
-wwork directory
-etrue/false
[-mMBeanName
| -djmx_domain
| -smBeanPattern
] ]
jmxcli
コマンドは、次のオプションを受け入れます。
-t JVM: MBeanServerがスタンドアロンのJVM上にあることを示します。
-l: ターゲットJVMのJMXServiceURL。
-h: JVMのホスト名。デフォルト: localhost(-lオプションが指定されていない場合)。
-p: JVMのRMI/RMISポート。デフォルト: 23791(-lオプションが指定されていない場合)。アプリケーション・サーバー10.1.3.0以上のインスタンスのORACLE_HOME/opmn/bin
ディレクトリからopmnctl status -1
を実行し、MBeanのデプロイ対象となったOC4JのRMIポートを突き止めます。
-u: JVMの有効なユーザー名。デフォルト: なし。
-c: 前述のユーザーのパスワード。デフォルト: なし。このパスワードはデータの取得のみに使用されるもので、どこにも格納されません。
-w: メタデータ・ファイルおよびデフォルトの収集ファイルが作成される作業ディレクトリ。デフォルト: 現在のディレクトリ。コマンドライン・ツールを起動する場合は、サブディレクトリを作成してファイルを追加するために、このディレクトリに対する書込み権限が必要です。メタデータ・ファイルおよびデフォルトの収集ファイルがそのディレクトリにすでに存在する場合は、元のファイルに追加するか元のファイルを上書きするかを選択できます。
-e: JVMへのSSL接続を有効にする場合はtrueに設定します。デフォルト: false。
3つのパラメータ(-m
、-d
または-s
)のいずれかを指定して、MBeanServerで使用可能なMBeanのサブセットを取得することもできます。デフォルトでは、これらの3つのパラメータのいずれも指定されていない場合は、MBeanServer上のすべてのMBeanが表示され、そこから選択できます。
-m: 取得して検証する必要のある必須のMBeanのMBean ObjectName。これが複数のMBeanと一致するObjectNameパターンの場合は、パターンと一致するすべてのMBeanのリストが表示され、処理するMBeanを一度に1つずつ選択できます。
-d: MBeanを取得して検証する必要のある必須アプリケーションのMBeanドメイン。たとえば、アプリケーション(myApp)のすべてのMBeanを参照するとします。このアプリケーションのMBeanは、JMXドメインmyAppで使用できます。
-s: メトリックの定義の基にするMBeanのセットと一致するMBeanパターン。-s
パラメータを使用すると、類似するタイプの複数のMbeanからJMX属性/統計を一括して取得することができます。
-s
パラメータを指定した場合、このjmxcli
セッション時に作成されるメトリックは、Enterprise Managerコンソールに複数行の表で表示されます。この表の1行は、指定したパターンと一致する各MBeanを表し、MBean ObjectNameがキー列になります。たとえば、-s 'oc4j:j2eeType=Servlet,*'
と指定した場合、作成されるメトリックの行は複数になり、1行がObjectNameパターンに一致する各サーブレットを表します。MBean ObjectName列に加えて、jmxcli
セッション時に選択された、操作の戻りオブジェクトの属性またはフィールドになる列があります。
次の手順は、JMXコマンドライン・ツールでファイルを生成するための準備およびツールの使用方法を説明しています。
MBeanがあるスタンドアロンJVMインスタンスを起動します。次の例はJVMの起動を示しています。
JDK15/bin/java -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.port=6789 -Dcom.sun.management.jmxremote -Dcom.sun.management.jmxremote.authenticate=false -Dcom.sun.management.jmxremote.ssl=false MyJMXEnabledApp $*
jmxcli
ツールは、このポート番号にJSR-160クライアントとして接続します。
バージョン10.2.0.3以降のEnterprise Managerエージェントの$ORACLE_HOME/bin
ディレクトリに移動します。
環境変数を次のように設定します。
setenv USER_JARS /myAppHome/myJar1.jar
;/myAppHome/myJar2.jar
ターゲットMBeanServerに登録されているいずれかのMBeanの属性または操作、もしくはその両方でカスタム・クラスが戻される場合は、この手順を行う必要があります。Enterprise Managerエージェント(fetchlet)は、JMX OpenTypeを戻す属性または操作、もしくはその両方を効率的に監視できますが、任意のカスタム・クラスのJava Beanプロパティを(getterおよびsetterを介して)処理することもできます。
注意: アプリケーション定義のMBeanによってカスタム・クラスが戻される場合は、さらに、このアプリケーションを監視するEnterprise ManagerエージェントのCLASSPATH で、対応するユーザーのjarファイルを設定する必要があります。これを行うには、このjarファイルの場所をEnterprise Managerエージェントの$ORACLE_HOME/sysman/config/classpath.lst ファイルに手動で挿入し、Enterprise Managerエージェントを再起動します。 |
次のコマンドを実行します。
./emctl jmxcli -t JVM -h localhost -p 6789 uuser
-cpassword
詳細は次のとおりです。
-t JVM: MBeanServerが標準のJVM上で稼働していることを示します。
-h: JVMが稼働するホストの名前。
-p: JSR-160リモート・アクセス用にJVMを有効化するポート番号。
-h
host
および-p
port
の各オプションのかわりに-l
JMXServiceURL
オプションを指定することもできます。
-w
work directory
オプションを使用してjmxcli
を起動し、指定された作業ディレクトリにメタデータ・ファイルおよびデフォルトの収集ファイルを作成できます。jmxcli
の起動時に-w
を指定しない場合は、デフォルトで現在のディレクトリ(jmxcli
を起動するディレクトリ)が使用されます。
起動後は、例19-14に示すように、コマンドライン・インタフェースによって必要な情報を求めるプロンプトが自動的に表示されます。ほとんどのプロンプトでは、デフォルトを使用するために[Enter]キーを押すだけで構いません。JMXコマンドライン・ツール・セッションを終了する必要がある場合は、任意の時点で[Ctrl]+[C]を押して終了できます。セッション情報は保存されません。
終了後にセッションが終わると、その結果がmetadata/myJ2EEApp.xml
のようなmyJ2EEApp.xml
ファイル(または指定したターゲット・タイプ)になり、
定期的な収集を指定した場合はdefault_collection/myJ2EEApp.xml
ファイルになります。
JMXCLI起動のサンプル
次のサンプルは、リモートMBeanServerのすべてのMBeanを参照できるようにします。
./emctl jmxcli -t JVM -p 6789 (the host defaults to "localhost")
次のサンプルは、コマンドライン・インタフェースを起動し、-m
オプションの引数として指定されたMBeanPatternに基づいてMBeanをフィルタ処理します。
./emctl jmxcli -t JVM -p 6789 -m "java.lang:*"
例19-14 JMXCLIセッションのサンプル
oracleHome=/ade/sparmesw_emas_ml/oracle userJars= Connecting to server: localhost:6789 Connecting without authentication. For specifying username and password use the -u and -c options. Obtained 14 MBeans matching pattern java.lang:*. Enter the target type for this metric: [myJ2EEApp] myJavaApp Enter the target version: [1.0] Enter the target metadata file: [./metadata/myJavaApp.xml] Enter the default collections file: [./default_collection/myJavaApp.xml] Enter a label for this target type: [myJavaApp] Enter a description for this target type: [myJavaApp] The available targets are: 0: sun.management.CompilationImpl (java.lang:type=Compilation) 1: sun.management.MemoryManagerImpl (java.lang:name=CodeCacheManager,type=MemoryManager) 2: sun.management.GarbageCollectorImpl (java.lang:name=Copy,type=GarbageCollector) 3: sun.management.MemoryPoolImpl (java.lang:name=Eden Space,type=MemoryPool) 4: sun.management.RuntimeImpl (java.lang:type=Runtime) 5: sun.management.ClassLoadingImpl (java.lang:type=ClassLoading) 6: sun.management.MemoryPoolImpl (java.lang:name=Survivor Space,type=MemoryPool) 7: sun.management.ThreadImpl (java.lang:type=Threading) 8: sun.management.GarbageCollectorImpl (java.lang:name=MarkSweepCompact,type=GarbageCollector) 9: com.sun.management.UnixOperatingSystem (java.lang:type=OperatingSystem) 10: sun.management.MemoryImpl (java.lang:type=Memory) 11: sun.management.MemoryPoolImpl (java.lang:name=Code Cache,type=MemoryPool) 12: sun.management.MemoryPoolImpl (java.lang:name=Tenured Gen,type=MemoryPool) 13: sun.management.MemoryPoolImpl (java.lang:name=Perm Gen,type=MemoryPool) Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 4 Following metric source types are available for selected target(s): 0: JMX Attributes Enter the index of your choice or press <Ctrl-C> to quit: 0 Attributes are: 0: BootClassPath Return Value: java.lang.String 1: BootClassPathSupported Return Value: boolean 2: ClassPath Return Value: java.lang.String 3: InputArguments Return Value: [Ljava.lang.String; 4: LibraryPath Return Value: java.lang.String 5: ManagementSpecVersion Return Value: java.lang.String 6: Name Return Value: java.lang.String 7: SpecName Return Value: java.lang.String 8: SpecVendor Return Value: java.lang.String 9: SpecVersion Return Value: java.lang.String 10: StartTime Return Value: long 11: SystemProperties Return Value: javax.management.openmbean.TabularData 12: Uptime Return Value: long 13: VmName Return Value: java.lang.String 14: VmVendor Return Value: java.lang.String 15: VmVersion Return Value: java.lang.String Select one or more items as comma-separated indices: 6,7,8 Number of possible columns in the resultant metric are 3. Enter the name for this metric column at index=0 : [Name] Is this column a KEY Column <y/n>? [n] y Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [Name] Enter the NLSID for column: [Name] Enter the UNIT for column "Name": [millisec, kb etc.. ] Enter the name for this metric column at index=1 : [SpecName] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [SpecName] Enter the NLSID for column: [SpecName] Enter the UNIT for column "SpecName": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name for this metric column at index=2 : [SpecVendor] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [SpecVendor] Enter the NLSID for column: [SpecVendor] Enter the UNIT for column "SpecVendor": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name of this metric: RuntimeMetric Enter the label for this metric: [RuntimeMetric] Do you want periodic collection for this metric <y/n>? [n] y Enter the collection interval in seconds: 300 Periodic collection interval is: 300 seconds. Do you want to create another metric <y/n>? [n] Written the metadata xml file: ./metadata/myJavaApp.xml. Creating new file: ./default_collection/myJavaApp.xml. Updated the default collection file for myJavaApp at location ./default_collection/myJavaApp.xml. Exiting...
currentDir/metadata
ディレクトリおよびcurrentDir/default_collection
ディレクトリで(先に指定したターゲット・タイプの)myTarget.xml
ファイルを探します。
これらのファイルは、次のように使用できます。
ファイルをOracle プラグイン・アーカイブ(OPAR)に変換して、OMSからエージェントおよびOMSから作成されたターゲット・インスタンスへプッシュします。第14章「プラグインの検証、パッケージ化およびデプロイ」および第19.7.3項「スタンドアロンJavaアプリケーションまたはJVMターゲットの構成」を参照してください。
ファイルを編集し、メトリック定義およびQueryDescriptors
を抽出して他のメタデータ・ファイルおよびデフォルトの収集ファイルへ移し、必要に応じてExecutionDescriptors
を作成して後処理を行います。
ターゲットのステータス情報をEnterprise Managerコンソールに正しく表示するには、レスポンス・メトリックを定義する必要があります。詳細は、第19.4.2項「ターゲット・ステータス情報の表示」を参照してください。
11.1管理エージェントに付属のJMX fetchletを使用すると、Oracle WebLogic Application Server 9.x以降にデプロイされたJMXインスツルメント処理アプリケーションのキー・メトリックを監視できます。Enterprise ManagerでJMXインスツルメント処理アプリケーションを監視する場合、Enterprise Managerが監視できる新しいターゲット・タイプを管理プラグインから定義する必要があります。Webサービスのwscliコマンドライン・ツールと同様に(Oracle Application Server(OC4J)で可能なように)、Enterprise Managerには、WebLogicサーバー上のカスタムJMXインスツルメント処理アプリケーションのターゲットのメタデータ・ファイルおよび収集ファイルの生成を自動化するためのjmxcliコマンドライン・ツールが用意されています。
前提条件
JMX対応のアプリケーションがデプロイされた特定のホスト上で、Enterprise Managerでターゲットとして監視する必要のあるOracle WebLogic Server 9.xのインスタンスが稼働していること。
そのホストに管理エージェント・バージョン11.1以上がインストールされていること(推奨)。
Oracle Management Server(OMS)バージョン10.2.0.4以上が管理エージェントと通信していること。
jmxcli
ツールは基本的に、属性と、OpenTypeである操作のパラメータおよび戻り値を処理します。たとえば、SimpleType、CompositeType、TabularType、およびSimpleTypeの配列などです。
Webサービスの場合と同様に、JMXコマンドライン・ツール(jmxcli)では、必要なターゲット定義ファイル(メタデータとデフォルトの収集ファイル)の作成が容易になります。ツールは、MBeanServerとユーザーをつなぐオフライン構成ユーティリティであり、使用可能なMBeanを参照できます。ツールの以降の呼出しで既存のファイルにメトリックを追加することもできます。コマンドライン・ツールのセッション中に、特定のMBeanを選択し、続いてEnterprise Managerで取得する必要がある目的のJMX属性/統計値、またはこれらの値を収集するために選択したMBeanに対して定期的に起動する必要のあるJMX操作を選択します。ツールは、1つ以上のEnterprise Managerメトリック(列あり)としてのこれらの収集された値のパッケージ化の定義を支援し、また列のメトリック収集間隔やしきい値を指定できるようにします。
Oracle Weblogic Application Server上にあるJMX対応ターゲットのJMXコマンドライン・ツールの構文は次のとおりです。
./emctl jmxcli -t WebLogic [help|options] where options are: [ -lJMX ServiceURL
-uusername
-ccredential/password
-wwork directory
[-mMBeanName
| -djmx_domain
| -smBeanPattern
] ]
jmxcli
コマンドは、次のオプションを受け入れます。
l : カスタムMBeanをフォームでホスティングするWeblogic管理対象サーバーへのJMXServiceURL
service:jmx:t3://host:t3port
/jndi/weblogic.management.mbeanservers.runtime
u: WebLogicドメインの有効なユーザー名。デフォルト: weblogic
c: -uオプションで指定されたユーザーに関連付けられているパスワード。デフォルト: なし。パスワードを指定しない場合、パスワードの入力を求められます。
w: JMXコマンドライン・ツールで作成されたメタデータ・ファイルおよびデフォルトの収集ファイルが置かれるディレクトリ。デフォルト: 現在のディレクトリ。
コマンドライン・ツールを起動する場合は、サブディレクトリを作成してファイルを追加するために、このディレクトリに対する書込み権限が必要です。メタデータ・ファイルおよびデフォルトの収集ファイルがそのディレクトリにすでに存在する場合は、元のファイルに追加するか元のファイルを上書きするかを選択できます。
3つのパラメータ(-m、-dまたは-s)のいずれかを指定して、MBeanServerで使用可能なMBeanのサブセットを取得することもできます。デフォルトでは、これらの3つのパラメータのいずれも指定されていない場合は、MBeanServer上のすべてのMBeanが表示され、そこから選択できます。
m: 取得して検証する必要のある必須のMBeanのMBean ObjectName。これが複数のMBeanと一致するObjectNameパターンの場合は、パターンと一致するすべてのMBeanのリストが表示され、処理するMBeanを一度に1つずつ選択できます。
d: MBeanを取得して検証する必要のある必須アプリケーションのMBeanドメイン。たとえば、アプリケーション(myApp)のすべてのMBeanを参照するとします。このアプリケーションのMBeanは、JMXドメインmyAppで使用できます。
s: メトリックの定義の基にするMBeanの既存のセットと一致するMBeanパターン。-sパラメータを使用すると、類似するタイプの複数のMBeanからJMX属性/統計を1つのメトリック内に取得することができます。
-sパラメータを指定した場合、このjmxcli
セッション時に作成されるメトリックは、Enterprise Managerコンソールに複数行の表で表示されます。この表の1行は、指定したパターンに一致する各MBeanを表し、他にキー列が定義されない場合、MBean ObjectNameがキー列になります。たとえば、-s 'com.bea:Type=ServletRuntime,*'と指定した場合、作成されるメトリックの行は複数になり、1行がObjectNameパターンに一致する各サーブレットを表します。MBean ObjectNameキー列に加えて、jmxcli
セッション時に選択された、操作の戻りオブジェクトの属性またはフィールドになる列があります。
JMXコマンドライン・ツールを開始するには、次のようにします。
$AGENT_HOME/binディレクトリに移動します。
次のコマンドを実行します。
./emctl jmxcli -t WebLogic [オプション]
起動後に、コマンドライン・インタフェースは、次の例に示すように必要な情報を求めるプロンプトを自動的に表示します。JMXコマンドライン・ツール・セッションを終了する必要がある場合は、任意の時点で[Ctrl]+[C]を押して終了できます。セッション情報は保存されません。
次の例は、jmxcli
セッションのサンプルです。
例19-15 jmxcli
セッション
$ ./emctl jmxcli -t WebLogic -l "service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime" -u weblogic -c welcome1 -s "*:type=soainfra_bpel_requests,*"
注意1: 前述の-sオプションでは、エージェントでメトリックが収集されるたびに、指定されたObjectNameパターンに一致するMBeansの数と同じ行数を持つメトリックが生成されます。常に特定のMBeanから収集する必要がある場合は、-m <ObjectName>オプションを、前述の例で使用されている-s <Mbeanパターン>のかわりに使用してください。
注意2: t3sを使用してweblogicサーバーに接続する必要がある場合は次の環境変数を、jmxcli
を起動する前に設定します。
setenv USER_JAVA_PROPS=-Dweblogic.security.TrustKeyStore=CustomTrust -Dweblogic.security.CustomTrustKeyStoreFileName=$ORACLE_HOME/sysman/config/montrust/AgentTrust.jks -Dweblogic.security.SSL.enforceConstraints=off -Dweblogic.security.SSL.ignoreHostnameVerification=true -Djavax.net.ssl.trustStore=$ORACLE_HOME/sysman/config/montrust/AgentTrust.jks (or set USER_JAVA_PROP= … equivalent on win32) setenv USER_JARS <; separated list of jars needed in classpath if custom authentication modules are involved in SSL connection>
セミコロンがjarファイルのリストのデリミタとして使用されます。
例: setenv USER_JARS "jar1;jar2;jar3"
MBeanがカスタムWeblogicオブジェクトをMBeanInfoで返すようなケースでは、jmxcli
を起動する前に、weblogic.jarを前述の環境変数に設定することが必要な場合があります。
例: setenv USER_JARS $BEA_HOME/server/lib/weblogic.jar
oracleHome=/ade/sparmesw_egcli/oracle/work/middleware/oms userJars= Connecting to server: service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime Connecting as user: weblogic Obtained 3 MBeans matching pattern *:type=soainfra_bpel_requests,*. Enter the target type for this metric: [myJ2EEApp] myCustomWLApp Enter the target version: [1.0] Enter the target metadata file: [./metadata/myCustomWLApp.xml] Enter the default collections file: [./default_collection/myCustomWLApp.xml] Enter a label for this target type: [myCustomWLApp] Enter a description for this target type: [myCustomWLApp] The available targets are: 0: DMS metric mbean (oracle.dms:name=/soainfra/engines/bpel/requests/engine,type=soainfra_bpel_requests) 1: DMS metric mbean (oracle.dms:name=/soainfra/engines/bpel/requests/system,type=soainfra_bpel_requests) 2: DMS metric mbean (oracle.dms:name=/soainfra/engines/bpel/requests/invoke,type=soainfra_bpel_requests) Following metric source types are available for selected target(s): 0: JMX Attributes Enter the index of your choice or press <Ctrl-C> to quit: 0 Attributes are: 0: active_count Return Value: java.lang.Integer 1: active_maxValue Return Value: java.lang.Integer 2: active_minValue Return Value: java.lang.Integer 3: active_value Return Value: java.lang.Integer 4: Name Return Value: java.lang.String 5: Parent Return Value: java.lang.String 6: scheduled_count Return Value: java.lang.Integer 7: scheduled_maxValue Return Value: java.lang.Integer 8: scheduled_minValue Return Value: java.lang.Integer 9: scheduled_value Return Value: java.lang.Integer 10: threadCount_count Return Value: java.lang.Integer 11: threadCount_maxValue Return Value: java.lang.Integer 12: threadCount_minValue Return Value: java.lang.Integer 13: threadCount_value Return Value: java.lang.Integer Select one or more items as comma separated indices: 4,0,1,2 Number of possible columns in the resultant metric are 4. Enter the name for this metric column at index=0 : [Name] Is this column a KEY Column <y/n>? [n] y
"y"を指定すると、複数の行が返されるような場合にこの列の値が一意であることが示されます。
Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [Name] Enter the NLSID for column: [Name] Enter the UNIT for column "Name": [millisec, kb etc.. ] Enter the name for this metric column at index=1 : [active_count] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [active_count] Enter the NLSID for column: [active_count] Enter the UNIT for column "active_count": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] y Creating threshold!! Following operators are available for creating thresholds: 0: GT 1: EQ 2: LT 3: LE 4: GE 5: CONTAINS 6: NE 7: MATCH Enter the index of your choice or press <Ctrl-C> to quit: 0 Enter the CRITICAL threshold: [NotDefined] 50 Enter the WARNING threshold: [NotDefined] 45 Enter the number of occurrences that trigger threshold: [6] 3 Enter the message to be used when threshold is triggered: [active_count is %value% and has crossed warning (%warning_threshold%) or critical (%critical_threshold%) threshold.] Enter NLSID for the message used when threshold is triggered: [active_count_cond] Enter the name for this metric column at index=2 : [active_maxValue] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [active_maxValue] Enter the NLSID for column: [active_maxValue] Enter the UNIT for column "active_maxValue": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name for this metric column at index=3 : [active_minValue] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [active_minValue] Enter the NLSID for column: [active_minValue] Enter the UNIT for column "active_minValue": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name of this metric: bpel_requests Enter the label for this metric: [bpel_requests] Do you want periodic collection for this metric <y/n>? [n] y Enter the collection interval in seconds: 300 Periodic collection interval is: 300 seconds. Do you want to create another metric <y/n>? [n] Written the metadata xml file: ./metadata/myCustomWLApp.xml. Creating new file: ./default_collection/myCustomWLApp.xml. Updated the default collection file for myCustomWLApp at location ./default_collection/myCustomWLApp.xml. Exiting...
例19-16 jmxcli
起動のサンプル(-mを使用し、複数のMBeanの複数のメトリックを1つのjmxcli
セッションで定義)
$ ./emctl jmxcli -t WebLogic -l "service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime" -u weblogic -c welcome1 -m "com.bea:ApplicationRuntime=soa-infra,WebAppComponentRuntime=soa_server1_/b2b,*" oracleHome=/ade/sparmesw_egcli/oracle/work/middleware/oms userJars= Connecting to server: service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime Connecting as user: weblogic Obtained 8 MBeans matching pattern com.bea:ApplicationRuntime=soa-infra,WebAppComponentRuntime=soa_server1_/b2b,*. Enter the target type for this metric: [myJ2EEApp] myCustomWLApp Enter the target version: [1.0] Enter the target metadata file: [./metadata/myCustomWLApp.xml] Enter the default collections file: [./default_collection/myCustomWLApp.xml] The file ./metadata/myCustomWLApp.xml already exists. Do you want to overwrite the existing file, append to it, or quit <o/a/q>? [a]
注意: ファイルがすでに存在するため、これは追加されます。
Appending to existing file: ./metadata/myCustomWLApp.xml. The available targets are: 0: (com.bea:ApplicationRuntime=soa-infra,Name=JspServlet,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b) 1: (com.bea:ApplicationRuntime=soa-infra,Name=transportServlet,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b) 2: (com.bea:ApplicationRuntime=soa-infra,Name=transportServletV,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b) 3: (com.bea:ApplicationRuntime=soa-infra,Name=b2b_starter_wls,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b) 4: (com.bea:ApplicationRuntime=soa-infra,Name=soa_server1_soa_server1_/b2b,ServerRuntime=soa_server1,Type=PageFlowsRuntime,WebAppComponentRuntime=soa_server1_/b2b) 5 (com.bea:ApplicationRuntime=soa-infra,Name=WebServiceServlet,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b) 6: (com.bea:ApplicationRuntime=soa-infra,Name=RedirectUIServlet,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b) 7: (com.bea:ApplicationRuntime=soa-infra,Name=FileServlet,ServerRuntime=soa_server1,Type=ServletRuntime,WebAppComponentRuntime=soa_server1_/b2b) Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 4 Following metric source types are available for selected target(s): 0: JMX Attributes 1: JMX Operations Enter the index of your choice or press <Ctrl-C> to quit: 0 Attributes are: 0: AppName Return Value: java.lang.String 1: ContextPath Return Value: java.lang.String 2: HttpServerName Return Value: java.lang.String 3: Name Return Value: java.lang.String 4: PageFlows Return Value: [Ljavax.management.ObjectName; 5: Parent Return Value: javax.management.ObjectName 6: ServerName Return Value: java.lang.String 7: Type Return Value: java.lang.String Select one or more items as comma separated indices: 3,0,1 Number of possible columns in the resultant metric are 3. Enter the name for this metric column at index=0 : [Name] Is this column a KEY Column <y/n>? [n] y Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [Name] Enter the NLSID for column: [Name] Enter the UNIT for column "Name": [millisec, kb etc.. ] Enter the name for this metric column at index=1 : [AppName] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [AppName] Enter the NLSID for column: [AppName] Enter the UNIT for column "AppName": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name for this metric column at index=2 : [ContextPath] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [ContextPath] Enter the NLSID for column: [ContextPath] Enter the UNIT for column "ContextPath": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name of this metric: PageFlowsRuntime Enter the label for this metric: [PageFlowsRuntime] Do you want periodic collection for this metric <y/n>? [n] y Enter the collection interval in seconds: 3600 Periodic collection interval is: 3600 seconds. Do you want to create another metric <y/n>? [n] y
これは、このjmxcli
セッションでさらにメトリックを作成する必要があることを示しています。このプロセスは、ユーザーが質問に"n"と答えるまで繰り返されます。
Do you want to create another metric <y/n>? [n] Written the metadata xml file: ./metadata/myCustomWLApp.xml.Updated the default collection file for myCustomWLApp at location ./default_collection/myCustomWLApp.xml.Exiting...
JMXコマンドライン・ツールによってターゲット・メタデータ・ファイルおよび収集ファイルが生成されたら、Oracleプラグイン・アーカイブ(OPAR)を作成できます。
ターゲットのステータス情報がEnterprise Managerコンソールに正しく表示されるためには、クリティカルしきい値が設定された「ステータス」という名前の列を持つ 「レスポンス」というメトリックを定義する必要があります。メトリック値がクリティカルしきい値を下回っている場合、このタイプのターゲット・インスタンスのステータスはコンソールに「稼働中」(使用可能)として表示されます。しきい値を超えている場合、ターゲット・ステータスはコンソールに「停止中」として表示されます。
「レスポンス」メトリックは別のjmxcli
セッションで作成できます(以前のセッションで作成されたメタデータ・ファイルおよび収集ファイルにメトリックを追加します)。
例19-17 「レスポンス」メトリックの追加
setenv USER_JARS $T_WORK/middleware/wlserver_10.3/server/lib/weblogic.jar
これは、JMXクライアント(jmxcli)
がそのクラスパス内で必要とするWeblogic固有クラスを、MBeanが返す場合に必要になります。
$ ./emctl jmxcli -t WebLogic -l "service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime" -u weblogic -c welcome1 -m com.bea:Type=ApplicationRuntime,Name=soa-infra,*"
WeblogicにデプロイされたJ2EEアプリケーションに対して、アプリケーションのデプロイに対応するApplicationRuntime MBeanのActiveVersionState JMX属性を、Status列として作成することが適切な場合があります。ただし、アプリケーションに関連するその他のMBeanのその他すべての属性も使用される可能性があります。
oracleHome=/ade/sparmesw_egcli/oracle/work/middleware/oms userJars= Connecting to server: service:jmx:t3://stbct14:22048/jndi/weblogic.management.mbeanservers.runtime Connecting as user: weblogic Obtained 1 MBeans matching pattern com.bea:Type=ApplicationRuntime,Name=soa-infra,*. Enter the target type for this metric: [myJ2EEApp] myCustomWLApp Enter the target version: [1.0] Enter the target metadata file: [./metadata/myCustomWLApp.xml] Enter the default collections file: [./default_collection/myCustomWLApp.xml] The file ./metadata/myCustomWLApp.xml already exists. Do you want to overwrite the existing file, append to it, or quit <o/a/q>? [a] Appending to existing file: ./metadata/myCustomWLApp.xml. The available targets are: 0: (com.bea:Name=soa-infra,ServerRuntime=soa_server1,Type=ApplicationRuntime) Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 0 Following metric source types are available for selected target(s): 0: JMX Attributes 1: JMX Operations Enter the index of your choice or press <Ctrl-C> to quit: 0 Attributes are: 0: ActiveVersionState Return Value: java.lang.Integer 1: ApplicationName Return Value: java.lang.String 2: ApplicationVersion Return Value: java.lang.String 3: ClassRedefinitionRuntime Return Value: javax.management.ObjectName 4: ComponentRuntimes Return Value: [Ljavax.management.ObjectName; 5: EAR Return Value: java.lang.Boolean 6: HealthState Return Value: weblogic.health.HealthState 7: KodoPersistenceUnitRuntimes Return Value: [Ljavax.management.ObjectName; 8: LibraryRuntimes Return Value: [Ljavax.management.ObjectName; 9: MaxThreadsConstraintRuntimes Return Value: [Ljavax.management.ObjectName; 10: MinThreadsConstraintRuntimes Return Value: [Ljavax.management.ObjectName; 11: Name Return Value: java.lang.String 12: OptionalPackageRuntimes Return Value: [Ljavax.management.ObjectName; 13: Parent Return Value: javax.management.ObjectName 14: QueryCacheRuntimes Return Value: [Ljavax.management.ObjectName; 15: RequestClassRuntimes Return Value: [Ljavax.management.ObjectName; 16: Type Return Value: java.lang.String 17: WorkManagerRuntimes Return Value: [Ljavax.management.ObjectName; 18: WseeRuntimes Return Value: [Ljavax.management.ObjectName; Select one or more items as comma separated indices: 0 Number of possible columns in the resultant metric are 1. Enter the name for this metric column at index=0 : [ActiveVersionState] Status
注意: 列名は"Status"にしてください。
Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [Status] Enter the NLSID for column: [Status] Enter the UNIT for column "Status": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] y Creating threshold!! Following operators are available for creating thresholds: 0: GT 1: EQ 2: LT 3: LE 4: GE 5: CONTAINS 6: NE 7: MATCH Enter the index of your choice or press <Ctrl-C> to quit: 6 Enter the CRITICAL threshold: [NotDefined] 2
レスポンス・メトリックのStatus列でCRITICAL THRESHOLDがトリガーされると、ターゲットのステータスが停止中としてマークされます。この場合、if value != ACTIVATED(!= 2など)になります。
Enter the WARNING threshold: [NotDefined] Enter the number of occurrences that trigger threshold: [6] 1 Enter the message to be used when threshold is triggered: [Status is %value% and has crossed warning (%warning_threshold%) or critical (%critical_threshold%) threshold.] Enter NLSID for the message used when threshold is triggered: [Status_cond] Enter the name of this metric: Response
注意: メトリック名は"Response"にしてください。
Enter the label for this metric: [Response] Do you want periodic collection for this metric <y/n>? [n] y Enter the collection interval in seconds: 30 Periodic collection interval is: 30 seconds. Do you want to create another metric <y/n>? [n] Written the metadata xml file: ./metadata/myCustomWLApp.xml. Updated the default collection file for myCustomWLApp at location ./default_collection/myCustomWLApp.xml. Exiting...
currentDir/metadata
ディレクトリおよびcurrentDir/default_collection
ディレクトリで(先に指定したターゲット・タイプの)myTarget.xml
ファイルを探します。
これらのファイルは、次のように使用できます。
Oracleプラグイン・アーカイブ(OPAR)をアップロードするには、次のようにします。第14.4項「プラグイン・アーカイブの作成」を参照してください。
OPARをOMSに移動します。第14.5項「Enterprise Managerのプラグイン・アーカイブのインポートおよびデプロイ」を参照してください。
OPARをエージェントにプッシュします。第14.5項「Enterprise Managerのプラグイン・アーカイブのインポートおよびデプロイ」を参照してください。
カスタム・ターゲット・インスタンスを作成します。第19.7.4項「Weblogic上のカスタムJ2EEアプリケーションのターゲット・インスタンスの追加」を参照してください。
ターゲットのステータス情報をEnterprise Managerコンソールに正しく表示するには、レスポンス・メトリックを定義する必要があります。詳細は、第19.6.1.3項「ターゲット・ステータス情報の表示」を参照してください。
プラグインがOMSにデプロイされると、メタデータ・プラグインで定義されたターゲットを別の監視管理エージェントに追加する準備ができます。
説明のために、次の手順では、サンプルのCalculatorServiceおよびTrafficLightをターゲットとして追加する方法を示します。
CalculatorServiceターゲットを追加するには、次の手順を実行します。
「設定」メニューから、「ターゲットの追加」、「ターゲットの手動追加」の順に選択します。
「ターゲット監視プロパティを指定して非ホスト・ターゲットを追加」を選択します。
「ターゲット・タイプ」メニューからCalculatorServiceを選択します。
「監視エージェント」メニューから、必要な監視管理エージェントを選択します。
「手動追加」をクリックして続けます。
監視するターゲットのプロパティ値を入力します。
「OK」をクリックして、プロセスを完了します。確認ウィンドウに、新しく追加されたターゲットの情報が表示されます。
TrafficLightターゲットを追加するには、次の手順を実行します。
「設定」メニューから、「ターゲットの追加」、「ターゲットの手動追加」の順に選択します。
「ターゲット監視プロパティを指定して非ホスト・ターゲットを追加」を選択します。
「ターゲット・タイプ」ドロップダウン・メニューで、TrafficLightを選択します。
「監視エージェント」ドロップダウン・メニューで、目的のエージェントを選択します。
「手動追加」をクリックして続けます。
監視するターゲットのプロパティ値を入力します。
「OK」をクリックして、プロセスを完了します。確認ウィンドウに、新しく追加されたターゲットの情報が表示されます。
スタンドアロンJavaアプリケーションを定義するプラグインをデプロイした場合や、組込みJVMターゲット・タイプを使用する場合は、これらのターゲットのメトリックをEnterprise Manager Grid Controlで収集できるように、JVMまたはJMX対応のJavaアプリケーション・ターゲットの構成を開始できます。
JVMを実行するシステムに、バージョン10.2.0.3以降のEnterprise Managerエージェントをインストールします。これは推奨される手順ですが、JVMおよびスタンドアロンJavaアプリケーションのターゲットに必要な手順ではありません。
JVMターゲット・インスタンスを追加するには、次の手順を実行します。
Enterprise Managerコンソールの「設定」メニュー(右上)から、「ターゲットの追加」、「ターゲットの手動追加」の順に選択します。
「ターゲット監視プロパティを指定して非ホスト・ターゲットを追加」を選択します。
「ターゲット・タイプ」メニューから「JVM」を選択します。
「監視エージェント」リストから、必要な管理エージェント(できれば、監視するJVMにローカルの管理エージェント)を選択します。
このJVMまたは管理エージェントで監視する必要のあるJavaアプリケーション・インスタンスのインスタンス・プロパティを入力して、「OK」をクリックします。
表19-1に、インスタンス・プロパティの定義を示します。
表19-1 JVMインスタンス・プロパティ
プロパティ | 定義 |
---|---|
名前 |
このJVMインスタンスのターゲット名。 |
MachineName |
このJVMが稼働するホストの名前。 |
管理ポート番号 |
JSR-160クライアントがJVMへの接続に使用できるポート番号(リモート・オプションを使用する場合のjconsoleなど)。(これは、リモート管理を有効化するためにJVMが起動されたときに |
ユーザー名 |
パスワードおよびアクセス・ファイルを使用し、 |
JVM Adminユーザー・パスワード |
前述のユーザー名プロパティを参照してください。 |
通信プロトコル |
ターゲットJVM上のMBeanServerへの接続を確立します。これは、ターゲットMBeanServerへのJMX接続を確立するのに必要なJMXサービスURLのプロパティに対応します。デフォルト値であるrmiを保持してください。 |
サービス名 |
ターゲットJVM上のMBeanServerへの接続を確立します。これは、ターゲットMBeanServerへのJMX接続を確立するのに必要なJMXサービスURLのプロパティに対応します。デフォルト値であるjmxrmiを保持してください。 |
SSLTrustストア |
SSL Trustストアの場所。ターゲットJVMの起動時に |
SSLTrustストアのパスワード |
SSL Trustストアのパスにアクセスするためのパスワード。 |
カスタムのルックアップ・プロバイダ・クラス |
Enterprise Managerクライアントに統合し、LDAPまたは他のルックアップ・プロトコルを介してMBeanServerのカスタム・ルックアップを実行するのに使用できる、ユーザー実装Javaルックアップ・クラスの完全なパッケージ名。 |
追加したJVM(Javaアプリケーション)ターゲットの「すべてのメトリック」ページにナビゲートして、JVM(Javaアプリケーション)からEnterprise Managerに収集されたメトリックを確認します。これらのメトリックは、JDK1.5以上で使用できるプラットフォームMBeanによって公開されるか、Javaアプリケーションのアプリケーション定義のMBeanから公開されます。
「ターゲット」メニューからJVMターゲットのホームページにナビゲートするには、「すべてのターゲット」を選択してから、JVMターゲット・インスタンスを選択します。
「すべてのメトリック」ページにナビゲートするには、「ターゲット」メニューから「監視」を選択して、JVMターゲットのホームページのメニューから「すべてのメトリック」を選択します。
次の画像は、収集されたメトリックの詳細を示しています。
表19-2 Fetchletが使用するプロパティ
プロパティ | デフォルト | 説明 |
---|---|---|
MachineName |
localhost |
MBeanサーバーのホスト・マシンの名前。 |
Port |
8888 |
MBeanサーバーが接続をリスニングするポート。 |
Username |
NULL |
ユーザー名(接続に必要な場合)。 |
Password |
NULL |
パスワード(接続に必要な場合)。 |
Protocol |
rmi |
接続に使用するプロトコル。 |
Service |
jmxrmi |
接続に使用するサービス。 |
SSLTrustStore |
NULL |
SSLTrustストアへのパス。 |
SSLTrustStorePassword |
NULL |
SSLTrustストアのパスにアクセスするためのパスワード。 |
WebLogicにはカスタムJ2EEアプリケーションがあり、JMX MBeanで公開されるカスタム・メトリックをEnterprise Managerに収集する必要があります。カスタム・ターゲット・タイプを定義するプラグインを一度定義してデプロイすると、プラグインのデプロイ対象の様々な管理エージェントでJMX対応のJ2EEアプリケーション・ターゲット・インスタンスの構成を開始できます。これにより、これらのターゲット・インスタンスのメトリックをEnterprise Managerで収集できるようになります。
「設定」メニューから、「ターゲットの追加」、「ターゲットの手動追加」の順に選択します。「ターゲット監視プロパティを指定して非ホスト・ターゲットを追加」オプションを選択します。
以前に作成されてOMSにデプロイされたカスタム・ターゲット・タイプを選択します。
このターゲット・タイプのインスタンスを作成する監視管理エージェントを選択します(できれば、ターゲットにローカルなEMエージェントにします)。
「手動追加」をクリックします。

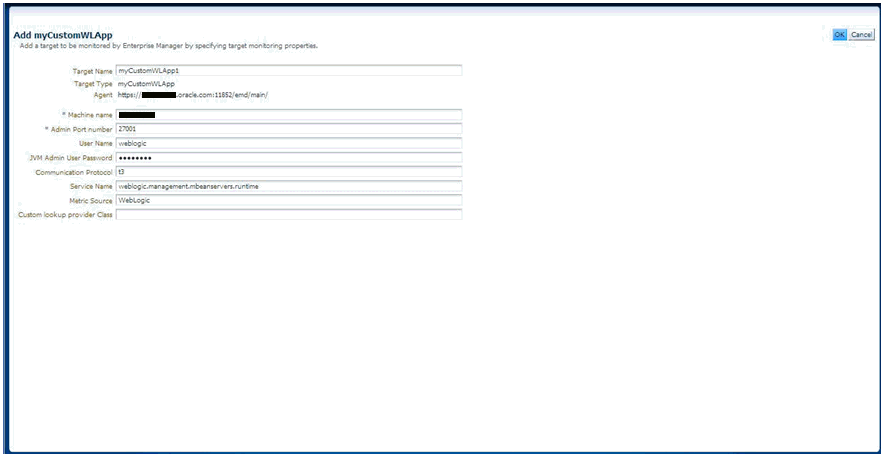

次の画像に示すように、必要なターゲット・プロパティを入力して、「OK」をクリックします。新規に追加したターゲットがエージェントの「すべてのターゲット」リストに表示されます。
表19-3 ターゲット・プロパティ
プロパティ | 定義 |
---|---|
名前 |
このターゲット・インスタンスの一意の名前。 |
MachineName |
バージョン9.x以降のOracle WebLogic Application Serverを実行しているシステムのホスト名/IPアドレス。 |
ユーザー名 |
WebLogicサーバーへのJMX接続の確立に使用されるユーザー名。これは管理者または監視ユーザーのいずれかになります。 |
JVM Adminユーザー・パスワード |
前述のユーザーのパスワード。 |
通信プロトコル |
t3(デフォルト)またはt3s。 |
サービス名 |
weblogic.management.mbeanservers.runtime(またはアプリケーションがそのMBeanを登録しているその他のMbeanServer)。 |
メトリック・ソース |
WebLogic |
作成されたメトリックは、ターゲット・インスタンスのホームページにナビゲートして、「すべてのメトリック」ページ(「ターゲット」メニューから「監視」、「すべてのメトリック」の順に選択)にナビゲートすることで表示できます。
一部のターゲット・タイプでは、ターゲット・インスタンスに設定される資格証明を監視する必要があります。デモ・プラグインでは、CalculatorServiceとTrafficLightのどちらも資格証明の監視が必要です。次の手順で、資格証明の設定方法を示します。
「設定」メニューから、「セキュリティ」、「監視資格証明」の順に選択します。
CalculatorServiceを選択して、「監視資格証明の管理」をクリックします。
Calculator1を選択して、「資格証明の設定」をクリックします。
「資格証明のタイプ」からAliasCredentialを選択します。「別名」と「パスワード」の値を入力します。
「保存」をクリックして終了します。
ターゲットTrafficLight1に対して前述の手順を繰り返します。

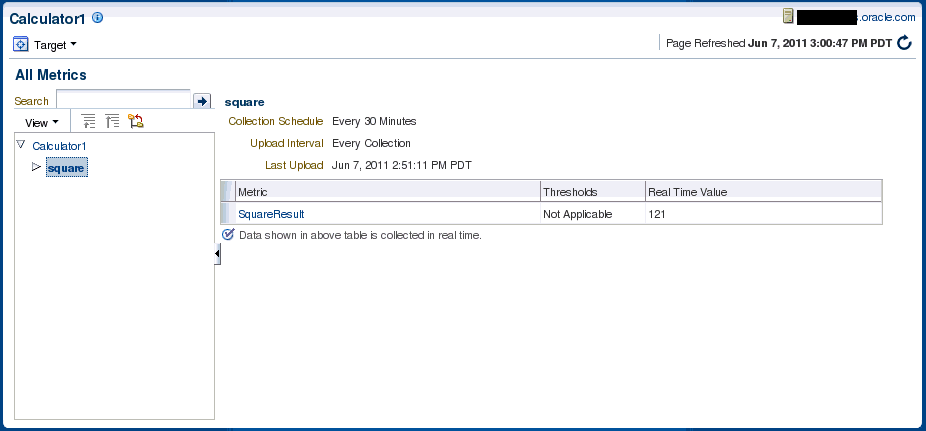

監視のために管理エージェントにターゲット・インスタンスが追加されたため、ターゲット・タイプに対して定義されたメトリックを表示できます。前回と同様に、サンプル・ターゲットを使用して手順を示します。
「すべてのターゲット」ページから、以前の手順で追加したターゲットをクリックします。Enterprise Managerにより、ターゲットのホームページが表示されます。
「ターゲット」メニューから、「監視」、「すべてのメトリック」の順に選択します。「すべてのメトリック」ページが監視対象のターゲットに対して表示されます。各メトリックの展開可能なツリー・リストにより、次に示すようにドリルダウンして特定のメトリック・パラメータを表示できます。
Oracle Fusion Middlewareにデプロイされ、JMX属性によってEnterprise Manager 12cに公開されたカスタムJ2EEアプリケーションからメトリックを収集する場合、Enterprise Managerコンソールまたはjmxcli
コマンドライン・ツールのいずれかを使用できます。後者は、JMX操作のメトリック拡張の定義をサポートし、メトリック拡張アーカイブ(MEA)の作成をサポートします。メトリック拡張アーカイブは、コンソールからOMSにインポートしてテストを行い、カスタム・アプリケーションを表す目的のJ2EEアプリケーション・ターゲット・インスタンスにデプロイする必要があります。
注意: Mbeanブラウザではオープン・タイプではない属性を選択できますが、JMXメトリック拡張UIでサポートされるのは、オープン・タイプの属性のみです。UIを使用する場合にオープン・タイプではない属性を選択してメトリックを作成すると、エラーが発生します。 |

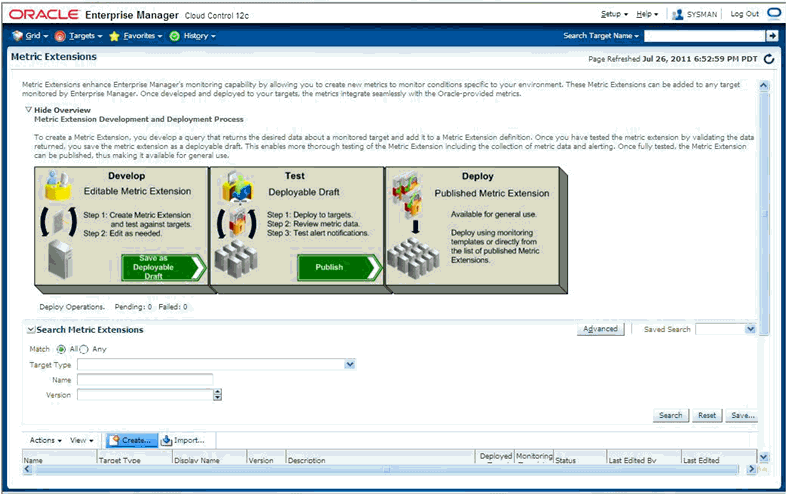

「エンタープライズ」メニューから、「監視」、「メトリック拡張」の順に選択します。「メトリック拡張」ページが表示されます。
「作成」をクリックして、メトリック拡張を作成します。
「アプリケーション・デプロイメント」ターゲット・タイプ(またはこのメトリックを定義する必要がある他の適切なEnterprise Managerターゲット)を選択して、メトリック拡張に意味のある名前を指定します。このアプリケーションと他のカスタム・アプリケーションの両方について、「アプリケーション・デプロイメント」ターゲット・タイプで追加のメトリック拡張の作成を最終的に終了することを念頭に置いてください。可能なかぎり、メトリック拡張名にはメトリック名とアプリケーション名の両方を取得することをお薦めします。

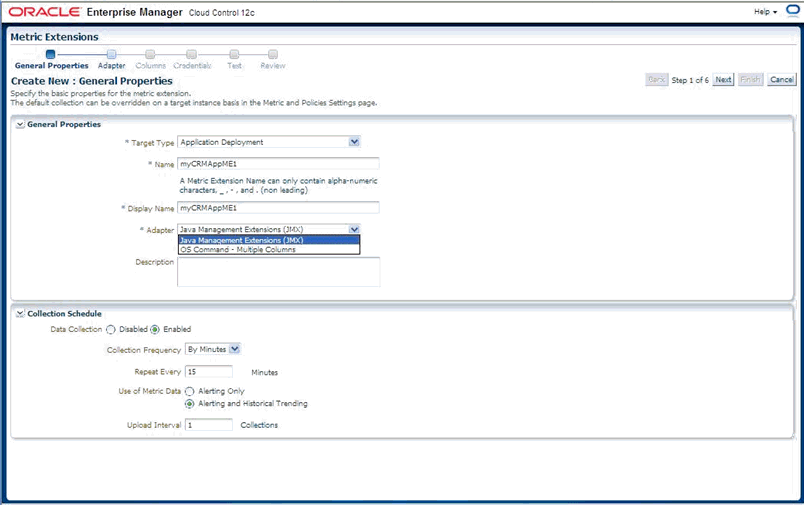

さらに、アダプタのJMXを選択します。
「一般プロパティ」セクションの下にある「収集スケジュール」に注意してください。ここでは、このメトリックの収集頻度や、このメトリックがリアルタイム専用であるかどうかを定義します(この場合、「無効」ボタンを選択する必要があります)。
「アラートおよび履歴の傾向」を選択する場合、「アップロード間隔」を選択することもできます。これは、履歴の傾向にどのサンプル(その頻度が「繰返し間隔」フィールドに指定される)がEnterprise Managerリポジトリにアップロードされるかを示します。たとえば、収集頻度を15分に指定して、「アップロード間隔」を3にした場合、サンプルが3つおきにリポジトリにアップロードされ(45分ごと)、履歴の傾向に利用できます。ただし、しきい値の違反が原因でトリガーされる可能性のある「アラート」は、収集のたびに(15分ごとに)利用できます。
「次へ」をクリックして、JMXベースのメトリックに必要な必須プロパティを指定します。これらは、「基本プロパティ」セクションで定義され、次のようなプロパティになります。
メトリック: Mbeanのオブジェクト名またはパターン
列の順序: 前述のMbeanのセミコロン区切りのJMX属性のリスト(JMX操作でメトリックを定義する必要がある場合、次の項に示すようにjmxcli
を使用します)。
前述の定義されたMbeanオブジェクト名またはパターンに、サーバー固有のキー・プロパティは定義できないことに注意してください。これらのプロパティは、ワイルドカード(*)で置き換えることができます。
たとえば、Mbeanオブジェクト名がcom.bea:Type=foo,Location=Server1,Name=abcの場合、前述の「メトリック」プロパティでcom.bea:Type=foo,*と定義することが適しています。また、Mbeanオブジェクト名がパターンの場合、このメトリックを複数行の表にして複数のMbeanが返されます(各行は、ObjectNameパターンに一致するMbeanのJMX属性を表します)。この場合、各行が結果のメトリックで一意になるように、少なくとも1つ以上の列をキー列として定義する必要があります。
前述の手順では、「MBeanの参照」ボタンがあり、これら2つのプロパティの構成が容易になります。このボタンでは、MbeanServerを参照でき、メトリック拡張で定義される該当メトリックで表す必要があるMbeanとそのJMX属性を選択します。
「MBeanの参照」をクリックする場合、次の操作を順に行う必要があります。
ターゲットの選択: このメトリックの定義に使用する必要があるターゲット・タイプのインスタンスを選択します。このターゲット・インスタンスは、メトリックの構成に役立ちます。メトリックが最終的に定義されるターゲット・インスタンスである必要はありません。
MBeanパターンの入力: ここでは、監視に関連するMbeanのオブジェクト名とパターンを入力します。
「MBeanをリスト」をクリック: 「MBeanと属性の選択」の下の表に表示されます。Mbeanパターンに一致するMbean、またはテキスト「MBeanがリストされていないか、MBeanパターンと一致するMBeanがありません」(一致がない場合)が表示されます。前述の「MBeanパターンの入力」フィールドを繰り返し更新し、「MBeanをリスト」をクリックして、表示されるMbeanのリストを絞り込むことができます。
関連するMbeanの選択: 選択したMbeanのJMX属性を含む次の表が自動的に表示されます。
[Crtl]をクリックしながら複数の属性を選択できます。選択内容を受け入れるには、「選択」をクリックします。
JMXベースのメトリック拡張の定義に必要なパラメータ「メトリック」と「列の順序」を指定する必要があります。
前述のMBeanの参照ウィザードを使用してメトリック拡張を構成する際に選択または使用されたサーバーの他に複数のサーバーにこのメトリック拡張を適用できる場合、「メトリック」フィールドに表示されるMbean名のキー・プロパティにインスタンス固有の情報を含めないようにしてください(Location=Server1やServerName=fooなど)。これを有効なMbean ObjectNameパターンにするには、これらのインスタンス固有のキー・プロパティをワイルドカード「*」で適宜置き換えることができます。
指定可能なプロパティの説明
必須プロパティ:
metric: 属性を問い合せるMBean ObjectNameまたはObjectNameパターン。これはメトリックのメタデータとして指定されるため、インスタンスにとらわれないようにする必要があります。そのため、MBean ObjectNameのインスタンス固有のキー・プロパティ(servernameなど)がある場合は、そのプロパティをワイルドカードで置き換える必要があります。
columnOrder : これは、メトリック内に存在する必要のある順序で並べられたJMX属性のセミコロン区切りリストです。
拡張プロパティ:
identityCol: JMX属性として使用可能でない場合に列として公開する必要のあるMBeanキー・プロパティ。例: com.myCompany:Name=myName,Dept=deptName, prop1=prop1Val, prop2=prop2Val。この例では、identityColをName;Dept(セパレータはセミコロン)として設定すると、columnOrderプロパティで指定したJMX属性を表す列の他にNameとDeptを表す2つの追加キー列が生成されます。
autoRowId: メトリック・プロパティで指定されたMBean ObjectNameパターンが複数のMBeanに一致し、columnOrderで指定されたJMX属性のいずれもそれぞれ一意でない場合は、行が自動的に生成されます。この場合に使用される接頭辞です。ここで指定した autoRowId は、作成される追加のキー列の接頭辞として使用されます。たとえば、メトリックがcom.myCompany:Type=CustomerOrder,*と定義される場合、columnOrderはCustomerName;OrderNumber;DateShippedになります(注文が2つに分けて出荷された場合、customerName;OrderNumber;DateShippedは一意ではないと仮定します)。
autoRowIdを「ShipItem-」に設定すると、各行のメトリックの追加キー列にShipItem-0、ShipItem-1が表示されます。
MetricService: True/Falseで、MetricServiceがターゲットのWeblogicドメインで有効になっているかどうかを示します。Oracle DMS MBeanを介して公開されるメトリックを収集する必要がある場合を除き、このプロパティは、ユーザー定義のメトリックに対してほとんどの場合にfalse(選択解除)になります。trueに設定されている場合、前述の基本プロパティ「metric」はMetricService表の名前になり、基本プロパティ「columnOrder」は前述のMetricService表の列名のセミコロン区切りリストになります。
このメトリックの列を指定します(以前に「MBeanの参照」手順を使用している場合、これらの列は自動的にインポートされます)。キー列である列を指定するには、MBeanの参照ウィザードで、これらのあらかじめ作成されている列を編集する必要があります。これは、「メトリック」プロパティの以前の手順でMbeanパターンが指定された場合に行います。このメトリック拡張が適用されるターゲット・インスタンスでは、複数のMbeanがこのMbeanパターンに一致する可能性があります。
(「上に移動」と「下に移動」ボタンを使用して)列の順序を変更する場合、以前の手順の「列の順序」プロパティのセミコロン区切り列の対応する順序も適宜更新する必要があります(「戻る」を使用)。
次の図に示すように、必要に応じて、これらをキー列にするように列を編集します。
列にラベルを付けて編集したら、「次へ」をクリックします。これで、メトリック拡張をテストする準備ができました。

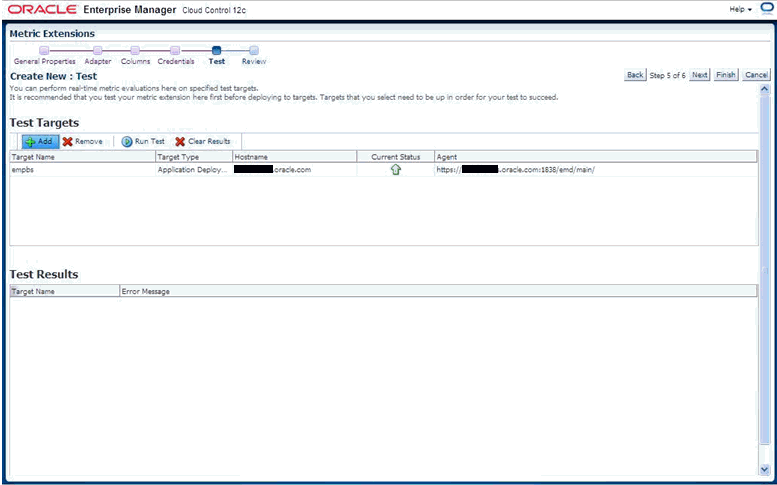

「追加」をクリックして、このメトリック拡張をテストするターゲット・インスタンスを選択します。これは、できればメトリック拡張の定義に使用されたものとは別のターゲット・インスタンスにします(以前にメトリック拡張の定義に「MBeanの参照」ボタンを使用した場合)。
「ターゲットのテスト」表でターゲット・インスタンスを選択して、この表の上にある「テストの実行」をクリックします。
「テストの実行」表にメトリック値が表示されます(エラーがある場合はエラーも表示されます)。
エラーがある場合は、「戻る」をクリックしてエラーを修正し、テストを再実行します。
テストが成功したら、「次へ」をクリックしてメトリック拡張のサマリーを表示し、「終了」をクリックしてメトリック拡張を定義します。
選択したターゲット・インスタンスにメトリック拡張をデプロイする前に、「デプロイ可能な下書き」にメトリック拡張を保存する必要があります。これにより、メトリック拡張のデザイナは、選択したターゲット・インスタンスにメトリック拡張をデプロイして、メトリック収集を検証できます。ただし、メトリック拡張がテストされてデザイナが満足する結果になるまで他の管理者がこのメトリック拡張をデプロイすることはできません。

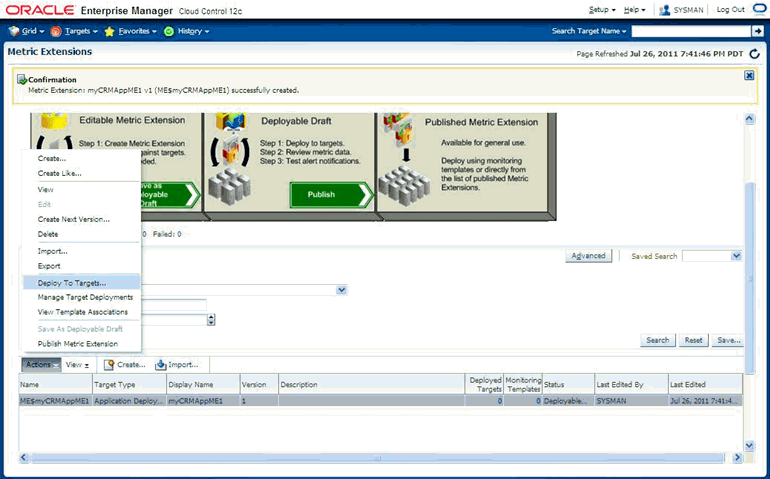

作成されてデプロイ可能な下書きに保存されたメトリック拡張を選択します。「アクション」メニューから、「ターゲットにデプロイ」を選択します。
このメトリック拡張をテストする必要があるターゲット・インスタンスを選択して、「発行」をクリックします。たとえば、メトリック拡張が「アプリケーション・デプロイメント」ターゲット・タイプで定義され、カスタムJ2EEアプリケーションで登録されるカスタムMbeanのメトリックを表す場合、そのカスタム・アプリケーションのインスタンスを選択できます。これにより、選択したターゲットを監視する管理エージェントにメトリック拡張を非同期にデプロイするジョブがスケジュールされます。
このページを定期的にリフレッシュすることで、選択したターゲットへのメトリック拡張のデプロイが保留になっている操作のステータスを監視し、デプロイメントで発生する可能性のあるエラーについて「ステータス」列と「失敗したデプロイ操作」表を監視します。
「エンタープライズ」メニューから、「監視」、「メトリック拡張」の順に選択します。「メトリック拡張」ホームページには、メトリック拡張が表の行として表示されます。この表の「デプロイされたターゲット」列は、このメトリック拡張がデプロイされるターゲットの数を表します。
「アクション」メニューで、目的のメトリック拡張の選択後に表から「ターゲット・デプロイメントの管理」を選択します。これにより、このメトリック拡張がデプロイされるターゲット・インスタンスが表示されます。
メトリック拡張を検証するターゲット・インスタンスの「ターゲット名」列で値をクリックします。ターゲットのホームページに移動します。
ミドルウェア・ターゲットの場合、「ターゲット・タイプ」→「監視」→「パフォーマンス・サマリー」(または、一般的に「ターゲット・タイプ」→「監視」→「すべてのメトリック」)ページにナビゲートします。
「パフォーマンス・サマリー」ページでは、新しく作成されたメトリックが「メトリック・パレット」に表示され、このページでそのメトリックを選択してチャート化できます。
1つ以上のターゲット・インスタンスでメトリック拡張のテストが成功すると、「メトリック拡張」ページ(「アクション」メニューで「メトリック拡張の公開」を選択)からメトリック拡張を公開して、残りのターゲット・インスタンスにデプロイできます。
Enterprise Managerコンソールを使用しない場合(またはJMX操作から公開されたEnterprise Managerメトリックを公開しない場合)、コマンドライン・ツールJMXCLIを使用して、メトリック拡張アーカイブを作成できます。メトリック拡張アーカイブは、OMSにインポートして、編集、テスト、公開してから、そのアーカイブが定義されるターゲット・タイプの必要なインスタンスにデプロイできます。次に、JMXCLIを使用したメトリック拡張アーカイブの作成について示します。
cd Agent_Instance_Home/bin
setenv USER_JARS $T_WORK/middleware/wlserver_10.3/server/lib/weblogic.jar(使用するMbeanがJMXオープン・タイプを返し、カスタム・クラスを返さない場合は不要)。
emctl jmxcli -t WebLogic -MEXT -l "service:jmx:t3://sta00338:7018/jndi/weblogic.management.mbeanservers.runtime" -u weblogic -c welcome1 -m "*:Type=ThreadPoolRuntime,*" -w /scratch/TEMP/
オプション:
-l : WebLogicサーバーに接続するJMX serviceURL。前述のhost:portを、使用するインスタンスに適したものに置き換えます。
-u : 必要なMBeanへのアクセス権を持つWebLogicユーザー
-c : WebLogicユーザーのパスワード
-m : Mbean ObjectNameまたはパターン。
-w : メトリック拡張アーカイブ(後からOMSコンソールにインポート可能)が作成される一時作業ディレクトリ。
Oracle Enterprise Manager 12c Release 1 Cloud Control 12.1.0.0.0 Copyright (c) 1996, 2011 Oracle Corporation. All rights reserved. Using Plugin Root /ade/sparmesw_egc802/oracle/emagent/gcagent/plugins/oracle.sysman.emas.agent.plugin_12.1.0.0.0 Connecting to server: service:jmx:t3://sta00338:7018/jndi/weblogic.management.mbeanservers.runtimeConnecting as user: weblogic Obtained 1 MBeans matching pattern *:Type=ThreadPoolRuntime,*. Enter an existing target type for this Metric Extension: [j2ee_application] Enter the name of the Metric Extension: [myMEXT] myAppME_1 Enter the Metric Extension version: [1.0] Enter the Metric Extension metadata file location: [./metadata/ME#24#myAppME_1.xml] Enter the Metric Extension collection file location: [./collection/ME#24#myAppME_1.xml] Enter a label for this Metric Extension: [myAppME_1] Enter a description for this Metric Extension: [myAppME_1] The available targets are: 0: This bean is used to monitor the self-tuning queue <h3 class="TypeSafeDeprecation">Deprecation of MBeanHome and Type-Safe Interfaces</h3> <p class="TypeSafeDeprecation">This is a type-safe interface for a WebLogic Server MBean, which you can import into your client classes and access through <code>weblogic.management.MBeanHome</code>. As of 9.0, the <code>MBeanHome</code> interface and all type-safe interfaces for WebLogic Server MBeans are deprecated. Instead, client classes that interact with WebLogic Server MBeans should use standard JMX design patterns in which clients use the <code>javax.management.MBeanServerConnection</code> interface to discover MBeans, attributes, and attribute types at runtime. For more information, see "Developing Manageable Applications with JMX" on <a href="http://www.oracle.com/technology/products/weblogic/index.html" shape="rect">http://www.oracle.com/technology/products/weblogic/index.html</a>.</p> (com.bea:Name=ThreadPoolRuntime,ServerRuntime=EMGC_ADMINSERVER,Type=ThreadPoolRuntime) Enter the index of target/MBean you wish to monitor or press <Ctrl-C> to quit: 0 Following metric source types are available for selected target(s): 0: JMX Attributes 1: JMX Operations Enter the index of your choice or press <Ctrl-C> to quit: 0 Attributes are: 0: CompletedRequestCount Return Value: java.lang.Long 1: ExecuteThreadIdleCount Return Value: java.lang.Integer 2: ExecuteThreads Return Value: [Lweblogic.management.runtime.ExecuteThread; 3: ExecuteThreadTotalCount Return Value: java.lang.Integer 4: HealthState Return Value: weblogic.health.HealthState 5: HoggingThreadCount Return Value: java.lang.Integer 6: MinThreadsConstraintsCompleted Return Value: java.lang.Long 7: MinThreadsConstraintsPending Return Value: java.lang.Integer 8: Name Return Value: java.lang.String 9: Parent Return Value: javax.management.ObjectName 10: PendingUserRequestCount Return Value: java.lang.Integer 11: QueueLength Return Value: java.lang.Integer 12: SharedCapacityForWorkManagers Return Value: java.lang.Integer 13: StandbyThreadCount Return Value: java.lang.Integer 14: Suspended Return Value: java.lang.Boolean 15: Throughput Return Value: java.lang.Double 16: Type Return Value: java.lang.String Select one or more items as comma separated indices: 5,13 Number of possible columns in the resultant metric are 2. Enter the name for this metric column at index=0 : [HoggingThreadCount] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [HoggingThreadCount] Enter the NLSID for column: [HoggingThreadCount] Enter the UNIT for column "HoggingThreadCount": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Enter the name for this metric column at index=1 : [StandbyThreadCount] Is this column a KEY Column <y/n>? [n] Is this column for SUMMARY_UI <y/n>? [n] Enter the label for column: [StandbyThreadCount] Enter the NLSID for column: [StandbyThreadCount] Enter the UNIT for column "StandbyThreadCount": [millisec, kb etc.. ] Do you want to create a threshold for this column <y/n>? [n] Do you want periodic collection for this metric <y/n>? [n] y Enter the collection interval in seconds: 300 Periodic collection interval is: 300 seconds. Written the metadata xml file: ./metadata/ME#24#myAppME_1.xml. Creating new file: ./collection/ME#24#myAppME_1.xml. Updated the default collection file for j2ee_application at location ./collection/ME#24#myA ppME_1.xml. createMextArchive: Adding metadata createMextArchive: Adding collection file createMextArchive: Adding mea.xml file Creating Metric Extension zip archive: ./MEA_ME$myAppME_1.zip Please import this into Enterprise Manager Cloud Control using the console. Exiting...
前述のセッションでは、jmxcli
を起動すると、-wオプションで指定されたディレクトリ(または-wオプションを指定しない場合は現在のディレクトリ)にZipファイルMEA_ME$myAppME_1.zipが作成されます。
次に示すように、これをEnterprise Managerコンソールにインポートします。「エンタープライズ」メニューから、「監視」→「メトリック拡張」を選択して「メトリック拡張」ホームページにアクセスします。
前述の例のようにメトリック拡張アーカイブをインポートすると、そのアーカイブを編集(および修正)、テスト、公開およびデプロイできます。
ユーザーは、前の項で概要を示したメカニズムを使用して、Oracle CoherenceやJVMターゲットで設定なしではすぐに使用できない追加メトリック、およびJMX Mbean属性から使用可能なデータを作成することもできます。
