Configuring ActionFrameworkConfig.xml in Oracle BI EE Folder

The first task in invoking an ADF page from a Oracle BI EE report consists of configuring the ActionFrameworkConfig.xml file. The objective here is twofold:

To substitute the ADF page environment details
To avoid any changes in the report whenever there is a change in the ADF page environment

The ActionFrameworkConfig.xml file is located at the following location:<OBIEE home location>\user_projects\domains\bifoundation_domain\config\fmwconfig\biinstances\coreapplication

To configure the ActionFrameworkConfig.xml in the Oracle BI EE folder:

Open the ActionFrameworkConfig.xml file with an editor.
Add the following code:
```
<aliases>
   <location-alias>
      <alias>icadfbiimplemenation</alias>
      <actual>Server Name</actual>
   </location-alias>
</aliases>
```

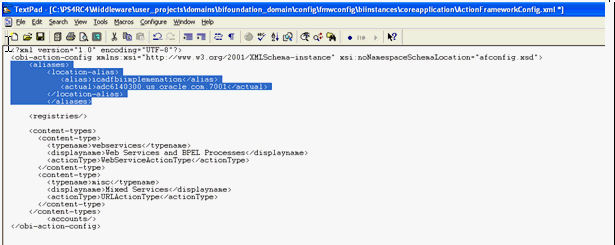

Figure 41, Adding code to ActionFrameworkConfig.xml File shows an example of adding the above code to the ActionFrameworkConfig.xml file:
Figure 41. Adding code to ActionFrameworkConfig.xml File
