STA User Interface Guide, v1.0.2
E28380-03
Table of Contents Previous Next Index


Using STA to Answer Tape Environment Questions : Capacity and Resource Management Questions : ▼ Report Drives With the Highest Utilization

▼

Report Drives With the Highest Utilization

These procedures address the question, “Which are the top three drives in terms of utilization?”

Utilization can be defined in a number of ways, including lifetime hours in use, amount of data passed, and total number of mounts. The following methods are described:

•
“Using Total Time in Motion”
•
“Using Time in Use Over the Last 30 Days”

Referenced Tasks

•
“Apply a Template”
•
“Sort by a Column”

▼

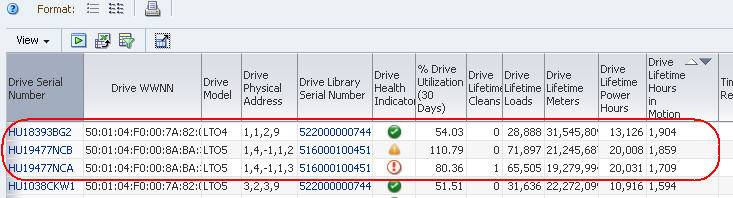

Using Total Time in Motion

Note – This information is provided only by StorageTek enterprise drives.

1.
In the Navigation Bar, select Drives > Overview.

2.
In the Templates menu, apply the “STA-Drive-Utilization” template.

3.
In the “Drive Lifetime Hours in Motion” column, click the Sort Descending arrow.

The top three drives in terms of time in motion are displayed at the top of the list.

▼

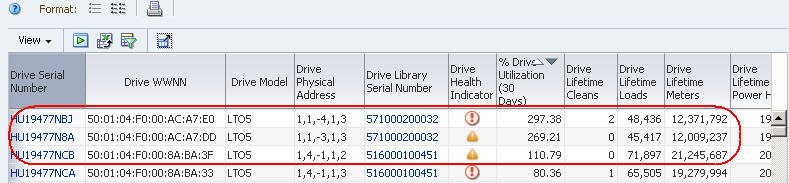

Using Time in Use Over the Last 30 Days
1.
In the Navigation Bar, select Drives > Overview.

2.
In the Templates menu, apply the “STA-Drive-Utilization” template.

3.
In the “% Drive Utilization (30 Days)” column, click the Sort Descending arrow.

The top three drives in terms of percentage time in use are displayed at the top of the list.
