▼	Add a Graph Pane

Note – This procedure applies to Overview screens only.

Use this procedure to add a graph pane to the screen. Data is displayed in the new graph according to the following criteria:

•	The graph displays the default attribute for the resource type. For media, the default is Data Mounts; for drives, it is MB Read. You can change the attribute to any available attribute for the resource.

•	If the existing graph panes have all been synchronized to the same date range, the new graph uses the same one; otherwise, the graph uses the system default date range of the previous 30 days.

•	The new graph displays actual values, even if all the existing graphs display percentages.

•	If individual resources have been applied to the existing graphs, the new graph displays the same ones.

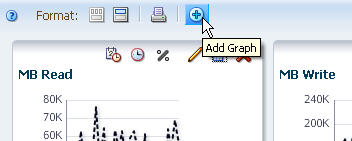

1.	Click the Add Graph icon on the Graphics Area Toolbar.

Note – You can display up to 15 graph panes at a time; once you reach 15, the Add Graph icon is disabled (dimmed).

The graph pane is added to the end of the Graphics Area display. You may need to use the vertical scrollbar to view the graph.

•	To move the pane to a new position, see “Rearrange Graph Panes”.

•	To graph a different attribute, see “Change the Graphed Attribute”.
