Graph Detail for a Pivot Table Attribute

Note – This procedure applies to Analysis screens only.

Use this procedure to graph detail data for a pivot table attribute. This results in just one graph pane in the Graphics Area.

Note – You can graph attributes that appear on the row edge only, and only one row at a time. If you select a column edge attribute, or if you select multiple rows, you will see the error, “Please select one and only one row.”

1.

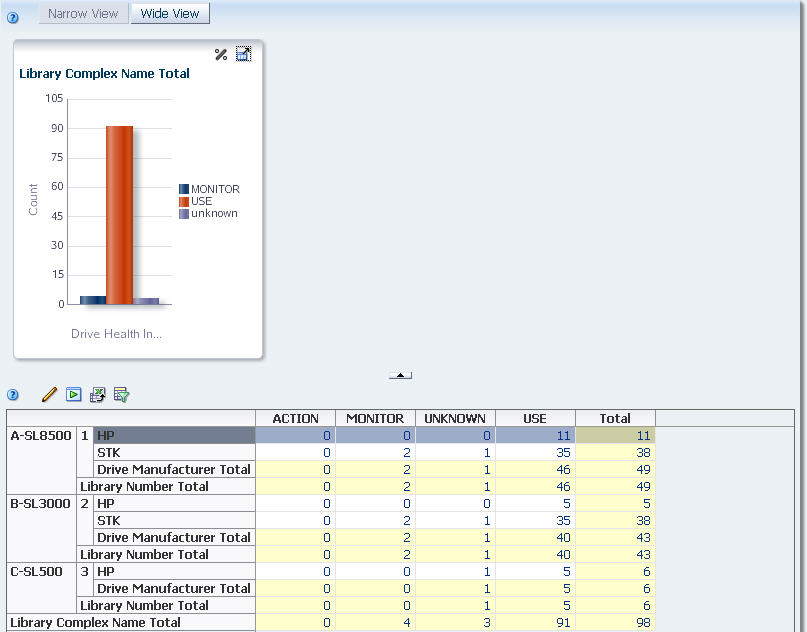

In the pivot table, select a row that shows one value for an attribute.

Note – In this example, the “HP” value for the Drive Manufacturer attribute is selected.

2.

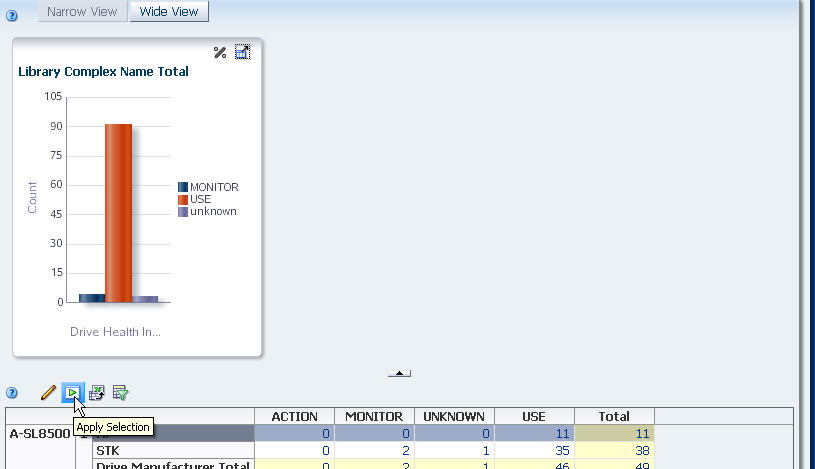

Click the Apply Selection icon in the Pivot Table Toolbar.

The selected attribute value is displayed in a single graph pane.
