Graph Aggregated Data From a Pivot Table

Note – This procedure applies to Analysis screens only.

Use this procedure to graph aggregated data from a pivot table. This results in multiple graph panes in the Graphics Area: one for the aggregated totals and one each for the attribute values included in the totals.

Note – You can graph attributes that appear on the row edge only, and only one row at a time. If you select a column edge attribute, or if you select multiple rows, you will see the error, “Please select one and only one row.”

1.

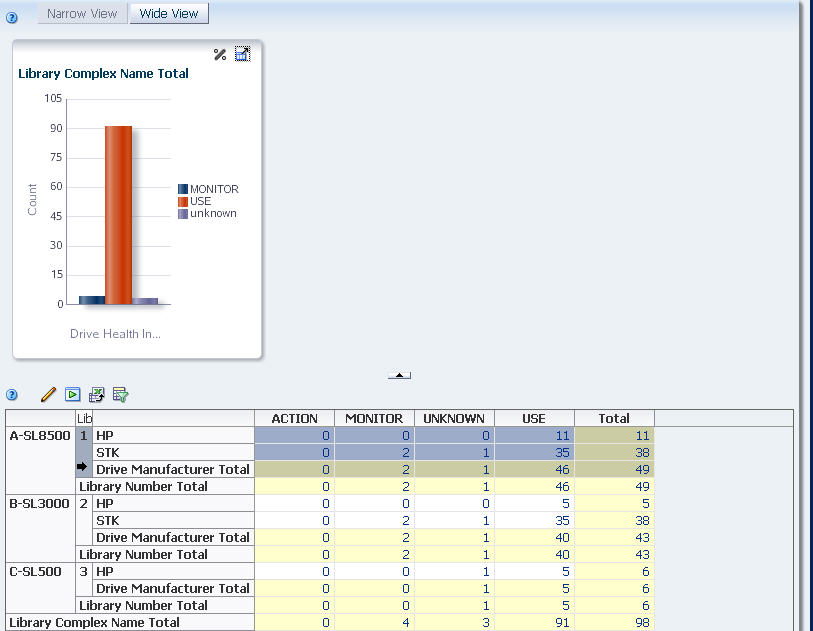

In the pivot table, select a layer that aggregates multiple attribute values.

Note – In this example, the nesting layer is “Library Number”, which aggregates data for two drive manufacturers: “HP” and “STK”.

2.

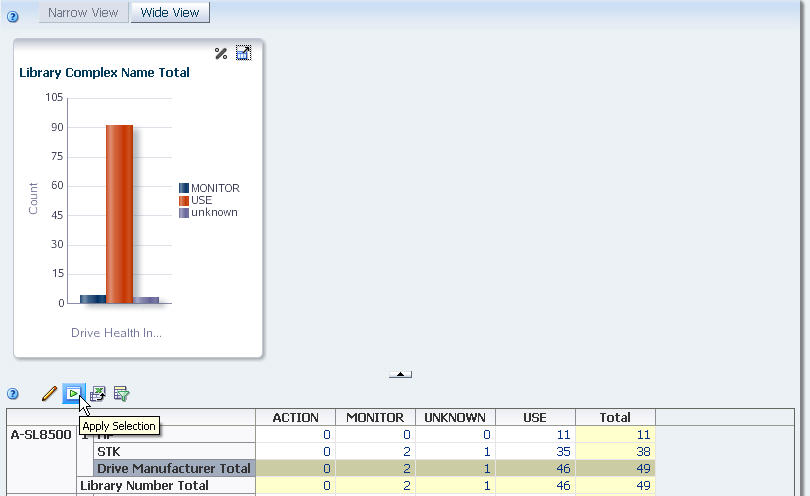

Click the Apply Selection icon in the Pivot Table Toolbar.

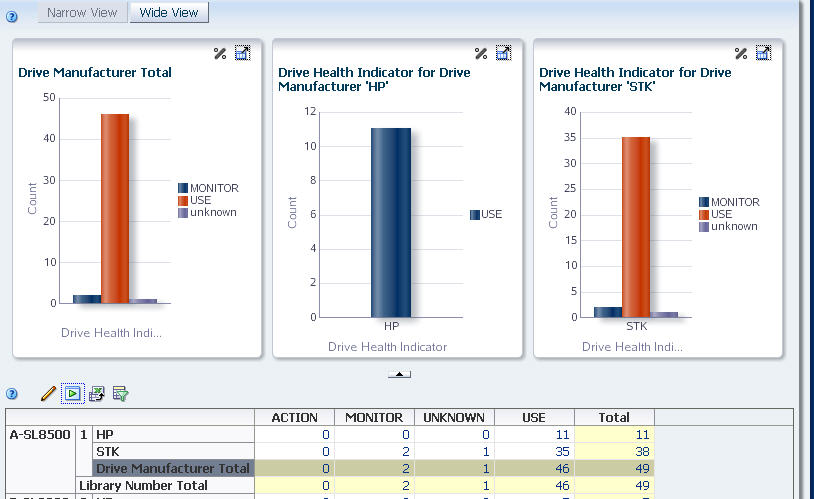

The Graphics Area is updated as follows:

•
The left-most pane shows the summary data for the attribute.
•
The panes to the right show detail for each attribute included in the aggregation, one pane per attribute. In this example, there are two detail panes: one for “HP” and one for “STK”.
