Areas of the Main Window

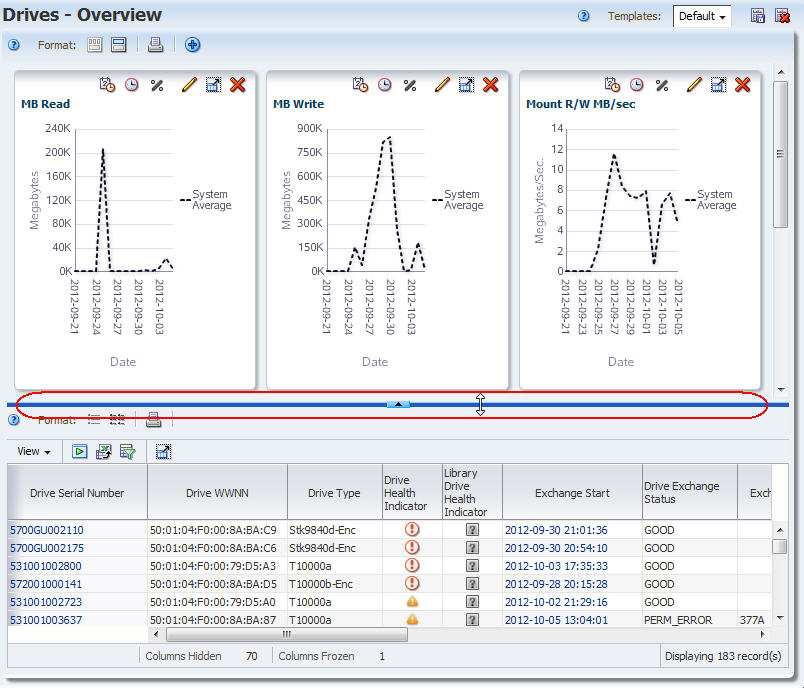

All STA Overview and Analysis screens follow the same general structure and layout. The Main Window is divided into a Graphics Area at the top, and a Table Area at the bottom. The border between the two areas is marked by the Collapse Pane icon, which is visible at all times, and the Resize control bar, which appears when you move the mouse over the space between the two areas.

The Table Area consists of either a List View table or a pivot table. See the following sections for details:
