STA User Interface Guide, v1.0.2
E28380-03
Table of Contents Previous Next Index


Table Displays : Pivot Table Layout Tasks : ▼ Change the Width of a Column or a Row Header

▼

Change the Width of a Column or a Row Header

Use this procedure to change the width of a column or a row layer header.

By mouse

1.
Move the mouse over the right-hand border of the column or row header until the Resize column cursor appears.

Note – Columns are resized from the right side only.

Note – You cannot resize a column from the data rows area.

Note – In this example, the Library Complex Name column will be resized, and the width of the Library Number column will not change.

2.

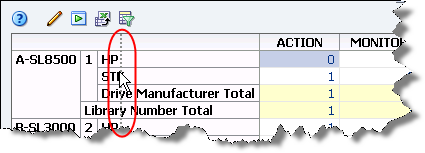

Click and drag the border, as follows:
•
To make the column narrower, drag to the left.
•
To make the column wider, drag to the right.

A dotted vertical line appears to indicate the pending width. You can move the border back and forth as much as you want until you get the right width.

3.
When the column is the width you want, release the cursor.

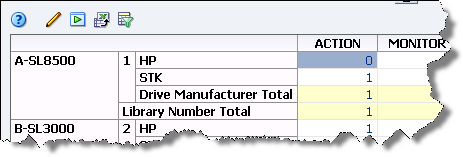

The column is resized. All other columns retain their original widths.

By menu

1.
Position the cursor within the header of the column you want to resize, until the Select column or Select row cursor appears.

2.

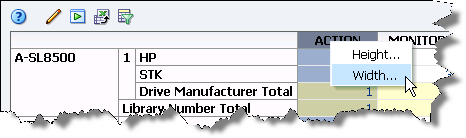

Right‑click and select Width.

The Width dialog box appears, displaying the current width of the column.

3.
In the Width field, enter the number of pixels for the new width.

Note – You can also use the spinbox up- and down-arrows to increase or decrease the value in the Width field.

4.
Verify the settings are the way you want, and then click OK.

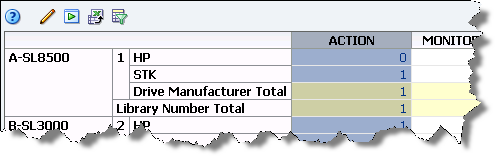

The column is resized. All other columns retain their original widths.
