Swap Layers on the Same Edge

Use this procedure to swap two layers on the same edge.

By mouse

1.
Move the mouse over the border of the heading you want to move, until the Move object cursor appears.

2.

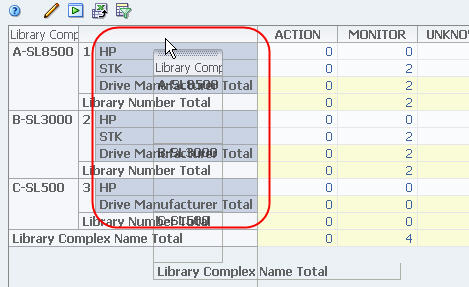

Click and drag the first layer over the second layer until that layer’s headings are highlighted.

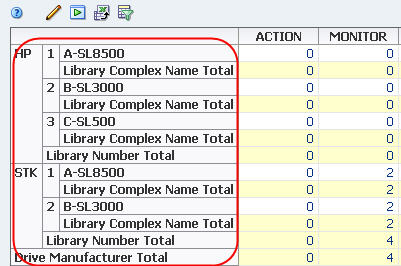

When you release the cursor, the table is reorganized and the aggregate counts in the data cells are re-calculated. In this example, the Library Complex layer has been swapped with the Drive Manufacturer layer.

By menu

See “Change Table Attributes and Their Nesting Order” for instructions.
