STA User Interface Guide, v1.0.2
E28380-03
Table of Contents Previous Next Index


Table Displays : Pivot Table Layout Tasks : ▼ Swap Layers on Opposite Edges

▼

Swap Layers on Opposite Edges

Use this procedure to swap layers on opposite edges.

By mouse

1.
Move the mouse over the border of the heading you want to move, until the Move object cursor appears.

2.

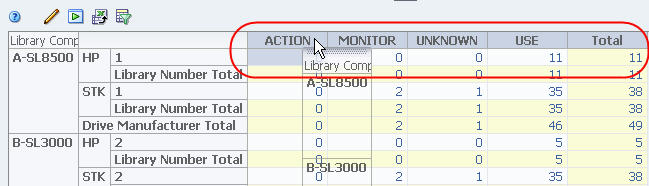

Click and drag the layer over a layer on the opposite edge, until the second layer’s headings are highlighted.

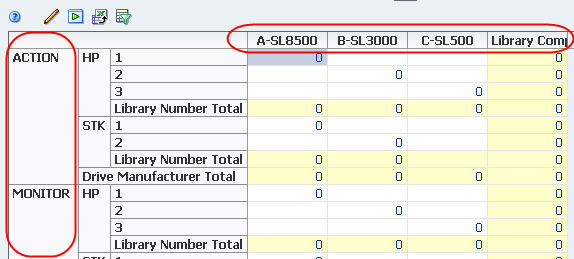

When you release the cursor, the table is reorganized and the aggregate counts in the data cells are re-calculated. In this example, the Library Complex layer has been swapped with the Drive Health Indicator layer.

By menu

See “Change Table Attributes and Their Nesting Order” for instructions.
