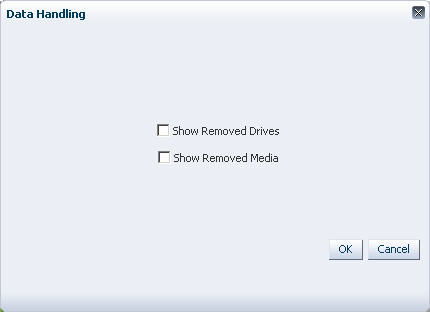

This dialog box allows you to selectively show or hide removed drives and media and their associated data. This dialog box appears when you select Preferences > Data Handling from the Main Toolbar.
Select this check box to turn on the display of removed drives, as follows:
|
•
|
Removed drives are listed on the Drives – Overview screen.
|
|
•
|
Aggregated data for removed drives are included on the Drives – Analysis screen.
|
|
•
|
On all other screens, drive serial numbers of removed drives are active links to the Drives – Overview, Detail View screen.
|
Deselect this check box to turn off the display of removed drives, as follows:
|
•
|
Removed drives are not listed on the Drives – Overview screen.
|
|
•
|
Aggregated data for removed drives are not included on the Drives – Analysis screen.
|
This check box is deselected by default.
|
•
|
Removed media are listed on the Media – Overview screen.
|
|
•
|
Aggregated data for removed media are included on the Media – Analysis screen.
|
|
•
|
On all other screens, volume serial numbers (VSNs or volsers) of removed media are active links to the Media – Overview, Detail View screen.
|
Deselect this check box to turn off the display of removed drives, as follows:
|
•
|
Removed media are not listed on the Media – Overview screen.
|
|
•
|
Aggregated data for removed media are not included on the Media – Analysis screen.
|
This check box is deselected by default.
Click to dismiss this dialog box without applying your entries.
|
|
|
|
|
|
