Refresh Settings

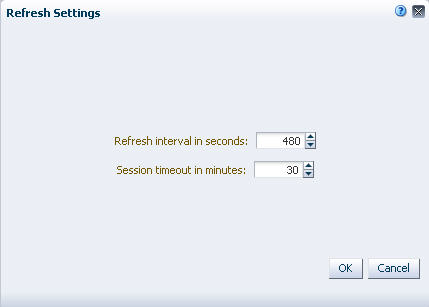

Sample Screen

Description

This dialog box allows you to set the refresh rate for the STA screen display and the timeout interval for login sessions. This dialog box appears when you select Preferences > Refresh Settings from the Main Toolbar. The settings apply to the username you are currently logged in as.

Screen Fields

Refresh interval in seconds

Enter the new refresh rate, in seconds. STA screens will be updated to display new data at the frequency you specify. Your entry must be between 60 and 43200 (12 hours). The default is 480 (8 minutes).

Session timeout in minutes

Enter the new timeout interval, in minutes. Login sessions that are idle for longer than this amount of time will be ended automatically. Your entry must be between 10 and 86400 (60 days). The default is 30.

Buttons

OK

Click to apply your entries.

Cancel

Click to dismiss this dialog box without applying your entries.
