STA Reference Guide, v1.0.2
E28382-03
Table of Contents Previous Next Index


STA Dialog Box Reference : Table Display Dialog Boxes : Show More Columns

Show More Columns

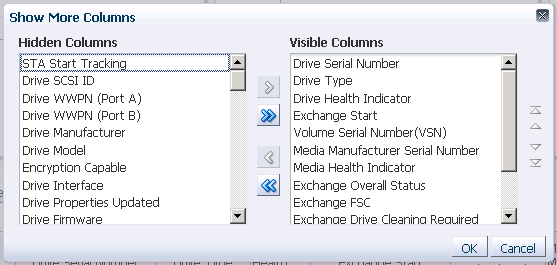

Sample Screen

Description

This dialog box allows you to indicate which attributes you want to reveal and hide on the current List View table. You can also indicate the order in which you want the revealed attributes to appear in the table. The specific list of attributes included in this dialog box varies, depending on whether the List View table displays libraries, drives, or media.

This dialog box appears when you select View > Columns > Show More Columns from the List Table Toolbar.

Screen Fields

Hidden Columns

List of all attributes to be hidden from the List View table. Select one or more attributes you want to move to the Visible Columns list. This field supports multi-select.

Visible Columns

List of all attributes to be revealed in the List View table. Select one or more attributes you want to either move to the Hidden Columns list or re-order in the table display. This field supports multi-select.

Buttons

Selection arrows

Active buttons depend on whether you have selected items in one or both lists.

or

Move the selected item(s) to the indicated list.

or

Move all items from one list to the other.

Ordering arrows

These buttons are active only if you have selected one or more items in the Visible Columns list.

or

Move the selected item(s) up or down, one place at a time.

or

Move the selected item(s) to the top or bottom of the list.

OK

Click to apply your entries.

Cancel

Click to dismiss this dialog box without applying your entries.
