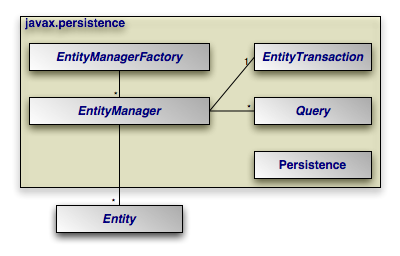

The diagram below illustrates the relationships between the primary components of the EJB architecture.
Note | |
---|---|
A number of the depicted interfaces are only required outside of
an EJB3-compliant application server. In an application server,
|
Persistence
:
The javax.persistence.Persistence
class
contains static helper methods to obtain
EntityManagerFactory
instances in a
vendor-neutral fashion.
EntityManagerFactory
: The javax.persistence.EntityManagerFactory
class is a factory for
EntityManager
s.
EntityManager
:
The javax.persistence.EntityManager
is the
primary EJB persistence interface used by applications.
Each EntityManager
manages a set of
persistent objects, and has APIs to insert new objects and delete
existing ones. When used outside the container, there is a
one-to-one relationship between an
EntityManager
and an
EntityTransaction
.
EntityManager
s also act as factories for
Query
instances.
Entity
:
Entites are persistent objects that represent datastore records.
EntityTransaction
:
Each EntityManager
has a one-to-one
relation with a single
javax.persistence.EntityTransaction
.
EntityTransaction
s allow operations on
persistent data to be grouped into units of work that either
completely succeed or completely fail, leaving the datastore
in its original state. These all-or-nothing operations are
important for maintaining data integrity.
Query
: The
javax.persistence.Query
interface is
implemented by each EJB vendor to find persistent objects
that meet certain criteria. EJB standardizes support
for queries using both the EJB Query Language (JPQL) and
the Structured Query Language (SQL). You obtain
Query
instances from an
EntityManager
.
The example below illustrates how the EJB interfaces interact to execute a JPQL query and update persistent objects. The example assumes execution outside a container.
Example 3.1. Interaction of Interfaces Outside Container
// get an EntityManagerFactory using the Persistence class; typically // the factory is cached for easy repeated use EntityManagerFactory factory = Persistence.createEntityManagerFactory (null); // get an EntityManager from the factory EntityManager em = factory.createEntityManager (PersistenceContextType.EXTENDED); // updates take place within transactions EntityTransaction tx = em.getTransaction (); tx.begin (); // query for all employees who work in our research division // and put in over 40 hours a week average Query query = em.createQuery ("select e from Employee e where " + "e.division.name = 'Research' AND e.avgHours > 40"); List results = query.getResultList (); // give all those hard-working employees a raise for (Object res : results) { Employee emp = (Employee) res; emp.setSalary (emp.getSalary () * 1.1); } // commit the updates and free resources tx.commit (); em.close (); factory.close ();
Within a container, the EntityManager
will be
injected and transactional handled declaratively. Thus, the in-container
version of the example consists entirely of business logic:
Example 3.2. Interaction of Interfaces Inside Container
// query for all employees who work in our research division // and put in over 40 hours a week average - note that the EntityManager em // is injected using a @Resource annotation Query query = em.createQuery ("select e from Employee e where " + "e.division.name = 'Research' and e.avgHours > 40"); List results = query.getResultList (); // give all those hard-working employees a raise for (Object res : results) { emp = (Employee) res; emp.setSalary (emp.getSalary () * 1.1); }
The remainder of this document explores the EJB interfaces in detail. We present them in roughly the order that you will use them as you develop your application.

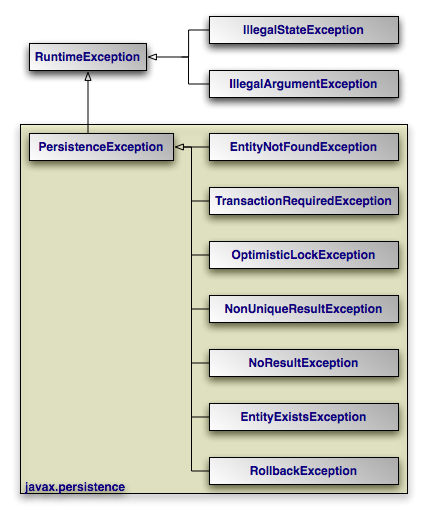

The diagram above depicts the EJB persistence exception architecture.
All exceptions are unchecked. EJB persistence uses
standard exceptions where appropriate, most notably
IllegalArgumentException
s and
IllegalStateException
s. The specification also provides
a few EJB-specific exceptions in the javax.persistence
package. These exceptions should be self-explanatory. See
the Javadoc for
additional details on EJB exceptions.
Note | |
---|---|
All exceptions thrown by Kodo implement
|
