This appendix contains the tables for multi-rack cabling. It contains the following topics:
You can connect multiple Oracle Big Data Appliance Racks or a combination of Oracle Big Data Appliance Racks and Exadata Database Machine Full Racks. Connection to partial racks is not supported.
You need three Sun Network QDR InfiniBand Gateway Switches when cabling multiple racks. Oracle Big Data Appliance Rack has a Sun Datacenter QDR InfiniBand Switch for the spine switch at rack unit 1 (U1). The rack also has two Sun Network QDR InfiniBand Gateway Switches for the leaf switches at rack units 20 and 24 (U20 and U24). See Figure B-1, "Rack Layout of Oracle Big Data Appliance Rack".
These switches attach to standard Quad Small Form-factor Pluggable (QSFP) connectors at the end of the InfiniBand cables. You can cable together up to eight racks without external InfiniBand switches. The cable lengths in this appendix are for adjacent racks. If they are apart, then longer cables may be required for the connections.
In a single rack, the two leaf switches are connected by seven cables. In addition, each leaf switch has one cable to the spine switch, as shown in Figure C-1. The total for the rack is 45 InfiniBand cables.

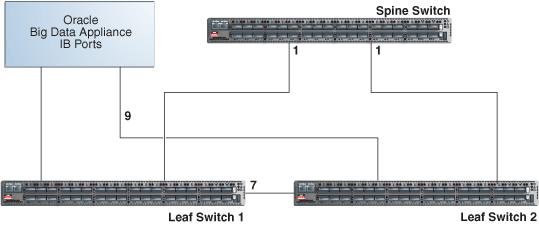

Figure C-1 Connections Between Spine Switch and Leaf Switches
The Sun Fire Servers connect to the leaf switches as shown in Figure C-2.

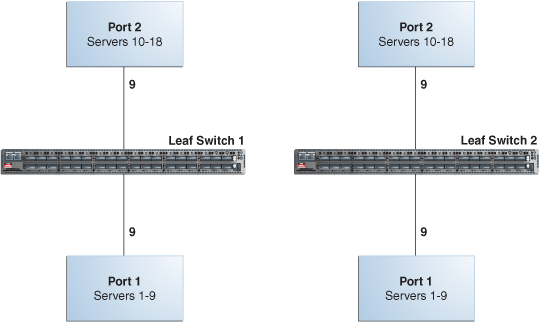

Figure C-2 Connections Between Sun Fire Servers and Leaf Switches
When connecting multiple racks, remove the seven inter-switch connections between leaf switches and the two connections between the leaf switches and the spine switch. From each leaf switch, distribute eight connections over the spine switches in all racks. In multi-rack environments, the leaf switches inside a rack are not directly interconnected, as shown in Figure C-3.
Figure C-3 Connecting Switches Across Two Racks
Figure C-3 shows that each leaf switch in rack 1 connects to the following switches:
Four connections to its internal spine switch
Four connections to the spine switch in rack 2
The spine switch in rack 1 connects to the following switches:
Eight connections to both internal leaf switches
Eight connections to both leaf switches in rack 2
As the number of racks increases from two to eight, the pattern continues as shown in Figure C-4.
Figure C-4 Connecting Switches Across Multiple Racks
As shown Figure C-4, each leaf switch has eight inter-switch connections distributed over all spine switches. Each spine switch has 16 inter-switch connections distributed over all leaf switches. The leaf switches are not directly interconnected with other leaf switches, and the spine switches are not directly interconnected with the other spine switches.
The following abbreviations are used in the tables:
Abbreviation | Description |
---|---|
Rn | Rack n, where n is the number of the rack, such as R1. |
IBn | Unit location in rack, where n is the number, such as IB3. |
Pn | InfiniBand port n, where n is port number, such as P8A. |
Table C-1 shows the cable connections for the first spine switch (R1-U1) when cabling two racks.
Note:
The spine switch is in U1 (IB1) for all racks.
The leaf switches are in U20 (IB2) and U24 (IB3).
In the following table, the leaf switches are called IB2 and IB3.
Table C-1 Leaf Switch Connections for the First Rack in a Two Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R1 IB3 within Rack 1 |
R1-IB3-P8A to R1-U1-P3A R1-IB3-P8B to R1-U1-P4A R1-IB3-P9A to R1-U1-P5A R1-IB3-P9B to R1-U1-P6A |
3 meters |
R1 IB3 to Rack 2 |
R1-IB3-P10A to R2-U1-P7A R1-IB3-P10B to R2-U1-P8A R1-IB3-P11A to R2-U1-P9A R1-IB3-P11B to R2-U1-P10A |
5 meters |
R1 IB2 within Rack 1 |
R1-IB2-P8A to R1-U1-P3B R1-IB2-P8B to R1-U1-P4B R1-IB2-P9A to R1-U1-P5B R1-IB2-P9B to R1-U1-P6B |
3 meters |
R1 IB2 to Rack 2 |
R1-IB2-P10A to R2-U1-P7B R1-IB2-P10B to R2-U1-P8B R1-IB2-P11A to R2-U1-P9B R1-IB2-P11B to R2-U1-P10B |
5 meters |
Table C-2 shows the cable connections for the second spine switch (R2-U1) when cabling two racks.
Table C-2 Leaf Switch Connections for the Second Rack in a Two Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R2 IB3 within Rack 2 |
R2-IB3-P8A to R2-U1-P3A R2-IB3-P8B to R2-U1-P4A R2-IB3-P9A to R2-U1-P5A R2-IB3-P9B to R2-U1-P6A |
3 meters |
R2 IB3 to Rack 1 |
R2-IB3-P10A to R1-U1-P7A R2-IB3-P10B to R1-U1-P8A R2-IB3-P11A to R1-U1-P9A R2-IB3-P11B to R1-U1-P10A |
5 meters |
R2 IB2 within Rack 2 |
R2-IB2-P8A to R2-U1-P3B R2-IB2-P8B to R2-U1-P4B R2-IB2-P9A to R2-U1-P5B R2-IB2-P9B to R2-U1-P6B |
3 meters |
R2 IB2 to Rack 1 |
R2-IB2-P10A to R1-U1-P7B R2-IB2-P10B to R1-U1-P8B R2-IB2-P11A to R1-U1-P9B R2-IB2-P11B to R1-U1-P10B |
5 meters |
Table C-3 shows the cable connections for the first spine switch (R1-U1) when cabling three racks.
Note:
The spine switch is in U1 (IB1) for all racks.
The leaf switches are in U20 (IB2) and U24 (IB3).
In the following table, the leaf switches are called IB2 and IB3.
Table C-3 Leaf Switch Connections for the First Rack in a Three Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R1 IB3 within Rack 1 |
R1-U24-P8A to R1-U1-P3A R1-U24-P8B to R1-U1-P4A R1-U24-P9A to R1-U1-P5A |
3 meters |
R1 IB3 to Rack 2 |
R1-U24-P9B to R2-U1-P6A R1-U24-P10A to R2-U1-P7A R1-U24-P10B to R2-U1-P8A |
5 meters |
R1 U24 to Rack 3 |
R1-U24-P11A to R3-U1-P9A R1-U24-P11B to R3-U1-P10A |
5 meters |
R1 IB2 within Rack 1 |
R1-IB2-P8A to R1-U1-P3B R1-IB2-P8B to R1-U1-P4B R1-IB2-P9A to R1-U1-P5B |
3 meters |
R1 IB2 to Rack 2 |
R1-IB2-P9B to R2-U1-P6B R1-IB2-P10A to R2-U1-P7B R1-IB2-P10B to R2-U1-P8B |
5 meters |
R1 IB2 to Rack 3 |
R1-IB2-P11A to R3-U1-P9B R1-IB2-P11B to R3-U1-P10B |
5 meters |
Table C-4 shows the cable connections for the second spine switch (R2-U1) when cabling three racks.
Table C-4 Leaf Switch Connections for the Second Rack in a Three Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R2 IB3 within Rack 2 |
R2-U24-P8A to R2-U1-P3A R2-U24-P8B to R2-U1-P4A R2-U24-P9A to R2-U1-P5A |
3 meters |
R2 IB3 to Rack 1 |
R2-U24-P11A to R1-U1-P9A R2-U24-P11B to R1-U1-P10A |
5 meters |
R2 IB3 to Rack 3 |
R2-U24-P9B to R3-U1-P6A R2-U24-P10A to R3-U1-P7A R2-U24-P10B to R3-U1-P8A |
5 meters |
R2 IB2 within Rack 2 |
R2-IB2-P8A to R2-U1-P3B R2-IB2-P8B to R2-U1-P4B R2-IB2-P9A to R2-U1-P5B |
3 meters |
R2 IB2 to Rack 1 |
R2-IB2-P11A to R1-U1-P9B R2-IB2-P11B to R1-U1-P10B |
5 meters |
R2 IB2 to Rack 3 |
R2-IB2-P9B to R3-U1-P6B R2-IB2-P10A to R3-U1-P7B R2-IB2-P10B to R3-U1-P8B |
5 meters |
Table C-5 shows the cable connections for the third spine switch (R3-U1) when cabling three racks.
Table C-5 Leaf Switch Connections for the Third Rack in a Three Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R3 IB3 within Rack 3 |
R3-IB3-P8A to R3-U1-P3A R3-IB3-P8B to R3-U1-P4A R3-IB3-P9A to R3-U1-P5A |
3 meters |
R3 IB3 to Rack 1 |
R3-IB3-P9B to R1-U1-P6A R3-IB3-P10A to R1-U1-P7A R3-IB3-P10B to R1-U1-P8A |
5 meters |
R3 IB3 to Rack 2 |
R3-IB3-P11A to R2-U1-P9A R3-IB3-P11B to R2-U1-P10A |
5 meters |
R3 IB2 within Rack 3 |
R3-IB2-P8A to R3-U1-P3B R3-IB2-P8B to R3-U1-P4B R3-IB2-P9A to R3-U1-P5B |
3 meters |
R3 IB2 to Rack 1 |
R3-IB2-P9B to R1-U1-P6B R3-IB2-P10A to R1-U1-P7B R3-IB2-P10B to R1-U1-P8B |
5 meters |
R3 IB2 to Rack 2 |
R3-IB2-P11A to R2-U1-P9B R3-IB2-P11B to R2-U1-P10B |
5 meters |
Table C-6 shows the cable connections for the first spine switch (R1-U1) when cabling four racks.
Note:
The spine switch is in U1 (IB1) for all racks.
The leaf switches are in U20 (IB2) and U24 (IB3).
In the following table, the leaf switches are called IB2 and IB3.
Table C-6 Leaf Switch Connections for the First Rack in a Four Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R1 IB3 within Rack 1 |
R1-IB3-P8A to R1-U1-P3A R1-IB3-P8B to R1-U1-P4A |
3 meters |
R1 IB3 to Rack 2 |
R1-IB3-P9A to R2-U1-P5A R1-IB3-P9B to R2-U1-P6A |
5 meters |
R1 IB3 to Rack 3 |
R1-IB3-P10A to R3-U1-P7A R1-IB3-P10B to R3-U1-P8A |
5 meters |
R1 IB3 to Rack 4 |
R1-IB3-P11A to R4-U1-P9A R1-IB3-P11B to R4-U1-P10A |
10 meters |
R1 IB2 within Rack 1 |
R1-IB2-P8A to R1-U1-P3B R1-IB2-P8B to R1-U1-P4B |
3 meters |
R1 IB2 to Rack 2 |
R1-IB2-P9A to R2-U1-P5B R1-IB2-P9B to R2-U1-P6B |
5 meters |
R1 IB2 to Rack 3 |
R1-IB2-P10A to R3-U1-P7B R1-IB2-P10B to R3-U1-P8B |
5 meters |
R1 IB2 to Rack 4 |
R1-IB2-P11A to R4-U1-P9B R1-IB2-P11B to R4-U1-P10B |
10 meters |
Table C-7 shows the cable connections for the second spine switch (R2-U1) when cabling four racks.
Table C-7 Leaf Switch Connections for the Second Rack in a Four Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R2 IB3 within Rack 2 |
R2-IB3-P8A to R2-U1-P3A R2-IB3-P8B to R2-U1-P4A |
3 meters |
R2 IB3 to Rack 1 |
R2-IB3-P11A to R1-U1-P9A R2-IB3-P11B to R1-U1-P10A |
5 meters |
R2 IB3 to Rack 3 |
R2-IB3-P9A to R3-U1-P5A R2-IB3-P9B to R3-U1-P6A |
5 meters |
R2 IB3 to Rack 4 |
R2-IB3-P10A to R4-U1-P7A R2-IB3-P10B to R4-U1-P8A |
5 meters |
R2 IB2 within Rack 2 |
R2-IB2-P8A to R2-U1-P3B R2-IB2-P8B to R2-U1-P4B |
3 meters |
R2 IB2 to Rack 1 |
R2-IB2-P11A to R1-U1-P9B R2-IB2-P11B to R1-U1-P10B |
5 meters |
R2 IB2 to Rack 3 |
R2-IB2-P9A to R3-U1-P5B R2-IB2-P9B to R3-U1-P6B |
5 meters |
R2 IB2 to Rack 4 |
R2-IB2-P10A to R4-U1-P7B R2-IB2-P10B to R4-U1-P8B |
5 meters |
Table C-8 shows the cable connections for the third spine switch (R3-U1) when cabling four racks.
Table C-8 Leaf Switch Connections for the Third Rack in a Four Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R3 IB3 within Rack 3 |
R3-IB3-P8A to R3-U1-P3A R3-IB3-P8B to R3-U1-P4A |
3 meters |
R3 IB3 to Rack 1 |
R3-IB3-P10A to R1-U1-P7A R3-IB3-P10B to R1-U1-P8A |
5 meters |
R3 IB3 to Rack 2 |
R3-IB3-P11A to R2-U1-P9A R3-IB3-P11B to R2-U1-P10A |
5 meters |
R3 IB3 to Rack 4 |
R3-IB3-P9A to R4-U1-P5A R3-IB3-P9B to R4-U1-P6A |
5 meters |
R3 IB2 within Rack 3 |
R3-IB2-P8A to R3-U1-P3B R3-IB2-P8B to R3-U1-P4B |
3 meters |
R3 IB2 to Rack 1 |
R3-IB2-P10A to R1-U1-P7B R3-IB2-P10B to R1-U1-P8B |
5 meters |
R3 IB2 to Rack 2 |
R3-IB2-P11A to R2-U1-P9B R3-IB2-P11B to R2-U1-P10B |
5 meters |
R3 IB2 to Rack 4 |
R3-IB2-P9A to R4-U1-P5B R3-IB2-P9B to R4-U1-P6B |
5 meters |
Table C-9 shows the cable connections for the fourth spine switch (R4-U1) when cabling four racks.
Table C-9 Leaf Switch Connections for the Fourth Rack in a Four Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R4 IB3 within Rack 4 |
R4-IB3-P8A to R4-U1-P3A R4-IB3-P8B to R4-U1-P4A |
3 meters |
R4 IB3 to Rack 1 |
R4-IB3-P9A to R1-U1-P5A R4-IB3-P9B to R1-U1-P6A |
10 meters |
R4 IB3 to Rack 2 |
R4-IB3-P10A to R2-U1-P7A R4-IB3-P10B to R2-U1-P8A |
5 meters |
R4 IB3 to Rack 3 |
R4-IB3-P11A to R3-U1-P9A R4-IB3-P11B to R3-U1-P10A |
5 meters |
R4 IB2 within Rack 4 |
R4-IB2-P8A to R4-U1-P3B R4-IB2-P8B to R4-U1-P4B |
3 meters |
R4 IB2 to Rack 1 |
R4-IB2-P9A to R1-U1-P5B R4-IB2-P9B to R1-U1-P6B |
10 meters |
R4 IB2 to Rack 2 |
R4-IB2-P10A to R2-U1-P7B R4-IB2-P10B to R2-U1-P8B |
5 meters |
R4 IB2 to Rack 3 |
R4-IB2-P11A to R3-U1-P9B R4-IB2-P11B to R3-U1-P10B |
5 meters |
Table C-10 shows the cable connections for the first spine switch (R1-U1) when cabling five racks.
Note:
The spine switch is in U1 (IB1) for all racks.
The leaf switches are in U20 (IB2) and U24 (IB3).
In the following table, the leaf switches are called IB2 and IB3.
Table C-10 Leaf Switch Connections for the First Rack in a Five Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R1 IB3 within Rack 1 |
R1-IB3-P8A to R1-U1-P3A R1-IB3-P8B to R1-U1-P4A |
3 meters |
R1 IB3 to Rack 2 |
R1-IB3-P9A to R2-U1-P5A R1-IB3-P9B to R2-U1-P6A |
5 meters |
R1 IB3 to Rack 3 |
R1-IB3-P10A to R3-U1-P7A R1-IB3-P10B to R3-U1-P8A |
5 meters |
R1 IB3 to Rack 4 |
R1-IB3-P11A to R4-U1-P9A |
10 meters |
R1 IB3 to Rack 5 |
R1-IB3-P11B to R5-U1-P10A |
10 meters |
R1 IB2 within Rack 1 |
R1-IB2-P8A to R1-U1-P3B R1-IB2-P8B to R1-U1-P4B |
3 meters |
R1 IB2 to Rack 2 |
R1-IB2-P9A to R2-U1-P5B R1-IB2-P9B to R2-U1-P6B |
3 meters |
R1 IB2 to Rack 3 |
R1-IB2-P10A to R3-U1-P7B R1-IB2-P10B to R3-U1-P8B |
5 meters |
R1 IB2 to Rack 4 |
R1-IB2-P11A to R4-U1-P9B |
10 meters |
R1 IB2 to Rack 5 |
R1-IB2-P11B to R5-U1-P10B |
10 meters |
Table C-11 shows the cable connections for the second spine switch (R2-U1) when cabling five racks.
Table C-11 Leaf Switch Connections for the Second Rack in a Five Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R2 IB3 within Rack 2 |
R2-IB3-P8A to R2-U1-P3A R2-IB3-P8B to R2-U1-P4A |
3 meters |
R2 IB3 to Rack 1 |
R2-IB3-P11B to R1-U1-P10A |
5 meters |
R2 IB3 to Rack 3 |
R2-IB3-P9A to R3-U1-P5A R2-IB3-P9B to R3-U1-P6A |
5 meters |
R2 IB3 to Rack 4 |
R2-IB3-P10A to R4-U1-P7A R2-IB3-P10B to R4-U1-P8A |
5 meters |
R2 IB3 to Rack 5 |
R2-IB3-P11A to R5-U1-P9A |
10 meters |
R2 IB2 within Rack 2 |
R2-IB2-P8A to R2-U1-P3B R2-IB2-P8B to R2-U1-P4B |
3 meters |
R2 IB2 to Rack 1 |
R2-IB2-P11B to R1-U1-P10B |
5 meters |
R2 IB2 to Rack 3 |
R2-IB2-P9A to R3-U1-P5B R2-IB2-P9B to R3-U1-P6B |
5 meters |
R2 IB2 to Rack 4 |
R2-IB2-P10A to R4-U1-P7B R2-IB2-P10B to R4-U1-P8B |
5 meters |
R2 IB2 to Rack 5 |
R2-IB2-P11A to R5-U1-P9B |
10 meters |
Table C-12 shows the cable connections for the third spine switch (R3-U1) when cabling five racks.
Table C-12 Leaf Switch Connections for the Third Rack in a Five Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R3 IB3 within Rack 3 |
R3-IB3-P8A to R3-U1-P3A R3-IB3-P8B to R3-U1-P4A |
3 meters |
R3 IB3 to Rack 1 |
R3-IB3-P11A to R1-U1-P9A |
5 meters |
R3 IB3 to Rack 2 |
R3-IB3-P11B to R2-U1-P10A |
5 meters |
R3 IB3 to Rack 4 |
R3-IB3-P9A to R4-U1-P5A R3-IB3-P9B to R4-U1-P6A |
5 meters |
R3 IB3 to Rack 5 |
R3-IB3-P10A to R5-U1-P7A R3-IB3-P10B to R5-U1-P8A |
5 meters |
R3 IB2 within Rack 3 |
R3-IB2-P8A to R3-U1-P3B R3-IB2-P8B to R3-U1-P4B |
3 meters |
R3 IB2 to Rack 1 |
R3-IB2-P11A to R1-U1-P9B |
5 meters |
R3 IB2 to Rack 2 |
R3-IB2-P11B to R2-U1-P10B |
5 meters |
R3 IB2 to Rack 4 |
R3-IB2-P9A to R4-U1-P5B R3-IB2-P9B to R4-U1-P6B |
5 meters |
R3 IB2 to Rack 5 |
R3-IB2-P10A to R5-U1-P7B R3-IB2-P10B to R5-U1-P8B |
5 meters |
Table C-13 shows the cable connections for the fourth spine switch (R4-U1) when cabling five racks.
Table C-13 Leaf Switch Connections for the Fourth Rack in a Five Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R4 IB3 within Rack 4 |
R4-IB3-P8A to R4-U1-P3A R4-IB3-P8B to R4-U1-P4A |
3 meters |
R4 IB3 to Rack 1 |
R4-IB3-P10A to R1-U1-P7A R4-IB3-P10B to R1-U1-P8A |
10 meters |
R4 IB3 to Rack 2 |
R4-IB3-P11A to R2-U1-P9A |
5 meters |
R4 IB3 to Rack 3 |
R4-IB3-P11B to R3-U1-P10A |
5 meters |
R4 IB3 to Rack 5 |
R4-IB3-P9A to R5-U1-P5A R4-IB3-P9B to R5-U1-P6A |
5 meters |
R4 IB2 within Rack 4 |
R4-IB2-P8A to R4-U1-P3B R4-IB2-P8B to R4-U1-P4B |
3 meters |
R4 IB2 to Rack 1 |
R4-IB2-P10A to R1-U1-P7B R4-IB2-P10B to R1-U1-P8B |
10 meters |
R4 IB2 to Rack 2 |
R4-IB2-P11A to R2-U1-P9B |
5 meters |
R4 IB2 to Rack 3 |
R4-IB2-P11B to R3-U1-P10B |
5 meters |
R4 IB2 to Rack 5 |
R4-IB2-P9A to R5-U1-P5B R4-IB2-P9B to R5-U1-P6B |
5 meters |
Table C-14 shows the cable connections for the fifth spine switch (R5-U1) when cabling five racks.
Table C-14 Leaf Switch Connections for the Fifth Rack in a Five Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R5 IB3 within Rack 5 |
R5-IB3-P8A to R5-U1-P3A R5-IB3-P8B to R5-U1-P4A |
3 meters |
R5 IB3 to Rack 1 |
R5-IB3-P9A to R1-U1-P5A R5-IB3-P9B to R1-U1-P6A |
10 meters |
R5 IB3 to Rack 2 |
R5-IB3-P10A to R2-U1-P7A R5-IB3-P10B to R2-U1-P8A |
10 meters |
R5 IB3 to Rack 3 |
R5-IB3-P11A to R3-U1-P9A |
5 meters |
R5 IB3 to Rack 4 |
R5-IB3-P11B to R4-U1-P10A |
5 meters |
R5 IB2 within Rack 5 |
R5-IB2-P8A to R5-U1-P3B R5-IB2-P8B to R5-U1-P4B |
3 meters |
R5 IB2 to Rack 1 |
R5-IB2-P9A to R1-U1-P5B R5-IB2-P9B to R1-U1-P6B |
10 meters |
R5 IB2 to Rack 2 |
R5-IB2-P10A to R2-U1-P7B R5-IB3-P10B to R2-U1-P8B |
10 meters |
R5 IB2 to Rack 3 |
R5-IB2-P11A to R3-U1-P9B |
5 meters |
R5 IB2 to Rack 4 |
R5-IB2-P11B to R4-U1-P10B |
5 meters |
Table C-15 shows the cable connections for the first spine switch (R1-U1) when cabling six racks.
Note:
The spine switch is in U1 (IB1) for all racks.
The leaf switches are in U20 (IB2) and U24 (IB3).
In the following table, the leaf switches are called IB2 and IB3.
Table C-15 Leaf Switch Connections for the First Rack in a Six Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R1 IB3 within Rack 1 |
R1-IB3-P8A to R1-U1-P3A R1-IB3-P8B to R1-U1-P4A |
3 meters |
R1 IB3 to Rack 2 |
R1-IB3-P9A to R2-U1-P5A R1-IB3-P9B to R2-U1-P6A |
5 meters |
R1 IB3 to Rack 3 |
R1-IB3-P10A to R3-U1-P7A |
5 meters |
R1 IB3 to Rack 4 |
R1-IB3-P10B to R4-U1-P8A |
10 meters |
R1 IB3 to Rack 5 |
R1-IB3-P11A to R5-U1-P9A |
10 meters |
R1 IB3 to Rack 6 |
R1-IB3-P11B to R6-U1-P10A |
10 meters |
R1 IB2 within Rack 1 |
R1-IB2-P8A to R1-U1-P3B R1-IB2-P8B to R1-U1-P4B |
3 meters |
R1 IB2 to Rack 2 |
R1-IB2-P9A to R2-U1-P5B R1-IB2-P9B to R2-U1-P6B |
5 meters |
R1 IB2 to Rack 3 |
R1-IB2-P10A to R3-U1-P7B |
5 meters |
R1 IB2 to Rack 4 |
R1-IB2-P10B to R4-U1-P8B |
10 meters |
R1 IB2 to Rack 5 |
R1-IB2-P11A to R5-U1-P9B |
10 meters |
R1 IB2 to Rack 6 |
R1-IB2-P11B to R6-U1-P10B |
10 meters |
Table C-16 shows the cable connections for the second spine switch (R2-U1) when cabling six racks.
Table C-16 Leaf Switch Connections for the Second Rack in a Six Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R2 IB3 within Rack 2 |
R2-IB3-P8A to R2-U1-P3A R2-IB3-P8B to R2-U1-P4A |
3 meters |
R2 IB3 to Rack 1 |
R2-IB3-P11B to R1-U1-P10A |
5 meters |
R2 IB3 to Rack 3 |
R2-IB3-P9A to R3-U1-P5A R2-IB3-P9B to R3-U1-P6A |
5 meters |
R2 IB3 to Rack 4 |
R2-IB3-P10A to R4-U1-P7A |
5 meters |
R2 IB3 to Rack 5 |
R2-IB3-P10B to R5-U1-P8A |
10 meters |
R2 IB3 to Rack 6 |
R2-IB3-P11Ato R6-U1-P9A |
10 meters |
R2 IB2 within Rack 2 |
R2-IB2-P8A to R2-U1-P3B R2-IB2-P8B to R2-U1-P4B |
3 meters |
R2 IB2 to Rack 1 |
R2-IB2-P11B to R1-U1-P10B |
5 meters |
R2 IB2 to Rack 3 |
R2-IB2-P9A to R3-U1-P5B R2-IB2-P9B to R3-U1-P6B |
5 meters |
R2 IB2 to Rack 4 |
R2-IB2-P10A to R4-U1-P7B |
5 meters |
R2 IB2 to Rack 5 |
R2-IB2-P10B to R5-U1-P8B |
10 meters |
R2 IB2 to Rack 6 |
R2-IB2-P11Ato R6-U1-P9B |
10 meters |
Table C-17 shows the cable connections for the third spine switch (R3-U1) when cabling six racks.
Table C-17 Leaf Switch Connections for the Third Rack in a Six Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R3 IB3 within Rack 3 |
R3-IB3-P8A to R3-U1-P3A R3-IB3-P8B to R3-U1-P4A |
3 meters |
R3 IB3 to Rack 1 |
R3-IB3-P11A to R1-U1-P9A |
5 meters |
R3 IB3 to Rack 2 |
R3-IB3-P11B to R2-U1-P10A |
5 meters |
R3 IB3 to Rack 4 |
R3-IB3-P9A to R4-U1-P5A R3-IB3-P9B to R4-U1-P6A |
5 meters |
R3 IB3 to Rack 5 |
R3-IB3-P10A to R5-U1-P7A |
5 meters |
R3 IB3 to Rack 6 |
R3-IB3-P10B to R6-U1-P8A |
5 meters |
R3 IB2 within Rack 3 |
R3-IB2-P8A to R3-U1-P3B R3-IB2-P8B to R3-U1-P4B |
3 meters |
R3 IB2 to Rack 1 |
R3-IB2-P11A to R1-U1-P9B |
5 meters |
R3 IB2 to Rack 2 |
R3-IB2-P11B to R2-U1-P10B |
5 meters |
R3 IB2 to Rack 4 |
R3-IB2-P9A to R4-U1-P5B R3-IB2-P9B to R4-U1-P6B |
5 meters |
R3 IB2 to Rack 5 |
R3-IB2-P10A to R5-U1-P7B |
5 meters |
R3 IB2 to Rack 6 |
R3-IB2-P10B to R6-U1-P8B |
5 meters |
Table C-18 shows the cable connections for the fourth spine switch (R4-U1) when cabling six racks.
Table C-18 Leaf Switch Connections for the Fourth Rack in a Six Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R4 IB3 within Rack 4 |
R4-IB3-P8A to R4-U1-P3A R4-IB3-P8B to R4-U1-P4A |
3 meters |
R4 IB3 to Rack 1 |
R4-IB3-P10B to R1-U1-P8A |
10 meters |
R4 IB3 to Rack 2 |
R4-IB3-P11A to R2-U1-P9A |
5 meters |
R4 IB3 to Rack 3 |
R4-IB3-P11B to R3-U1-P10A |
5 meters |
R4 IB3 to Rack 5 |
R4-IB3-P9A to R5-U1-P5A R4-IB3-P9B to R5-U1-P6A |
5 meters |
R4 IB3 to Rack 6 |
R4-IB3-P10A to R6-U1-P7A |
5 meters |
R4 IB2 within Rack 4 |
R4-IB2-P8A to R4-U1-P3B R4-IB2-P8B to R4-U1-P4B |
3 meters |
R4 IB2 to Rack 1 |
R4-IB2-P10B to R1-U1-P8B |
10 meters |
R4 IB2 to Rack 2 |
R4-IB2-P11A to R2-U1-P9B |
5 meters |
R4 IB2 to Rack 3 |
R4-IB2-P11B to R3-U1-P10B |
5 meters |
R4 IB2 to Rack 5 |
R4-IB2-P9A to R5-U1-P5B R4-IB2-P9B to R5-U1-P6B |
5 meters |
R4 IB2 to Rack 6 |
R4-IB2-P10A to R6-U1-P7B |
5 meters |
Table C-19 shows the cable connections for the fifth spine switch (R5-U1) when cabling six racks.
Table C-19 Leaf Switch Connections for the Fifth Rack in a Six Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R5 IB3 within Rack 5 |
R5-IB3-P8A to R5-U1-P3A R5-IB3-P8B to R5-U1-P4A |
3 meters |
R5 IB3 to Rack 1 |
R5-IB3-P10A to R1-U1-P7A |
10 meters |
R5 IB3 to Rack 2 |
R5-IB3-P10B to R2-U1-P8A |
10 meters |
R5 IB3 to Rack 3 |
R5-IB3-P11A to R3-U1-P9A |
5 meters |
R5 IB3 to Rack 4 |
R5-IB3-P11B to R4-U1-P10A |
5 meters |
R5 IB3 to Rack 6 |
R5-IB3-P9A to R6-U1-P5A R5-IB3-P9B to R6-U1-P6A |
5 meters |
R5 IB2 within Rack 5 |
R5-IB2-P8A to R5-U1-P3B R5-IB2-P8B to R5-U1-P4B |
3 meters |
R5 IB2 to Rack 1 |
R5-IB2-P10A to R1-U1-P7B |
10 meters |
R5 IB2 to Rack 2 |
R5-IB3-P10B to R2-U1-P8B |
10 meters |
R5 IB2 to Rack 3 |
R5-IB2-P11A to R3-U1-P9B |
5 meters |
R5 IB2 to Rack 4 |
R5-IB2-P11B to R4-U1-P10B |
5 meters |
R5 IB2 to Rack 6 |
R5-IB2-P9A to R6-U1-P5B R5-IB2-P9B to R6-U1-P6B |
5 meters |
Table C-20 shows the cable connections for the sixth spine switch (R6-U1) when cabling six racks.
Table C-20 Leaf Switch Connections for the Sixth Rack in a Six Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R6 IB3 within Rack 6 |
R6-IB3-P8A to R6-U1-P3A R6-IB3-P8B to R6-U1-P4A |
3 meters |
R6 IB3 to Rack 1 |
R6-IB3-P9A to R1-U1-P5A R6-IB3-P9B to R1-U1-P6A |
10 meters |
R6 IB3 to Rack 2 |
R6-IB3-P10A to R2-U1-P7A |
10 meters |
R6 IB3 to Rack 3 |
R6-IB3-P10B to R3-U1-P8A |
5 meters |
R6 IB3 to Rack 4 |
R6-IB3-P11A to R4-U1-P9A |
5 meters |
R6 IB3 to Rack 5 |
R6-IB3-P11B to R5-U1-P10A |
5 meters |
R6 IB2 within Rack 6 |
R6-IB2-P8A to R6-U1-P3B R6-IB2-P8B to R6-U1-P4B |
3 meters |
R6 IB2 to Rack 2 |
R6-IB3-P10A to R2-U1-P7B |
10 meters |
R6 IB2 to Rack 1 |
R6-IB2-P9A to R1-U1-P5B R6-IB2-P9B to R1-U1-P6B |
10 meters |
R6 IB2 to Rack 3 |
R6-IB2-P10B to R3-U1-P8B |
5 meters |
R6 IB2 to Rack 4 |
R6-IB2-P11A to R4-U1-P9B |
5 meters |
R6 IB2 to Rack 5 |
R6-IB2-P11B to R5-U1-P10B |
5 meters |
Table C-21 shows the cable connections for the first spine switch (R1-U1) when cabling seven racks.
Note:
The spine switch is in U1 (IB1) for all racks.
The leaf switches are in U20 (IB2) and U24 (IB3).
In the following table, the leaf switches are called IB2 and IB3.
Table C-21 Leaf Switch Connections for the First Rack in a Seven Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R1 IB3 within Rack 1 |
R1-IB3-P8A to R1-U1-P3A R1-IB3-P8B to R1-U1-P4A |
3 meters |
R1 IB3 to Rack 2 |
R1-IB3-P9A to R2-U1-P5A |
5 meters |
R1 IB3 to Rack 3 |
R1-IB3-P9B to R3-U1-P6A |
5 meters |
R1 IB3 to Rack 4 |
R1-IB3-P10A to R4-U1-P7A |
10 meters |
R1 IB3 to Rack 5 |
R1-IB3-P10B to R5-U1-P8A |
10 meters |
R1 IB3 to Rack 6 |
R1-IB3-P11A to R6-U1-P9A |
10 meters |
R1 IB3 to Rack 7 |
R1-IB3-P11B to R7-U1-P10A |
10 meters |
R1 IB2 within Rack 1 |
R1-IB2-P8A to R1-U1-P3B R1-IB2-P8B to R1-U1-P4B |
3 meters |
R1 IB2 to Rack 2 |
R1-IB2-P9A to R2-U1-P5B |
5 meters |
R1 IB2 to Rack 3 |
R1-IB2-P9B to R3-U1-P6B |
5 meters |
R1 IB2 to Rack 4 |
R1-IB2-P10A to R4-U1-P7B |
10 meters |
R1 IB2 to Rack 5 |
R1-IB2-P10B to R5-U1-P8B |
10 meters |
R1 IB2 to Rack 6 |
R1-IB2-P11A to R6-U1-P9B |
10 meters |
R1 IB2 to Rack 7 |
R1-IB2-P11B to R7-U1-P10B |
10 meters |
Table C-22 shows the cable connections for the second spine switch (R2-U1) when cabling seven racks.
Table C-22 Leaf Switch Connections for the Second Rack in a Seven Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R2 IB3 within Rack 2 |
R2-IB3-P8A to R2-U1-P3A R2-IB3-P8B to R2-U1-P4A |
3 meters |
R2 IB3 to Rack 1 |
R2-IB3-P11B to R1-U1-P10A |
5 meters |
R2 IB3 to Rack 3 |
R2-IB3-P9A to R3-U1-P5A |
5 meters |
R2 IB3 to Rack 4 |
R2-IB3-P9B to R4-U1-P6A |
5 meters |
R2 IB3 to Rack 5 |
R2-IB3-P10A to R5-U1-P7A |
10 meters |
R2 IB3 to Rack 6 |
R2-IB3-P10B to R6-U1-P8A |
10 meters |
R2 IB3 to Rack 7 |
R2-IB3-P11A to R7-U1-P9A |
10 meters |
R2 IB2 within Rack 2 |
R2-IB2-P8A to R2-U1-P3B R2-IB2-P8B to R2-U1-P4B |
3 meters |
R2 IB2 to Rack 1 |
R2-IB2-P11B to R1-U1-P10B |
5 meters |
R2 IB2 to Rack 3 |
R2-IB2-P9A to R3-U1-P5B |
5 meters |
R2 IB2 to Rack 4 |
R2-IB2-P9B to R4-U1-P6B |
5 meters |
R2 IB2 to Rack 5 |
R2-IB2-P10A to R5-U1-P7B |
10 meters |
R2 IB2 to Rack 6 |
R2-IB2-P10Bto R6-U1-P8B |
10 meters |
R2 IB2 to Rack 7 |
R2-IB2-P11A to R7-U1-P9B |
10 meters |
Table C-23 shows the cable connections for the third spine switch (R3-U1) when cabling seven racks.
Table C-23 Leaf Switch Connections for the Third Rack in a Seven Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R3 IB3 within Rack 3 |
R3-IB3-P8A to R3-U1-P3A R3-IB3-P8B to R3-U1-P4A |
3 meters |
R3 IB3 to Rack 1 |
R3-IB3-P11A to R1-U1-P9A |
5 meters |
R3 IB3 to Rack 2 |
R3-IB3-P11B to R2-U1-P10A |
5 meters |
R3 IB3 to Rack 4 |
R3-IB3-P9A to R4-U1-P5A |
5 meters |
R3 IB3 to Rack 5 |
R3-IB3-P9B to R5-U1-P6A |
5 meters |
R3 IB3 to Rack 6 |
R3-IB3-P10A to R6-U1-P7A |
10 meters |
R3 IB3 to Rack 7 |
R3-IB3-P10B to R7-U1-P8A |
10 meters |
R3 IB2 within Rack 3 |
R3-IB2-P8A to R3-U1-P3B R3-IB2-P8B to R3-U1-P4B |
3 meters |
R3 IB2 to Rack 1 |
R3-IB2-P11A to R1-U1-P9B |
5 meters |
R3 IB2 to Rack 2 |
R3-IB2-P11B to R2-U1-P10B |
5 meters |
R3 IB2 to Rack 4 |
R3-IB2-P9A to R4-U1-P5B |
5 meters |
R3 IB2 to Rack 5 |
R3-IB2-P9B to R5-U1-P6B |
5 meters |
R3 IB2 to Rack 6 |
R3-IB2-P10A to R6-U1-P7B |
10 meters |
R3 IB2 to Rack 7 |
R3-IB2-P10B to R7-U1-P8B |
10 meters |
Table C-24 shows the cable connections for the fourth spine switch (R4-U1) when cabling seven racks.
Table C-24 Leaf Switch Connections for the Fourth Rack in a Seven Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R4 IB3 within Rack 4 |
R4-IB3-P8A to R4-U1-P3A R4-IB3-P8B to R4-U1-P4A |
3 meters |
R4 IB3 to Rack 1 |
R4-IB3-P10B to R1-U1-P8A |
10 meters |
R4 IB3 to Rack 2 |
R4-IB3-P11A to R2-U1-P9A |
5 meters |
R4 IB3 to Rack 3 |
R4-IB3-P11B to R3-U1-P10A |
5 meters |
R4 IB3 to Rack 5 |
R4-IB3-P9A to R5-U1-P5A |
5 meters |
R4 IB3 to Rack 6 |
R4-IB3-P9B to R6-U1-P6A |
5 meters |
R4 IB3 to Rack 7 |
R4-IB3-P10A to R7-U1-P7A |
10 meters |
R4 IB2 within Rack 4 |
R4-IB2-P8A to R4-U1-P3B R4-IB2-P8B to R4-U1-P4B |
3 meters |
R4 IB2 to Rack 1 |
R4-IB2-P10B to R1-U1-P8B |
10 meters |
R4 IB2 to Rack 2 |
R4-IB2-P11A to R2-U1-P9B |
5 meters |
R4 IB2 to Rack 3 |
R4-IB2-P11B to R3-U1-P10B |
5 meters |
R4 IB2 to Rack 5 |
R4-IB2-P9A to R5-U1-P5B |
5 meters |
R4 IB2 to Rack 6 |
R4-IB2-P9B to R6-U1-P6B |
5 meters |
R4 IB2 to Rack 7 |
R4-IB2-P10A to R7-U1-P7B |
10 meters |
Table C-25 shows the cable connections for the fifth spine switch (R5-U1) when cabling seven racks.
Table C-25 Leaf Switch Connections for the Fifth Rack in a Seven Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R5 IB3 within Rack 5 |
R5-IB3-P8A to R5-U1-P3A R5-IB3-P8B to R5-U1-P4A |
3 meters |
R5 IB3 to Rack 1 |
R5-IB3-P10A to R1-U1-P7A |
10 meters |
R5 IB3 to Rack 2 |
R5-IB3-P10B to R2-U1-P8A |
10 meters |
R5 IB3 to Rack 3 |
R5-IB3-P11A to R3-U1-P9A |
5 meters |
R5 IB3 to Rack 4 |
R5-IB3-P11B to R4-U1-P10A |
5 meters |
R5 IB3 to Rack 6 |
R5-IB3-P9A to R6-U1-P5A |
5 meters |
R5 IB3 to Rack 7 |
R5-IB3-P9B to R7-U1-P6A |
5 meters |
R5 IB2 within Rack 5 |
R5-IB2-P8A to R5-U1-P3B R5-IB2-P8B to R5-U1-P4B |
3 meters |
R5 IB2 to Rack 1 |
R5-IB2-P10A to R1-U1-P7B |
10 meters |
R5 IB2 to Rack 2 |
R5-IB3-P10B to R2-U1-P8B |
10 meters |
R5 IB2 to Rack 3 |
R5-IB2-P11A to R3-U1-P9B |
5 meters |
R5 IB2 to Rack 4 |
R5-IB2-P11B to R4-U1-P10B |
5 meters |
R5 IB2 to Rack 6 |
R5-IB2-P9A to R6-U1-P5B |
5 meters |
R5 IB2 to Rack 7 |
R5-IB2-P9B to R7-U1-P6B |
5 meters |
Table C-26 shows the cable connections for the sixth spine switch (R6-U1) when cabling seven racks.
Table C-26 Leaf Switch Connections for the Sixth Rack in a Seven Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R6 IB3 within Rack 6 |
R6-IB3-P8A to R6-U1-P3A R6-IB3-P8B to R6-U1-P4A |
3 meters |
R6 IB3 to Rack 1 |
R6-IB3-P9B to R1-U1-P6A |
10 meters |
R6 IB3 to Rack 2 |
R6-IB3-P10A to R2-U1-P7A |
10 meters |
R6 IB3 to Rack 3 |
R6-IB3-P10B to R3-U1-P8A |
5 meters |
R6 IB3 to Rack 4 |
R6-IB3-P11A to R4-U1-P9A |
5 meters |
R6 IB3 to Rack 5 |
R6-IB3-P11B to R5-U1-P10A |
5 meters |
R6 IB3 to Rack 7 |
R6-IB3-P9A to R7-U1-P5A |
5 meters |
R6 IB2 within Rack 6 |
R6-IB2-P8A to R6-U1-P3B R6-IB2-P8B to R6-U1-P4B |
3 meters |
R6 IB2 to Rack 1 |
R6-IB2-P9B to R1-U1-P6B |
10 meters |
R6 IB2 to Rack 2 |
R6-IB3-P10A to R2-U1-P7B |
10 meters |
R6 IB2 to Rack 3 |
R6-IB2-P10B to R3-U1-P8B |
5 meters |
R6 IB2 to Rack 4 |
R6-IB2-P11A to R4-U1-P9B |
5 meters |
R6 IB2 to Rack 5 |
R6-IB2-P11B to R5-U1-P10B |
5 meters |
R6 IB2 to Rack 7 |
R6-IB3-P9A to R7-U1-P5B |
5 meters |
Table C-27 shows the cable connections for the seventh spine switch (R7-U1) when cabling seven racks.
Table C-27 Leaf Switch Connections for the Seventh Rack in a Seven Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R7 IB3 within Rack 7 |
R7-IB3-P8A to R7-U1-P3A R7-IB3-P8B to R7-U1-P4A |
3 meters |
R7 IB3 to Rack 1 |
R7-IB3-P9A to R1-U1-P5A |
10 meters |
R7 IB3 to Rack 2 |
R7-IB3-P9B to R2-U1-P6A |
10 meters |
R7 IB3 to Rack 3 |
R7-IB3-P10A to R3-U1-P7A |
10 meters |
R7 IB3 to Rack 4 |
R7-IB3-P10B to R4-U1-P8A |
10 meters |
R7 IB3 to Rack 5 |
R7-IB3-P11A to R5-U1-P9A |
5 meters |
R7 IB3 to Rack 6 |
R7-IB3-P11B to R6-U1-P10A |
5 meters |
R7 IB2 within Rack 7 |
R7-IB2-P8A to R7-U1-P3B R7-IB2-P8B to R7-U1-P4B |
3 meters |
R7 IB2 to Rack 1 |
R7-IB2-P9A to R1-U1-P5B |
10 meters |
R7 IB2 to Rack 2 |
R7-IB3-P9B to R2-U1-P6B |
10 meters |
R7 IB2 to Rack 3 |
R7-IB2-P10A to R3-U1-P7B |
10 meters |
R7 IB2 to Rack 4 |
R7-IB2-P10B to R4-U1-P8B |
10 meters |
R7 IB2 to Rack 5 |
R7-IB2-P11A to R5-U1-P9B |
5 meters |
R7 IB2 to Rack 6 |
R7-IB3-P11B to R6-U1-P10B |
5 meters |
Table C-28 shows the cable connections for the first spine switch (R1-U1) when cabling eight racks.
Note:
The spine switch is in U1 (IB1) for all racks.
The leaf switches are in U20 (IB2) and U24 (IB3).
In the following table, the leaf switches are called IB2 and IB3.
Table C-28 Leaf Switch Connections for the First Rack in a Eight Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R1 IB3 within Rack 1 |
R1-IB3-P8A to R1-U1-P3A |
3 meters |
R1 IB3 to Rack 2 |
R1-IB3-P8B to R2-U1-P4A |
5 meters |
R1 IB3 to Rack 3 |
R1-IB3-P9A to R3-U1-P5A |
5 meters |
R1 IB3 to Rack 4 |
R1-IB3-P9B to R4-U1-P6A |
10 meters |
R1 IB3 to Rack 5 |
R1-IB3-P10A to R5-U1-P7A |
10 meters |
R1 IB3 to Rack 6 |
R1-IB3-P10B to R6-U1-P8A |
10 meters |
R1 IB3 to Rack 7 |
R1-IB3-P11A to R7-U1-P9A |
10 meters |
R1 IB3 to Rack 8 |
R1-IB3-P11B to R8-U1-P10A |
10 meters |
R1 IB2 within Rack 1 |
R1-IB2-P8A to R1-U1-P3B |
3 meters |
R1 IB2 to Rack 2 |
R1-IB2-P8B to R2-U1-P4B |
5 meters |
R1 IB2 to Rack 3 |
R1-IB2-P9A to R3-U1-P5B |
5 meters |
R1 IB2 to Rack 4 |
R1-IB2-P9B to R4-U1-P6B |
10 meters |
R1 IB2 to Rack 5 |
R1-IB2-P10A to R5-U1-P7B |
10 meters |
R1 IB2 to Rack 6 |
R1-IB2-P10B to R6-U1-P8B |
10 meters |
R1 IB2 to Rack 7 |
R1-IB2-P11A to R7-U1-P8B |
10 meters |
R1 IB2 to Rack 8 |
R1-IB2-P11B to R8-U1-P10B |
10 meters |
Table C-29 shows the cable connections for the second spine switch (R2-U1) when cabling eight racks.
Table C-29 Leaf Switch Connections for the Second Rack in a Eight Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R2 IB3 within Rack 2 |
R2-IB3-P8A to R2-U1-P3A |
3 meters |
R2 IB3 to Rack 1 |
R2-IB3-P11B to R1-U1-P10A |
5 meters |
R2 IB3 to Rack 3 |
R2-IB3-P8B to R3-U1-P4A |
5 meters |
R2 IB3 to Rack 4 |
R2-IB3-P9A to R4-U1-P5A |
5 meters |
R2 IB3 to Rack 5 |
R2-IB3-P9B to R5-U1-P6A |
10 meters |
R2 IB3 to Rack 6 |
R2-IB3-P10A to R6-U1-P7A |
10 meters |
R2 IB3 to Rack 7 |
R2-IB3-P10B to R7-U1-P8A |
10 meters |
R2 IB3 to Rack 8 |
R2-IB3-P11A to R8-U1-P9A |
10 meters |
R2 IB2 within Rack 2 |
R2-IB2-P8A to R2-U1-P3B |
3 meters |
R2 IB2 to Rack 1 |
R2-IB2-P11B to R1-U1-P10B |
5 meters |
R2 IB2 to Rack 3 |
R2-IB2-P8B to R3-U1-P4B |
5 meters |
R2 IB2 to Rack 4 |
R2-IB2-P9A to R4-U1-P5B |
5 meters |
R2 IB2 to Rack 5 |
R2-IB2-P9B to R5-U1-P6B |
10 meters |
R2 IB2 to Rack 6 |
R2-IB2-P10A to R6-U1-P7B |
10 meters |
R2 IB2 to Rack 7 |
R2-IB2-P10B to R7-U1-P8B |
10 meters |
R2 IB2 to Rack 8 |
R2-IB2-P11A to R8-U1-P9B |
10 meters |
Table C-30 shows the cable connections for the third spine switch (R3-U1) when cabling eight racks.
Table C-30 Leaf Switch Connections for the Third Rack in a Eight Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R3 IB3 within Rack 3 |
R3-IB3-P8A to R3-U1-P3A |
3 meters |
R3 IB3 to Rack 1 |
R3-IB3-P11A to R1-U1-P9A |
5 meters |
R3 IB3 to Rack 2 |
R3-IB3-P11B to R2-U1-P10A |
5 meters |
R3 IB3 to Rack 4 |
R3-IB3-P8B to R4-U1-P4A |
5 meters |
R3 IB3 to Rack 5 |
R3-IB3-P9A to R5-U1-P5A |
5 meters |
R3 IB3 to Rack 6 |
R3-IB3-P9B to R6-U1-P6A |
5 meters |
R3 IB3 to Rack 7 |
R3-IB3-P10A to R7-U1-P7A |
10 meters |
R3 IB3 to Rack 8 |
R3-IB3-P10B to R8-U1-P8A |
10 meters |
R3 IB2 within Rack 3 |
R3-IB2-P8A to R3-U1-P3B |
3 meters |
R3 IB2 to Rack 1 |
R3-IB2-P11A to R1-U1-P9B |
5 meters |
R3 IB2 to Rack 2 |
R3-IB2-P11B to R2-U1-P10B |
5 meters |
R3 IB2 to Rack 4 |
R3-IB2-P8B to R4-U1-P4B |
5 meters |
R3 IB2 to Rack 5 |
R3-IB2-P9A to R5-U1-P5B |
5 meters |
R3 IB2 to Rack 6 |
R3-IB2-P9B to R6-U1-P6B |
5 meters |
R3 IB2 to Rack 7 |
R3-IB2-P10A to R7-U1-P7B |
10 meters |
R3 IB2 to Rack 8 |
R3-IB2-P10B to R8-U1-P8B |
10 meters |
Table C-31 shows the cable connections for the fourth spine switch (R4-U1) when cabling eight racks.
Table C-31 Leaf Switch Connections for the Fourth Rack in a Eight Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R4 IB3 within Rack 4 |
R4-IB3-P8A to R4-U1-P3A |
3 meters |
R4 IB3 to Rack 1 |
R4-IB3-P10B to R1-U1-P8A |
10 meters |
R4 IB3 to Rack 2 |
R4-IB3-P11A to R2-U1-P9A |
5 meters |
R4 IB3 to Rack 3 |
R4-IB3-P11B to R3-U1-P10A |
5 meters |
R4 IB3 to Rack 5 |
R4-IB3-P8B to R5-U1-P4A |
5 meters |
R4 IB3 to Rack 6 |
R4-IB3-P9A to R6-U1-P5A |
5 meters |
R4 IB3 to Rack 7 |
R4-IB3-P9B to R7-U1-P6A |
10 meters |
R4 IB3 to Rack 8 |
R4-IB3-P10A to R8-U1-P7A |
10 meters |
R4 IB2 within Rack 4 |
R4-IB2-P8A to R4-U1-P3B |
3 meters |
R4 IB2 to Rack 1 |
R4-IB2-P10B to R1-U1-P8B |
10 meters |
R4 IB2 to Rack 2 |
R4-IB2-P11A to R2-U1-P9B |
5 meters |
R4 IB2 to Rack 3 |
R4-IB2-P11B to R3-U1-P10B |
5 meters |
R4 IB2 to Rack 5 |
R4-IB2-P8B to R5-U1-P4B |
5 meters |
R4 IB2 to Rack 6 |
R4-IB2-P9A to R6-U1-P5B |
5 meters |
R4 IB2 to Rack 7 |
R4-IB2-P9B to R7-U1-P6B |
10 meters |
R4 IB2 to Rack 8 |
R4-IB2-P10A to R8-U1-P7B |
10 meters |
Table C-32 shows the cable connections for the fifth spine switch (R5-U1) when cabling eight racks.
Table C-32 Leaf Switch Connections for the Fifth Rack in a Eight Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R5 IB3 within Rack 5 |
R5-IB3-P8A to R5-U1-P3A |
3 meters |
R5 IB3 to Rack 1 |
R5-IB3-P10A to R1-U1-P7A |
10 meters |
R5 IB3 to Rack 2 |
R5-IB3-P10B to R2-U1-P8A |
10 meters |
R5 IB3 to Rack 3 |
R5-IB3-P11A to R3-U1-P9A |
5 meters |
R5 IB3 to Rack 4 |
R5-IB3-P11B to R4-U1-P10A |
5 meters |
R5 IB3 to Rack 6 |
R5-IB3-P8B to R6-U1-P4A |
5 meters |
R5 IB3 to Rack 7 |
R5-IB3-P9A to R7-U1-P5A |
5 meters |
R5 IB3 to Rack 8 |
R5-IB3-P9B to R8-U1-P6A |
10 meters |
R5 IB2 within Rack 5 |
R5-IB2-P8A to R5-U1-P3B |
3 meters |
R5 IB2 to Rack 1 |
R5-IB2-P10A to R1-U1-P7B |
10 meters |
R5 IB2 to Rack 2 |
R5-IB3-P10B to R2-U1-P8B |
10 meters |
R5 IB2 to Rack 3 |
R5-IB2-P11A to R3-U1-P9B |
5 meters |
R5 IB2 to Rack 4 |
R5-IB2-P11B to R4-U1-P10B |
5 meters |
R5 IB2 to Rack 6 |
R5-IB2-P8B to R6-U1-P4B |
5 meters |
R5 IB2 to Rack 7 |
R5-IB2-P9A to R7-U1-P5B |
5 meters |
R5 IB2 to Rack 8 |
R5-IB2-P9B to R8-U1-P6B |
10 meters |
Table C-33 shows the cable connections for the sixth spine switch (R6-U1) when cabling eight racks.
Table C-33 Leaf Switch Connections for the Sixth Rack in an Eight Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R6 IB3 within Rack 6 |
R6-IB3-P8A to R6-U1-P3A |
3 meters |
R6 IB3 to Rack 1 |
R6-IB3-P9B to R1-U1-P6A |
10 meters |
R6 IB3 to Rack 2 |
R6-IB3-P10A to R2-U1-P7A |
10 meters |
R6 IB3 to Rack 3 |
R6-IB3-P10B to R3-U1-P8A |
5 meters |
R6 IB3 to Rack 4 |
R6-IB3-P11A to R4-U1-P9A |
5 meters |
R6 IB3 to Rack 5 |
R6-IB3-P11B to R5-U1-P10A |
5 meters |
R6 IB3 to Rack 7 |
R6-IB3-P8B to R7-U1-P4A |
5 meters |
R6 IB3 to Rack 8 |
R6-IB3-P9A to R8-U1-P5A |
5 meters |
R6 IB2 within Rack 6 |
R6-IB2-P8A to R6-U1-P3B |
3 meters |
R6 IB2 to Rack 1 |
R6-IB2-P9B to R1-U1-P6B |
10 meters |
R6 IB2 to Rack 2 |
R6-IB3-P10A to R2-U1-P7B |
10 meters |
R6 IB2 to Rack 3 |
R6-IB2-P10B to R3-U1-P8B |
5 meters |
R6 IB2 to Rack 4 |
R6-IB2-P11A to R4-U1-P9B |
5 meters |
R6 IB2 to Rack 5 |
R6-IB2-P11B to R5-U1-P10B |
5 meters |
R6 IB2 to Rack 7 |
R6-IB3-P8B to R7-U1-P4B |
5 meters |
R6 IB2 to Rack 8 |
R6-IB2-P9A to R8-U1-P5B |
5 meters |
Table C-34 shows the cable connections for the seventh spine switch (R7-U1) when cabling eight racks.
Table C-34 Leaf Switch Connections for the Seventh Rack in a Eight Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R7 IB3 within Rack 7 |
R7-IB3-P8A to R7-U1-P3A |
3 meters |
R7 IB3 to Rack 1 |
R7-IB3-P9A to R1-U1-P5A |
10 meters |
R7 IB3 to Rack 2 |
R7-IB3-P9B to R2-U1-P6A |
10 meters |
R7 IB3 to Rack 3 |
R7-IB3-P10A to R3-U1-P7A |
10 meters |
R7 IB3 to Rack 4 |
R7-IB3-P10B to R4-U1-P8A |
10 meters |
R7 IB3 to Rack 5 |
R7-IB3-P11A to R5-U1-P9A |
5 meters |
R7 IB3 to Rack 6 |
R7-IB3-P11B to R6-U1-P10A |
5 meters |
R7 IB3 to Rack 8 |
R7-IB3-P8B to R8-U1-P4A |
5 meters |
R7 IB2 within Rack 7 |
R7-IB2-P8A to R7-U1-P3B |
3 meters |
R7 IB2 to Rack 1 |
R7-IB2-P9A to R1-U1-P5B |
10 meters |
R7 IB2 to Rack 2 |
R7-IB3-P9B to R2-U1-P6B |
10 meters |
R7 IB2 to Rack 3 |
R7-IB2-P10A to R3-U1-P7B |
10 meters |
R7 IB2 to Rack 4 |
R7-IB2-P10B to R4-U1-P8B |
10 meters |
R7 IB2 to Rack 5 |
R7-IB2-P11A to R5-U1-P9B |
5 meters |
R7 IB2 to Rack 6 |
R7-IB3-P11B to R6-U1-P10B |
5 meters |
R7 IB2 to Rack 8 |
R7-IB3-P8B to R8-U1-P4B |
5 meters |
Table C-35 shows the cable connections for the eighth spine switch (R8-U1) when cabling eight racks.
Table C-35 Leaf Switch Connections for the Eighth Rack in a Eight Rack System
Leaf Switch | Connection | Cable Length |
---|---|---|
R8 IB3 within Rack 8 |
R8-IB3-P8A to R8-U1-P3A |
3 meters |
R8 IB3 to Rack 1 |
R8-IB3-P8B to R1-U1-P4A |
10 meters |
R8 IB3 to Rack 2 |
R8-IB3-P9A to R2-U1-P5A |
10 meters |
R8 IB3 to Rack 3 |
R8-IB3-P9B to R3-U1-P6A |
10 meters |
R8 IB3 to Rack 4 |
R8-IB3-P10A to R4-U1-P7A |
10 meters |
R8 IB3 to Rack 5 |
R8-IB3-P10B to R5-U1-P8A |
5 meters |
R8 IB3 to Rack 6 |
R8-IB3-P11A to R6-U1-P9A |
5 meters |
R8 IB3 to Rack 7 |
R8-IB3-P11B to R7-U1-P10A |
5 meters |
R8 IB2 within Rack 8 |
R8-IB2-P8A to R8-U1-P3B |
3 meters |
R8 IB2 to Rack 1 |
R8-IB2-P8B to R1-U1-P4B |
10 meters |
R8 IB2 to Rack 2 |
R8-IB3-P9A to R2-U1-P5B |
10 meters |
R8 IB2 to Rack 3 |
R8-IB2-P9B to R3-U1-P6B |
10 meters |
R8 IB2 to Rack 4 |
R8-IB2-P10A to R4-U1-P7B |
10 meters |
R8 IB2 to Rack 5 |
R8-IB2-P10B to R5-U1-P8B |
5 meters |
R8 IB2 to Rack 6 |
R8-IB3-P11A to R6-U1-P9B |
5 meters |
R8 IB2 to Rack 7 |
R8-IB3-P1B to R7-U1-P10B |
5 meters |
