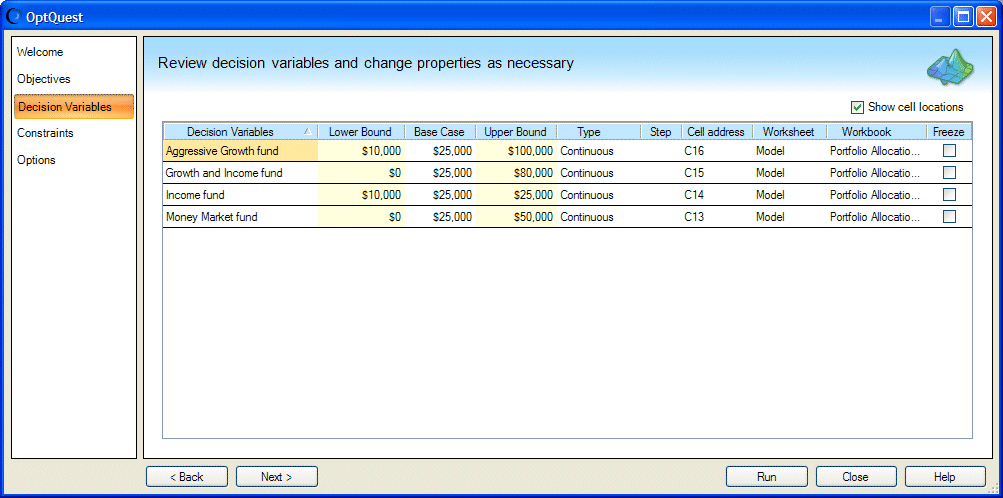

When you click Next, the Decision Variables panel opens, similar to Figure 21, Decision Variables panel with cell locations, Portfolio Allocation example.
Every decision variable defined in the Crystal Ball model is displayed in the Decision Variables panel. The last column indicates whether the variable has been "frozen," or removed from the optimization. In Figure 21, Decision Variables panel with cell locations, Portfolio Allocation example, Show Cell Locations is checked so cell addresses appear before the last column.
The other columns show the bounds, base case (current model value), type, and step for each variable.
The settings are correct for this example, so select Show cell locations and click Next to continue.
The Constraints panel opens, as shown in Figure 22, Constraints panel with no data, Simple Entry mode.
