About Load XML Specifications

This appendix describes the load XML specifications. You can use these load specification mappings in a stagemap.

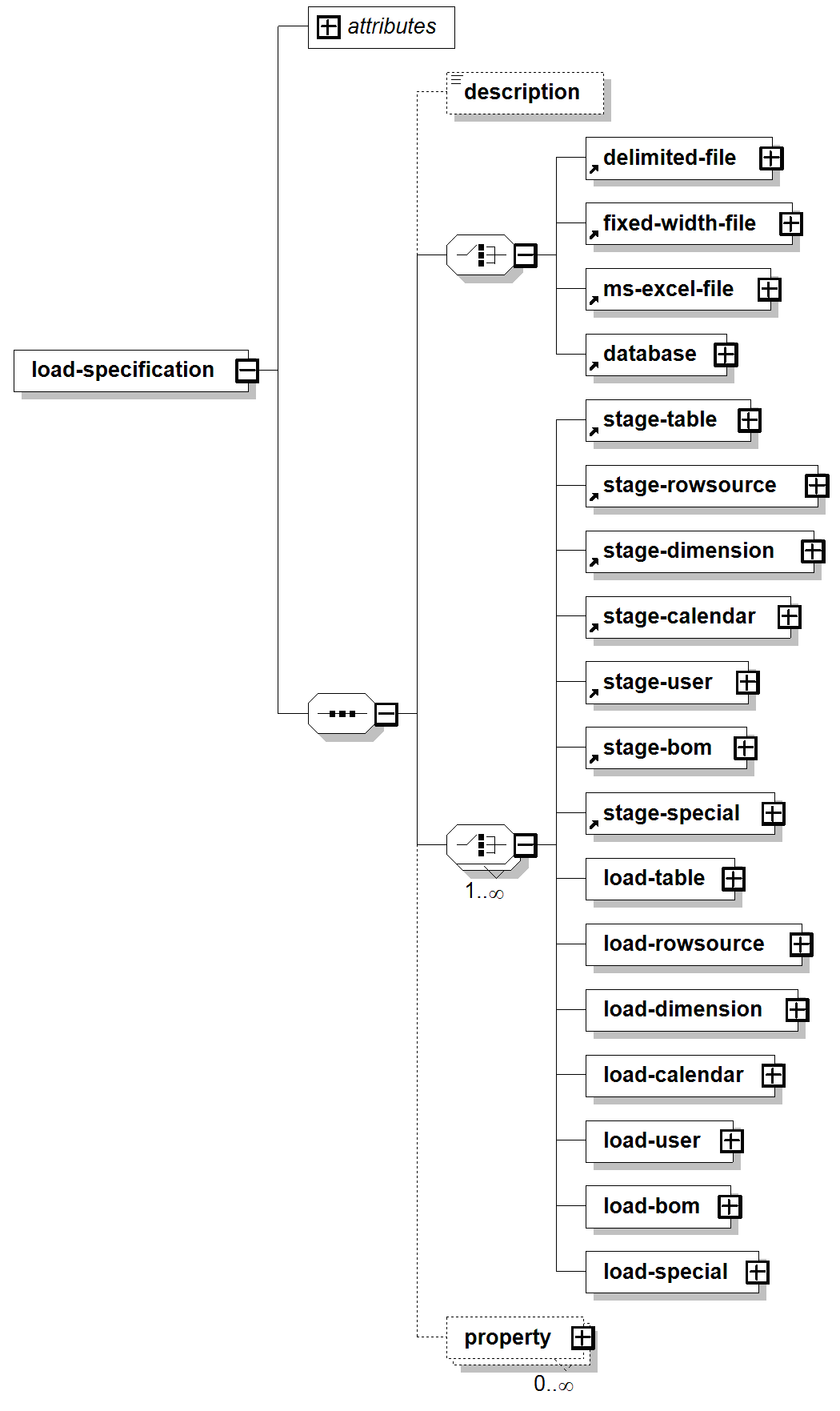

Each load specification contains attributes; a description; one of these elements: <delimited-file>, <fixed-width-file>, <ms-excel-file>, or <database>; and optionally, one or more of the <stage...> or <load...> elements. See Figure 12, Load Specification Contents.

Figure 12. Load Specification Contents

The following is a sample Load Forecast Demand XML file:

<load-specification xmlns="http://schemas.interlacesystems.com/3.0/load-specification"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://schemas.interlacesystems.com/3.0/
    load-specification loadspec-3.0.xsd">

  <delimited-file start-row="1" delimiter="," text-qualifier="&quot;">
    <field index="2" name="product"/>
    <field index="3" name="measure"/>
    <field index="4" name="startDate"/>
    <field index="5" name="offset" type="int"/>
    <field index="7" name="forecast" type="double"/>
  </delimited-file>

  <stage-rowsource rowsource="ForecastPro">
    <simple-filter field="${measure}" value="Booked Units"/>
    <map column="product" value="${product}"/>
    <map column="measure" value="Statistical Units"/>
    <map column="forecastDate" value="$beginmember(${startDate},
    ${offset})"/>
    <map column="quantity" value="${forecast}"/>
  </stage-rowsource>

  <stage-rowsource rowsource="ForecastPro">
   <simple-filter field="${measure}" value="Booked Sales"/>
   <map column="product" value="${product}"/>
   <map column="measure" value="Statistical Sales"/>
   <map column="forecastDate" value="$beginmember(${startDate},
   ${offset})"/>
   <map column="revenue" value="${forecast}"/>
  </stage-rowsource>

  <property name="batch.size" value="1"/>

</load-specification>

The following is a sample Load RMO Capacity XML file:

<load-specification xmlns="http://schemas.interlacesystems.com/3.0/load-specification"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://schemas.interlacesystems.com/3.0/
    load-specification loadspec-3.0.xsd">

    <ms-excel-file sheet="Media Factory Capacity" start-row="4"
    row-increment="1" skip-hidden-rows="true">
        <field column="A" name="SUPPLY_SITE" nullable="false" />
        <field column="B" name="C250B_200L" nullable="false"  />
        <pivot row="2" columns="C:M"  name="TIME_MEMBER" nullable="true"
        default-to-previous-non-null="false"/>
        <pivot row="3" columns="C:M" format="MM/dd/yyyy" name="START_DATE"
        type="date"  />
        <pivot columns="C:M" name="CAPACITY" type="double" nullable="true"
        default-to-previous-non-null="false" />
    </ms-excel-file>

    <stage-table table="IN_STG_RMO_CAPACITY">
		<map column="SUPPLY_SITE"  value="${SUPPLY_SITE}"/>
		<map column="C250B_200L"  value="${C250B_200L}"/>
		<map column="START_DATE"  value="${START_DATE}"/>
		<map column="TIME_MEMBER"  value="${TIME_MEMBER}"/>
		<map column="CAPACITY"  value="${CAPACITY}"/>
    </stage-table>
	<property name="batch.size" value="100"/>

</load-specification>
