BIOS "Boot" 菜单选项
本节介绍了 BIOS "Boot" 菜单选项的基于可搜索文本的表示形式。

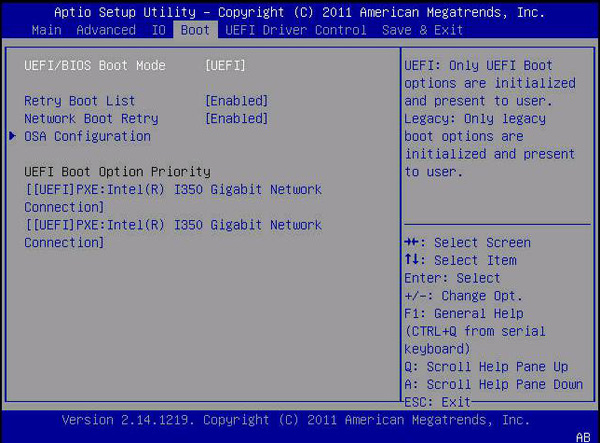

UEFI/BIOS Boot Mode
注 - 要显示 "UEFI Driver Control" 菜单，必须在 "UEFI/BIOS Boot Mode" 屏幕中选中
"UEFI"。
 |
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Main Advanced IO Boot UEFI Driver Control Save & Exit
/----------------------------------------------------+-------------------------\
| UEFI/BIOS Boot Mode [UEFI] |UEFI: Only UEFI Boot |
| |options are initialized |
| Retry Boot List [Enabled] |and present to user. |
| Network Boot Retry [Enabled] |Legacy: Only legacy |
|> OSA Configuration |boot options are |
| |initialized and present |
| UEFI Boot Option Priority |to user. |
| [[UEFI]PXE:Intel(R) I350 Gigabit Network | |
| Connection] | |
| [[UEFI]PXE:Intel(R) I350 Gigabit Network |-------------------------|
| Connection] |><: Select Screen |
| |^v: Select Item |
| |Enter: Select |
| |+/-: Change Opt. |
| |F1: General Help |
| |(CTRL+Q from serial |
| |keyboard) |
| |Q: Scroll Help Pane Up |
| |A: Scroll Help Pane Down |
\----------------------------------------------------+ESC: Exit----------------/
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. |
|

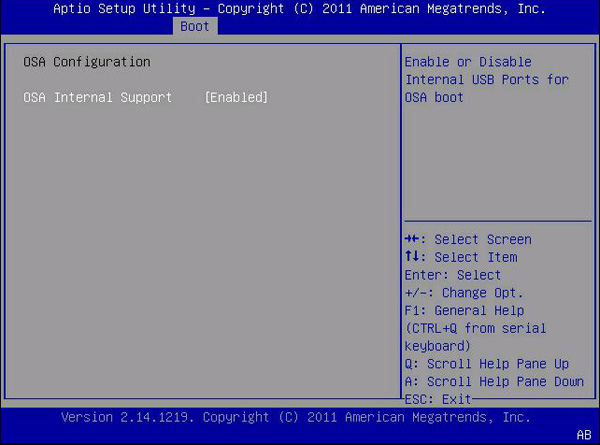

"Boot" > "OSA Configuration"
|
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Boot
/----------------------------------------------------+-------------------------\
| OSA Configuration |Enable or Disable |
| |Internal USB Ports for |
| OSA Internal Support [Enabled] |OSA boot |
| | |
| | |
| | |
| | |
| | |
| | |
| |-------------------------|
| |><: Select Screen |
| |^v: Select Item |
| |Enter: Select |
| |+/-: Change Opt. |
| |F1: General Help |
| |(CTRL+Q from serial |
| |keyboard) |
| |Q: Scroll Help Pane Up |
| |A: Scroll Help Pane Down |
\----------------------------------------------------+ESC: Exit----------------/
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. |
|
