BIOS "UEFI Driver Control" 菜单选项
本节介绍了 "UEFI Driver Control" 菜单选项的基于可搜索文本的表示形式。
注 - 要显示 "UEFI Driver Control" 菜单，必须在 "UEFI/BIOS Boot Mode" 中选中 "UEFI"。
UEFI Driver Control
要显示 "UEFI
Driver Control" 菜单，必须在 "UEFI/BIOS Boot Mode" 中选中 "UEFI"。  |
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Main Advanced IO Boot UEFI Driver Control Save & Exit
/----------------------------------------------------+-------------------------\
|> iSCSI |Configure the iSCSI |
|> Intel(R) I350 Gigabit Network Connection - |parameters. |
| 00:21:28:DE:3E:BA | |
|> Intel(R) I350 Gigabit Network Connection - | |
| 00:21:28:DE:3E:BB | |
|> LSI MegaRAID Configuration Utility - 01.... | |
| | |
| | |
| | |
| |-------------------------|
| |><: Select Screen |
| |^v: Select Item |
| |Enter: Select |
| |+/-: Change Opt. |
| |F1: General Help |
| |(CTRL+Q from serial |
| |keyboard) |
| |Q: Scroll Help Pane Up |
| |A: Scroll Help Pane Down |
\----------------------------------------------------+ESC: Exit----------------/
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. |
|
"UEFI Driver Control" > "iSCSI"
|
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
UEFI Driver Control
/----------------------------------------------------+-------------------------\
| iSCSI Initiator Name |The worldwide unique ^|
|> Port 00-21-28-DE-3E-BA |name of the initiator. *|
|> Port 00-21-28-DE-3E-BB |Only iqn. format is +|
| |accepted. +|
| |Format: +|
| |iqn.1988-12.com.oracle:<+|
| |OS><-target> +|
| |e.g. +|
| |For Windows Server 2008 v|
| |-------------------------|
| |><: Select Screen |
| |^v: Select Item |
| |Enter: Select |
| |+/-: Change Opt. |
| |F1: General Help |
| |(CTRL+Q from serial |
| |keyboard) |
| |Q: Scroll Help Pane Up |
| |A: Scroll Help Pane Down |
\----------------------------------------------------+ESC: Exit----------------/
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. |
|
"UEFI Driver Control" > "iSCSI" > "Gigabit Network Connection" > "PORT CONFIGURATION MENU"
|
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
UEFI Driver Control
/----------------------------------------------------+-------------------------\
| |Click to configure the |
| PORT CONFIGURATION MENU |network device port. |
|> NIC Configuration | |
| | |
| Blink LEDs (range 0 | |
| 0-15 seconds) | |
| | |
| PORT CONFIGURATION INFORMATION | |
| UEFI Driver: Intel(R) PRO/1000 | |
| 4.7.12 PCI-E |-------------------------|
| Adapter PBA: 104900-000 |><: Select Screen |
| Chip Type: Intel i350 |^v: Select Item |
| PCI Device ID 1521 |Enter: Select |
| PCI 32:00:00 |+/-: Change Opt. |
| Bus:Device:Function: |F1: General Help |
| Link Status [Connected] |(CTRL+Q from serial |
| Factory MAC Address: 00:21:28:DE:3E:BA |keyboard) |
| Alternate MAC 00:21:28:DE:3E:BA |Q: Scroll Help Pane Up |
| Address: |A: Scroll Help Pane Down |
\----------------------------------------------------+ESC: Exit----------------/
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. |
|
"UEFI Driver Control" > "Gigabit Network Connection" > "NIC Configuration"
|
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
UEFI Driver Control
/----------------------------------------------------+-------------------------\
| |Legacy Boot Protocol |
| Legacy Boot Protocol [NONE] | |
| Link Speed [AutoNeg] | |
| Wake on LAN [Enabled] | |
| | |
| | |
| | |
| | |
| | |
| |-------------------------|
| |><: Select Screen |
| |^v: Select Item |
| |Enter: Select |
| |+/-: Change Opt. |
| |F1: General Help |
| |(CTRL+Q from serial |
| |keyboard) |
| |Q: Scroll Help Pane Up |
| |A: Scroll Help Pane Down |
\----------------------------------------------------+ESC: Exit----------------/
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. |
|

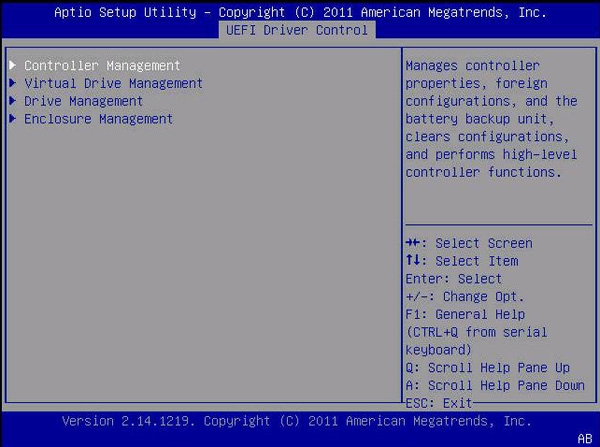

"UEFI Driver Control" > "LSI MegaRAID Configuration Utility"
有关其他屏幕，请参见BIOS LSI MegaRAID 配置实用程序屏幕参考。
|
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
UEFI Driver Control
/----------------------------------------------------+-------------------------\
|> Controller Management |Manages controller |
|> Virtual Drive Management |properties, foreign |
|> Drive Management |configurations, and the |
|> Enclosure Management |battery backup unit, |
| |clears configurations, |
| |and performs high-level |
| |controller functions. |
| | |
| | |
| |-------------------------|
| |><: Select Screen |
| |^v: Select Item |
| |Enter: Select |
| |+/-: Change Opt. |
| |F1: General Help |
| |(CTRL+Q from serial |
| |keyboard) |
| |Q: Scroll Help Pane Up |
| |A: Scroll Help Pane Down |
\----------------------------------------------------+ESC: Exit----------------/
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc. |
|
