Replace a SAS HBA

A serial attached SCSI (SAS) host bus adapter (HBA) provides access to the SAS hard disk drive (HDD) in the Pilot. A damaged SAS HBA can result in losing access to the SAS HDD to which the SAS HBA connects using the SAS cable bundle and must be replaced as soon as possible.

Each Pilot supports a single 6 Gb/s SAS HBA on the PCIe slot of its riser. To service a SAS HBA, the PCIe risers inside the Pilot and the filler panels inside the riser must be removed. The SAS HBA is a customer replaceable unit (CRU) and is hot-serviceable. However, replacing a SAS HBA will require failing over all operations to the other Pilot. The following figure shows the location of the SAS HBA inside a riser board assembly.

Figure 1 SAS HBA

Legend

1 Riser board assembly

2 SAS HBA

Note: The SAS HBA can be accessed only after removing the cover over the Pilot chassis.

Note: To replace a SAS HBA, you do not need to remove the Pilot from the rack but extend it along the Pilot rails using the cable management arm (CMA).

Note: The riser that contains the failed SAS HBA must be removed before servicing the HBA.

Identify the Pilot component for replacement

1. Locate the failed component by checking the status of the component LEDs.
   You can also use Oracle FS System Manager (GUI) to view the status. From the GUI, navigate to System > Hardware and then select the chassis type of interest.
2. From the GUI, prepare the system for component replacement.

Power off the Pilot

3. Notify affected users that the Pilot will be powered off.
4. Ensure that the host of the Pilot on which the replacement procedure must be performed is powered off.

Slide the Pilot into service position

5. Slide the Pilot chassis fully forward until the slide rails lock into position.
   Figure 2 Pilot position during component replacement

   Legend

   1 Rack

   2 Pilot chassis

   3 Pilot rails

6. When Guided Maintenance prompts you to remove the component, pull the flip handles at front of the Pilot and start sliding the Pilot out of the rack.
   Caution

   Deploy any rack anti-tilt mechanism before releasing the release buttons and extending the Pilot.

   Figure 3 Pilot slide lockout release tabs

   Legend

   1 Slide rail lock

   2 Slide lockout release tab

   Note: The slide-rail locks are located behind the flip-down handles on the front of the Pilot chassis. The slide-rail locks are released when the flip-down handles are pulled down. The slide lockout release tab must be released to push the Pilot chassis back into the rack.

Open Pilot fan door

7. Press the two fan door release tabs simultaneously forward and swing the Pilot fan door to the open position.
   Note: Servicing the Pilot fan modules and other components located in the front of the Pilot, such as the front indication module (FIM) and the disk backplanes, require that the fan door be opened. It is also easier to remove the Pilot’s top cover if you open the fan door first.

   Figure 4 Pilot with fan door open

   Legend

   1 Fan door release tabs

   2 Pilot fan door in open position

Open Pilot top cover

8. Press down on the push button on the Pilot top cover to release the top cover and use the recessed areas to slide the top cover toward the back of the Pilot about 0.5 inches (12.7 mm).
   Caution

   Before removing the top cover of the Pilot, power off the Pilot using Guided Maintenance. Removing the Pilot top cover before powering off the Pilot might cause damage to the software image on the Pilot.

   Tip: Slide out the Pilot top cover by pressing down on the grooves located on both sides of the cover.

   Figure 5 Pilot top cover removal

   Legend

   1 Push button to release top cover

   2 Grooves to slide out top cover

9. Lift the cover off the Pilot chassis and set it aside.

Remove the failed Pilot SAS HBA

10. Identify the riser in which the failed SAS HBA is located.
    Note: There are three riser board assemblies inside the Pilot chassis.
11. Press on the release tab of the riser to release the riser from the Pilot motherboard.
12. Carefully pull up the release tab on the riser to release the filler panel or HBA card (if any) and pull the riser straight up.
    Figure 6 Riser board assembly removal





    Legend

    1 Release tab on the riser

    2 Riser

    3 HBA

    4 Motherboard

    Note: You do not need to remove the SAS host bus adapters (HBAs) or HBA cables from the riser unless the riser has failed and the HBA or cables must be transferred to the replacement riser. Remove any HBA cables or HBAs that are on the failed riser assemblies using the appropriate procedure. Make a note of the riser slot in which the HBAs are installed and the SAS cables that are connected to the HBAs.
13. Disconnect the SAS cable bundle that connects the SAS HBA and the Pilot disk backplane and set aside.
    Figure 7 Disconnect SAS cable bundle

    Legend

    1 Riser

    2 HBA

    3 SAS cable bundle

14. Hold the riser in one hand and with the other hand lift up the SAS HBA from the alignment pin of the PCIe slot of the riser and place it on an antistatic mat.
    Figure 8 SAS HBA removal

    Legend

    1 Riser board assembly

    2 SAS HBA

Insert the failed Pilot SAS HBA

15. Unpack the component from its shipping carton.
    Note: Place the component on an antistatic mat if it must be set aside for any reason.
16. Orient the SAS HBA so that the brackets of the HBA align with the alignment pin in the PCIe slot of the riser.

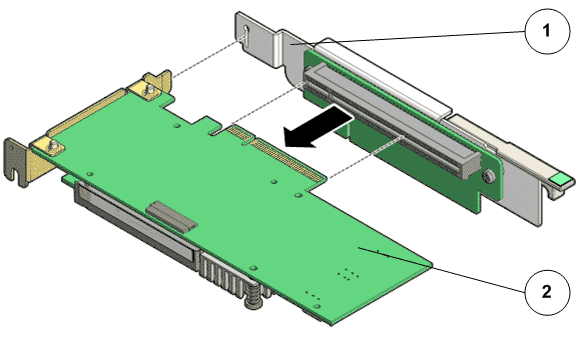

    Figure 9 SAS HBA insertion into the riser

    Legend

    1 Riser board

    2 SAS HBA

    Important! Hold the SAS HBA by the edges. Do not touch the metal contacts on the bottom of the card.
17. Push the connectors on the edge of the SAS HBA into the PCIe slot by pushing firmly to seat the card.
18. Apply firm pressure on each end of the SAS HBA alternately until it clicks into place in the riser socket.
    Caution

    Support the SAS HBA and the riser as necessary to prevent excessive flexure. Otherwise, the SAS HBA or the riser card might break.
19. Insert the riser into the black slot on the Pilot motherboard and slide the release tab backward to secure the riser in position.

Close Pilot top cover

20. Place the top cover of the Pilot onto the chassis.
    Tip: Place the top cover down so that it hangs over the back of the Pilot by about 13 mm (0.5 inches) [1] and the side latches align with the slots in the sides of the Pilot chassis.

    Note: There are three latching tabs on the sides of the Pilot top cover, two on the right side and one on the left side when viewing the Pilot from the front. There is also a latch on the underside of the top cover in the front left corner near the release button.
21. Check both sides of the Pilot chassis to ensure that the four corners of the top cover are fully down and flush with the chassis.
    Note: If the cover corners are not flush with the Pilot chassis, slide the cover towards the back of the chassis until you can position the cover correctly.

    Note: If the top cover is not correctly positioned before attempting to slide the cover forward, the internal latch that is on the underside of the cover might be damaged.
22. Gently slide the top cover along the grooves of the Pilot by pressing down on either side of the top cover until it locks into place and you hear an audible click.
    Figure 10 Pilot top cover installed

    Legend

    1 Top cover

    2 Grooves to slide the top cover

    3 Fan door

Close Pilot fan door

23. Close the Pilot fan door by pressing the two release tabs on both sides of the fan door until it locks into place.

Slide the Pilot into rack position

24. Simultaneously pull and hold the two release tabs, one on each side of the Pilot, toward the front of the Pilot while you push the Pilot into the rack.
    Figure 11 Location of the Pilot release tabs

    Note: As you push the Pilot into the rack, verify that the cable management arm (CMA) retracts without binding.

    Note: To pull the Pilot release tab, place your finger in the center of the tab, not on the end, and apply pressure as you pull the tab toward the front of the Pilot.
25. Continue pushing the Pilot into the rack until the slide-rail locks on the front of the Pilot engage the slide-rail assemblies.
    Note: The Pilot locks into the rack position with an audible click.

Power on the Pilot

26. Reconnect the power cords to the Pilot.
    Note: After the power cords are connected, the green SP LED and the OK LED both start to blink.

    Note: Do not turn on the power to the Pilot host immediately. The power on the Pilot host is turned on only after updating the Pilot BIOS. Turning on the power to the Pilot host early can prevent the Pilot from booting after the Pilot BIOS is updated.

Verify the Pilot component status

27. From Guided Maintenance, verify that the status is Normal.
    You can also verify the status by navigating to System > Hardware and then selecting a chassis. The Overview page for the selected chassis lists the status of each component.

    Note: The Controller status will be visible several minutes after being powered on.
28. Review the status of the LEDs to confirm a status of Normal.
