When replacing a component, you must know its part number and whether it is hot serviceable. Having that information helps you to order the correct replacement component and to determine whether you can replace the component yourself. To locate a part number for the Pilot, open Oracle System Handbook (https://support.oracle.com/handbook_private/index.html) and go to the Oracle FS1 Flash Storage System components list. Part numbers are listed in the components list.
The Pilot is a one rack-unit (1U) server and consists of several replaceable components. Many Pilot components are customer replaceable (CRUs), while others are field replaceable units (FRUs) that require Oracle Customer Support to perform the replacement. Also, some components are hot-serviceable, meaning that they can be replaced, while the Pilot is powered on. The following table provides a summary of the Pilot FRUs and CRUs.
Table 1 Pilot components and descriptionsPilot component |
Type |
Hot-serviceable |
Battery |
CRU |
No |
Disk backplane |
FRU |
No |
8 GB DIMM module |
CRU |
No |
Cable kit |
FRU |
No |
CPU |
FRU |
No |
300 GB SAS HDD |
FRU |
No |
Fan module |
CRU |
No Note: GM support is required to ensure that failover has occurred.
|
SAS HBA [6 Gb/s] |
CRU |
No |
Heat sink |
FRU |
No |
Power supply |
CRU |
Yes |

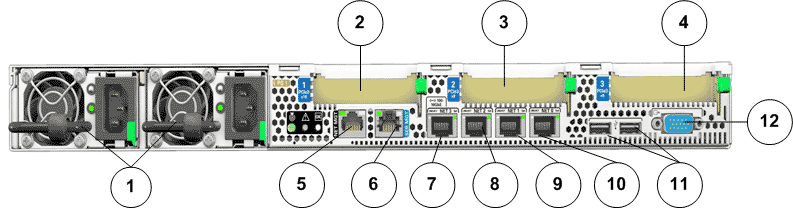

The following figure shows the components located at the back of the
Pilot.
Figure 1 Pilot back view- Legend
1 Power supplies |
7 Ethernet port (ETH-0) labeled as NET-3 |
2 PCIe card slot 1 |
8 Ethernet port (ETH-1) labeled as NET-2 |
3 PCIe card slot 2 |
9 Ethernet port (ETH-2) labeled as NET-1 |
4 PCIe card slot 3 |
10 Ethernet port (ETH-3) labeled as NET-0 |
5 ILOM SP network management port (also labeled as NET MGT port) |
11 USB connectors |
6 Serial management port (also labeled as SRMGT port) |
12 Video connector |
The following figure shows the components located at the front of the
Pilot.
Figure 2 Pilot front view- Legend
1 Product serial number RFID tag |
3 Front indicator module (FIM) |
2 Power button |
4 Pilot boot drive |
The following figure shows an exploded view of the
Pilot.
Figure 3 Exploded view of Pilot replaceable components
- Legend
1 CPU |
7 Battery |
2 Motherboard |
8 DIMMs |
3 Fan modules |
9 Heat sinks |
4 Fan modules |
10 Power supplies |
5 HBA |
11 Disk backplane boards |
6 Risers |
|
