Cabling Overview for the Replication Engine

Typical customer configurations include Replication Engines with redundant HBAs connected to the ports on the Oracle FS System Controller through redundant SAN switches. All ports of one HBA in the Replication Engine connect to the same SAN switch fabric, while all ports of the redundant HBA connect to an alternate SAN switch fabric.

The following figure illustrates the cabling connections of the Replication Engines in a typical Oracle MaxRep for SAN configuration.

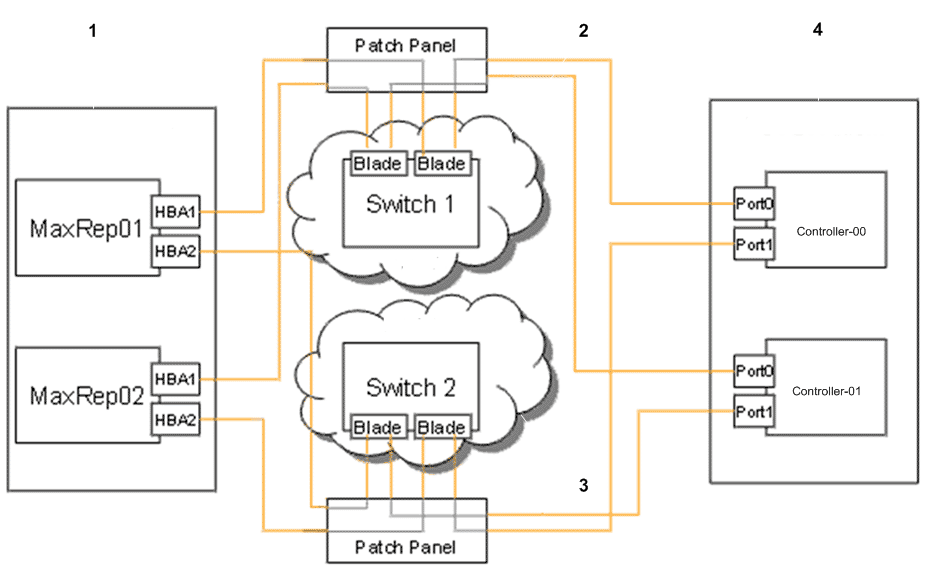

Figure 1: Typical cabling connections of Oracle MaxRep Replication Engines

Legend

1 MaxRep high availability cluster with two redundant Replication Engines	3 SAN fabric switch 2
2 SAN fabric switch 1	4 Oracle FS System Controllers

Following cables are required to connect the Replication Engine in the rack.

Table 1 Cables
Type	Description	Cable length
Fibre Channel (FC) patch cables	Connect the FC ports at the back of the Replication Engine to the SAN Switch or SAN fabric to which the Oracle FS System is connected. These cables provide connectivity to the Oracle FS System for replication.	50/125 optical FC have a distance limit of 164.04 feet (50 meters) for 8 Gb/s fabric speed.
Ethernet cables	Connect the Ethernet ports on the Replication Engine to management network switches for management and to create NIC bonding for port virtualization.	1Gb/s Twisted Pair 10 Gb/s Twisted Pair 1 Gb/s Optical 10 Gb/s Optical

The Replication Engine user interface is web-based and can be accessed through an HTTP server running on port 80. The following table summarizes the firewall rules that must be configured:

Table 2 Firewall configuration
Purpose	Replication Engine	Primary LUN	Secondary LUN
User Interface	Inbound HTTP
Default: TCP Port 80	N/A	N/A	N/A
Configuration	Inbound HTTP
Configuration Management: Port 3306	N/A	N/A	N/A
Default: TCP Port 80	N/A	N/A	N/A
Or TCP (21 + con- figured passive port range)	N/A	N/A	N/A
Or TCP (20 + 21)	Outbound FTP or (>1024)	Outbound FTP or (>1024)	N/A
Data resync	Inbound TCP Port 873	N/A	N/A
FX data (Push )	N/A	N/A	N/A
FX data (Pull)	N/A	N/A	N/A

Note: Optionally, port 162 can be used through the fire-wall for SNMP traffic.

The following ports must be enabled for installation and deployment:

Table 3 Firewall configuration during installation
Purpose	Firewall configuration
Linux	VNC server with VNC viewer (Port: 5500) Secure shell (SSH) (Port: 22)
Windows	Remote desktop connection or terminal client (3389) PC Anywhere (TCP 5631, UDP 5632)
