6 "Media Overview" 和 "Media Analysis" 屏幕

"Media - Overview" 和 "Media - Analysis" 屏幕显示与介质相关的属性。一组属性用于 StorageTek 企业介质，另一组稍微不同的属性用于 LTO 介质。

介质属性分为以下部分。

• "Title"

• "Media Details"

• "Most Recent Exchange"

• "Media Data Activity Counts (Last 30 Days)"

• "Current Home Media Location"

• "Drive"

• "Additional Exchange Information for LTO Media"

• "Additional Exchange Information for Enterprise Media"

• "Library Complex"

• "Cleaning Usage"

• "User-Provided Information"

• "Media Validation Information for Enterprise Media"

• "Calibration Information for Enterprise Media"

"Media Overview" 详细信息视图

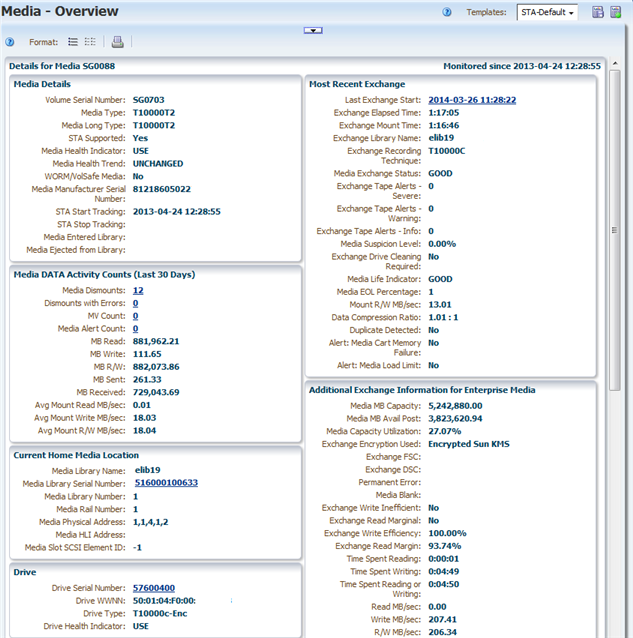

企业介质的详细信息（第 1 部分）

对以下插图的说明： ref_meddetailenta.png

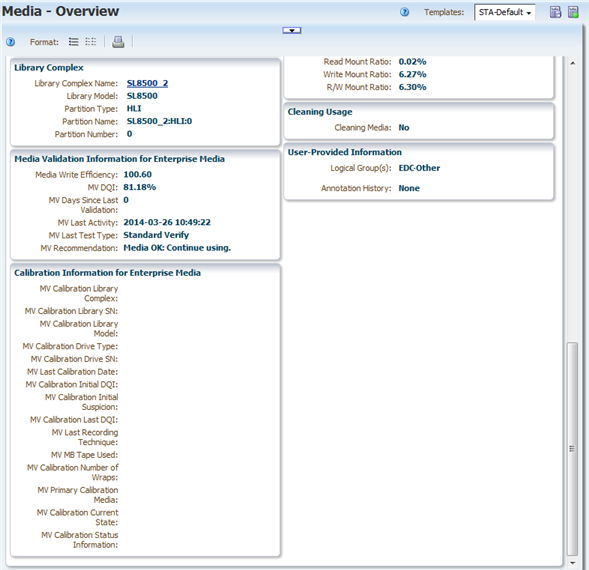

企业介质的详细信息（第 2 部分）

对以下插图的说明： ref_meddetailentb.png

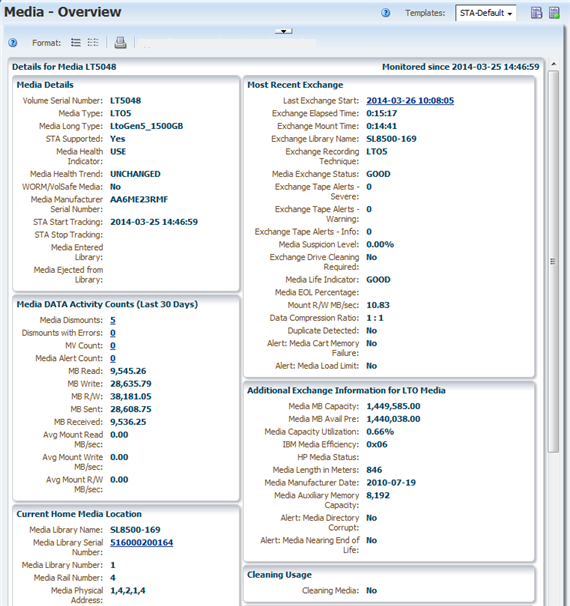

LTO 介质的详细信息（第 1 部分）

对以下插图的说明： ref_meddetailltoa.png

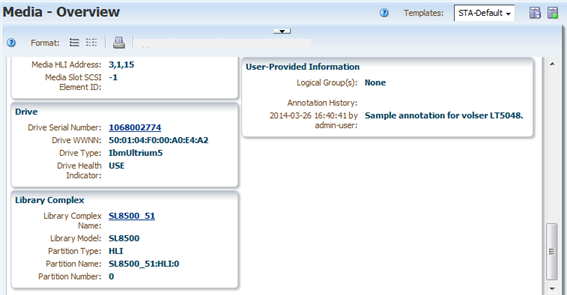

LTO 介质的详细信息（第 2 部分）

对以下插图的说明： ref_meddetailltob.png

Title

STA 第一次跟踪介质时将为这些属性分配值。

• Media

• Monitored since

Media Details

有关数据或清洗介质的详细信息。

• Volume Serial Number

• Media Type

• Media Long Type

• STA Supported

• Media Health Indicator

• Media Health Trend

• WORM/VolSafe Media

• Media Manufacturer Serial Number

• STA Start Tracking

• STA Stop Tracking

• Media Entered Library

• Media Ejected from Library

Most Recent Exchange

有关介质的最近交换的详细信息。

• Last Exchange Start

• Exchange Elapsed Time

• Exchange Mount Time

• Exchange Library Name

• Exchange Recording Technique

• Media Exchange Status

• Exchange Tape Alerts – Severe

• Exchange Tape Alerts – Warning

• Exchange Tape Alerts – Info

• Media Suspicion Level

• Exchange Drive Cleaning Required

• Media Life Indicator

• Media EOL Percentage

• Mount R/W MB/sec

• Data Compression Ratio

• Duplicate Detected

• Alert: Media Cart Memory Failure

• Alert: Media Load Limit

Media Data Activity Counts (Last 30 Days)

过去 30 天中介质的总活动计数。仅为数据介质显示此部分。

• Media Dismounts

• Dismounts With Errors

• MV Count

• Media Alert Count

• MB Read

• MB Write

• MB R/W

• MB Sent

• MB Received

• Avg Mount Read MB/sec

• Avg Mount Write MB

• Avg Mount R/W MB/sec

Current Home Media Location

有关介质当前位置的详细信息，时间截至上次完成的交换。

• Media Library Name

• Media Library Serial Number

• Media Library Number

• Media Rail Number

• Media Physical Address

• Media HLI Address

• Media Slot SCSI Element ID

Drive

有关最近交换中涉及的磁带机的详细信息。

• Drive Serial Number

• Drive WWNN

• Drive Type

• Drive Health Indicator

Additional Exchange Information for Enterprise Media

仅为 StorageTek 企业介质显示。

• Media MB Capacity

• Media MB Avail Post

• Media Capacity Utilization

• Exchange Encryption Used

• Exchange FSC

• Exchange DSC

• Permanent Error

• Media Blank

• Exchange Write Inefficient

• Exchange Read Marginal

• Exchange Write Efficiency

• Exchange Read Margin

• Time Spent Reading

• Time Spent Writing

• Time Spent Reading or Writing

• Read MB/sec

• Write MB/sec

• R/W MB/sec

• Read Mount Ratio

• Write Mount Ratio

• R/W Mount Ratio

Additional Exchange Information for LTO Media

仅为 LTO 介质显示。

• Media MB Capacity

• Media MB Avail Pre

• Media Capacity Utilization

• IBM Media Efficiency

• HP Media Status

• Media Length in Meters

• Media Manufacturer Date

• Media Auxiliary Memory Capacity

• Alert: Media Directory Corrupt

• Alert: Media Nearing End of Life

Library Complex

有关介质所在的复合磁带库的详细信息。

• Library Complex Name

• Library Model

• Partition Type

• Partition Name

• Partition Number

Cleaning Usage

• Cleaning Media

User-Provided Information

• Logical Group(s)

• Annotation History

Media Validation Information for Enterprise Media

有关介质的最近介质验证的详细信息。仅为 StorageTek 企业介质显示。

• Media Write Efficiency

• MV DQI

• MV Days Since Last Validation

• MV Last Activity

• MV Last Test Type

• MV Last Recommendation

Calibration Information for Enterprise Media

• MV Calibration Library Complex

• MV Calibration Library SN

• MV Calibration Library Model

• MV Calibration Drive Type

• MV Calibration Drive SN

• MV Last Calibration Date

• MV Calibration Initial DQI

• MV Calibration Initial Suspicion

• MV Calibration Last DQI

• MV Last Recording Technique

• MV MB Tape Used

• MV Calibration Number of Wraps

• MV Primary Calibration Media

• MV Calibration Current State

• MV Calibration Status Information
