58 Offline Transactions

For systems configured to run in Offline POS mode, two options are available within the Offline Transactions menu located within the System Admin menu:


Note:

All offline transactions need reviewing and either approved or rejected before the store is able to close.

Reviewing Offline Transactions

Offline Transaction Review allows you to review offline transactions and to send the data up to the mobile server.

  1. Select System Admin from the main menu.

  2. Select Offline Transactions.

  3. Select Offline Transaction Review. A list of all offline transactions are displayed for review.

    Figure 58-1 Offline Transaction Review

    Offline Transaction Review

    The list shows the following details:

    • Date/time transaction occurred

    • Transaction dollar total

    • Transaction number of items

    • Transaction status

    • Customer email

    • Register number

  4. Select the transaction to review.

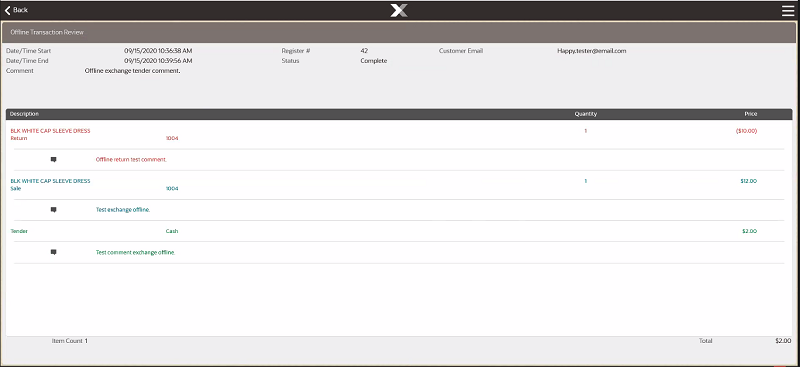

    Figure 58-2 Offline Transaction Detail

    Offline Transaction Detail
  5. Select the Context Menu and select Approve or Reject.

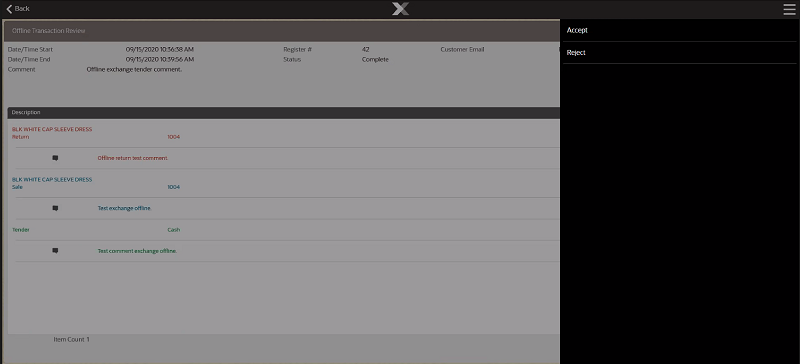

    Figure 58-3 Offline Transaction Context Menu

    Offline Transaction Context Menu
    • Approve - approves the transaction to be posted to Xstore mobile server and an email/sms receipt goes to the customer.

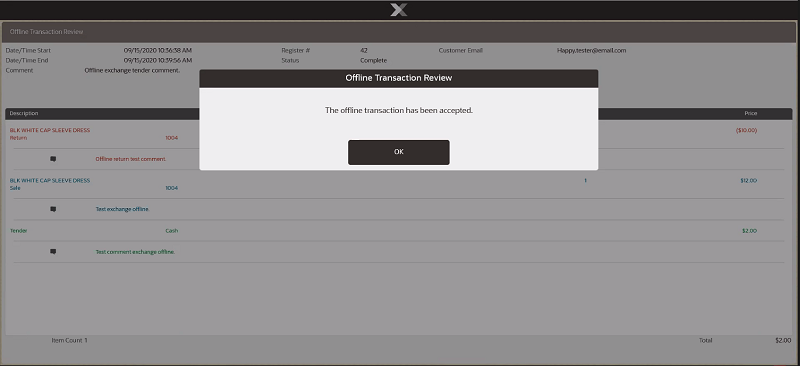

      Figure 58-4 Approve Offline Transaction

      Approve Offline Transaction

      Select OK to continue.

    • Reject - an error message is displayed - Are you sure you wish to reject this transaction? The transaction will be set to canceled.

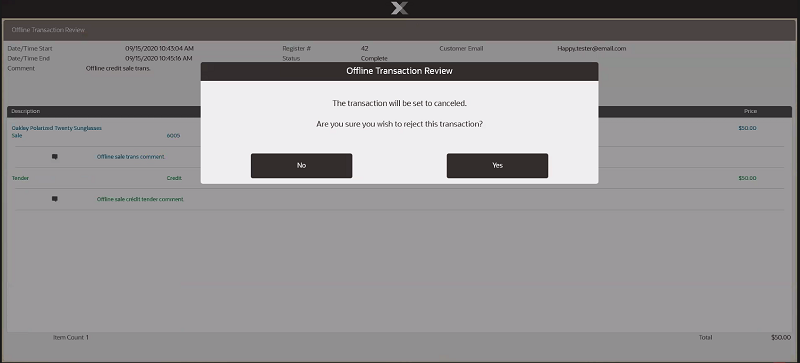

      Figure 58-5 Reject Offline Transaction

      Reject Offline Transaction

      To reject the offline transaction select Yes.

      1. Enter a comment for the rejection and select OK.

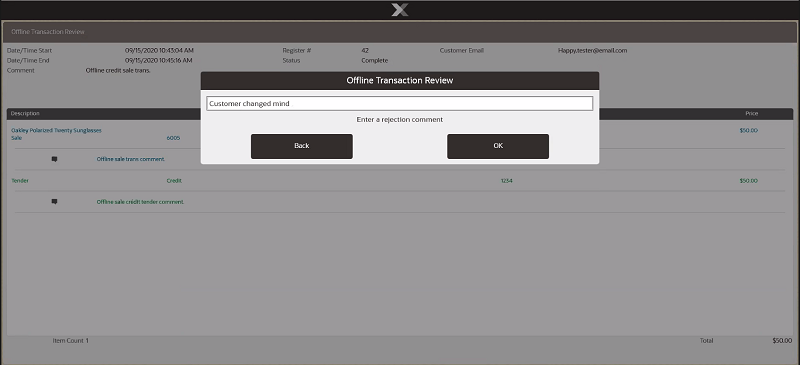

        Figure 58-6 Offline Transaction Rejection Comment

        Offline Transaction Rejection Comment
      2. A rejection confirmation message is shown. Select OK.

        An email receipt is not sent on rejected transactions.

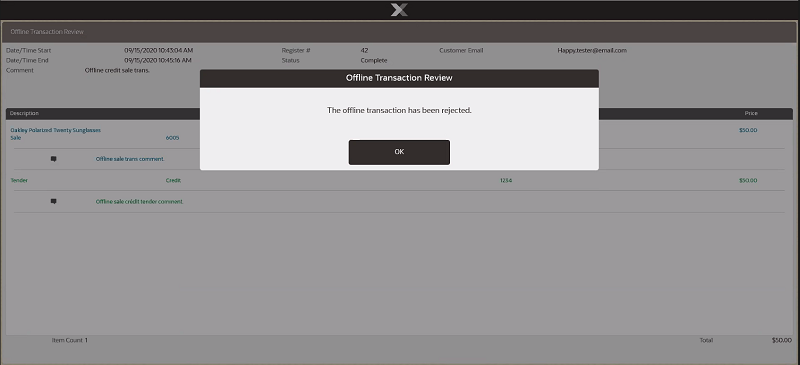

        Figure 58-7 Offline Transaction Rejection Confirmation

        Offline Transaction Rejection Confirmation

Printing a Transaction Receipt

To print a Xstore transaction receipt using a UUID or QR code from a mobile offline transaction for a customer:

  1. Select System Admin from the main menu.

  2. Select Offline Transactions.

  3. Select Print Offline Transaction Receipt.

  4. Scan or enter the UUID.

If the transaction is found a Xstore receipt is printed. If it has previously been printed, a prompt to use the Electronic Journal to reprint is shown.
