Note: The Oracle WebLogic server is mandatory for Agile e6.2.0.0. |
There are typically two types of WebLogic domains available as part of an Agile e6 installation. Every domain has two servers (JVMs) running by default.
Admin Server
EDM Server
The technical services will be deployed to the so called installation domain. The technical services will be shared by all application of an Agile e6 installation. Agile e6 application related services like Business Services and Web Services run in a separate domain.

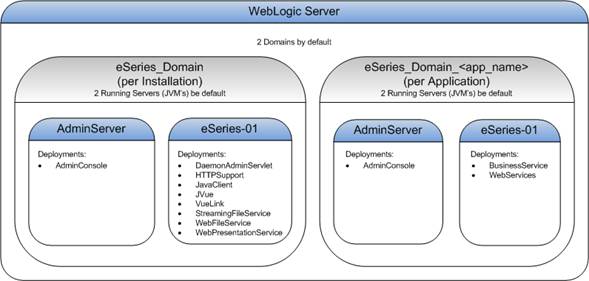

The following graphic shows the detailed WebLogic deployment architecture.
A limited set of technical J2EE, and native services need to be installed on remote sites with DFM support. The J2EE components run in TOMCAT and jetty, instead of WebLogic.

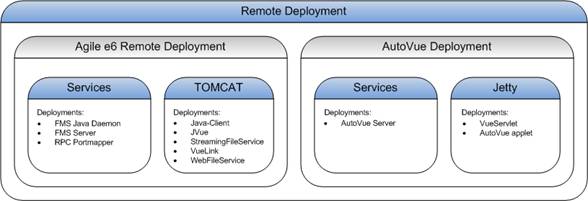

The following diagram shows the remote site deployment architecture after an Agile e6 installation.
