The fscli topology -download -topoMap topomapfilename command generates an output file that contains the connectivity maps of the Oracle FS System. Work with your Oracle Sales Engineer to analyze the connectivity map, verify the current topology of your system, and to determine where to add new Drive Enclosures for system expansion.
Annotated Samples of Topology Output (Performance System)
The topology output file provides the following general information:
Up to four connectivity maps generated at different times. The most recent connectivity map is listed first in the output. In some cases, identical maps might be generated.
Sections that clearly delineate the connectivity details for the Controllers and each Drive Enclosure in the system.
The chassis IDs and the World Wide Node Names (WWN) of the Controllers and the Drive Enclosures in the system. The chassis ID is the two-digit number displayed on the front of the chassis. The WWN is a 16-digit code that uniquely identifies each Controller
and Drive Enclosure.The connection entries indicate how each Controller HBA is connected to the first Drive Enclosure of each string. The symbol <== ==> translates to “is connected to.” For example, /CONTROLLER-01 508002000158BF40 : HBA 0 : Port 0 <== ==> /ENCLOSURE-01 5080020001A9C9E5 [5080020001B5D1FF]: IOM 0 : Port 0 translates to “Controller 01, HBA 0, port 0 is connected to DE-01, IOM 0, port 0.”
The following figure shows annotated details for the Controllers in the topology output for a system configured with three SAS HBAs and 30 Drive Enclosures.

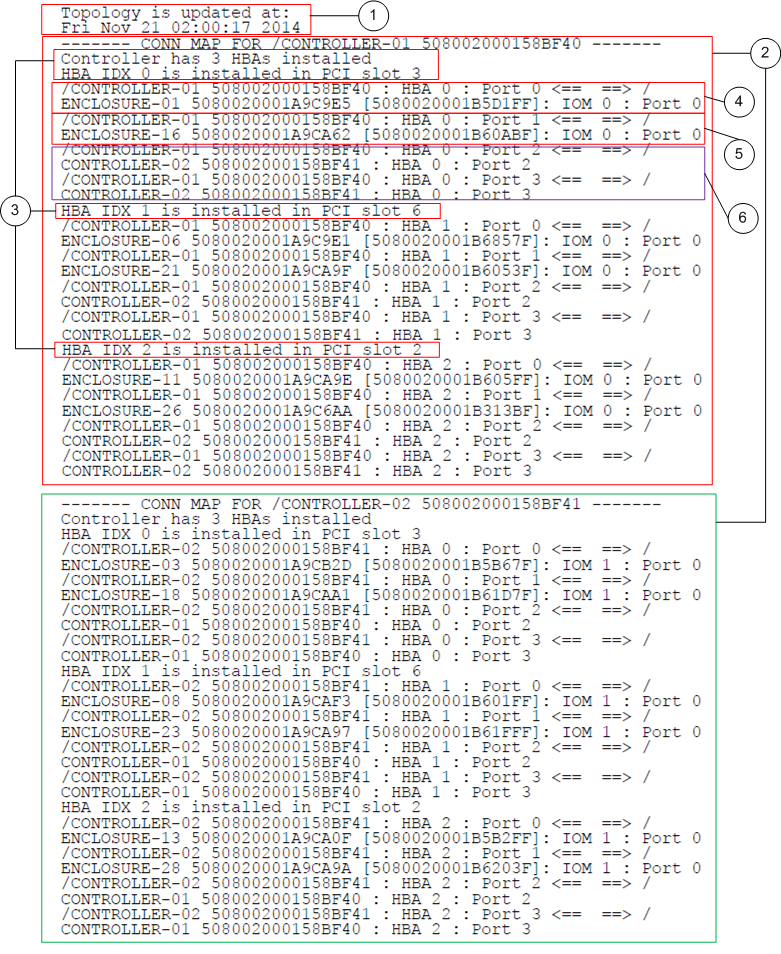

Figure 1: Annotated example of Controller sections
- Legend
1 Date and timestamp of the first of up to four connectivity maps generated in the topology output file for a system.
2 Sections for Controller 01 and Controller 02. The Controller sections describe Controller’s view of its SAS connection details. The sections provide the Controller ID, WWN, and the Drive Enclosure connection details.
3 Section describing HBA’s view of the string data path connection details. The section provides details for all ports supported on that HBA. Each HBA has its own section.
4 Controller 01 connection to the first Drive Enclosure of string 1. HBA 0, port 0 is the first Controller HBA port used, which connects to string 1.
5 Controller 01 connection to the first Drive Enclosure of string 4.
6 Connection details for SAS HBA ports 2 and 3, which are used for cache mirroring and secondary data path access between the Controllers. SAS HBA ports 2 and 3 cross connect to the corresponding HBA and ports on the partner Controller.
The following figure shows annotated details for two of the Drive Enclosures in the topology output for a system configured with three SAS HBAs and 30 Drive Enclosures.

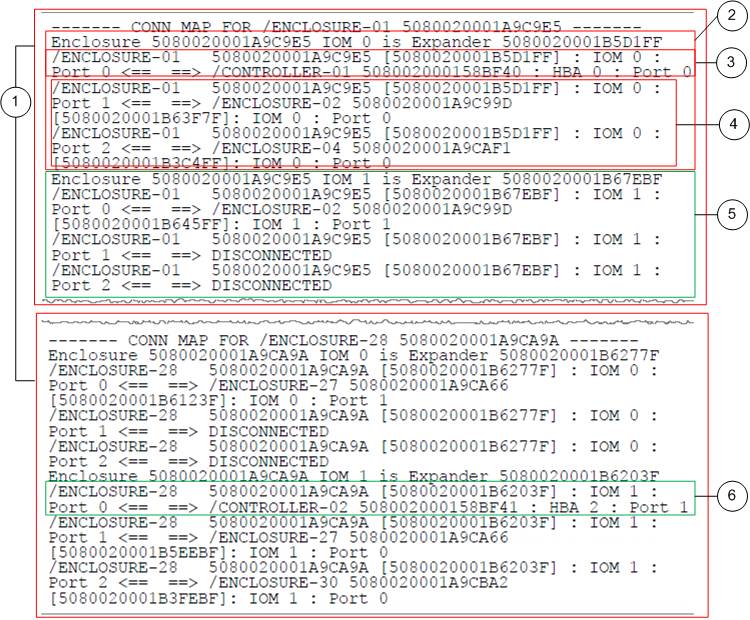

Figure 2: Annotated example of Drive Enclosures
- Legend
1 Sections within the topology map that describe the data path connections for each Drive Enclosure. Each section provides the chassis IDs, the WWN, and the port connection details for both I/O module 0 and I/O module 1.
2 Section describing the data path connections for I/O module 0 data path connections. The section provides the expander's unique ID and each port connection for I/O module 0.
3 Section describing connection for I/O module 0, port 0. In this example, I/O module 0, port 0 connects to Controller 01, HBA 0, port 0. The connections should correspond with the Controller 01 entry in the Controller 01 section above
4 Section describing the connections on I/O module 0, port 1 and port 2. These are egress ports that connect to downstream Drive Enclosures within the string.
5 Section describing the connections on I/O module 1 of Drive Enclosure 01.
6 Drive Enclosure 28’s connection to Controller 02. In this example, Drive Enclosure 28 connects to HBA 2, port 1 on Controller 02, which makes it the third Drive Enclosure within string 6. The connections should correspond with the Controller 02 entry in the Controller 02 section above.
fscli topology –download –topomap Command (Sample)
The following example provides sample output of the complete topology for a factory-configured system with three SAS HBAs and 30 Drive Enclosures.
When reviewing the sample output, follow the connection topology and not the order of presentation. Keep in mind the following items regarding the order of presentation in the output file:
The output presents the strings in the order of 1, 4, 2, 5, 3, and 6.
Within a string, the output presents the Drive Enclosures in the order of 1, 2, 3, 5, and 4.
Figure 3: System with three SAS HBAs and 30 Drive Enclosures (Sample)
Topology is updated at: Fri Nov 21 02:00:17 2014 ------- CONN MAP FOR /CONTROLLER-01 508002000158BF40 ------- Controller has 3 HBAs installed HBA IDX 0 is installed in PCI slot 3 /CONTROLLER-01 508002000158BF40 : HBA 0 : Port 0 <== ==> /ENCLOSURE-01 5080020001A9C9E5 [5080020001B5D1FF]: IOM 0 : Port 0 /CONTROLLER-01 508002000158BF40 : HBA 0 : Port 1 <== ==> /ENCLOSURE-16 5080020001A9CA62 [5080020001B60ABF]: IOM 0 : Port 0 /CONTROLLER-01 508002000158BF40 : HBA 0 : Port 2 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 0 : Port 2 /CONTROLLER-01 508002000158BF40 : HBA 0 : Port 3 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 0 : Port 3 HBA IDX 1 is installed in PCI slot 6 /CONTROLLER-01 508002000158BF40 : HBA 1 : Port 0 <== ==> /ENCLOSURE-06 5080020001A9C9E1 [5080020001B6857F]: IOM 0 : Port 0 /CONTROLLER-01 508002000158BF40 : HBA 1 : Port 1 <== ==> /ENCLOSURE-21 5080020001A9CA9F [5080020001B6053F]: IOM 0 : Port 0 /CONTROLLER-01 508002000158BF40 : HBA 1 : Port 2 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 1 : Port 2 /CONTROLLER-01 508002000158BF40 : HBA 1 : Port 3 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 1 : Port 3 HBA IDX 2 is installed in PCI slot 2 /CONTROLLER-01 508002000158BF40 : HBA 2 : Port 0 <== ==> /ENCLOSURE-11 5080020001A9CA9E [5080020001B605FF]: IOM 0 : Port 0 /CONTROLLER-01 508002000158BF40 : HBA 2 : Port 1 <== ==> /ENCLOSURE-26 5080020001A9C6AA [5080020001B313BF]: IOM 0 : Port 0 /CONTROLLER-01 508002000158BF40 : HBA 2 : Port 2 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 2 : Port 2 /CONTROLLER-01 508002000158BF40 : HBA 2 : Port 3 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 2 : Port 3 ------- CONN MAP FOR /CONTROLLER-02 508002000158BF41 ------- Controller has 3 HBAs installed HBA IDX 0 is installed in PCI slot 3 /CONTROLLER-02 508002000158BF41 : HBA 0 : Port 0 <== ==> /ENCLOSURE-03 5080020001A9CB2D [5080020001B5B67F]: IOM 1 : Port 0 /CONTROLLER-02 508002000158BF41 : HBA 0 : Port 1 <== ==> /ENCLOSURE-18 5080020001A9CAA1 [5080020001B61D7F]: IOM 1 : Port 0 /CONTROLLER-02 508002000158BF41 : HBA 0 : Port 2 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 0 : Port 2 /CONTROLLER-02 508002000158BF41 : HBA 0 : Port 3 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 0 : Port 3 HBA IDX 1 is installed in PCI slot 6 /CONTROLLER-02 508002000158BF41 : HBA 1 : Port 0 <== ==> /ENCLOSURE-08 5080020001A9CAF3 [5080020001B601FF]: IOM 1 : Port 0 /CONTROLLER-02 508002000158BF41 : HBA 1 : Port 1 <== ==> /ENCLOSURE-23 5080020001A9CA97 [5080020001B61FFF]: IOM 1 : Port 0 /CONTROLLER-02 508002000158BF41 : HBA 1 : Port 2 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 1 : Port 2 /CONTROLLER-02 508002000158BF41 : HBA 1 : Port 3 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 1 : Port 3 HBA IDX 2 is installed in PCI slot 2 /CONTROLLER-02 508002000158BF41 : HBA 2 : Port 0 <== ==> /ENCLOSURE-13 5080020001A9CA0F [5080020001B5B2FF]: IOM 1 : Port 0 /CONTROLLER-02 508002000158BF41 : HBA 2 : Port 1 <== ==> /ENCLOSURE-28 5080020001A9CA9A [5080020001B6203F]: IOM 1 : Port 0 /CONTROLLER-02 508002000158BF41 : HBA 2 : Port 2 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 2 : Port 2 /CONTROLLER-02 508002000158BF41 : HBA 2 : Port 3 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 2 : Port 3 ------- CONN MAP FOR /ENCLOSURE-01 5080020001A9C9E5 ------- Enclosure 5080020001A9C9E5 IOM 0 is Expander 5080020001B5D1FF /ENCLOSURE-01 5080020001A9C9E5 [5080020001B5D1FF] : IOM 0 : Port 0 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 0 : Port 0 /ENCLOSURE-01 5080020001A9C9E5 [5080020001B5D1FF] : IOM 0 : Port 1 <== ==> /ENCLOSURE-02 5080020001A9C99D [5080020001B63F7F]: IOM 0 : Port 0 /ENCLOSURE-01 5080020001A9C9E5 [5080020001B5D1FF] : IOM 0 : Port 2 <== ==> /ENCLOSURE-04 5080020001A9CAF1 [5080020001B3C4FF]: IOM 0 : Port 0 Enclosure 5080020001A9C9E5 IOM 1 is Expander 5080020001B67EBF /ENCLOSURE-01 5080020001A9C9E5 [5080020001B67EBF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-02 5080020001A9C99D [5080020001B645FF]: IOM 1 : Port 1 /ENCLOSURE-01 5080020001A9C9E5 [5080020001B67EBF] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-01 5080020001A9C9E5 [5080020001B67EBF] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-02 5080020001A9C99D ------- Enclosure 5080020001A9C99D IOM 0 is Expander 5080020001B63F7F /ENCLOSURE-02 5080020001A9C99D [5080020001B63F7F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-01 5080020001A9C9E5 [5080020001B5D1FF]: IOM 0 : Port 1 /ENCLOSURE-02 5080020001A9C99D [5080020001B63F7F] : IOM 0 : Port 1 <== ==> /ENCLOSURE-03 5080020001A9CB2D [5080020001B5CD3F]: IOM 0 : Port 0 /ENCLOSURE-02 5080020001A9C99D [5080020001B63F7F] : IOM 0 : Port 2 <== ==> /ENCLOSURE-05 5080020001A9C994 [5080020001B63DFF]: IOM 0 : Port 0 Enclosure 5080020001A9C99D IOM 1 is Expander 5080020001B645FF /ENCLOSURE-02 5080020001A9C99D [5080020001B645FF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-03 5080020001A9CB2D [5080020001B5B67F]: IOM 1 : Port 1 /ENCLOSURE-02 5080020001A9C99D [5080020001B645FF] : IOM 1 : Port 1 <== ==> /ENCLOSURE-01 5080020001A9C9E5 [5080020001B67EBF]: IOM 1 : Port 0 /ENCLOSURE-02 5080020001A9C99D [5080020001B645FF] : IOM 1 : Port 2 <== ==> /ENCLOSURE-04 5080020001A9CAF1 [5080020001B6147F]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-03 5080020001A9CB2D ------- Enclosure 5080020001A9CB2D IOM 0 is Expander 5080020001B5CD3F /ENCLOSURE-03 5080020001A9CB2D [5080020001B5CD3F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-02 5080020001A9C99D [5080020001B63F7F]: IOM 0 : Port 1 /ENCLOSURE-03 5080020001A9CB2D [5080020001B5CD3F] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-03 5080020001A9CB2D [5080020001B5CD3F] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CB2D IOM 1 is Expander 5080020001B5B67F /ENCLOSURE-03 5080020001A9CB2D [5080020001B5B67F] : IOM 1 : Port 0 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 0 : Port 0 /ENCLOSURE-03 5080020001A9CB2D [5080020001B5B67F] : IOM 1 : Port 1 <== ==> /ENCLOSURE-02 5080020001A9C99D [5080020001B645FF]: IOM 1 : Port 0 /ENCLOSURE-03 5080020001A9CB2D [5080020001B5B67F] : IOM 1 : Port 2 <== ==> /ENCLOSURE-05 5080020001A9C994 [5080020001B64C7F]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-05 5080020001A9C994 ------- Enclosure 5080020001A9C994 IOM 0 is Expander 5080020001B63DFF /ENCLOSURE-05 5080020001A9C994 [5080020001B63DFF] : IOM 0 : Port 0 <== ==> /ENCLOSURE-02 5080020001A9C99D [5080020001B63F7F]: IOM 0 : Port 2 /ENCLOSURE-05 5080020001A9C994 [5080020001B63DFF] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-05 5080020001A9C994 [5080020001B63DFF] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9C994 IOM 1 is Expander 5080020001B64C7F /ENCLOSURE-05 5080020001A9C994 [5080020001B64C7F] : IOM 1 : Port 0 <== ==> /ENCLOSURE-03 5080020001A9CB2D [5080020001B5B67F]: IOM 1 : Port 2 /ENCLOSURE-05 5080020001A9C994 [5080020001B64C7F] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-05 5080020001A9C994 [5080020001B64C7F] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-04 5080020001A9CAF1 ------- Enclosure 5080020001A9CAF1 IOM 0 is Expander 5080020001B3C4FF /ENCLOSURE-04 5080020001A9CAF1 [5080020001B3C4FF] : IOM 0 : Port 0 <== ==> /ENCLOSURE-01 5080020001A9C9E5 [5080020001B5D1FF]: IOM 0 : Port 2 /ENCLOSURE-04 5080020001A9CAF1 [5080020001B3C4FF] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-04 5080020001A9CAF1 [5080020001B3C4FF] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CAF1 IOM 1 is Expander 5080020001B6147F /ENCLOSURE-04 5080020001A9CAF1 [5080020001B6147F] : IOM 1 : Port 0 <== ==> /ENCLOSURE-02 5080020001A9C99D [5080020001B645FF]: IOM 1 : Port 2 /ENCLOSURE-04 5080020001A9CAF1 [5080020001B6147F] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-04 5080020001A9CAF1 [5080020001B6147F] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-16 5080020001A9CA62 ------- Enclosure 5080020001A9CA62 IOM 0 is Expander 5080020001B60ABF /ENCLOSURE-16 5080020001A9CA62 [5080020001B60ABF] : IOM 0 : Port 0 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 0 : Port 1 /ENCLOSURE-16 5080020001A9CA62 [5080020001B60ABF] : IOM 0 : Port 1 <== ==> /ENCLOSURE-17 5080020001A9CB10 [5080020001B5F87F]: IOM 0 : Port 0 /ENCLOSURE-16 5080020001A9CA62 [5080020001B60ABF] : IOM 0 : Port 2 <== ==> /ENCLOSURE-19 5080020001A9CA98 [5080020001B6327F]: IOM 0 : Port 0 Enclosure 5080020001A9CA62 IOM 1 is Expander 5080020001B60F3F /ENCLOSURE-16 5080020001A9CA62 [5080020001B60F3F] : IOM 1 : Port 0 <== ==> /ENCLOSURE-17 5080020001A9CB10 [5080020001B5FC3F]: IOM 1 : Port 1 /ENCLOSURE-16 5080020001A9CA62 [5080020001B60F3F] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-16 5080020001A9CA62 [5080020001B60F3F] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-17 5080020001A9CB10 ------- Enclosure 5080020001A9CB10 IOM 0 is Expander 5080020001B5F87F /ENCLOSURE-17 5080020001A9CB10 [5080020001B5F87F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-16 5080020001A9CA62 [5080020001B60ABF]: IOM 0 : Port 1 /ENCLOSURE-17 5080020001A9CB10 [5080020001B5F87F] : IOM 0 : Port 1 <== ==> /ENCLOSURE-18 5080020001A9CAA1 [5080020001B6077F]: IOM 0 : Port 0 /ENCLOSURE-17 5080020001A9CB10 [5080020001B5F87F] : IOM 0 : Port 2 <== ==> /ENCLOSURE-20 5080020001A9C53F [5080020001A8653F]: IOM 0 : Port 0 Enclosure 5080020001A9CB10 IOM 1 is Expander 5080020001B5FC3F /ENCLOSURE-17 5080020001A9CB10 [5080020001B5FC3F] : IOM 1 : Port 0 <== ==> /ENCLOSURE-18 5080020001A9CAA1 [5080020001B61D7F]: IOM 1 : Port 1 /ENCLOSURE-17 5080020001A9CB10 [5080020001B5FC3F] : IOM 1 : Port 1 <== ==> /ENCLOSURE-16 5080020001A9CA62 [5080020001B60F3F]: IOM 1 : Port 0 /ENCLOSURE-17 5080020001A9CB10 [5080020001B5FC3F] : IOM 1 : Port 2 <== ==> /ENCLOSURE-19 5080020001A9CA98 [5080020001B625BF]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-18 5080020001A9CAA1 ------- Enclosure 5080020001A9CAA1 IOM 0 is Expander 5080020001B6077F /ENCLOSURE-18 5080020001A9CAA1 [5080020001B6077F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-17 5080020001A9CB10 [5080020001B5F87F]: IOM 0 : Port 1 /ENCLOSURE-18 5080020001A9CAA1 [5080020001B6077F] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-18 5080020001A9CAA1 [5080020001B6077F] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CAA1 IOM 1 is Expander 5080020001B61D7F /ENCLOSURE-18 5080020001A9CAA1 [5080020001B61D7F] : IOM 1 : Port 0 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 0 : Port 1 /ENCLOSURE-18 5080020001A9CAA1 [5080020001B61D7F] : IOM 1 : Port 1 <== ==> /ENCLOSURE-17 5080020001A9CB10 [5080020001B5FC3F]: IOM 1 : Port 0 /ENCLOSURE-18 5080020001A9CAA1 [5080020001B61D7F] : IOM 1 : Port 2 <== ==> /ENCLOSURE-20 5080020001A9C53F [5080020001A857FF]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-20 5080020001A9C53F ------- Enclosure 5080020001A9C53F IOM 0 is Expander 5080020001A8653F /ENCLOSURE-20 5080020001A9C53F [5080020001A8653F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-17 5080020001A9CB10 [5080020001B5F87F]: IOM 0 : Port 2 /ENCLOSURE-20 5080020001A9C53F [5080020001A8653F] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-20 5080020001A9C53F [5080020001A8653F] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9C53F IOM 1 is Expander 5080020001A857FF /ENCLOSURE-20 5080020001A9C53F [5080020001A857FF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-18 5080020001A9CAA1 [5080020001B61D7F]: IOM 1 : Port 2 /ENCLOSURE-20 5080020001A9C53F [5080020001A857FF] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-20 5080020001A9C53F [5080020001A857FF] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-19 5080020001A9CA98 ------- Enclosure 5080020001A9CA98 IOM 0 is Expander 5080020001B6327F /ENCLOSURE-19 5080020001A9CA98 [5080020001B6327F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-16 5080020001A9CA62 [5080020001B60ABF]: IOM 0 : Port 2 /ENCLOSURE-19 5080020001A9CA98 [5080020001B6327F] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-19 5080020001A9CA98 [5080020001B6327F] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CA98 IOM 1 is Expander 5080020001B625BF /ENCLOSURE-19 5080020001A9CA98 [5080020001B625BF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-17 5080020001A9CB10 [5080020001B5FC3F]: IOM 1 : Port 2 /ENCLOSURE-19 5080020001A9CA98 [5080020001B625BF] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-19 5080020001A9CA98 [5080020001B625BF] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-06 5080020001A9C9E1 ------- Enclosure 5080020001A9C9E1 IOM 0 is Expander 5080020001B6857F /ENCLOSURE-06 5080020001A9C9E1 [5080020001B6857F] : IOM 0 : Port 0 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 1 : Port 0 /ENCLOSURE-06 5080020001A9C9E1 [5080020001B6857F] : IOM 0 : Port 1 <== ==> /ENCLOSURE-07 5080020001A9C9C3 [5080020001B6D0FF]: IOM 0 : Port 0 /ENCLOSURE-06 5080020001A9C9E1 [5080020001B6857F] : IOM 0 : Port 2 <== ==> /ENCLOSURE-09 5080020001A9CAEF [5080020001B60B7F]: IOM 0 : Port 0 Enclosure 5080020001A9C9E1 IOM 1 is Expander 5080020001B6B8FF /ENCLOSURE-06 5080020001A9C9E1 [5080020001B6B8FF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-07 5080020001A9C9C3 [5080020001B5C87F]: IOM 1 : Port 1 /ENCLOSURE-06 5080020001A9C9E1 [5080020001B6B8FF] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-06 5080020001A9C9E1 [5080020001B6B8FF] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-07 5080020001A9C9C3 ------- Enclosure 5080020001A9C9C3 IOM 0 is Expander 5080020001B6D0FF /ENCLOSURE-07 5080020001A9C9C3 [5080020001B6D0FF] : IOM 0 : Port 0 <== ==> /ENCLOSURE-06 5080020001A9C9E1 [5080020001B6857F]: IOM 0 : Port 1 /ENCLOSURE-07 5080020001A9C9C3 [5080020001B6D0FF] : IOM 0 : Port 1 <== ==> /ENCLOSURE-08 5080020001A9CAF3 [5080020001B41CFF]: IOM 0 : Port 0 /ENCLOSURE-07 5080020001A9C9C3 [5080020001B6D0FF] : IOM 0 : Port 2 <== ==> /ENCLOSURE-10 5080020001A9C9EA [5080020001B5CFBF]: IOM 0 : Port 0 Enclosure 5080020001A9C9C3 IOM 1 is Expander 5080020001B5C87F /ENCLOSURE-07 5080020001A9C9C3 [5080020001B5C87F] : IOM 1 : Port 0 <== ==> /ENCLOSURE-08 5080020001A9CAF3 [5080020001B601FF]: IOM 1 : Port 1 /ENCLOSURE-07 5080020001A9C9C3 [5080020001B5C87F] : IOM 1 : Port 1 <== ==> /ENCLOSURE-06 5080020001A9C9E1 [5080020001B6B8FF]: IOM 1 : Port 0 /ENCLOSURE-07 5080020001A9C9C3 [5080020001B5C87F] : IOM 1 : Port 2 <== ==> /ENCLOSURE-09 5080020001A9CAEF [5080020001B5F8FF]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-08 5080020001A9CAF3 ------- Enclosure 5080020001A9CAF3 IOM 0 is Expander 5080020001B41CFF /ENCLOSURE-08 5080020001A9CAF3 [5080020001B41CFF] : IOM 0 : Port 0 <== ==> /ENCLOSURE-07 5080020001A9C9C3 [5080020001B6D0FF]: IOM 0 : Port 1 /ENCLOSURE-08 5080020001A9CAF3 [5080020001B41CFF] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-08 5080020001A9CAF3 [5080020001B41CFF] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CAF3 IOM 1 is Expander 5080020001B601FF /ENCLOSURE-08 5080020001A9CAF3 [5080020001B601FF] : IOM 1 : Port 0 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 1 : Port 0 /ENCLOSURE-08 5080020001A9CAF3 [5080020001B601FF] : IOM 1 : Port 1 <== ==> /ENCLOSURE-07 5080020001A9C9C3 [5080020001B5C87F]: IOM 1 : Port 0 /ENCLOSURE-08 5080020001A9CAF3 [5080020001B601FF] : IOM 1 : Port 2 <== ==> /ENCLOSURE-10 5080020001A9C9EA [5080020001B5CB3F]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-10 5080020001A9C9EA ------- Enclosure 5080020001A9C9EA IOM 0 is Expander 5080020001B5CFBF /ENCLOSURE-10 5080020001A9C9EA [5080020001B5CFBF] : IOM 0 : Port 0 <== ==> /ENCLOSURE-07 5080020001A9C9C3 [5080020001B6D0FF]: IOM 0 : Port 2 /ENCLOSURE-10 5080020001A9C9EA [5080020001B5CFBF] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-10 5080020001A9C9EA [5080020001B5CFBF] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9C9EA IOM 1 is Expander 5080020001B5CB3F /ENCLOSURE-10 5080020001A9C9EA [5080020001B5CB3F] : IOM 1 : Port 0 <== ==> /ENCLOSURE-08 5080020001A9CAF3 [5080020001B601FF]: IOM 1 : Port 2 /ENCLOSURE-10 5080020001A9C9EA [5080020001B5CB3F] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-10 5080020001A9C9EA [5080020001B5CB3F] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-09 5080020001A9CAEF ------- Enclosure 5080020001A9CAEF IOM 0 is Expander 5080020001B60B7F /ENCLOSURE-09 5080020001A9CAEF [5080020001B60B7F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-06 5080020001A9C9E1 [5080020001B6857F]: IOM 0 : Port 2 /ENCLOSURE-09 5080020001A9CAEF [5080020001B60B7F] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-09 5080020001A9CAEF [5080020001B60B7F] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CAEF IOM 1 is Expander 5080020001B5F8FF /ENCLOSURE-09 5080020001A9CAEF [5080020001B5F8FF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-07 5080020001A9C9C3 [5080020001B5C87F]: IOM 1 : Port 2 /ENCLOSURE-09 5080020001A9CAEF [5080020001B5F8FF] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-09 5080020001A9CAEF [5080020001B5F8FF] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-21 5080020001A9CA9F ------- Enclosure 5080020001A9CA9F IOM 0 is Expander 5080020001B6053F /ENCLOSURE-21 5080020001A9CA9F [5080020001B6053F] : IOM 0 : Port 0 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 1 : Port 1 /ENCLOSURE-21 5080020001A9CA9F [5080020001B6053F] : IOM 0 : Port 1 <== ==> /ENCLOSURE-22 5080020001A9CA8E [5080020001B61A7F]: IOM 0 : Port 0 /ENCLOSURE-21 5080020001A9CA9F [5080020001B6053F] : IOM 0 : Port 2 <== ==> /ENCLOSURE-24 5080020001A9C9B9 [5080020001B5E47F]: IOM 0 : Port 0 Enclosure 5080020001A9CA9F IOM 1 is Expander 5080020001B60A3F /ENCLOSURE-21 5080020001A9CA9F [5080020001B60A3F] : IOM 1 : Port 0 <== ==> /ENCLOSURE-22 5080020001A9CA8E [5080020001B6153F]: IOM 1 : Port 1 /ENCLOSURE-21 5080020001A9CA9F [5080020001B60A3F] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-21 5080020001A9CA9F [5080020001B60A3F] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-22 5080020001A9CA8E ------- Enclosure 5080020001A9CA8E IOM 0 is Expander 5080020001B61A7F /ENCLOSURE-22 5080020001A9CA8E [5080020001B61A7F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-21 5080020001A9CA9F [5080020001B6053F]: IOM 0 : Port 1 /ENCLOSURE-22 5080020001A9CA8E [5080020001B61A7F] : IOM 0 : Port 1 <== ==> /ENCLOSURE-23 5080020001A9CA97 [5080020001B626BF]: IOM 0 : Port 0 /ENCLOSURE-22 5080020001A9CA8E [5080020001B61A7F] : IOM 0 : Port 2 <== ==> /ENCLOSURE-25 5080020001A9CC78 [5080020001B51C7F]: IOM 0 : Port 0 Enclosure 5080020001A9CA8E IOM 1 is Expander 5080020001B6153F /ENCLOSURE-22 5080020001A9CA8E [5080020001B6153F] : IOM 1 : Port 0 <== ==> /ENCLOSURE-23 5080020001A9CA97 [5080020001B61FFF]: IOM 1 : Port 1 /ENCLOSURE-22 5080020001A9CA8E [5080020001B6153F] : IOM 1 : Port 1 <== ==> /ENCLOSURE-21 5080020001A9CA9F [5080020001B60A3F]: IOM 1 : Port 0 /ENCLOSURE-22 5080020001A9CA8E [5080020001B6153F] : IOM 1 : Port 2 <== ==> /ENCLOSURE-24 5080020001A9C9B9 [5080020001B5E3FF]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-23 5080020001A9CA97 ------- Enclosure 5080020001A9CA97 IOM 0 is Expander 5080020001B626BF /ENCLOSURE-23 5080020001A9CA97 [5080020001B626BF] : IOM 0 : Port 0 <== ==> /ENCLOSURE-22 5080020001A9CA8E [5080020001B61A7F]: IOM 0 : Port 1 /ENCLOSURE-23 5080020001A9CA97 [5080020001B626BF] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-23 5080020001A9CA97 [5080020001B626BF] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CA97 IOM 1 is Expander 5080020001B61FFF /ENCLOSURE-23 5080020001A9CA97 [5080020001B61FFF] : IOM 1 : Port 0 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 1 : Port 1 /ENCLOSURE-23 5080020001A9CA97 [5080020001B61FFF] : IOM 1 : Port 1 <== ==> /ENCLOSURE-22 5080020001A9CA8E [5080020001B6153F]: IOM 1 : Port 0 /ENCLOSURE-23 5080020001A9CA97 [5080020001B61FFF] : IOM 1 : Port 2 <== ==> /ENCLOSURE-25 5080020001A9CC78 [5080020001B5AEFF]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-25 5080020001A9CC78 ------- Enclosure 5080020001A9CC78 IOM 0 is Expander 5080020001B51C7F /ENCLOSURE-25 5080020001A9CC78 [5080020001B51C7F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-22 5080020001A9CA8E [5080020001B61A7F]: IOM 0 : Port 2 /ENCLOSURE-25 5080020001A9CC78 [5080020001B51C7F] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-25 5080020001A9CC78 [5080020001B51C7F] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CC78 IOM 1 is Expander 5080020001B5AEFF /ENCLOSURE-25 5080020001A9CC78 [5080020001B5AEFF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-23 5080020001A9CA97 [5080020001B61FFF]: IOM 1 : Port 2 /ENCLOSURE-25 5080020001A9CC78 [5080020001B5AEFF] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-25 5080020001A9CC78 [5080020001B5AEFF] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-24 5080020001A9C9B9 ------- Enclosure 5080020001A9C9B9 IOM 0 is Expander 5080020001B5E47F /ENCLOSURE-24 5080020001A9C9B9 [5080020001B5E47F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-21 5080020001A9CA9F [5080020001B6053F]: IOM 0 : Port 2 /ENCLOSURE-24 5080020001A9C9B9 [5080020001B5E47F] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-24 5080020001A9C9B9 [5080020001B5E47F] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9C9B9 IOM 1 is Expander 5080020001B5E3FF /ENCLOSURE-24 5080020001A9C9B9 [5080020001B5E3FF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-22 5080020001A9CA8E [5080020001B6153F]: IOM 1 : Port 2 /ENCLOSURE-24 5080020001A9C9B9 [5080020001B5E3FF] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-24 5080020001A9C9B9 [5080020001B5E3FF] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-11 5080020001A9CA9E ------- Enclosure 5080020001A9CA9E IOM 0 is Expander 5080020001B605FF /ENCLOSURE-11 5080020001A9CA9E [5080020001B605FF] : IOM 0 : Port 0 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 2 : Port 0 /ENCLOSURE-11 5080020001A9CA9E [5080020001B605FF] : IOM 0 : Port 1 <== ==> /ENCLOSURE-12 50800200019EFD06 [5080020001A180BF]: IOM 0 : Port 0 /ENCLOSURE-11 5080020001A9CA9E [5080020001B605FF] : IOM 0 : Port 2 <== ==> /ENCLOSURE-14 5080020001A9CAAA [5080020001B61C7F]: IOM 0 : Port 0 Enclosure 5080020001A9CA9E IOM 1 is Expander 5080020001B601BF /ENCLOSURE-11 5080020001A9CA9E [5080020001B601BF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-12 50800200019EFD06 [5080020001A1927F]: IOM 1 : Port 1 /ENCLOSURE-11 5080020001A9CA9E [5080020001B601BF] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-11 5080020001A9CA9E [5080020001B601BF] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-12 50800200019EFD06 ------- Enclosure 50800200019EFD06 IOM 0 is Expander 5080020001A180BF /ENCLOSURE-12 50800200019EFD06 [5080020001A180BF] : IOM 0 : Port 0 <== ==> /ENCLOSURE-11 5080020001A9CA9E [5080020001B605FF]: IOM 0 : Port 1 /ENCLOSURE-12 50800200019EFD06 [5080020001A180BF] : IOM 0 : Port 1 <== ==> /ENCLOSURE-13 5080020001A9CA0F [5080020001B5B53F]: IOM 0 : Port 0 /ENCLOSURE-12 50800200019EFD06 [5080020001A180BF] : IOM 0 : Port 2 <== ==> /ENCLOSURE-15 508002000168917C [508002000167F9FF]: IOM 0 : Port 0 Enclosure 50800200019EFD06 IOM 1 is Expander 5080020001A1927F /ENCLOSURE-12 50800200019EFD06 [5080020001A1927F] : IOM 1 : Port 0 <== ==> /ENCLOSURE-13 5080020001A9CA0F [5080020001B5B2FF]: IOM 1 : Port 1 /ENCLOSURE-12 50800200019EFD06 [5080020001A1927F] : IOM 1 : Port 1 <== ==> /ENCLOSURE-11 5080020001A9CA9E [5080020001B601BF]: IOM 1 : Port 0 /ENCLOSURE-12 50800200019EFD06 [5080020001A1927F] : IOM 1 : Port 2 <== ==> /ENCLOSURE-14 5080020001A9CAAA [5080020001B616BF]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-13 5080020001A9CA0F ------- Enclosure 5080020001A9CA0F IOM 0 is Expander 5080020001B5B53F /ENCLOSURE-13 5080020001A9CA0F [5080020001B5B53F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-12 50800200019EFD06 [5080020001A180BF]: IOM 0 : Port 1 /ENCLOSURE-13 5080020001A9CA0F [5080020001B5B53F] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-13 5080020001A9CA0F [5080020001B5B53F] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CA0F IOM 1 is Expander 5080020001B5B2FF /ENCLOSURE-13 5080020001A9CA0F [5080020001B5B2FF] : IOM 1 : Port 0 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 2 : Port 0 /ENCLOSURE-13 5080020001A9CA0F [5080020001B5B2FF] : IOM 1 : Port 1 <== ==> /ENCLOSURE-12 50800200019EFD06 [5080020001A1927F]: IOM 1 : Port 0 /ENCLOSURE-13 5080020001A9CA0F [5080020001B5B2FF] : IOM 1 : Port 2 <== ==> /ENCLOSURE-15 508002000168917C [508002000167FA7F]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-15 508002000168917C ------- Enclosure 508002000168917C IOM 0 is Expander 508002000167F9FF /ENCLOSURE-15 508002000168917C [508002000167F9FF] : IOM 0 : Port 0 <== ==> /ENCLOSURE-12 50800200019EFD06 [5080020001A180BF]: IOM 0 : Port 2 /ENCLOSURE-15 508002000168917C [508002000167F9FF] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-15 508002000168917C [508002000167F9FF] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 508002000168917C IOM 1 is Expander 508002000167FA7F /ENCLOSURE-15 508002000168917C [508002000167FA7F] : IOM 1 : Port 0 <== ==> /ENCLOSURE-13 5080020001A9CA0F [5080020001B5B2FF]: IOM 1 : Port 2 /ENCLOSURE-15 508002000168917C [508002000167FA7F] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-15 508002000168917C [508002000167FA7F] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-14 5080020001A9CAAA ------- Enclosure 5080020001A9CAAA IOM 0 is Expander 5080020001B61C7F /ENCLOSURE-14 5080020001A9CAAA [5080020001B61C7F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-11 5080020001A9CA9E [5080020001B605FF]: IOM 0 : Port 2 /ENCLOSURE-14 5080020001A9CAAA [5080020001B61C7F] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-14 5080020001A9CAAA [5080020001B61C7F] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CAAA IOM 1 is Expander 5080020001B616BF /ENCLOSURE-14 5080020001A9CAAA [5080020001B616BF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-12 50800200019EFD06 [5080020001A1927F]: IOM 1 : Port 2 /ENCLOSURE-14 5080020001A9CAAA [5080020001B616BF] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-14 5080020001A9CAAA [5080020001B616BF] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-26 5080020001A9C6AA ------- Enclosure 5080020001A9C6AA IOM 0 is Expander 5080020001B313BF /ENCLOSURE-26 5080020001A9C6AA [5080020001B313BF] : IOM 0 : Port 0 <== ==> /CONTROLLER-01 508002000158BF40 : HBA 2 : Port 1 /ENCLOSURE-26 5080020001A9C6AA [5080020001B313BF] : IOM 0 : Port 1 <== ==> /ENCLOSURE-27 5080020001A9CA66 [5080020001B6123F]: IOM 0 : Port 0 /ENCLOSURE-26 5080020001A9C6AA [5080020001B313BF] : IOM 0 : Port 2 <== ==> /ENCLOSURE-29 5080020001A9CAA6 [5080020001B61FBF]: IOM 0 : Port 0 Enclosure 5080020001A9C6AA IOM 1 is Expander 5080020001B37EBF /ENCLOSURE-26 5080020001A9C6AA [5080020001B37EBF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-27 5080020001A9CA66 [5080020001B5EEBF]: IOM 1 : Port 1 /ENCLOSURE-26 5080020001A9C6AA [5080020001B37EBF] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-26 5080020001A9C6AA [5080020001B37EBF] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-27 5080020001A9CA66 ------- Enclosure 5080020001A9CA66 IOM 0 is Expander 5080020001B6123F /ENCLOSURE-27 5080020001A9CA66 [5080020001B6123F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-26 5080020001A9C6AA [5080020001B313BF]: IOM 0 : Port 1 /ENCLOSURE-27 5080020001A9CA66 [5080020001B6123F] : IOM 0 : Port 1 <== ==> /ENCLOSURE-28 5080020001A9CA9A [5080020001B6277F]: IOM 0 : Port 0 /ENCLOSURE-27 5080020001A9CA66 [5080020001B6123F] : IOM 0 : Port 2 <== ==> /ENCLOSURE-30 5080020001A9CBA2 [5080020001B6117F]: IOM 0 : Port 0 Enclosure 5080020001A9CA66 IOM 1 is Expander 5080020001B5EEBF /ENCLOSURE-27 5080020001A9CA66 [5080020001B5EEBF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-28 5080020001A9CA9A [5080020001B6203F]: IOM 1 : Port 1 /ENCLOSURE-27 5080020001A9CA66 [5080020001B5EEBF] : IOM 1 : Port 1 <== ==> /ENCLOSURE-26 5080020001A9C6AA [5080020001B37EBF]: IOM 1 : Port 0 /ENCLOSURE-27 5080020001A9CA66 [5080020001B5EEBF] : IOM 1 : Port 2 <== ==> /ENCLOSURE-29 5080020001A9CAA6 [5080020001B6263F]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-28 5080020001A9CA9A ------- Enclosure 5080020001A9CA9A IOM 0 is Expander 5080020001B6277F /ENCLOSURE-28 5080020001A9CA9A [5080020001B6277F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-27 5080020001A9CA66 [5080020001B6123F]: IOM 0 : Port 1 /ENCLOSURE-28 5080020001A9CA9A [5080020001B6277F] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-28 5080020001A9CA9A [5080020001B6277F] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CA9A IOM 1 is Expander 5080020001B6203F /ENCLOSURE-28 5080020001A9CA9A [5080020001B6203F] : IOM 1 : Port 0 <== ==> /CONTROLLER-02 508002000158BF41 : HBA 2 : Port 1 /ENCLOSURE-28 5080020001A9CA9A [5080020001B6203F] : IOM 1 : Port 1 <== ==> /ENCLOSURE-27 5080020001A9CA66 [5080020001B5EEBF]: IOM 1 : Port 0 /ENCLOSURE-28 5080020001A9CA9A [5080020001B6203F] : IOM 1 : Port 2 <== ==> /ENCLOSURE-30 5080020001A9CBA2 [5080020001B3FEBF]: IOM 1 : Port 0 ------- CONN MAP FOR /ENCLOSURE-30 5080020001A9CBA2 ------- Enclosure 5080020001A9CBA2 IOM 0 is Expander 5080020001B6117F /ENCLOSURE-30 5080020001A9CBA2 [5080020001B6117F] : IOM 0 : Port 0 <== ==> /ENCLOSURE-27 5080020001A9CA66 [5080020001B6123F]: IOM 0 : Port 2 /ENCLOSURE-30 5080020001A9CBA2 [5080020001B6117F] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-30 5080020001A9CBA2 [5080020001B6117F] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CBA2 IOM 1 is Expander 5080020001B3FEBF /ENCLOSURE-30 5080020001A9CBA2 [5080020001B3FEBF] : IOM 1 : Port 0 <== ==> /ENCLOSURE-28 5080020001A9CA9A [5080020001B6203F]: IOM 1 : Port 2 /ENCLOSURE-30 5080020001A9CBA2 [5080020001B3FEBF] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-30 5080020001A9CBA2 [5080020001B3FEBF] : IOM 1 : Port 2 <== ==> DISCONNECTED ------- CONN MAP FOR /ENCLOSURE-29 5080020001A9CAA6 ------- Enclosure 5080020001A9CAA6 IOM 0 is Expander 5080020001B61FBF /ENCLOSURE-29 5080020001A9CAA6 [5080020001B61FBF] : IOM 0 : Port 0 <== ==> /ENCLOSURE-26 5080020001A9C6AA [5080020001B313BF]: IOM 0 : Port 2 /ENCLOSURE-29 5080020001A9CAA6 [5080020001B61FBF] : IOM 0 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-29 5080020001A9CAA6 [5080020001B61FBF] : IOM 0 : Port 2 <== ==> DISCONNECTED Enclosure 5080020001A9CAA6 IOM 1 is Expander 5080020001B6263F /ENCLOSURE-29 5080020001A9CAA6 [5080020001B6263F] : IOM 1 : Port 0 <== ==> /ENCLOSURE-27 5080020001A9CA66 [5080020001B5EEBF]: IOM 1 : Port 2 /ENCLOSURE-29 5080020001A9CAA6 [5080020001B6263F] : IOM 1 : Port 1 <== ==> DISCONNECTED /ENCLOSURE-29 5080020001A9CAA6 [5080020001B6263F] : IOM 1 : Port 2 <== ==> DISCONNECTED
