Floor Plan Jump - Image Management

The Floor Plan displays the layout of each floor or area, and configurable to overlay with image map areas to create interactive links to room statuses for Room Management / Housekeeping.

Videos and Tutorials

Tutorial - How to Create and Map your Floor Plan   How to Create and Map your Floor Plan 1. Upload a graphic of your Floor Plan in Image Management (Administration > Client Relations Management > Image Management) 2. Select the Floor Plan jump > Edit Image > Manage Floor Plan. 3. Select New Section, and click each segment and drag to outline the area.     Double-click at the end of the last segment to close the area. 4. In the Manage Section popup, enter (or select) the room number / name, and then select Description to auto-fill the field, or enter a description of your own. 5. Select Save Changes.   When finished, you will see all of the outlines labeled with their room numbers / names. This Floor Plan will now reflect the color-coded room statuses in the Floor Plan jump in Room Management (Application > Inventory > Room Management > Floor Plan jump).

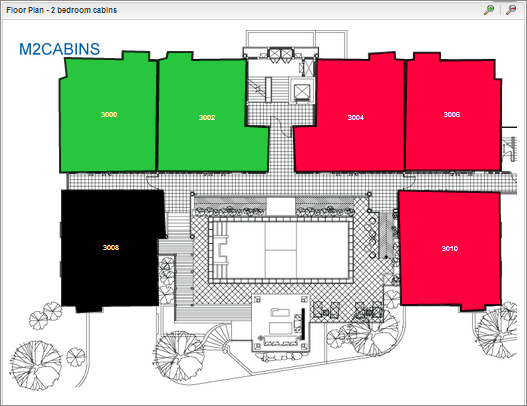

Interactive Floor Plan as shown in the Floor Plan jump in Room Management:

In the Room Management Workspace Application > Inventory > Room Management select the Floor Plan jump, enter the Property, and use the filter for your plan options.

The floor plan uses color coding to show at a glance the housekeeping status of each guest room. You can also view room and room type information by selecting the room.

The rooms outlined above show their current housekeeping status. Here, the green are inspected, red are dirty, and the black is Out of Service.

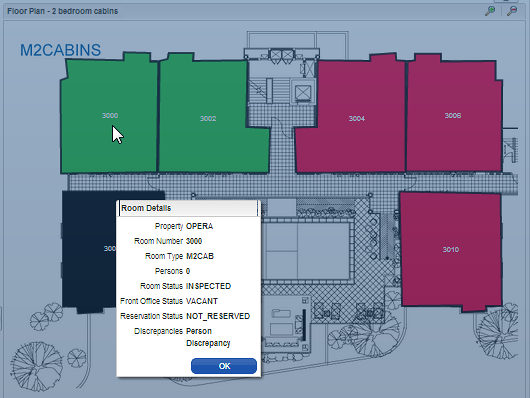

Select a room to view further detail, including occupancy and room type (below).
