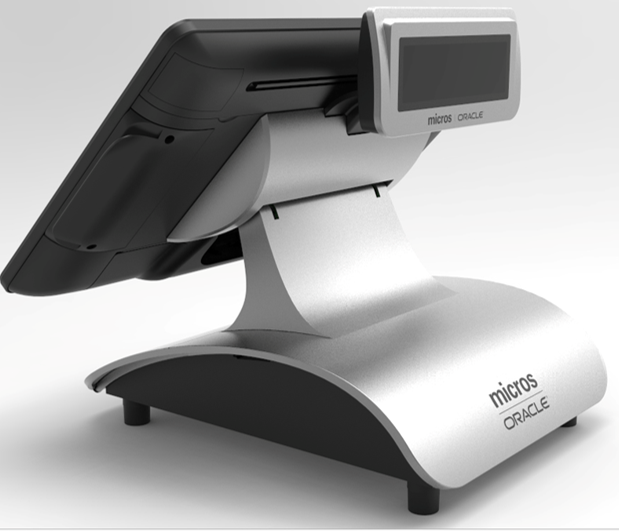

The High-Mount Customer Display is only available for the revised MICROS Workstation 6 Series Adjustable Stand (see Prerequisites). The display and bracket are provided as a complete assembly and ready for installation.
Prerequisites:
-
Workstation 6 Series Adjustable Stand with High- and Low- Mount Customer Display Options (Part Number: 7114626)
-
High-Mount Customer Display and Bracket Assembly (Part Number: 7114627)
-
No. 2 (1/4 in.) Phillips screwdriver
To install the High-Mount Customer Display on the Workstation 6 Series Adjustable Stand:
- Place the Adjustable Stand upright on a flat surface, and then tilt the mounting plate upwards to a vertical position.
- Remove the High-Mount slot cover.
- Slide the Customer Display power cord through the High-Mount slot and down through the mounting plate.
- Insert the display and bracket assembly into the High-Mount slot. The bracket should be firmly locked into place.
- To adjust or remove, press the release button on the bottom of the bracket to unlock.
- Secure the display and bracket assembly to the Adjustable Stand using the provided security screws (2) and a No. 2 (1/4”) Phillips screwdriver.
- Insert the Customer Display power cord into the Customer Display slot on the I/O Panel.
