Removing the Workstation from the Adjustable Stand

  1. Disconnect all cables from the I/O ports.
  2. Tilt back the workstation, and then
  3. Squeeze the tabs on each side of the DC power cable, and then pull the connector out of the workstation power port.

    This figure shows where to grip the DC power cable in order to remove it.
  4. If you secured the workstation to the Adjustable Stand using a security screw, remove the security screw.

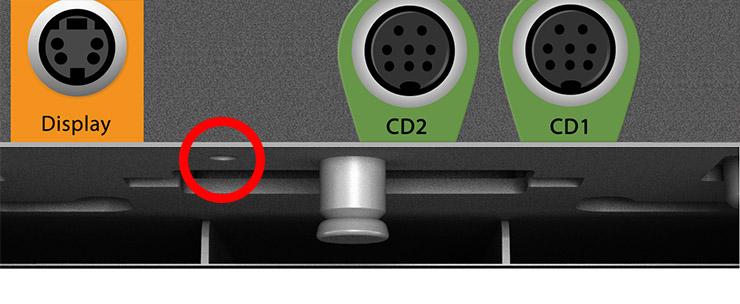

    This figures shows the location of the security screw on the Workstation 625/655.
  5. Pull down the quick release pin, and then gently push the workstation.

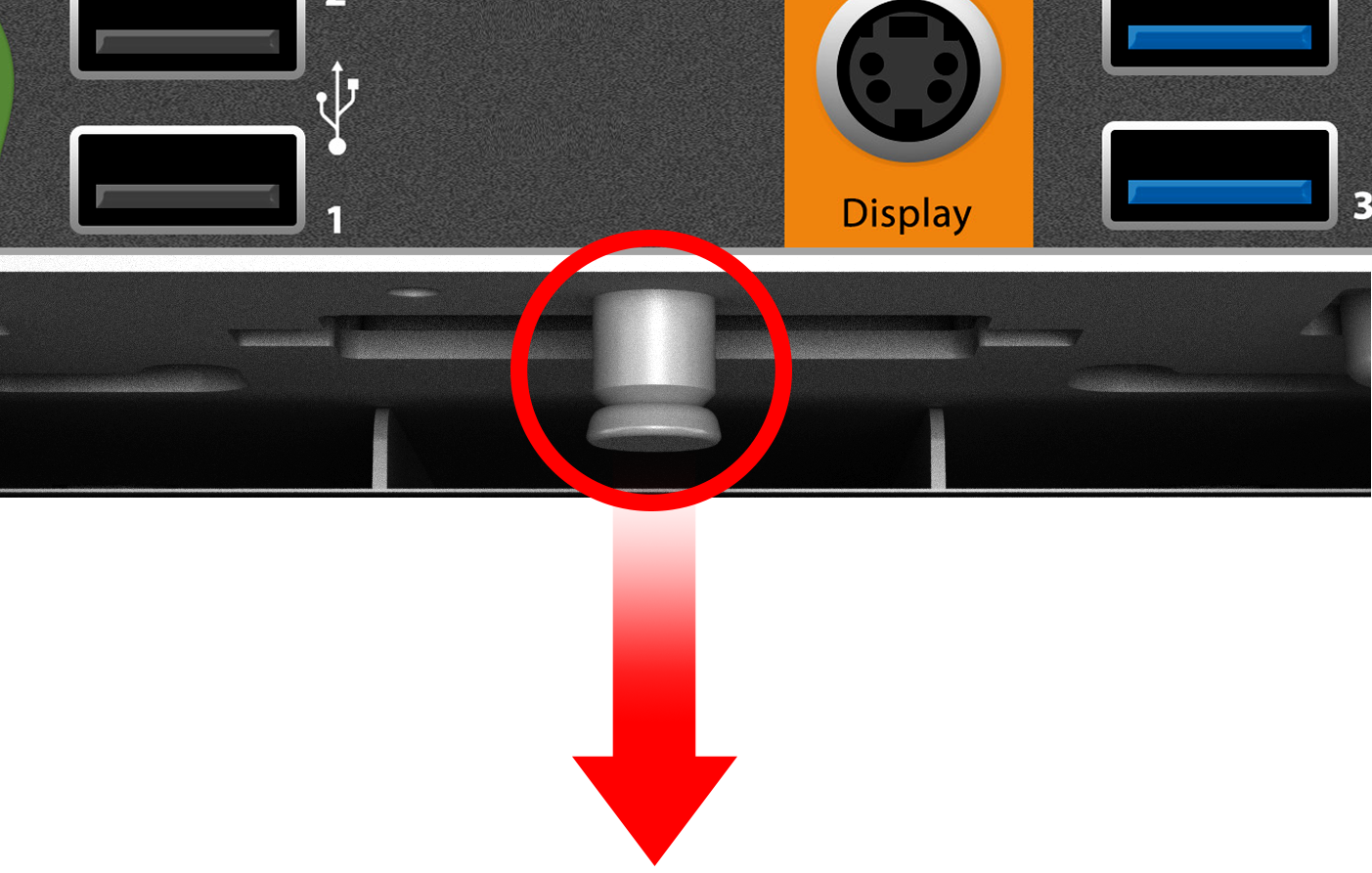

    This figure shows the location of the quick release pin on the Workstation 6 Series Adjustable Stand.
  6. Slide the workstation all the way back, and then lift to unmount.
