Siebel Order Management Guide > Workflow and Method Reference for Order Management Interface > Order Management Interface Workflow Reference >
ISS Post Approval Workflow (Order) Workflow
ISS Post Approval Workflow (Order) workflow, shown in Figure 30, checks whether any additional approvals are needed. It is triggered when a user approves an Order to see if additional approvals are needed.

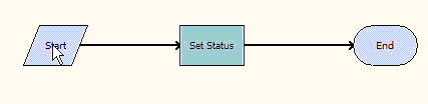

Figure 30. ISS Post Approval Workflow (Order) Workflow
|
Workflow Description. This workflow does the following: Calls the SetApprovalDecision method of the ISS Approval Bus Service Business Service. This will set the status of the current approval item and check to see if additional approval is needed. Process Properties
|
|
|
|
ActionLIC |
Order Entry |
String |
The Language Independent Code for the Action Field |
Approval Level Name |
Order Entry |
String |
The name of the Approval Level that is defined in the Approval Administration screen. |
Error Code |
Order Entry |
String |
The Error Code that is returned if an error occurs. |
Error Message |
Order Entry |
String |
The Error Message that is returned if an error occurs. |
InboxItemId |
Order Entry |
String |
The Row ID of the current Universal Inbox Item. |
InboxTypeName |
Order Entry |
String |
The Universal Inbox Type. |
Object Id |
Order Entry |
String |
Obsolete. |
ObjectId |
Order Entry |
String |
The Row ID of the current object. |
OwnerInfoId |
Order Entry |
String |
The Row ID of the approver. |
Process Instance Id |
Order Entry |
String |
The Row ID of the current workflow process. |
Returned Status |
Order Entry |
String |
The Status of the Approval Item. |
SendEmail |
Order Entry |
String |
Variable to determine if email is sent to the person who needs to approve the current item. |
SeqNum |
Order Entry |
String |
The Sequence Number for the current approval level. |
Siebel Operation Object Id |
Order Entry |
String |
The Row ID of the Siebel Operation Object. |
StageId |
Order Entry |
String |
The Row ID of the current Approval Stage. |
|
