Access control is the term used to describe the set of Siebel application mechanisms that control user access to data and application functionality. As you work with this chapter, determine how the terminology and concepts presented here correspond to your company's internal terminology and structure. This chapter explains the Siebel access mechanisms, but you have to decide during the planning stage how to combine the mechanisms to meet your business and security needs.
In Siebel application terms, a screen represents a broad area of functionality, such as working on accounts. The set of screens to which a user has access is determined by the applications that your company has purchased. Each screen is represented as a tab at the top of the window. In the example below, the Accounts screen is displayed.
Each screen contains multiple views to provide different kinds of access to the data. To the user, a view is simply a Web page. Within a view, the user might see lists of data records or forms, presenting individual or multiple records, and sometimes child records. (These lists and forms are referred to as applets in a configuration context.) Each view (or grouping of views) is represented by text in the link bar below the screen tabs.

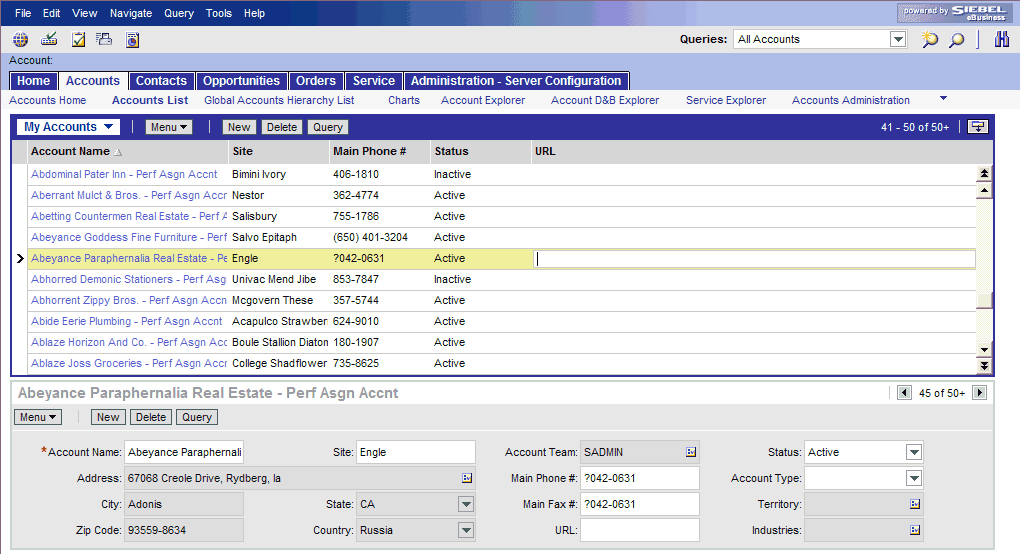

For example, Figure 9-1 shows the Account List View, which corresponds to the applet title My Accounts (the current visibility filter selection). Multiple view modes provide access to different views that filter the data differently. In the Account List View, the current user can view accounts owned or assigned to this user. Choosing All Accounts from the visibility filter displays the All Account List View instead, assuming the user has access to this view.
To control the resources and privileges that users are entitled to once they have accessed a Siebel application and have been authenticated, Siebel CRM provides the following access-control elements:
View-level access control. A screen is composed of views, and the collection of views to which users have access determines the application functionality available to them. Access to views is determined by responsibilities.
Organizations are generally arranged around job functions, with employees being assigned one or more functions. In Siebel CRM, these job functions are called responsibilities. Each responsibility is associated with one or more views, which represent data and functionality needed for a job function. Each user must be assigned at least one responsibility to access the Siebel application.
Siebel Business Applications ship with many predefined responsibilities and you can also define any additional responsibilities you require. For additional information, see "Responsibilities and Access Control".
Record-level access control. Record-level access control is used to assign permissions to individual data items within an application so that only authenticated users who need to view particular data records have access to that information. You can control the data records that each user can see through a variety of mechanisms, including direct record ownership by a user (personal access control) or being on the same team as the record owner (team access control). The following topics examine access control further:
Business Components and Data Access. Within Siebel CRM, views are based on business components and must use one of the view modes specified for the business component. A business component's view mode determines the record-level access control mechanisms that can be applied to the business component in any view. Applet and view properties also determine the data available in a view. For additional information, see "About View and Data Access Control".
Figure 9-2 illustrates the Siebel access control elements. As shown in the figure, responsibilities provide access to views, and the data records visible to a user on a view are determined by the type of access control that applies to the data, the business component view mode, and view and applet visibility properties.
Individual people, groupings of people, and entities that represent people or groups are unified in the common notion of parties. Different party types have different access control mechanisms available.
Note: For technical information about how parties function at the data model level, see "Party Data Model". |
Parties are categorized into the following party types: Person, Position, Organization, Household, User List, and Access Group. Table 9-1, "Party Types and Parties" describes the qualitative differences among different parties and identifies the applicable party type for each party.
Table 9-1 Party Types and Parties
Party | Party Type | Examples | Distinguishing Features |
---|---|---|---|
Person (or Contact) |
Person |
|
|
User |
Person |
|
|
Employee |
Person |
An employee at your company. |
|
Position |
Position |
|
|
Partner User |
Person |
An employee at a partner company. |
|
Account |
Organization |
A company or group of individuals with whom you do business. |
|
Division |
Organization |
|
|
Organization |
Organization |
|
|
Household |
Household |
|
|
User List |
User List |
|
|
Access Group |
Access Group |
|
|
Related Topic
The type of data and whether the data is categorized determines which access control mechanisms can be applied. The following groupings of data are necessary for the purpose of discussing access control:
Customer data includes contacts and transactional data such as opportunities, orders, quotes, service requests, and accounts.
Access is controlled at the data item level, through a mechanism such as individual record ownership or ownership by an organization.
Master data includes the following referential data: products, literature, solutions, resolution items, decision issues, events, training courses, and competitors.
Master data can be grouped into categories of similar items, for example, hard drives. Categories can then be organized into catalogs, for example, computer hardware, which are hierarchies of categories. Access can be controlled at the catalog and category levels through access groups, which is the recommended strategy for controlling access to master data. For more information about creating catalogs, see Siebel eSales Administration Guide.
Master data can be associated with organizations. By associating master data with organizations, access can be controlled at the data item level. This strategy requires more administration than the access group strategy.
Note: Divisions provide a way to logically group positions and assign currencies. Organizations provide a mechanism to control data access. |
Other data
Other data includes referential data that is not master data, such as price lists, cost lists, rate lists, and SmartScripts.
Access is controlled at the data item level.
Master data can be organized into catalogs made up of hierarchical categories. Organizing data this way serves two purposes:
Ease of navigation. Categorized data is easier to navigate and search. For example, it is easy to find products of interest in a product catalog organized by product lines and subgroups of related products. For example: Computer Hardware, Hard Drives, and then Server Drives.
Access control. Access to catalogs and categories of master data can be granted to collections of users. This is an efficient means to control data access in given business scenarios. For example, you can control partner users' access to your internal literature.

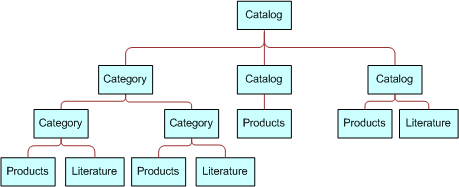

You can categorize master data to represent hierarchical structures, such as product catalogs, geographical categories, service entitlement levels, training subject areas, or channel partners. A catalog is a single hierarchy of categories, as illustrated in Figure 9-3.
The following properties apply to catalogs and categories:
A catalog is a collection or hierarchy of categories.
Individual data items are contained in categories.
A category can contain one or more types of master data.
A category can be a node in only one catalog.
A data item can exist in one or more categories, in one or more catalogs.
A catalog can be public or private. If it is private, then some access control is applied at the catalog level. If it is public, then all users can see this catalog, but not necessarily categories within this catalog, depending on whether the categories are private or public.
