Siebel Installation Guide for UNIX > Overview of Installing Siebel Business Applications >

Roadmap for Installing and Configuring Siebel Business Applications in an Upgrade Case (Existing Database)

Use this roadmap to guide you in performing the installation and configuration tasks for deploying the current release of Siebel CRM, where there is an existing Siebel database and you are upgrading to the current release from a Siebel CRM release prior to version 8.1.1 or version 8.2.2. The current release is Siebel CRM version 16.0 (Siebel Innovation Pack 2016).

TIP:   For the migration installation case, where you are upgrading to the current release from an existing installation of a prior release of Siebel CRM version 8.1.1.x, version 8.2.2.x, or version 15.x, see Roadmap for Installing Siebel Business Applications in a Migration Installation Case (Existing Installation) instead. In a migration installation, you run Incremental Repository Merge instead of performing a full database upgrade. In general, this book uses the term migration to refer to a migration installation and uses the term upgrade to refer to a full database upgrade.

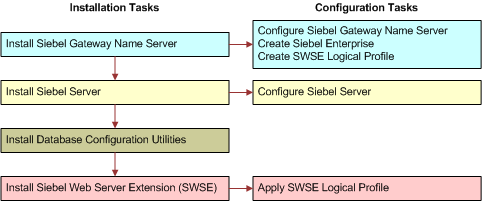

Figure 3 presents a simplified view of the installation and configuration tasks for Siebel CRM server-based modules that apply in an upgrade installation case. You install Database Configuration Utilities with the first installed Siebel Server.

Figure 3. Installing and Configuring Servers in an Upgrade Case

NOTE:  It is recommended that, for each applicable Siebel module, you install the latest Siebel Patchset release, where available. Install the patchset before you run any of the Siebel Configuration Wizards. For more information, see About Siebel CRM Releases.

This roadmap only briefly mentions the database upgrade tasks. Before you upgrade, you must have installed at least one Siebel Server with Database Configuration Utilities and installed Siebel Tools. For more information about upgrading, see About Installing in Upgrade Environments and see Siebel Database Upgrade Guide.

The installation process for Siebel Business Applications in an upgrade installation case requires multiple tasks that you perform in the following general sequence:

1. Before performing installation and configuration tasks, review all documented requirements.

   See Before You Install Siebel Business Applications.

2. Create the network images for all applicable releases of Siebel CRM:
   • Create a network image for the current release, Siebel CRM version 16.0.
   • Create a network image for the latest Siebel Patchset release, where available.

     See Creating the Siebel Installation Image on the Network.

3. For the Siebel Enterprise Server, install the current release. Then install the latest Siebel Patchset release. Install the following Siebel Enterprise Server components:
   1. Siebel Gateway Name Server
   2. Siebel Server
   3. Database Configuration Utilities (install with the first Siebel Server)

      See Installing Siebel Enterprise Server Components and the Siebel Web Server Extension.

4. For Siebel Tools, install the current release. Then install the latest Siebel Patchset release.

   NOTE:  When you install the current release, Oracle Database XE is installed for use with the local database. You can optionally install the local database with Siebel Tools.

   See Installing Siebel Web Clients and Siebel Tools.

5. Run Incremental Repository Merge.

   See Siebel Database Upgrade Guide.

6. Activate the license keys.

   See Activating License Keys.

7. Configure the following Siebel Enterprise Server modules, in the sequence shown:
   1. Siebel Gateway Name Server
   2. Siebel Enterprise on the Siebel Gateway Name Server computer

      See Configuring Siebel Enterprise Server Components and the Siebel Web Server Extension and Additional Postinstallation and Configuration Tasks.

8. Configure the Siebel Server, and perform the postinstallation tasks.

   NOTE:  You must install and configure a Siebel Server before you can configure the Siebel Web Server Extension (SWSE).

   See Configuring Siebel Enterprise Server Components and the Siebel Web Server Extension and Additional Postinstallation and Configuration Tasks.

9. For the Siebel Web Server Extension (SWSE), install the current release. Then install the latest Siebel Patchset release.

   See Installing Siebel Enterprise Server Components and the Siebel Web Server Extension.

10. Configure the Siebel Web Server Extension (SWSE) in the following sequence:
    1. Configure the logical profile for the SWSE on the Siebel Gateway Name Server computer.
    2. Apply the SWSE logical profile on the Web server computer where you installed SWSE.

       See Configuring Siebel Enterprise Server Components and the Siebel Web Server Extension and Additional Postinstallation and Configuration Tasks.

11. (Optional) If you are using Siebel load balancing, then you also generate the load balancing configuration file lbconfig.txt after installing and configuring participating Siebel Servers. Place the file in the SWSE logical profile directory, and reapply the logical profile.

    For more information, see Process of Configuring Load Balancing for Siebel Business Applications.

12. For Siebel Mobile Web Clients or Developer Web Clients, install the current release. Then install the latest Siebel Patchset release.

    NOTE:  When you install the current release, Oracle Database XE is installed for use with the local database or sample database, for Siebel Mobile Web Client. You can optionally install the sample database with this client.

    See Installing Siebel Web Clients and Siebel Tools.

13. Verify the installation of Siebel Business Applications modules.

    See Verifying and Troubleshooting Your Installation.

14. Upgrade the Siebel database.

    See About Installing in Upgrade Environments and see Siebel Database Upgrade Guide.

15. Activate the license keys.

    See Activating License Keys.

16. (Optional) Install additional Siebel modules.
17. (Optional) Install and configure additional Siebel Server instances or additional Web server and SWSE instances if they are required for your deployment.
18. Install or upgrade any required third-party products.

    See the Certifications tab on My Oracle Support. See also the Siebel Business Applications Third-Party Bookshelf in the product media pack on Oracle Software Delivery Cloud.

19. (Optional) Install Siebel Search software.

    For specific guidelines and requirements about installing search software, see Siebel Search Administration Guide.

20. Perform any additional postinstallation tasks.

    See Additional Postinstallation and Configuration Tasks.
