Hierarchy Manager Purpose and Components

Hierarchy Manager provides a set of APIs and services to allow applications to model arbitrary hierarchical relationships among any kinds of business objects. The core module design and extension framework make Hierarchy Manager well-suited in tightly coupled systems or in a federated database. Figure 10 shows the Hierarchy Manager components.

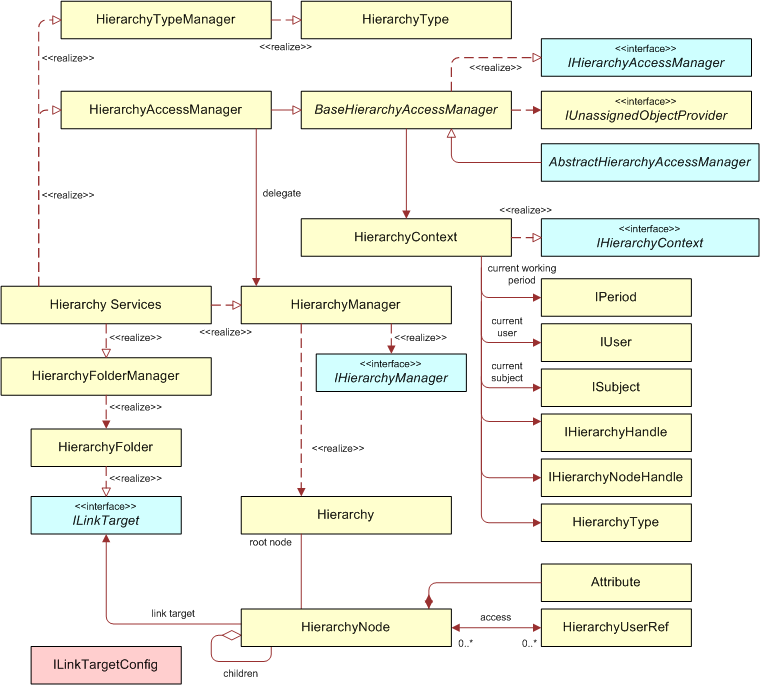

Figure 10. Hierarchy Components

Figure 11 shows a typical activity flow in Hierarchy Manager.

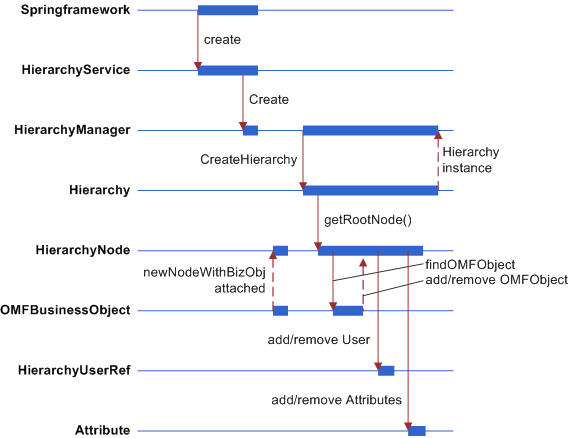

Figure 11. Hierarchy Manager Activity Flow

Figure 12 shows the key interfaces from the OMF component.

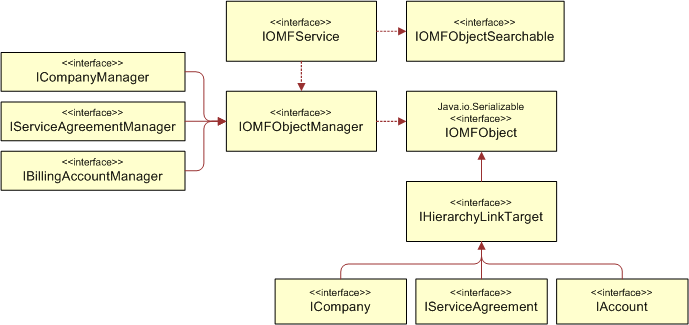

Figure 12. Key OMF Interfaces
