This chapter provides information on configuring web-based Argus Interchange.
This section contains the following sections:
This section provides information on navigating to the Interchange Mapping menu.

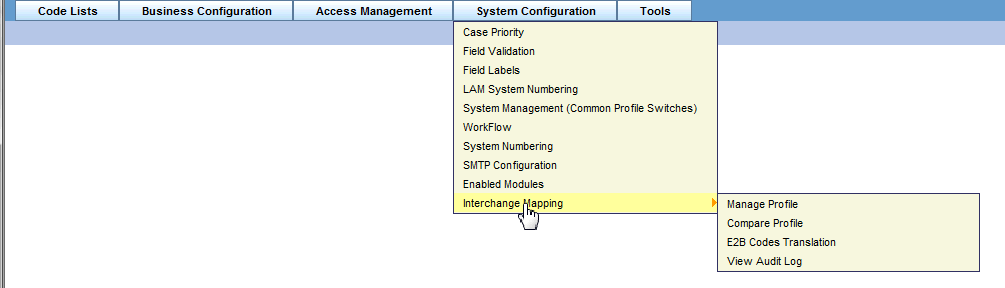

To navigate to the Interchange Mapping menu:
Open Argus Console.
Go to System Configuration ->Interchange Mapping.
Argus Interchange Mapping provides the following standard Message and Acknowledgement profiles:
ICH-ICSR V2.1 MESSAGE TEMPLATE
ICH-ICSR V2.1 MESSAGE TEMPLATE - EMA
ICH-ICSR V2.1 MESSAGE TEMPLATE - FDA
ICH-ICSR V3.0 MESSAGE TEMPLATE
ICH-ICSR V1.1 ACKNOWLEDGEMENT TEMPLATE
ICH-ICSR V1.1 ACKNOWLEDGEMENT TEMPLATE - EMA
ICH-ICSR V1.1 ACKNOWLEDGEMENT TEMPLATE - FDA
CBER EVAERS V1.0 MESSAGE TEMPLATE
CDRH eMDR V1.0 MESSAGE TEMPLATE
This section provides information about working with profiles and includes discussions of the following:
Defining a Profile
Printing a Profile
Copying a Profile
Deleting a Profile
This section describes viewing or modifying the rules of a profile in the Interchange Mapping. You can view profile details by selecting a Profile from the Interchange Mapping screen.

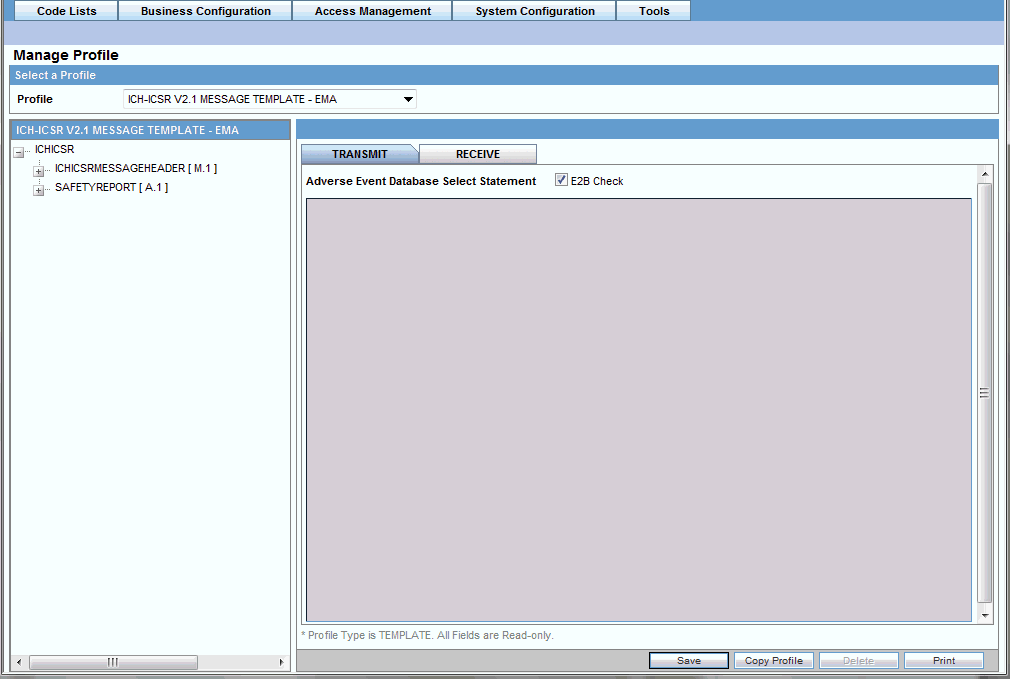

On selecting a Profile from the drop-down, the system displays the following information:
The tree view structure of ICSR elements
The Transmit and Receive tabs
The following notes are displayed at the bottom of the screen:
When a profile provided as part of the factory data is selected, * Profile Type is TEMPLATE. All Fields are Read-only.
When a custom profile is selected, * Profile Type is User DEFINED. Fields with white background are editable.

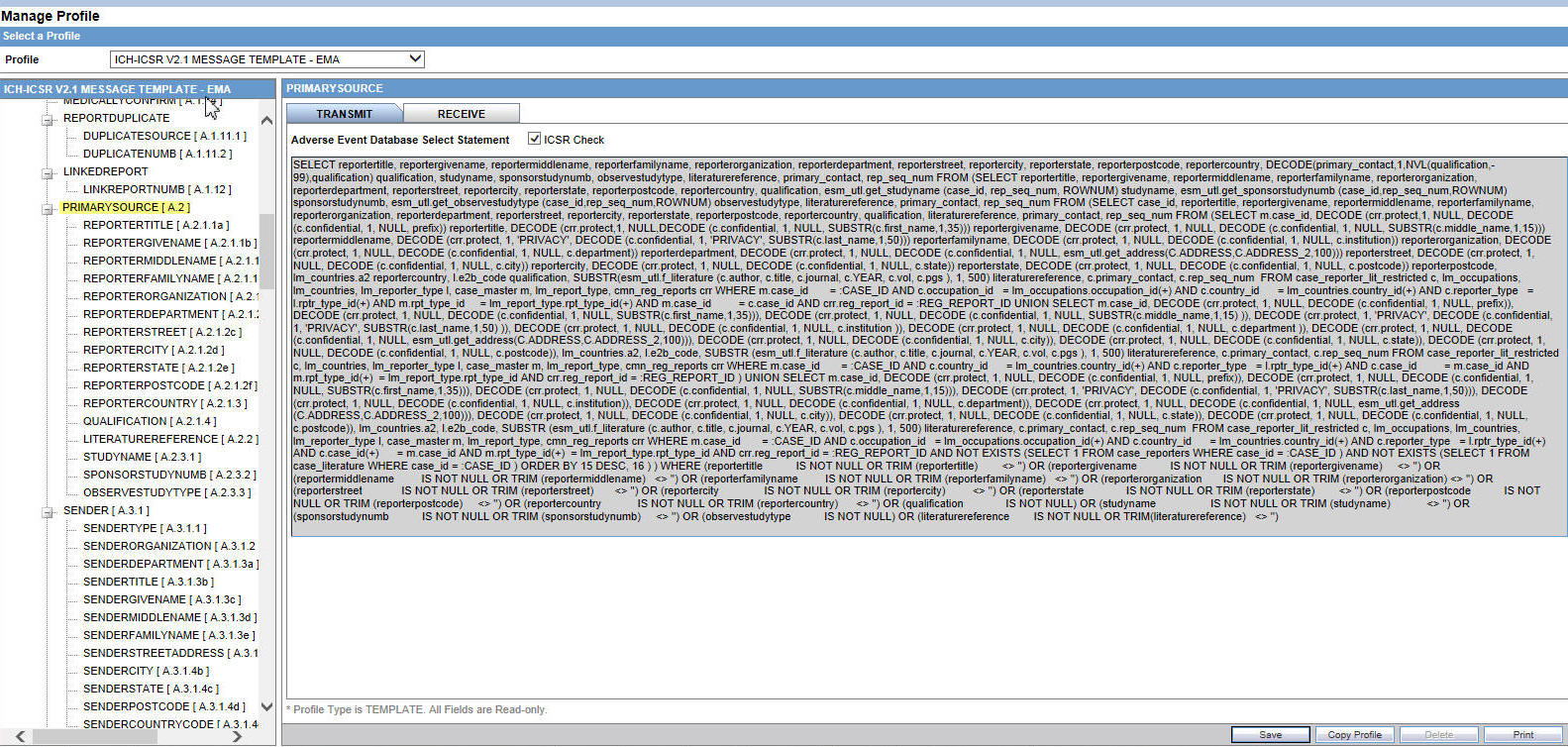

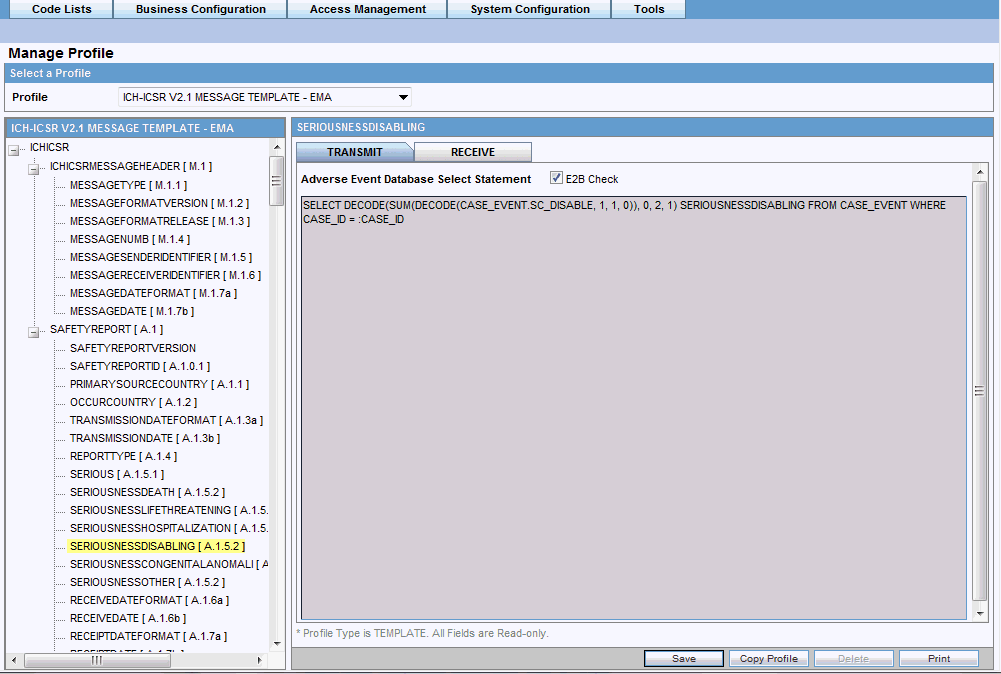

Use the following procedure to view details on the Transmit Tab:
Select a profile from the Profile drop-down list.
Click Transmit.
The following table lists and describes fields on the Transmit tab:
| Item | Description |
|---|---|
| Adverse Event Database Select Statement | Enables you to enter and view the SQL logic used to extract the value of the selected element of the profile from the AE database. |
| ICSR check checkbox | Indicates whether the selected profile is used in the ICSR check functionality in Argus.
The ICSR check function validates E2B reports based on the validation rules defined for the profiles. Only profiles that have the ICSR checkbox selected are used for validation. |
| Blind in PMDA AE Paper Report | Select this check box if the selected profile must be blind in the PMDA AE Paper Report.
This check box is available only for PMDA E2B R2 Profiles for Japanese user and if the Japanese version is enabled. |
A new tab Conformance Rules is now available to users for all the E2B R3 based ICSR Profiles, that is, ICH, EMA, eVAERS and PMDA. The Japanese DTD tab is not available to PMDA E2B R3.
The tab allows user to configure following parameters against each ICSR Element node for which data is transmitted (as it is applicable only for E2B export logic). It is available only for the ICSR Element Nodes (except for the Message & Batch Header tags - N) for which data is transmitted and is not available for parent element, as the attributes specific to validations are applicable only at root element level.
This configuration remains un-editable (read only) for all out-of-the-box E2B R3 based ICSR template profiles (ICH, EMA, PMDA, eVAERS) but is allowed to be edited for custom/copied profiles. (The configuration data for out of the box mapping profiles is available with the mapping of that profile).
The Conformance Rules tab data is also copied to the new profile when user copies any existing ICSR profile.

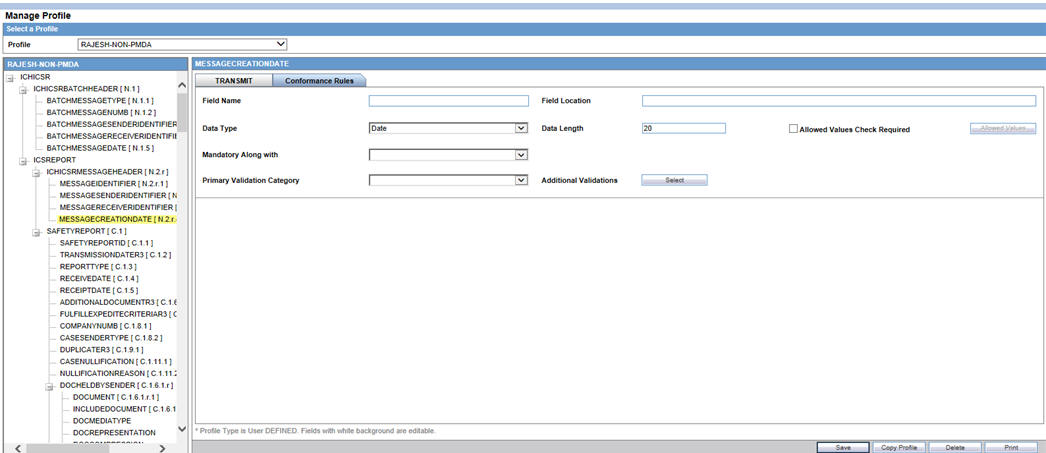

The following is the Conformance Tab for ICH, EMA and eVAERS profile:

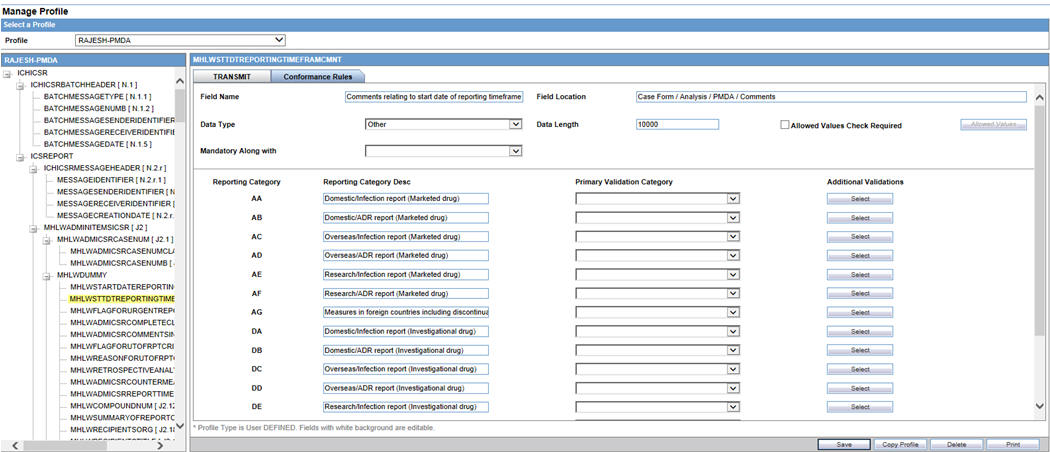

The following is the Conformance Tab for PMDA profile:
To configure the validations rule against the ICSR element, following fields have been made available to user under the Conformance Rules tab:
| Field | Type | Description |
|---|---|---|
| Field Name / Field Name (J) | Textbox
Length:255 AN |
Field Name/Label of the Case form or Console UI field to which the element's mapping logic corresponds to is specified in this field.
ICH, EMA, eVAERS : English PMDA: Japanese For PMDA E2B R3: Refer Mapping xls> Mapping(Sheet)> UI Field Name(J) |
| Field Location | Textbox
Length:255 AN |
UI Fields Location/path of the Case form or Console UI field to which the element's mapping logic corresponds to is specified in this field.
ICH, EMA, eVAERS : English PMDA: Japanese For PMDA E2B R3: Refer Mapping xls > Mapping(Sheet) > UI Field Name(J) |
| Data Type | Drop-Down list | This drop-down list has the following options in the below specified order:
Blank (Default) Country Date/Time E2B Code MedDRA Term/Code MedDRA Version Text For PMDA E2B R3: Refer Mapping xls > Mapping(Sheet) > PMDA Data Type DTD R3 |
| Data Length | Textbox
Length: 9 chars |
This text box allows user to enter only Numeric Values
For PMDA E2B R3: Refer Mapping xls > Mapping(Sheet) > PMDA Length DTD R3 |
| Mandatory Along with | Drop-down list | This drop-down list contains the DTD_ELEMENT name that are present under the same parent of the selected element (except the selected element itself), with blank as the first and the default option
Format: DTD_ELEMENT(DATA_ELEMENT) Display Order : Same as they are listed in the Element navigation tree on the left For PMDA E2B R3: Refer Mapping xls > Mapping(Sheet) > Mandatory Along with |
| Allowed Value Check Required | Checkbox | This checkbox is left unchecked by default
For PMDA E2B R3: Refer Mapping xls > Mapping(Sheet) > Allowed Values |
| Allowed Values | Button | On Clicking this button opens up Allowed value configuration dialogue for configuring the allowed values for the selected elements against that profile
This button is enabled only if Allowed Value Check Required checkbox is checked For PMDA E2B R3: Refer Mapping xls > Mapping(Sheet) > Allowed Values |
| Primary Validation Category | Drop-Down list | This drop-down list is available for all ICH, EMA, eVAERS profiles only.
The following option is listed in the drop-down list in the below specified order: Blank (Default) Mandatory Conditional Mandatory Do not enter Other Fatal Validation Optional |
| Additional Validations | Button | On clicking this button Additional Validation Configuration dialogue opens up, this dialogue enables users to configure the SQL based validations for the element.
This button is available for ICH, EMA, eVAERS |
| PMDA Specific | ||
| Reporting Category | Label | All Reporting Category R3 Codes (AA,AB,AC,AD,AE,AF,AG,DA,DB,DC,DD,DE,DF,DG,BC,BD) as configured in the Reporting_category (flex code list) are listed here, along with Nullification. |
| Reporting Category Description | Label | Description of the corresponding Reporting Category is listed here. |
| Primary Validation Category | Drop-Down list | This drop-down list is available for PMDA profile only.
The following option is listed in the drop-down list in the below specified order: Blank (Default) Mandatory Mandatory for Completion Report Conditional Mandatory for Completion Report Conditional Mandatory Do not Enter Other Fatal Validation Optional For PMDA E2B R3: Refer Mapping xls > Mapping (Sheet) > Reporting Category wise Conformance |
| Additional Validations | Button | On clicking this button Additional Validation Configuration dialogue opens up, this dialogue enables users to configure the SQL based validations for the element.
Available button available against each Reporting Category. |
| Save | Button | On clicking the Save button the changes are committed to Data base and audit logged.
This committing of data includes any changes done in the Allowed Value Configuration and Additional Validation Configuration dialogues as well. On clicking the Save button, the application logic validates that there exists a Primary category for the ICSR Element
If there exists a row with primary category as blank, the application displays an error message: Please select a Primary Validation category for the element Title: ICSR Validation with OK Button. |
| Button | On clicking the print button, the application prints all the Conformance rule tab data. |

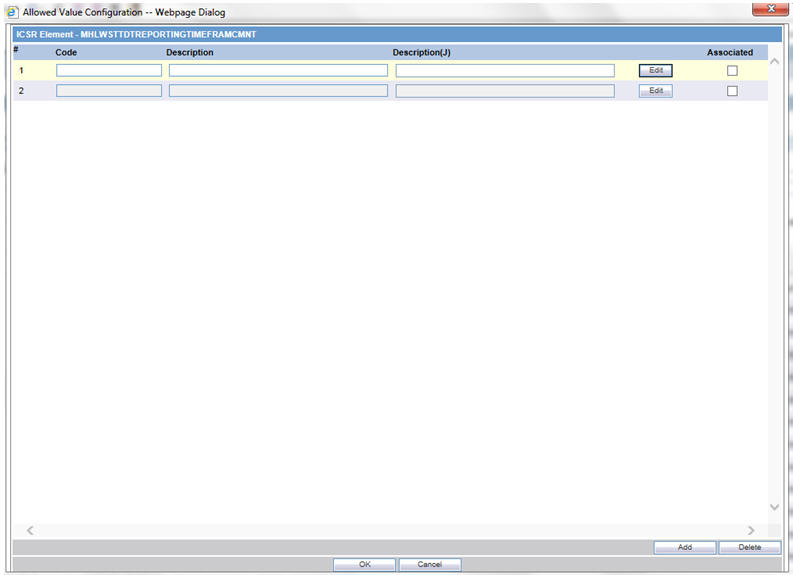

The Allowed Values Configuration Dialogue
On clicking Allowed Values, the Allowed Values Configuration dialogue (modal Dialogue) opens. The Allowed Values Configuration dialogue lets users View, Add, Update, Delete and Associate/De-associate the Codes and Description attribute of the Allowed values for the particular ICSR element for that profile.
Description for fields/buttons on the Allowed Values Configuration dialogue:
Table 3-1 Allowed Values Configuration dialogue fields
|
Code textbox |
This is a textbox where user enters the Code value that is being transmitted in the ICSR report. For example, E2B R3 Codes, ISO code and so on. |
|
Description textbox |
This is a textbox where user enters the description against the Code that is being transmitted in the ICSR report. |
|
Description (J) textbox |
This is a textbox where user enters the Japanese description against the Code that is being transmitted in the ICSR report. This is visible only to J user (when J module is enabled) and only for PMDA Profile |
|
Edit button |
On clicking the edit button, the Code and Description textboxes become enabled for user to edit |
|
Associate checkbox |
User associates or de-associates the allowed value for an element for the profile by checking and un-checking this checkbox. |
|
Add button |
On clicking the Add button, a new row is added to the grid, with Code, Description text boxes and Associate checkbox (unchecked) enabled by default. |
|
Delete button |
Deleted button is disabled by default, and is enabled only if user selects a user created custom allowed value row in the grid |

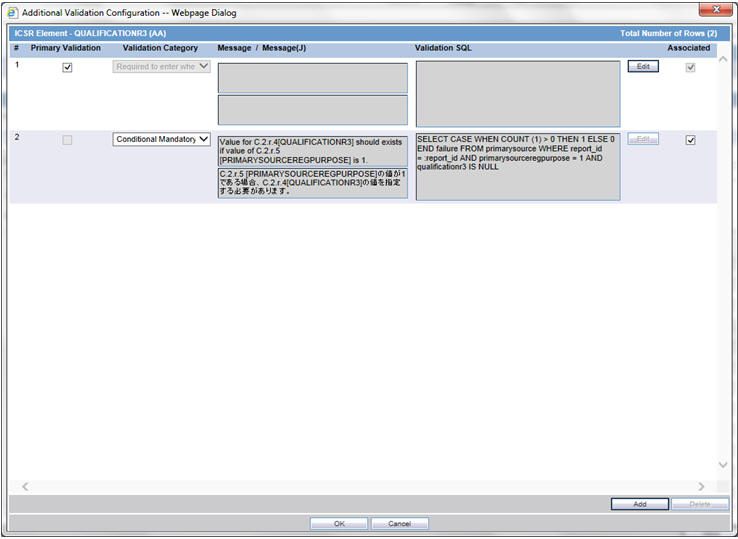

The Additional Validation Configuration Dialogue
Clicking Additional Validations displays the Additional Validation Configuration dialogue which lets the user View, Add, Update, Delete, Associate/De-associate, categorize and mark a validation to be Primary for the ICSR element of that profile.
If user marks any validation as Primary, the Associated checkbox is checked and disabled by default.
On unchecking the Primary Validation checkbox, the Primary validation checkbox for all other validations and the Associated checkbox and Validation Category drop-down list for this particular validation is enabled.
For ICH, EMA and eVAERS profiles Additional Validation can be configured at the element level, whereas for the PMDA profile the validation can be configured individually against each reporting category for that element.
The OOTB validations are only allowed to be Associate, Disassociate, categorized or marked as primary for the element, and the Edit button always remains disabled for all such OOTB validations.
Description for fields/buttons on the Additional Values Configuration dialogue:
Table 3-2 Additional Values Configuration dialogue fields
|
Message Text area |
In this text area, the user specifies the message that is printed in the validation report in case of a failure validation. |
|
Message (J) Text area |
In this text area, the user specifies the Japanese message that is printed in the validation report in case of a failure validation. This is visible only to J user (when J module is enabled) and only for PMDA Profile. |
|
Validation SQL Text area |
In this text area, the user specifies the SQL condition for the validation that is executed in order to run this particular validation. |
|
Edit button |
On clicking the edit button, the Message and Validation SQL text areas becomes enabled for user to edit. |
|
Associate checkbox |
User associates or de-associates a validation against an element for the profile by checking and un-checking this checkbox. |
|
Validation Category |
User specifies the category of validation by selecting an option from this drop-down list. |
|
Primary Validation checkbox |
User marks a validation as primary validation against an element for the profile by checking this checkbox. |
|
Add button |
On clicking the Add button, a new row is added to the grid, with Message, Description text areas, Associate checkbox (unchecked) and Validation Type drop-down list (blank) enabled by default. |
|
Delete button |
Deleted button is disabled by default, and is enabled only if user selects a user created custom validations row in the grid. |
Use the following procedure to view details on the Receive Tab:
Select a profile from the Profile drop-down list.
Click Receive.
The following table lists and describes the fields on the Receive tab:
| Item | Description |
|---|---|
| Import Mapping Logic: PL/SQL Code | Enables you to enter and view the PL/SQL code to be processed for the selected element of the profile during the import. |
| Enable Post-Save checkbox | Enabled for Template and Custom profiles and is a profile level switch. When this checkbox is marked, then post-save routines are executed while importing an ICSR message. |
| Extended E2B | Enabled only for Custom profiles and is a profile level switch.
When this checkbox is marked, the profile is considered as an Extended E2B Profile (E2B+ Profile). |
| Current Element is part of Primary Key | When this checkbox is marked, this field is treated as part of the Primary key. Values in Primary keys are used for matching data in an existing case while importing Follow-up reports.
Based on the results, either a new record is created or an existing record is updated. |
| Select AE column as a part of Primary Key | Displays the Argus Case Form Database column name to which the current primary key E2B element is mapped.
This relationship compares the E2B element from the incoming follow-up report to the related Case Form database column name value in the target case to identify matching records in repeater sections. |
| Always Import for Initial/Follow-up reports | Governs the default UI behavior of the Import checkbox that appears against each element in the E2B Difference Report screen. If this checkbox is checked for an element, the corresponding checkbox on the E2B Difference Report screen also appears as checked and disabled. By enforcing the behavior of always importing that element, the user cannot uncheck the checkbox on the E2B difference screen. |
Use the following procedure to print a profile.
Select the profile to print from the Profile list.
Click Print. This prints a PDF of the selected profile.
Note:
The Copy Profile option can be used to create custom ICSR profiles with customized Export / Import mapping logic for any ICSR element. However, any new changes / fixes applied to factory ICSR profiles are not automatically applied on the custom ICSR profiles. Hence, the custom profile logic may get obsolete by any Argus Safety version upgrade which has changes / fixes applied to factory ICSR profiles. In such a scenario, customers should re-create their custom ICSR profile again, by copying the new factory ICSR profile and applying their custom Export / Import mapping logic manually.Use the following procedure to copy a profile.
Select the profile to copy from the Profile list.

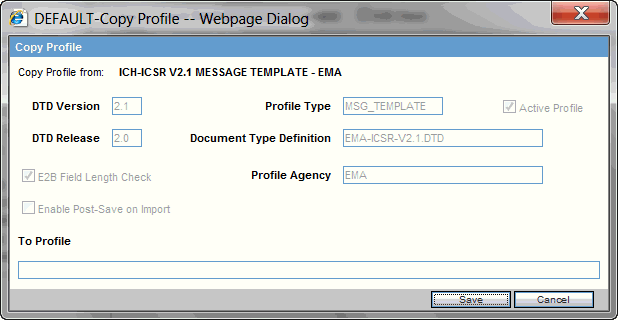

Click Copy Profile, to open the Copy Profile dialog box.
Type the profile name in the To Profile field, and click Save.
You can only delete profiles created or modified in the Interchange Mapping interface. You cannot delete Template profiles.

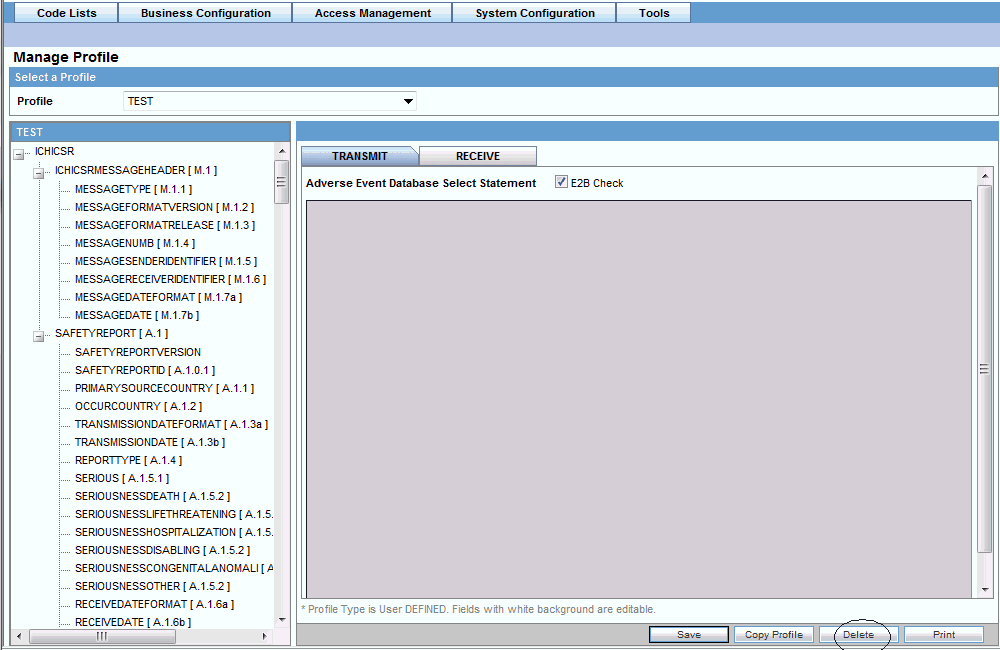

Use the following procedure to delete a profile.
Select a custom profile to delete from the Profile list. The system enables the Delete button.
Click Delete.
Click Yes to confirm.
You can compare two profiles to find element-level differences. Select a source profile in the left pane and a target profile in right pane, and run Compare Profiles to generate the differences. Compare Profiles also lets you update the SQL statements (at the element level) of the Destination Profile elements with those of the Source Profile.
To compare profiles:

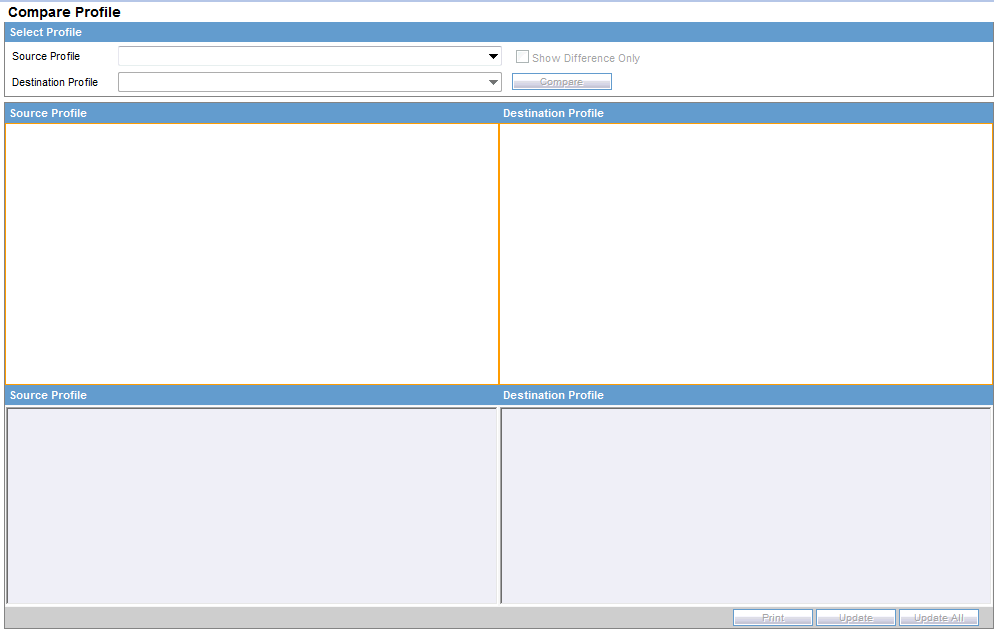

On the Argus Interchange Mapping menu, click Compare Profiles.
When the system opens the Compare Profiles dialog box, use the items in the Compare Profiles dialog to compare profiles.
Enter the data in the files.
The following table lists and describes the fields on the Compare Profile dialog box.
| Item | Description |
|---|---|
| Source Profile drop-down | Is used for selecting a source profile from the available profiles configured in the system. |
| Destination Profile drop-down | Displays the profiles with the same version and type (message/acknowledgement) as the ones in the Source profile.
Note: The source profile is to be selected before selecting the destination profile. The destination profile is disabled if you have not selected the source profile. |
| Show Difference Only | Displays those nodes that contain different SQL statements between the source and destination profiles when this checkbox is checked. |
| Compare | Compares the differences between the source and destination profiles when this button is clicked.
Note: The elements that are different in the Source and Destination profiles are displayed in a light gray background color. |
| Source Profile pane | Displays the source profile and its elements in a tree structure. When you click on any of the elements, the corresponding SQL statements are displayed on the source profile textbox, which is on the left-corner below the Source Profile pane. |
| Destination Profile pane | Displays the destination profile and its elements in a tree structure. When you click on any of the elements, the corresponding SQL statements are displayed on the Destination profile textbox, which is on the right-corner below the Destination Profile pane. |
| Prints all the SQL statements of the source and the destination profile with differences highlighted.
Note: If there are no differences between the source and destination profiles, the following pop-up message appears: "No differences found and no report is printed." |
|
| Update | Updates the individual SQL statements related to each element. Clicking the Update button also updates SQL statements in the destination profile.
Note: The Update button is enabled when the nodes with different SQL statements are clicked. |
| Update All | Updates all the differences in SQL statements across all the elements between the source and destination profiles.
Note: When a user clicks the Update All button, the following pop-up message appears: "Are you sure you want to update all the SQL statements in Destination Profile with Source Profile?" Clicking Yes updates all the SQL statements whereas clicking No does not update. |
| Close | Closes the Compare Profiles window. |
Note:
The Update and Update All buttons are never enabled when the profile selected from the Destination Profile is of the type template.ICSR Codes Translation enables you to configure rules to translate the ICSR codes and values in the incoming ICSR reports, which come from different trading partners to preferred values in the AE system during case creation.

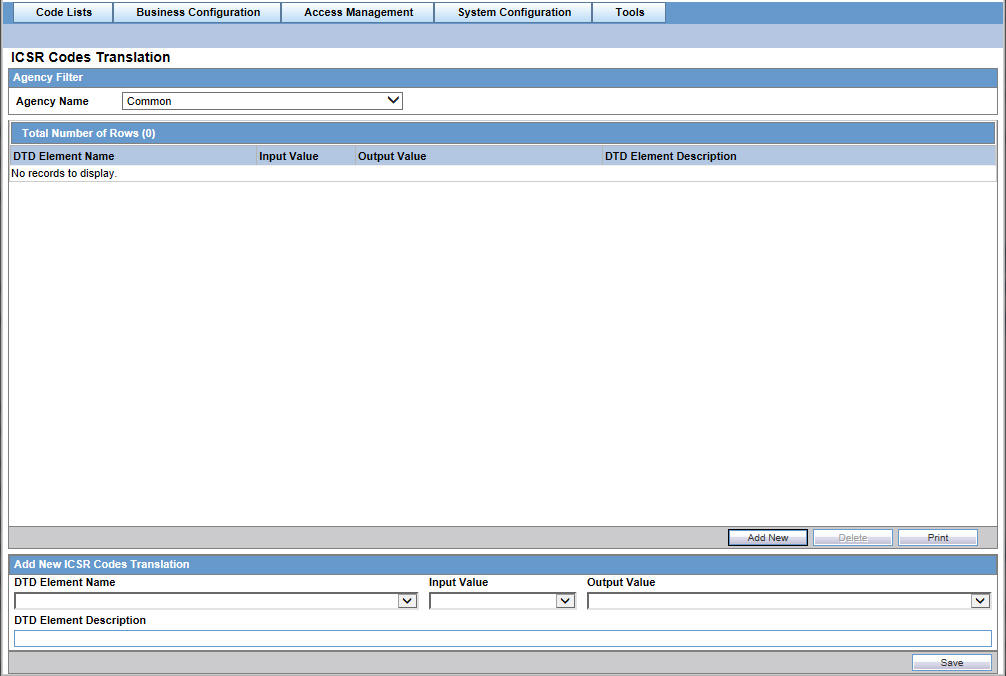

Go to Interchange Mapping -> ICSR Translation Codes to open the ICSR Code Translation screen.
The following table lists and describes the fields on the ICSR Codes Translation screen.
| Item | Description |
|---|---|
| Agency Name | Enables the user to select an agency name from the drop-down list box. |
| # | Displays the serial number. |
| Element Name | Displays the element name. |
| Input Value | Displays the type of input value. |
| Output Value | Displays the type of output value. |
Use the following procedure to configure ICSR Codes Translation.
Select the Agency Name from the drop-down list box to display the Elements and their descriptions.
Click on the respective field to edit the Element Name, Input Value, Output Value, and Element Description.
Click Save to save your changes.
The Audit Log stores changes made to the system from the application. You can also view and filter individual changes.

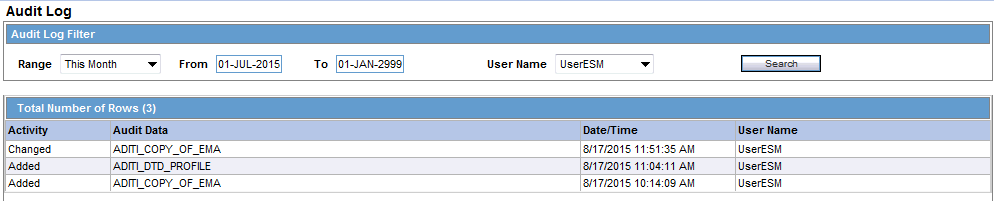

Use the following procedure to view the Audit Log:
On the Argus Interchange Mapping menu, click View Audit Log.
When the system opens the Audit Log dialog box, enter the appropriate data in each field and click Search.
Note:
For more information on Audit Log dialogue box fields, see Audit Log Dialog Box Fields.When the system displays the search results, double-click a row to view detailed information about the changes made in the Audit Log Detail dialog box.
Select an item in the list at the bottom of the Audit Log Details dialog to view details of the old and new values of the selected item.
The following table lists and describes the fields on the Audit Log dialog box.
| Item | Description |
|---|---|
| From | Enter the search start date. |
| To | Enter the search end date. |
| Range | Select a pre-configured date range on for the search.
Note: When the Argus Interchange Audit log is invoked, it shows the default range of the last 7 days. |
| User Name | Select a user from the list of users. |
| Prints the current view. | |
| Search | Performs the search. |
You can use the existing reporting destination configuration to choose an extended E2B profile. The system uses the agency and company identifier to identify the profile to use and sends the information in the following XML elements:
<messagesenderidentifier>Company X</messagesenderidentifier>
<messagereceiveridentifier>Agency Y</messagereceiveridentifier>
The Interchange mapping utility also supports the defined extended E2B elements as follows:
A switch in the Interchange mapping tool identifies a profile as either a standard profile or an extended E2B profile but only for the Receive tab. The additional fields are formatted as follows:
<XXX>_EXTENSION []
where:
XXX is the tag name followed by _EXTENSION to indicate that this is an extended E2B tag element
When using this switch:
Do not enter any blank spaces or underscore characters ( _ ) in the XXX naming convention.
In the extended E2B tags, the element number in the brackets ( [ ] ) is always empty. For example, Patient Ethnicity, Event Hospitalized Start Date / Stop Date.
This switch is enabled only for profiles copied from the Factory profiles (default unchecked). This flag is disabled for all factory profiles.
During configuration, GPS updates the DTD profile with this information before it adds any additional E2B elements.
The extended E2B fields are mapped to existing Argus fields or to user-defined fields, as appropriate. For example, the system maps the following extended E2B fields to the following Argus tables.
| E2B + Field | Argus Case Form UI Field Name | Argus Field Label Description |
|---|---|---|
| patientethnicity_extension | PATIENT | Patient Ethnicity | Patient Ethnicity |
| reactionintensity_extension | EVENTS | Event Intensity | Event Intensity |
| reactionhospstartdateformat_extension | Argus Date entry format YYYYMMDD or YYYYMM or YYYY | Hospitalized Start Date Format |
| reactionhospstartdate_extension | EVENTS | Hospitalized Start Date | Hospitalized Start Date |
| reactionhospstopdateformat_extension | Argus Date entry format YYYYMMDD or YYYYMM or YYYY | Hospitalized Stop Date Format |
| reactionhospstopdate_extension | EVENTS | Hospitalized Stop Date | Hospitalized Stop Date |
The system sends an acknowledgement when the report is accepted or rejected by the user.
You can view the extended elements for the following:
ICSR Viewer
No updates to the CIOMS / MedWatch Reports
The Decoded View / SGML View displays the additional elements added as a part of the Extended E2B
E2B Selective Intake for Initial and E2B Difference Report for Follow-up E2B Reports
You can selectively import the additional fields the system adds to the Extended E2B in the Argus case.
The PDF reports display the additional fields added to the Extended E2B.
The E2B Warnings/Errors display the warnings/errors if warnings or errors defined for the fields added to the Extended E2B.
|
 Copyright © 2016, Oracle and/or its affiliates. All rights reserved. Legal Notices |
|
