Oracle Retail Enterprise Integration Styles
There is no one integration approach that addresses all criteria equally well. Therefore, multiple approaches for integrating applications have evolved over time. Oracle Retail has focused on three main integration styles.
- Asynchronous JMS Pub/Sub Fire-and-Forget
- Request/Response
- Bulk Data
The
approach taken by Oracle Retail is not to choose one style to use
every time but to choose the best style for a particular
integration opportunity. Each style has its advantages and
disadvantages. Applications or solutions may integrate using
multiple styles so that each point of integration takes advantage
of the style that suits it best. Oracle
Retail Enterprise Integration Overview.

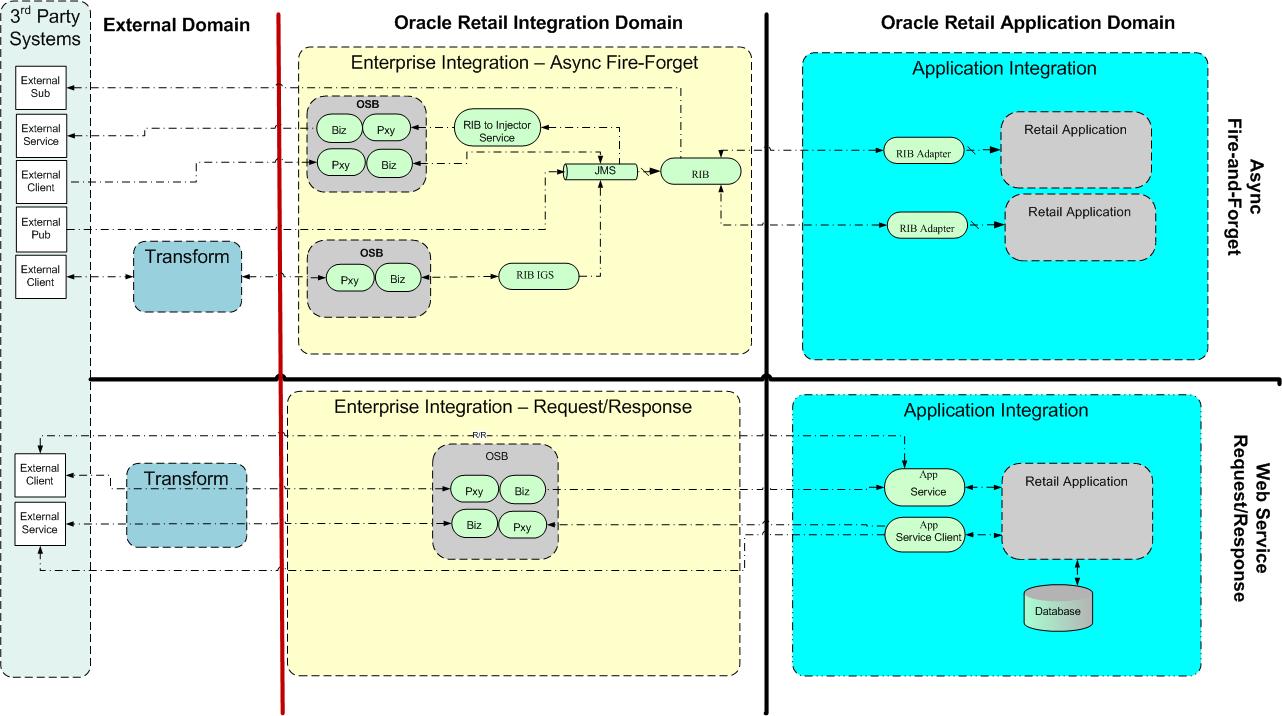

This version of the Integration Guide is concerned with the two integration styles that implement messaging patterns; Asynchronous JMS Pub/Sub Fire-and-Forget and Web Service Request Response.
Menu
Legal Notices
Support Products
Note that additional products that are not in this integrated release may be present in the Integration Guide. The information about them is presented for reference purposes only.
Enterprise Integration Guide
Release 14.0
Product Number: E50611-01
Integration Styles
Oracle Retail Integration Bus (RIB)
The Oracle Retail Integration Bus (RIB) is a fully distributed integration infrastructure that implements messaging using Asynchronous JMS Pub/Sub Fire-and-Forget.
Oracle Retail Service Backbone
(RSB)
Oracle Retail Service Backbone (RSB) is the productization of a set of Web Services, ESBs and Security tools that standardize the deployment and run time of Web Service flows within Oracle Retail Suite of applications..
Oracle Retail Business Objects
The schema represents the common object definition for business concepts, such as account, supplier, purchase order, and item.
