Four Column Form Template
The DotCom Applet Form 4-Column template uses the DotComAppletForm4Col web template. It can do the following:
- Define a large number of control placeholders that can span one column, two columns, or all four columns.
- Map fields for up to four columns.
- Display labels at start of field values.
- Display validation errors at the start of the form.
- Use ID 91 to add text that spans all four columns.
Figure 82 includes the generic layout that this template uses.
Figure 82. Generic Layout of the DotCom Applet Form 4-Column Template
|

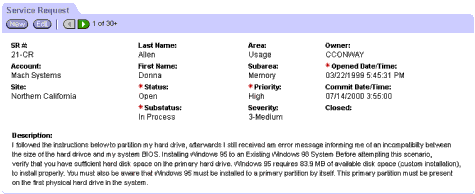

Figure 83 includes an example of this template.
Figure 83. Example of the Form/4 Column Applet Template
|
This template uses the following structure: DotComAppletForm4Col
CCApplet_NamedSpacer
CCTitle_Named
CCTitle
CCTogglebar_drop
dCCFormButtonsTop
dCCButtons_Form
CCRecordNav
CCTogglebar_drop
CCFormButtonsTopRight
CCForm4ColBody
Table 116 lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.
Table 116. Items Siebel CRM Can Map for the DotComAppletForm4Col web template
|
|
2 |
Control |
91 |
Inside Applet Help Text |
106 |
Query |
107 |
Go (ExecuteQuery) |
108 |
Cancel (Query) |
109 through 110 |
Control |
121 |
First |
122 |
Previous |
123 |
Next |
124 |
Last |
131 |
New |
132 |
Edit |
133 |
Delete |
134 |
Reset |
135 |
Cancel |
136 |
Save |
139 through 143 |
Control |
150 through 152 |
Control |
157 through 158 |
Control |
160 through 164 |
Control |
1001 through 1009 |
FormSection |
1020 |
FormSection |
1296 through 1300 |
Required or Label or 2-Column Wide Field |
1301 through 1310 |
Required or Label |
1311 through 1315 |
Required or Label or 2-Column Wide Field |
1316 through 1330 |
Required or Label |
1331 through 1335 |
Required or Label or 2-Column Wide Field |
1336 through 1340 |
Required or Label or 4-Column Wide Field |
1360 through 1374 |
Required or Label |
1500 |
Required or Legend |
1801 through 1810 |
Required or Label |
1816 through 1830 |
Required or Label |
1860 through 1874 |
Required or Label |
2001 through 2009 |
FormSection |
2296 through 2300 |
Required or Label or 2-Column Wide Field |
2301 through 2310 |
Required or Label |
2316 through 2330 |
Required or Label |
2331 through 2335 |
Required or Label or 2-Column Wide Field |
2360 through 2374 |
Required or Label |
2801 through 2810 |
Required or Label |
2811 through 2815 |
Required or Label or 2-Column Wide Field |
2816 through 2830 |
Required or Label |
2860 through 2874 |
Required or Label |
|
