Portal List Template With Graphics
The Applet List Portal (Graphical) template uses the AppletListPortalGraphical web template. It displays a title, layout controls, and an optional line of buttons beneath the title. This is a specialized list template in that it can display a graphical applet title. You can map the:
- Applet image to ID 89.
- Applet title to ID 90 or 184.
Figure 21 includes the generic layout that this template uses.
Figure 21. Generic Layout of the Applet List Portal (Graphical) Template
|
Figure 22 includes an example of this template.

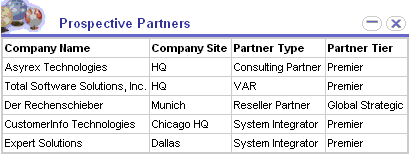

Figure 22. Example of the Applet List Portal (Graphical) Template
|
This template uses the following structure: AppletListPortalGraphical
CCApplet_Spacer
CCLayoutTitlePortal
CCApplet_Spacer
CCLayoutButtons
CCBottomApplet
CCTitle_PortalGraphical
CCLayoutButtons
CCListButtonsTopNoRecNav
CCButtons
CCListButtonsTopRight
CCListHeaderNoSort
CCListBodyNoRowHilite
CCBottomApplet
Table 50 lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.
Table 50. Items Siebel CRM Can Map for the AppletListPortalGraphical web template
|
|
2 |
Back |
89 |
Image |
90 |
Title |
106 |
Query |
107 |
Go (ExecuteQuery) |
108 |
Cancel (Query) |
109 through 111 |
Control |
131 |
New |
132 |
Edit |
133 |
Delete |
134 |
Reset |
135 |
Cancel |
136 |
Save |
139 through 143 |
Control |
142 through 143 |
Control |
144 |
Selected Row |
145 |
Control |
146 |
Save |
147 |
Pick Control |
150 through 151 |
Control |
157 |
Label |
160 through 164 |
Control |
184 |
Drilldown Title |
203 |
MinimizeApplet |
204 |
MaximizeApplet |
207 |
MoveAppletUp |
208 |
MoveAppletDown |
211 |
ShowApplet |
212 |
HideApplet |
501 through 540 |
Field |
555 |
Label |
580 |
New |
599 |
Save |
1100 |
Outside Applet Help Text |
|
