1 Overview of System Status Indicators and LEDs

This manual provides instructions for servicing Oracle Database Appliance hardware. Oracle Database Appliance comes in the following versions:

• Oracle Database Appliance X6-2-HA (High Availability)

• Oracle Database Appliance X6-2S/X6-2M/X6-2L

• Oracle Database Appliance X5-2

• Oracle Database Appliance X4-2

• Oracle Database Appliance X3-2

• Oracle Database Appliance Version 1 (also referred to as "original version" or "V1")

The following sections in this chapter describe system status indicators and LEDs:

• Oracle Database Appliance X6-2S/X6-2M/X6-2L Status Indicators

• Oracle Database Appliance X6-2-HA Status Indicators

• Oracle Database Appliance X5-2 Status Indicators

• Oracle Database Appliance X3-2/X4-2 Status Indicators

• Oracle Database Appliance Version 1 Status Indicators

For information about system features and racking, refer to the Oracle Database Appliance Owner's Guide. For information about cabling, Oracle ILOM initial setup, and appliance software setup, refer to the appropriate Deployment and User's Guide for the Oracle Database Appliance X6 series or the Getting Started Guide for the Oracle Database Appliance X3-2/X4-2/X5-2 or Version 1.

Oracle Database Appliance X6-2S/X6-2M/X6-2L Status Indicators

The following topics describe the Oracle Database Appliance X6-2S/X6-2M/X6-2L status indicators. They include controls and indicators on the server front and back panels, storage drives, and power supplies.

• Oracle Database Appliance X6-2S/X6-2M Server Status Indicators

• Oracle Database Appliance X6-2L Server Status Indicators

Oracle Database Appliance X6-2S/X6-2M Server Status Indicators

These topics describe Oracle Database Appliance X6-2S/X6-2M server status indicators (LEDs).

Server Front Panel Status Indicators

The Oracle Database Appliance X6-2S/X6-2M server front panel includes indicators for the system and storage drives.

Callout	Indicator/LED: Color	State Meaning
1	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off.
2	Service Required: amber	Off – Normal operation. On – A fault is present in the server node. Note -  The lighting of this indicator is always accompanied by a system console message that includes a recommended service action.
3	OK: green	Indicates the operational state of the server node: On – The server is powered on, and all host POST code checkpoint tests are complete. The server is in one of the following states: 1) the server host is booting the operating system (OS), 2) the server host is running the OS. Off – AC power is not present or the Oracle ILOM boot is not complete. Steady blink – Standby power is on, but the chassis power is off and the Oracle ILOM SP is running. Slow blink – Startup sequence has been initiated on the host. This pattern should begin soon after you power on the server. This status indicates either: (1) POST code checkpoint tests are running on the server host system, or (2) the host is transitioning from the powered-on state to the standby state on shutdown.
4	Power button	Press to apply full power. Press again to turn main power off, but leave standby power on the Oracle ILOM.
5	Top fan: amber	Indicates that one (or more) of the internal fan modules has failed. Off – Indicates steady state; no service is required. On – Indicates service required; service the failed fan module.
6	Rear PS: amber	Indicates that one (or more) of the power supplies has failed. Off – Indicates steady state; no service is required. On – Indicates service required; service the failed power supply.
7	Over temperature warning: amber	Off – Normal operation; no service is required. On – The system is experiencing an over temperature warning condition. Note -  This is a warning indication, not a fatal over temperature. Failure to correct this condition might result in the system overheating and shutting down unexpectedly.
8	Service processor (SP): green	Off – The service processor (SP) is not running. On – The SP is fully operational. Slow blink – SP is booting.
9	Drive OK: green	Off – Power is off or the installed drive is not recognized by the system. On – The drive is engaged and is receiving power. Random blink – There is disk activity. The indicator blinks on and off to indicate activity.
10	Drive Service Required: amber	Off – The storage drive is operating normally. On – The system has detected a fault with the storage drive.
11	Drive Ready-to-Remove: blue	Off – The storage drive has not been prepared for removal. On – The storage drive can be removed safely during a hot-plug operation.

Server Back Panel Status Indicators

The Oracle Database Appliance X6-2S/X6-2M server back panel includes indicators for the system, power supplies and network ports.

Callout	Indicator/LED: Color	State Meaning
1, 3	PS Service Required: amber	Off – Normal operation. On – The power supply (PS) has detected a PS fan failure, PS overtemperature, PS over current, or PS over or under voltage.
2, 4	PS OK: green	Off – No AC power is present. On – Normal operation. Input AC power and DC output voltage are within specification. Slow blink – Normal operation. Input power is within specification. DC output voltage is not enabled.
5	System locate, service required and OK: various	These operate in the same way as on the front panel.

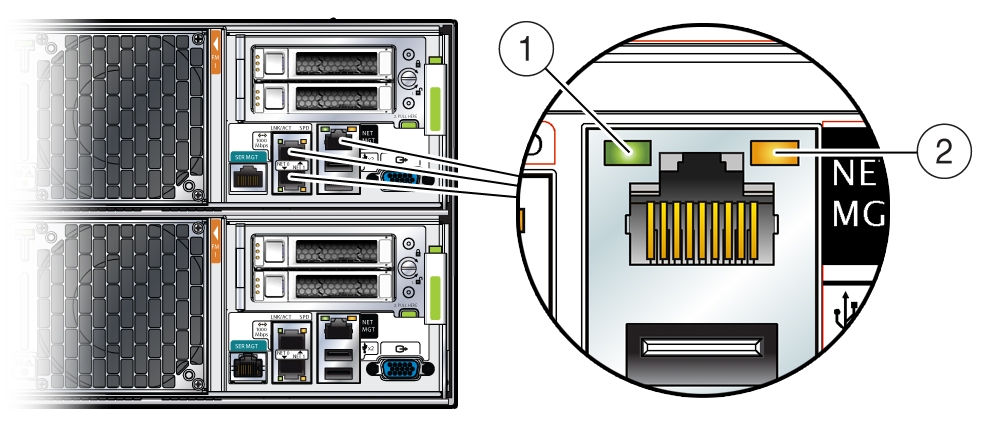

6	NET MGT port: green	10/100/1000 BASE-T Ethernet management interface. Top left link indicator: On – Green for 1000Base-T link. Off – 10/100BASE-T link. Top right activity indicator: On – Link up. Off – No link or link down. Blinking – Packet activity.
7	NET 0-3 ports: green/amber	100/1000/10000 BASE-T Ethernet management interface. Top left activity indicator: On – No function. Off – No activity. Blinking – Packet activity. Top right link indicator: On – Amber for 1000Base-T link; green for 10GBBase-T link. Off – 100BASE-T link. Blinking – No function.
8	Dual 10 GbE SFP+ PCIe 2.0 Low Profile Adapter ports: green/amber	1000/10000 BASE-T Ethernet management interface. GRN=10G: On – Green for 10GbE link; amber for 1GbE link. Off – No function. ACT/LINK (A or B): On – Green for link up. Off – No link. Blinking – Green for packet activity.

Oracle Database Appliance X6-2L Server Status Indicators

These topics describe Oracle Database Appliance X6-2L server status indicators (LEDs).

Server Front Panel Status Indicators

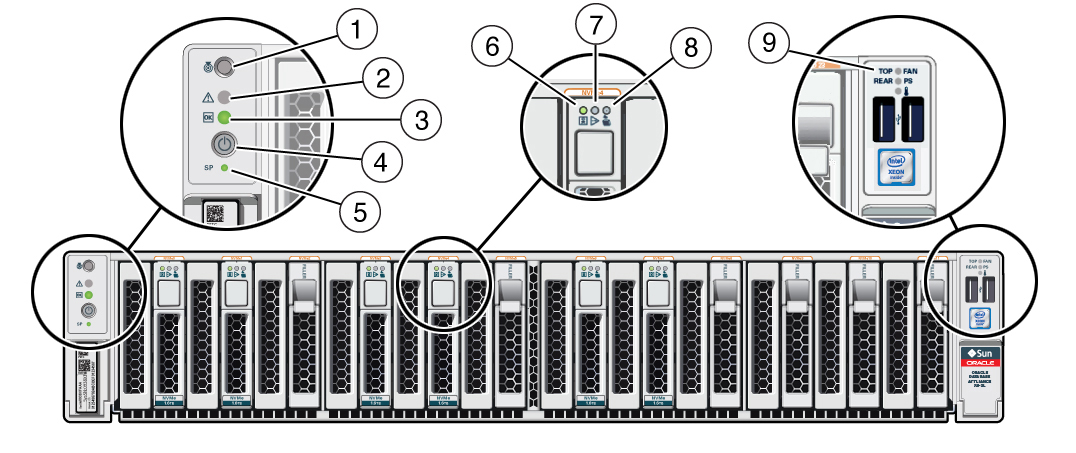

The Oracle Database Appliance X6-2L server front panel includes indicators for the system and storage drives.

Callout	Indicator/LED: Color	State Meaning
1	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off.
2	Service Required: amber	Off – Normal operation. On – A fault is present in the server node. Note -  The lighting of this indicator is always accompanied by a system console message that includes a recommended service action.
3	OK: green	Indicates the operational state of the server node: On – The server is powered on, and all host POST code checkpoint tests are complete. The server is in one of the following states: 1) the server host is booting the operating system (OS), 2) the server host is running the OS. Off – AC power is not present or the Oracle ILOM boot is not complete. Steady blink – Standby power is on, but the chassis power is off and the Oracle ILOM SP is running. Slow blink – Startup sequence has been initiated on the host. This pattern should begin soon after you power on the server. This status indicates either: (1) POST code checkpoint tests are running on the server host system, or (2) the host is transitioning from the powered-on state to the standby state on shutdown.
4	Power button	Press to apply full power. Press again to turn main power off, but leave standby power on the Oracle ILOM.
5	Service processor (SP): green	Off – The service processor (SP) is not running. On – The SP is fully operational. Slow blink – SP is booting.
6	Drive OK: green	Off – Power is off or the installed drive is not recognized by the system. On – The drive is engaged and is receiving power. Random blink – There is disk activity. The indicator blinks on and off to indicate activity.
7	Drive Service Required: amber	Off – The storage drive is operating normally. On – The system has detected a fault with the storage drive.
8	Drive Ready-to-Remove: blue	Off – The storage drive has not been prepared for removal. On – The storage drive can be removed safely during a hot-plug operation.
9	Top fan: amber Rear PS: amber Over-temperature warning: amber	Top fan: Off – Indicates steady state; no service is required. On – Indicates service required; service the failed fan module. Rear PS: Off – Indicates steady state; no service is required. On – Indicates service required; service the failed power supply. Over-temperature warning: Off – Normal operation; no service is required. On – The system is experiencing an over-temperature warning condition. Note -  This is a warning indication, not a fatal over-temperature. Failure to correct this condition might result in the system overheating and shutting down unexpectedly.

Server Back Panel Status Indicators

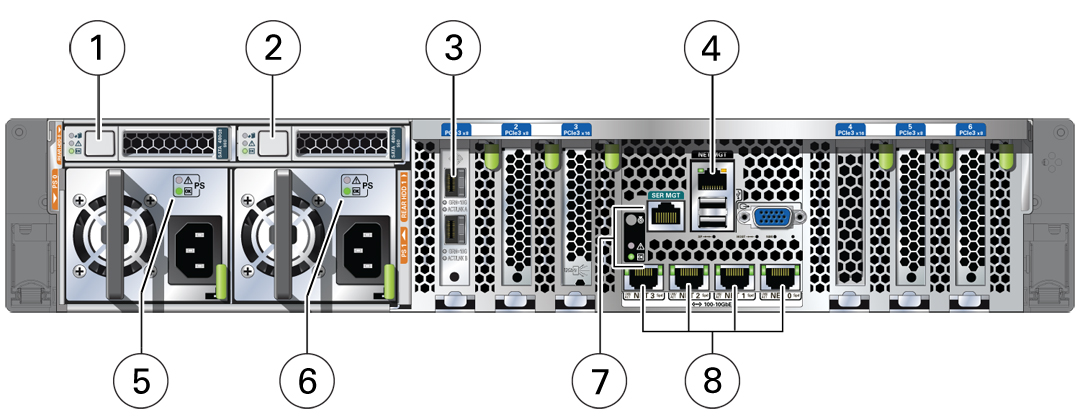

The Oracle Database Appliance X6-2L server back panel includes indicators for the rear drives, system, power supplies and network ports.

Callout	Indicator/LED: Color	State Meaning
1, 2	Storage drive status: various	These operate in the same way as on the front panel.
3	Dual-port 10 GbE SFP+ PCIe 2.0 Low Profile Adapter ports: green/amber	GRN=10G: On – Green for 10GbE link; amber for 1GbE link. Off – No function. ACT/LINK (A or B): On – Green for link up. Off – No link. Blinking – Green for packet activity.
4	NET MGT port: green	10/100/1000 BASE-T Ethernet management interface. Top left link indicator: On – Green for 1000Base-T link. Off – 10/100BASE-T link. Top right activity indicator: On – Link up. Off – No link or link down. Blinking – Packet activity.
5, 6	PS Service Required: amber PS OK: green	PS Service Required: Off – Normal operation. On – The power supply (PS) has detected a PS fan failure, PS over-temperature, PS over current, or PS over or under voltage. PS OK: Off – No AC power is present. On – Normal operation. Input AC power and DC output voltage are within specification. Slow blink – Normal operation. Input power is within specification. DC output voltage is not enabled.
7	System locate, service required and OK: various	These operate in the same way as on the front panel.
8	NET 0-3 ports: green/amber	100/1000/10000 BASE-T Ethernet management interface. Top left activity indicator: On – No function. Off – No activity. Blinking – Packet activity. Top right link indicator: On – Amber for 1000Base-T link; green for 10GBBase-T link. Off – 100BASE-T link. Blinking – No function.

Oracle Database Appliance X6-2-HA Status Indicators

The following topics describe the Oracle Database Appliance X6-2-HA status indicators. They include controls and indicators on the server nodes and storage shelf front panel, hard drives, SSD drives, power supplies, and SAS I/O modules.

• Oracle Database Appliance X6-2-HA Server Node Status Indicators

• Oracle Database Appliance X6-2-HA Storage Shelf Indicators

Oracle Database Appliance X6-2-HA Server Node Status Indicators

These topics describe Oracle Database Appliance X6-2-HA server node status indicators (LEDs).

Server Node Front Panel Status Indicators

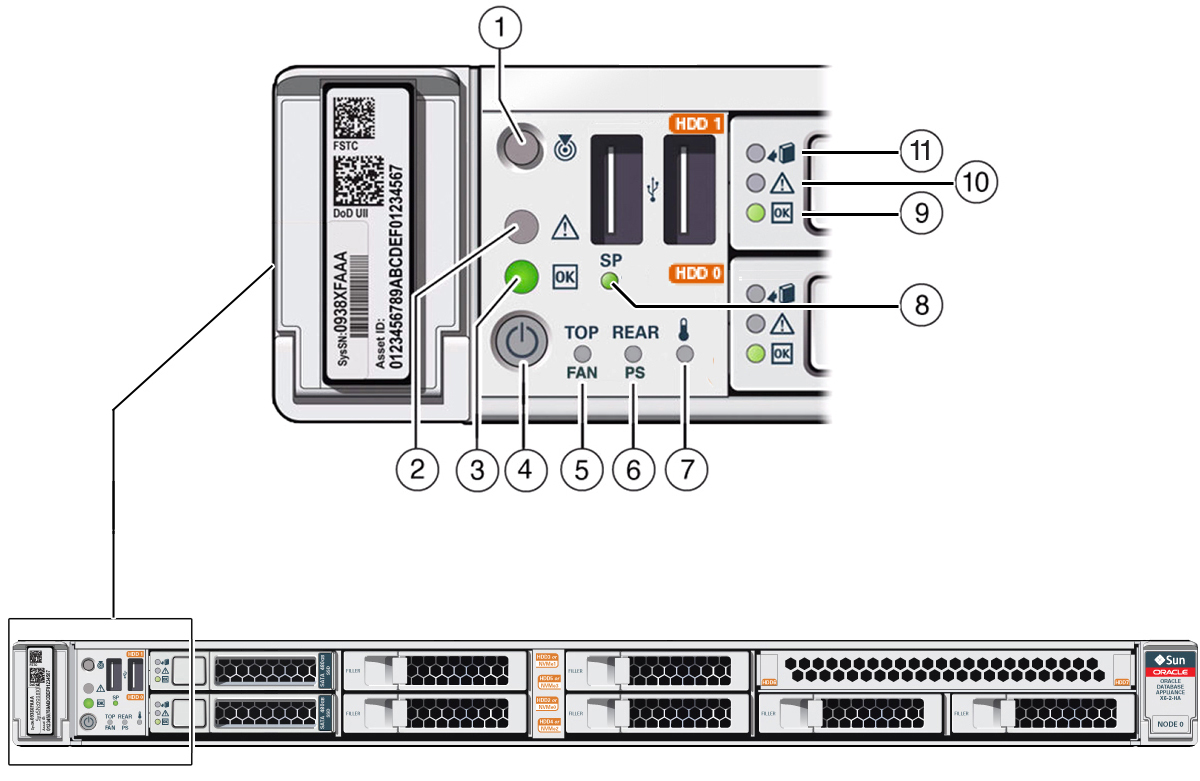

The Oracle Database Appliance X6-2-HA server node front panel includes indicators for the system and storage drives.

Callout	Indicator/LED: Color	State Meaning
1	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off.
2	Service Required: amber	Off – Normal operation. On – A fault is present in the server node. Note -  The lighting of this indicator is always accompanied by a system console message that includes a recommended service action.
3	OK: green	Indicates the operational state of the server node: On – The server is powered on, and all host POST code checkpoint tests are complete. The server is in one of the following states: 1) the server host is booting the operating system (OS), 2) the server host is running the OS. Off – AC power is not present or the Oracle ILOM boot is not complete. Steady blink – Standby power is on, but the chassis power is off and the Oracle ILOM SP is running. Slow blink – Startup sequence has been initiated on the host. This pattern should begin soon after you power on the server. This status indicates either: (1) POST code checkpoint tests are running on the server host system, or (2) the host is transitioning from the powered-on state to the standby state on shutdown.
4	Power button	Press to apply full power. Press again to turn main power off, but leave standby power on the Oracle ILOM.
5	Top fan: amber	Indicates that one (or more) of the internal fan modules has failed. Off – Indicates steady state; no service is required. On – Indicates service required; service the failed fan module.
6	Rear PS: amber	Indicates that one (or more) of the power supplies has failed. Off – Indicates steady state; no service is required. On – Indicates service required; service the failed power supply.
7	Over temperature warning: amber	Off – Normal operation; no service is required. On – The system is experiencing an over temperature warning condition. Note -  This is a warning indication, not a fatal over temperature. Failure to correct this condition might result in the system overheating and shutting down unexpectedly.
8	Service processor (SP): green	Off – The service processor (SP) is not running. On – The SP is fully operational. Slow blink – SP is booting.
9	Drive OK: green	Off – Power is off or the installed drive is not recognized by the system. On – The drive is engaged and is receiving power. Random blink – There is disk activity. The indicator blinks on and off to indicate activity.
10	Drive Service Required: amber	Off – The storage drive is operating normally. On – The system has detected a fault with the storage drive.
11	Drive Ready-to-Remove: blue	Off – The storage drive has not been prepared for removal. On – The storage drive can be removed safely during a hot-plug operation.

Server Node Back Panel Status Indicators

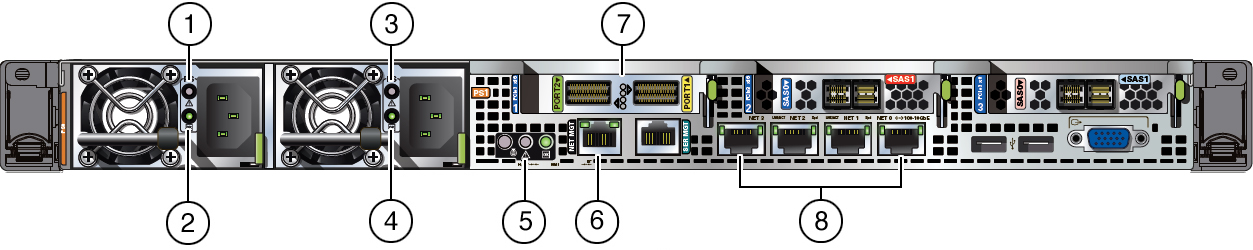

The Oracle Database Appliance X6-2-HA server node back panel includes indicators for the system, power supplies and network ports.

Callout	Indicator/LED: Color	State Meaning
1, 3	PS Service Required: amber	Off – Normal operation. On – The power supply (PS) has detected a PS fan failure, PS overtemperature, PS over current, or PS over or under voltage.
2, 4	PS OK: green	Off – No AC power is present. On – Normal operation. Input AC power and DC output voltage are within specification. Slow blink – Normal operation. Input power is within specification. DC output voltage is not enabled.
5	System locate, service required and OK: various	These operate in the same way as on the front panel.
6	NET MGT port: green	10/100/1000 BASE-T Ethernet management interface. Top left link indicator: On – Green for 1000Base-T link. Off – 10/100BASE-T link. Top right activity indicator: On – Link up. Off – No link or link down. Blinking – Packet activity.
7	Two InfiniBand QSFP+ Adapter ports (shown): green/yellow --or-- Dual 10 GbE SFP+ PCIe 2.0 Low Profile Adapter ports (not shown): green/amber	InfiniBand QSFP+ interface. Green on – InfiniBand physical link established. Green off – No link. Yellow on – InfiniBand is discovered over the link, but no data is being passed . Yellow off – A physical and/or logical link has not been established. Yellow blinking – Data being passed. Dual 10 GbE SFP+ interface. GRN=10G: On – Green for 10GbE link; amber for 1GbE link. Off – No function. ACT/LINK (A or B): On – Green for link up. Off – No link. Blinking – Green for packet activity.
8	NET 0-3 ports: green/amber	100/1000/10000 BASE-T Ethernet management interface. Top left activity indicator: On – No function. Off – No activity. Blinking – Packet activity. Top right link indicator: On – Amber for 1000Base-T link; green for 10GBBase-T link. Off – 100BASE-T link. Blinking – No function.

Oracle Database Appliance X6-2-HA Storage Shelf Indicators

Storage shelves are supported with Oracle Database Appliance X6-2-HA. They include controls and indicators on the front panel, hard drives, SSD drives, power supplies, and SAS I/O modules.

Storage Shelf Front Panel Status Indicators

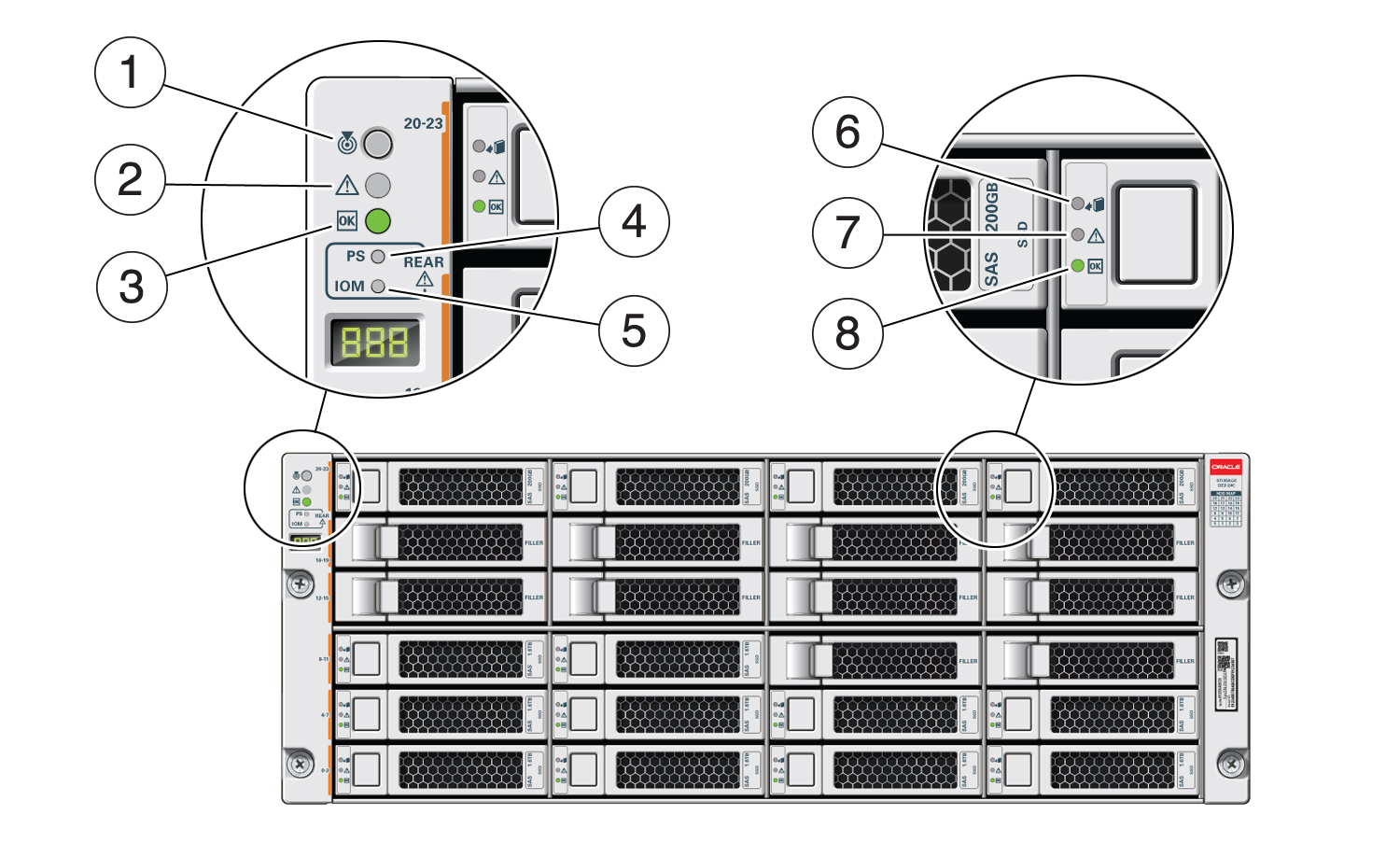

The following figure shows the controls and indicators on the for the Oracle Database Appliance X6-2-HA storage shelf (DE3-24C) front panel and drives.

Note:

The 2 or 3 character LED enclosure ID display panel on the front of the storage shelf is not used with the Oracle Database Appliance product. Any numbers or letters displayed in this panel other than zeros could indicate a fault with either the panel, its cabling (neither of which are customer replaceable), or some other storage shelf component.

Callout	Indicator/LED: Color	State Meaning
1	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off.
2	Service Required: amber	Off – Normal operation. Steady on – A fault is present in the storage shelf.
3	OK: green	On – The storage shelf is powered on and operating normally. Off – The storage shelf is unplugged or turned off.
4	Power Supply fault indicator: amber	On – Indicates a fault with a power supply. View the LEDs at the back of the storage shelf to determine which power supply has the fault. Off – Normal operation.
5	SAS I/O Module fault indicator: amber	On – Indicates a fault with a SAS I/O module. View the LEDs at the back of the storage shelf to determine which module has the fault. Off – Normal operation.
6	Ready-to-Remove: blue	On – The storage drive can be safely removed during a hot-plug operation. Off – The storage drive has not been prepared for removal.
7	Drive Service Required: amber	Off – Normal operation. Steady on – A fault is present in the disk drive.
8	Power/Activity: green	On – The drive is installed and recognized by the system but there is no drive activity. Blink – The LED blinks randomly in response to data being written to or read from the drive. Off – The drive is powered off or the installed drive is not recognized by the system.

Storage Shelf Back Panel Status Indicators

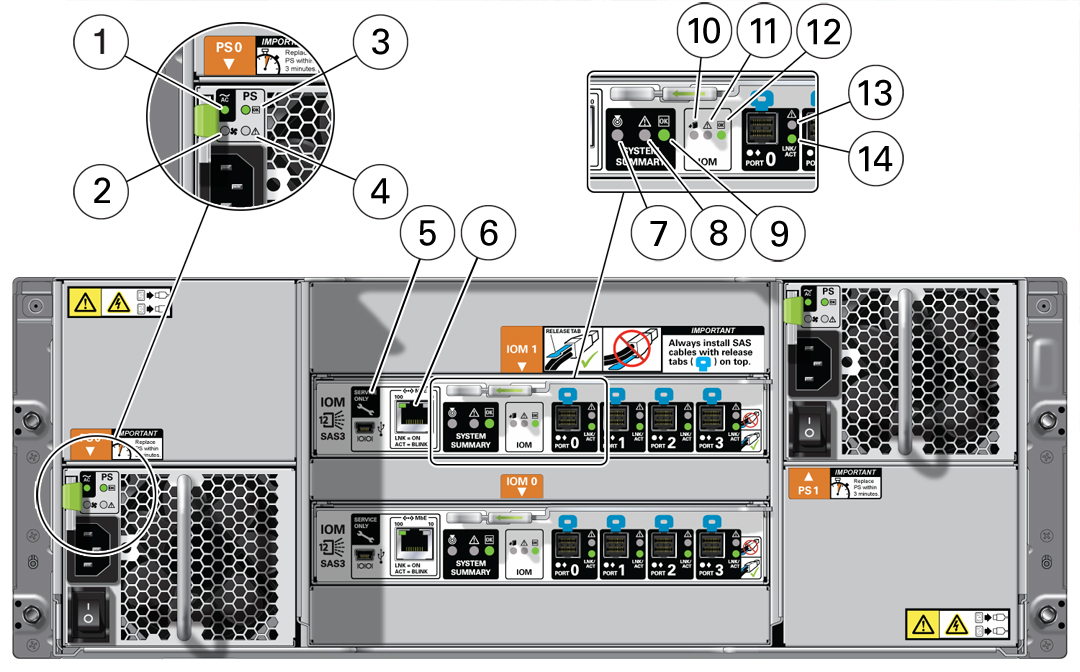

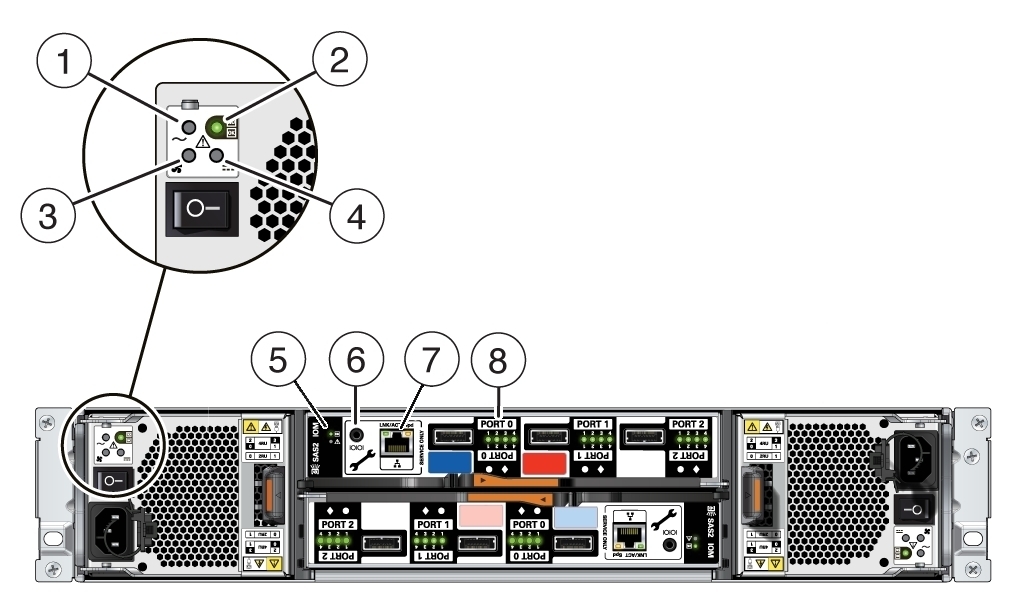

The following figure shows the controls and indicators on the Oracle Database Appliance X6-2-HA storage shelf (DE3-24C) back panel and drives.

Callout	Indicator/LED: Color	State Meaning
1	AC power fault indicator: amber	On – Indicates an AC power fault. Off – Normal operation.
2	Fan fail indicator: amber	On – The fan is faulty. Off – Normal operation.
3	Power supply status indicator: green	On – The power supply is operating normally. Off – The power supply is unplugged or turned off.
4	DC power fail indicator: amber	On – The power supply is faulty. Off – Normal operation.
5	Reserved	This port is reserved for Oracle Service.
6	Network port (reserved)	This port is reserved for Oracle Service.
7	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off.
8	Service Required: amber	Off – Normal operation. Steady on – A fault is present in the storage shelf.
9	OK: green	On – The storage shelf is powered on and operating normally. Off – The storage shelf is unplugged or turned off.
10	SAS I/O Module Ready-to-Remove: blue	On – The I/O module can be safely removed during a hot-plug operation. Off – The I/O module has not been prepared for removal.
11	SAS I/O Module Service Required indicator: amber	Off – Normal operation. Steady on – A fault is present in the SAS I/O module.
12	SAS I/O Module OK: green	On – The I/O module is powered on and operating normally. Off – The I/O module is unplugged or turned off.
13	Host SAS port Service Required indicator: amber	Off – Normal operation. Steady on – A fault is present with the port or connection.
14	Host SAS port activity indicator: green	Random blinking – Indicates host SAS link activity. Off – No link activity.

Oracle Database Appliance X5-2 Status Indicators

This section describes the status indicators for Oracle Database Appliance X5-2.

• Oracle Database Appliance X5-2 Server Node Status Indicators

• Oracle Database Appliance X5-2 Storage Shelf Status Indicators

Oracle Database Appliance X5-2 Server Node Status Indicators

These topics describe Oracle Database Appliance X5-2 server node status indicators (LEDs).

Server Node Front Panel Status Indicators

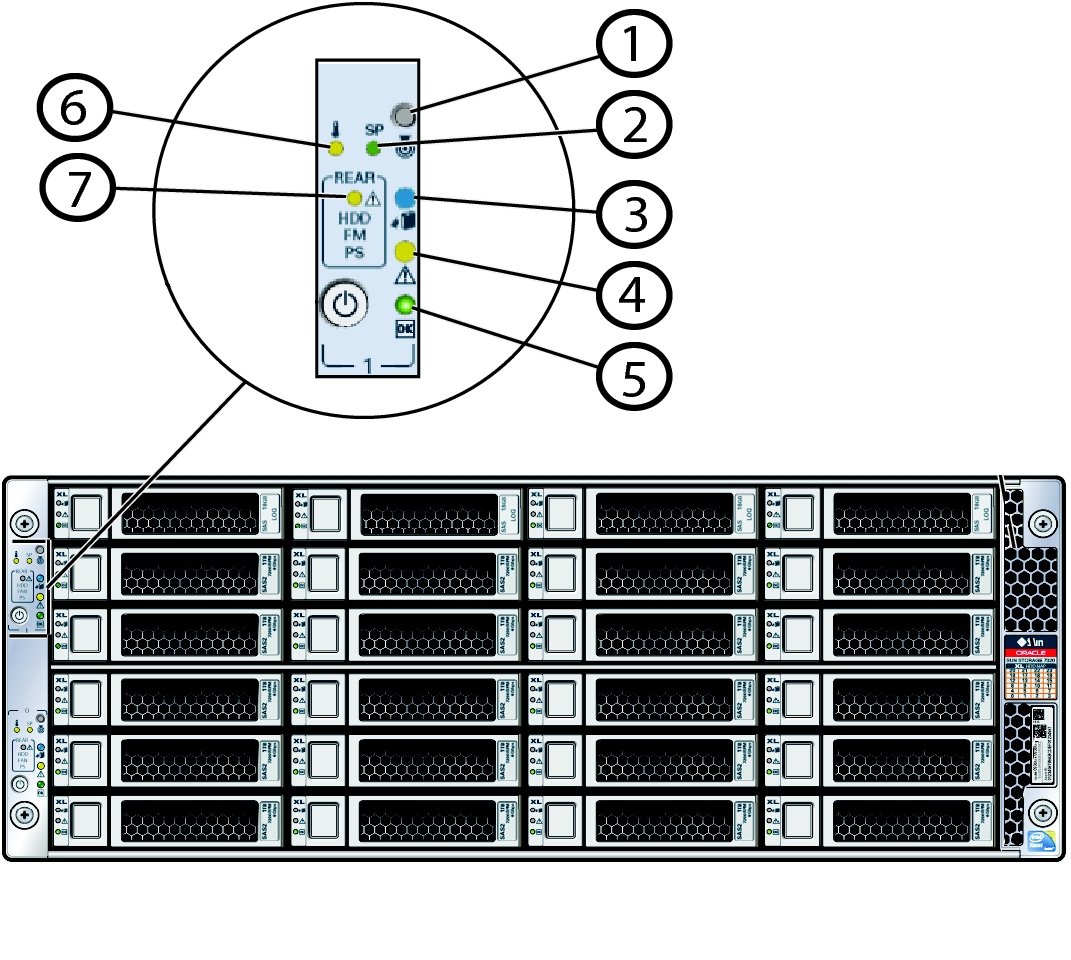

The Oracle Database Appliance X5-2 server node front panel includes indicators for the system and storage drives.

Callout	Indicator/LED: Color	State Meaning
1	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off.
2	Service Required: amber	Off – Normal operation. On – A fault is present in the server node. Note -  The lighting of this indicator is always accompanied by a system console message that includes a recommended service action.
3	OK: green	Indicates the operational state of the server node: On – The server is powered on, and all host POST code checkpoint tests are complete. The server is in one of the following states: 1) the server host is booting the operating system (OS), 2) the server host is running the OS. Off – AC power is not present or the Oracle ILOM boot is not complete. Steady blink – Standby power is on, but the chassis power is off and the Oracle ILOM SP is running. Slow blink – Startup sequence has been initiated on the host. This pattern should begin soon after you power on the server. This status indicates either: (1) POST code checkpoint tests are running on the server host system, or (2) the host is transitioning from the powered-on state to the standby state on shutdown.
4	Power button	Press to apply full power. Press again to turn main power off, but leave standby power on the Oracle ILOM.
5	Top fan: amber	Indicates that one (or more) of the internal fan modules has failed. Off – Indicates steady state; no service is required. On – Indicates service required; service the failed fan module.
6	Rear PS: amber	Indicates that one (or more) of the power supplies has failed. Off – Indicates steady state; no service is required. On – Indicates service required; service the failed power supply.
7	Over temperature warning: amber	Off – Normal operation; no service is required. On – The system is experiencing an over temperature warning condition. Note -  This is a warning indication, not a fatal over temperature. Failure to correct this condition might result in the system overheating and shutting down unexpectedly.
8	Service processor (SP): green	Off – The service processor (SP) is not running. On – The SP is fully operational. Slow blink – SP is booting.
9	Drive OK: green	Off – Power is off or the installed drive is not recognized by the system. On – The drive is engaged and is receiving power. Random blink – There is disk activity. The indicator blinks on and off to indicate activity.
10	Drive Service Required: amber	Off – The storage drive is operating normally. On – The system has detected a fault with the storage drive.
11	Drive Ready-to-Remove: blue	Off – The storage drive has not been prepared for removal. On – The storage drive can be removed safely during a hot-plug operation.

Server Node Back Panel Status Indicators

The Oracle Database Appliance X5-2 server node back panel includes indicators for the system, power supplies and network ports.

Callout	Indicator/LED: Color	State Meaning
1, 3	PS Service Required: amber	Off – Normal operation. On – The power supply (PS) has detected a PS fan failure, PS overtemperature, PS over current, or PS over or under voltage.
2, 4	PS OK: green	Off – No AC power is present. On – Normal operation. Input AC power and DC output voltage are within specification. Slow blink – Normal operation. Input power is within specification. DC output voltage is not enabled.
5	System locate, service required and OK: various	These operate in the same way as on the front panel.
6	NET MGT port: green	10/100/1000 BASE-T Ethernet management interface. Top left link indicator: On – Green for 1000Base-T link. Off – 10/100BASE-T link. Top right activity indicator: On – Link up. Off – No link or link down. Blinking – Packet activity.
7	Two InfiniBand QSFP+ Adapter ports (shown): green/yellow	InfiniBand QSFP+ interface. Green on – InfiniBand physical link established. Green off – No link. Yellow on – InfiniBand is discovered over the link, but no data is being passed . Yellow off – A physical and/or logical link has not been established. Yellow blinking – Data being passed.
8	NET 0-3 ports: green/amber	100/1000 BASE-T Ethernet management interface. Top left activity indicator: On – No function. Off – No activity. Blinking – Packet activity. Top right link indicator: On – Amber for 100 base-T link; green for 1000 base-T link. Off – No link. Blinking – No function.

Oracle Database Appliance X5-2 Storage Shelf Status Indicators

Storage shelves are supported with Oracle Database Appliance X5-2. They include controls and indicators on the front panel, hard drives, SSD drives, power supplies, and SAS I/O modules.

Storage Shelf Front Panel Status Indicators

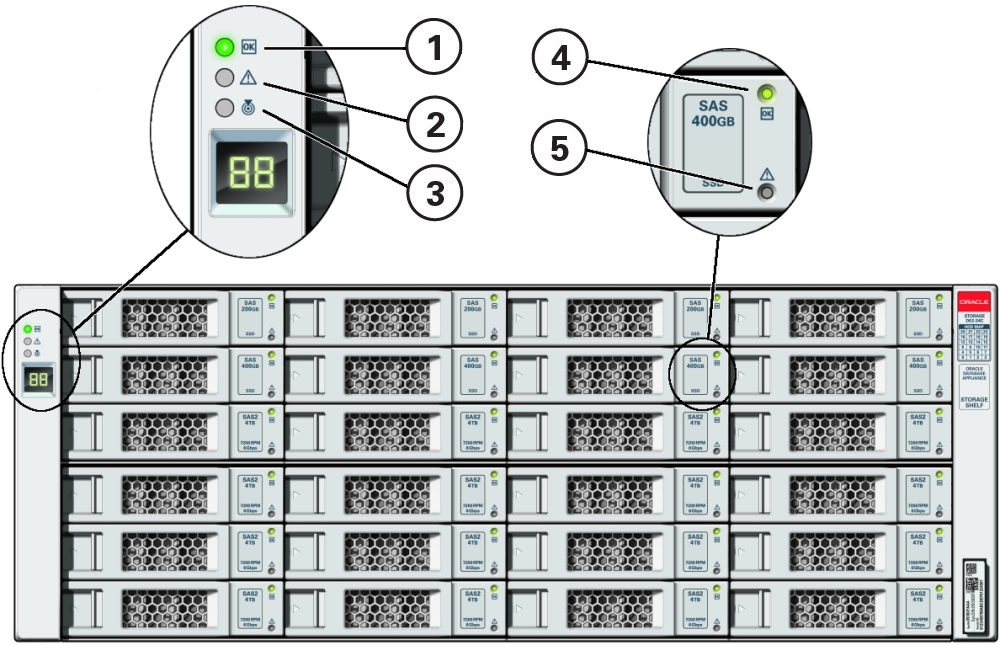

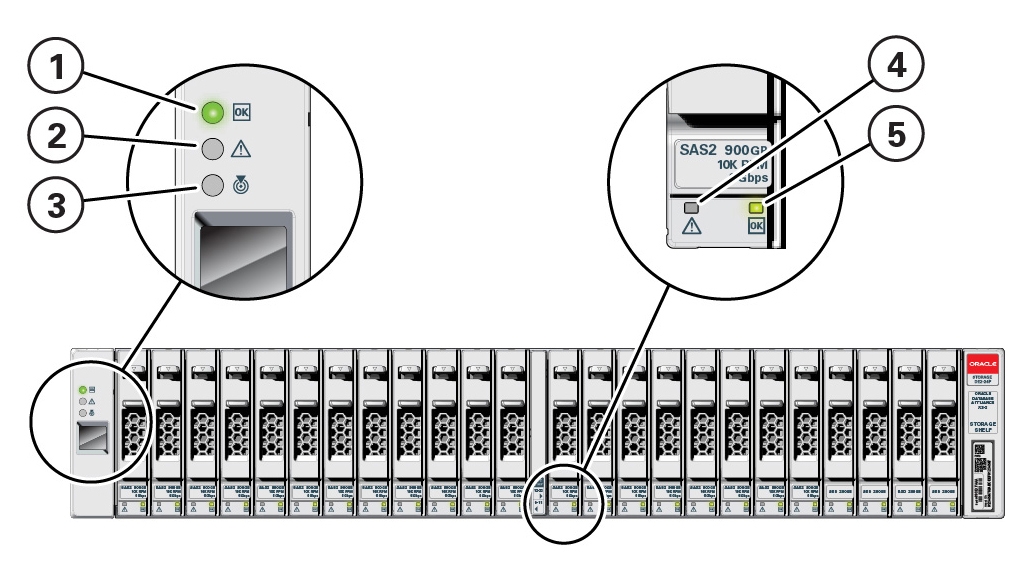

The following figure shows the controls and indicators on the Oracle Database Appliance X5-2 storage shelf (DE2-24C) front panel and drives.

Note:

The 2 or 3 character LED enclosure ID display panel on the front of the storage shelf is not used with the Oracle Database Appliance product. Any numbers or letters displayed in this panel other than zeros could indicate a fault with either the panel, its cabling (neither of which are customer replaceable), or some other storage shelf component.

Callout	Indicator/LED: Color	State Meaning
1	OK: green	On – The storage shelf is powered on and operating normally. Off – The storage shelf is unplugged or turned off.
2	Service Required: amber	Off – Normal operation. Steady on – A fault is present in the storage shelf.
3	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off.
4	Drive Service Required: amber	Off – Normal operation. Steady on – A fault is present in the disk drive.
5	Power/Activity: green	On – The drive is installed and recognized by the system but there is no drive activity. Blink – The LED blinks randomly in response to data being written to or read from the drive. Off – The drive is powered off or the installed drive is not recognized by the system.

Storage Shelf Back Panel Status Indicators

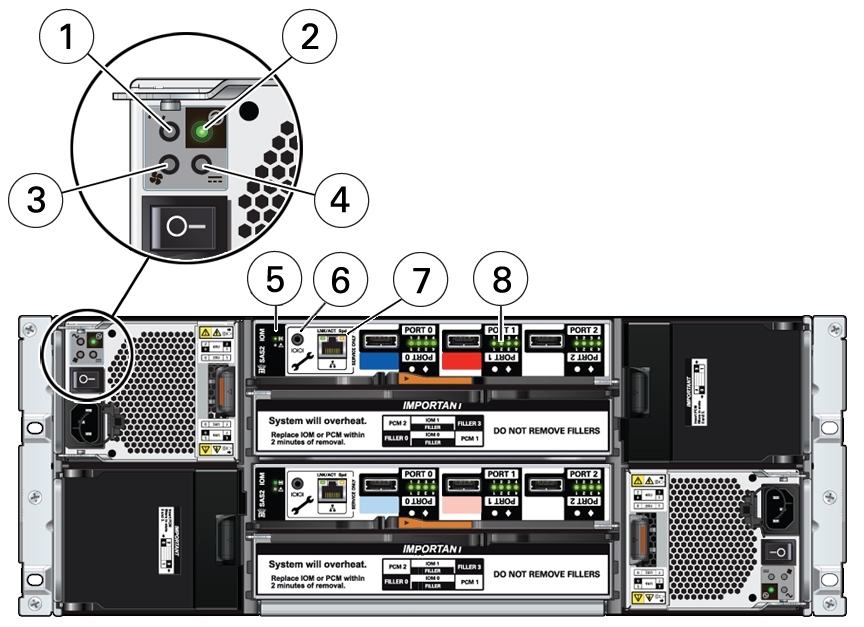

The following figure shows the controls and indicators on the Oracle Database Appliance X5-2 storage shelf (DE2-24C) back panel and drives.

Callout	Indicator/LED: Color	State Meaning
1	AC power fault indicator: amber	On – Indicates an AC power fault. Off – Normal operation.
2	Power supply status indicator: green	On – The power supply is operating normally. Off – The power supply is unplugged or turned off.
3	Fan fail indicator: amber	On – The fan is faulty. Off – Normal operation.
4	DC power fail indicator: amber	On – The power supply is faulty. Off – Normal operation.
5	SAS I/O Module status indicators: green or amber	OK – Lights green to indicate normal operation. Service Required – Lights amber to indicate a fault with the I/O module (top module is 0; bottom module is 1).
6	Reserved	This port is reserved for Oracle Service.
7	Network port (reserved)	This port is reserved for Oracle Service.
8	Host SAS port activity indicators (x4 per port): green	Random blinking – Indicates host SAS link activity. Off – No link activity.

Oracle Database Appliance X3-2/X4-2 Status Indicators

This section describes the status indicators for Oracle Database Appliance X3-2 and Oracle Database Appliance X4-2.

• Oracle Database Appliance X3-2/X4-2 Server Node Status Indicators

• Oracle Database Appliance X3-2/X4-2 Storage Shelf Status Indicators

Oracle Database Appliance X3-2/X4-2 Server Node Status Indicators

This topic describes Oracle Database Appliance X3-2 and Oracle Database Appliance X4-2 server node status indicators (LEDs).

Server Node Front Panel Status Indicators

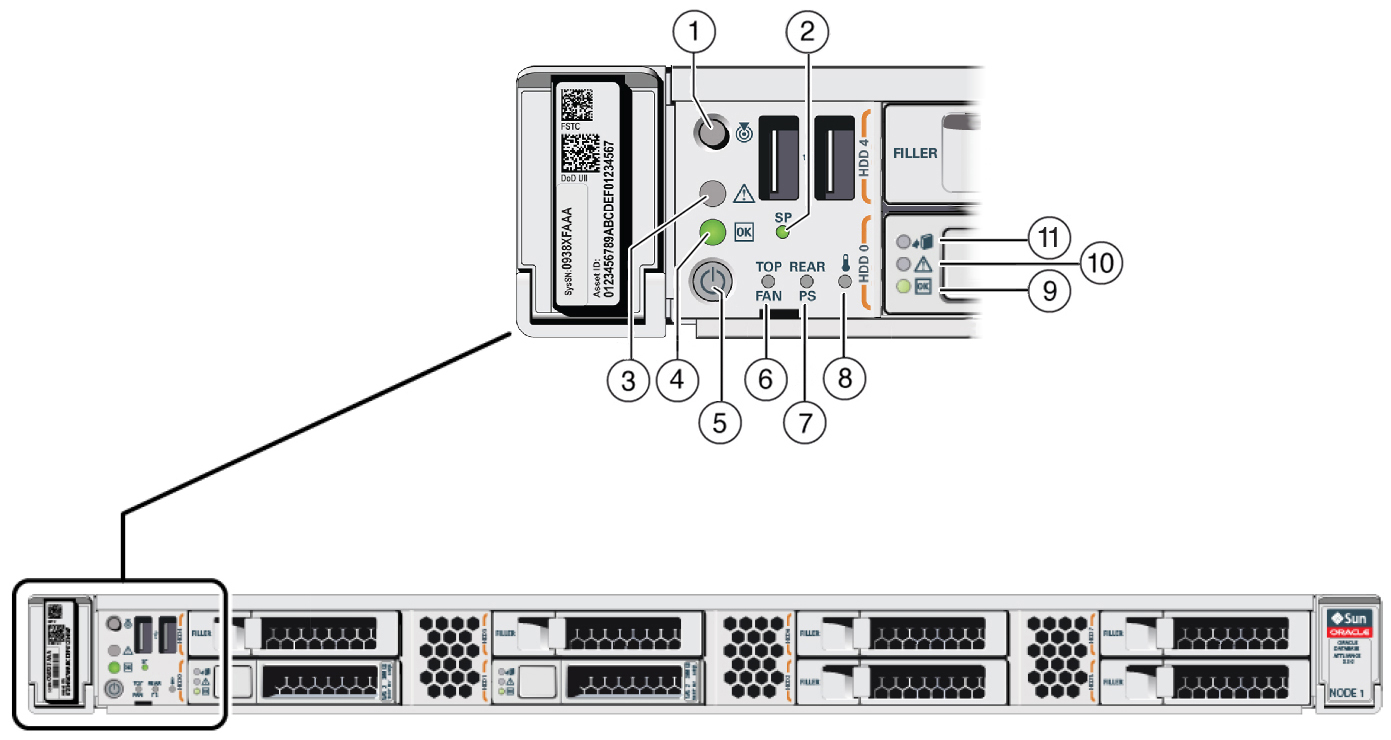

The Oracle Database Appliance X3-2/X4-2 server node front panel includes indicators for the system and storage drives.

Callout	Indicator/LED: Color	State Meaning
1	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off.
2	Service processor (SP): green	Off – The service processor (SP) is not running. On – The SP is fully operational. Slow blink – SP is booting.
3	Service Required: amber	Off – Normal operation. On – A fault is present in the server node. Note -  The lighting of this indicator is always accompanied by a system console message that includes a recommended service action.
4	OK: green	Indicates the operational state of the server node: On – The server is powered on, and all host POST code checkpoint tests are complete. The server is in one of the following states: 1) the server host is booting the operating system (OS), 2) the server host is running the OS. Off – AC power is not present or the Oracle ILOM boot is not complete. Steady blink – Standby power is on, but the chassis power is off and the Oracle ILOM SP is running. Slow blink – Startup sequence has been initiated on the host. This pattern should begin soon after you power on the server. This status indicates either: (1) POST code checkpoint tests are running on the server host system, or (2) the host is transitioning from the powered-on state to the standby state on shutdown.
5	Power button	Press to apply full power. Press again to turn main power off, but leave standby power on the Oracle ILOM.
6	Top fan: amber	Indicates that one (or more) of the internal fan modules has failed. Off – Indicates steady state; no service is required. On – Indicates service required; service the failed fan module.
7	Rear PS: amber	Indicates that one (or more) of the power supplies has failed. Off – Indicates steady state; no service is required. On – Indicates service required; service the failed power supply.
8	Over temperature warning: amber	Off – Normal operation; no service is required. On – The system is experiencing an over temperature warning condition. Note -  This is a warning indication, not a fatal over temperature. Failure to correct this condition might result in the system overheating and shutting down unexpectedly.
9	Drive OK: green	Off – Power is off or the installed drive is not recognized by the system. On – The drive is engaged and is receiving power. Random blink – There is disk activity. The indicator blinks on and off to indicate activity.
10	Drive Service Required: amber	Off – The storage drive is operating normally. On – The system has detected a fault with the storage drive.
11	Drive Ready-to-Remove: blue	Off – The storage drive has not been prepared for removal. On – The storage drive can be removed safely during a hot-plug operation.

Server Node Back Panel Status Indicators

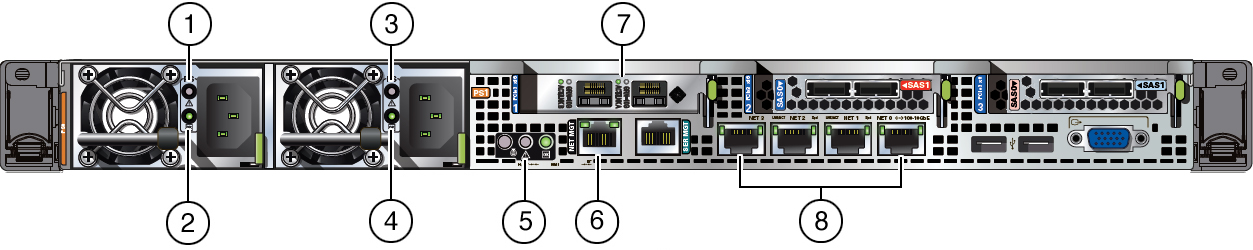

The Oracle Database Appliance X3-2/X4-2 server node back panel includes indicators for the system, power supplies and network ports.

Callout	Indicator/LED: Color	State Meaning
1, 3	PS Service Required: amber	Off – Normal operation. On – The power supply (PS) has detected a PS fan failure, PS overtemperature, PS over current, or PS over or under voltage.
2, 4	PS OK: green	Off – No AC power is present. On – Normal operation. Input AC power and DC output voltage are within specification. Slow blink – Normal operation. Input power is within specification. DC output voltage is not enabled.
5	System locate, service required and OK: various	These operate in the same way as on the front panel.
6	NET MGT port: green/amber	10/100 BASE-T Ethernet management interface. Top left link indicator: On – Amber for 10Base-T link; green for 100Base-T link. Off – No link or link down. Top right activity indicator: On – No function. Off – No activity. Blinking – Packet activity.
7	Oracle Database Appliance X4-2: Dual 10 GbE SFP+ PCIe 2.0 Low Profile Adapter ports (shown): green/amber --or-- Oracle Database Appliance X3-2: Sun Dual Port 10GBase-T Adapter ports (not shown): green/yellow	Oracle Database Appliance X4-2 with 1000/10000 BASE-T SFP+ Ethernet management interface. GRN=10G: On – Green for 10GbE link; amber for 1GbE link. Off – No function. ACT/LINK (A or B): On – Green for link up. Off – No link. Blinking – Green for packet activity. Oracle Database Appliance X3-2 with 1000/10000 BASE-T Ethernet management interface. 1G/100M=YLW: On – Green for 1GbE link; yellow for 10GbE link. Off – No link. ACT/LINK: On – Green for link up. Off – No link. Blinking – Green for packet activity.
8	NET 0-3 ports: green/amber	100/1000 BASE-T Ethernet management interface. Top left activity indicator: On – No function. Off – No activity. Blinking – Packet activity. Top right link indicator: On – Amber for 100Base-T link; green for 1000/10GBBase-T link. Off – No link. Blinking – No function.

Oracle Database Appliance X3-2/X4-2 Storage Shelf Status Indicators

Storage shelves are supported with Oracle Database Appliance X3-2/X4-2. They include controls and indicators on the front panel, hard drives, SSD drives, power supplies, and SAS I/O modules.

Storage Shelf Front Panel Status Indicators

The following figure shows the controls and indicators on the Oracle Database Appliance X3-2/X4-2 storage shelf (DE2-24P) front panel and drives.

Note:

The 2 or 3 character LED enclosure ID display panel on the front of the storage shelf is not used with the Oracle Database Appliance product. Any numbers or letters displayed in this panel other than zeros could indicate a fault with either the panel, its cabling (neither of which are customer replaceable), or some other storage shelf component.

Callout	Indicator/LED: Color	State Meaning
1	OK: green	On – The storage shelf is powered on and operating normally. Off – The storage shelf is unplugged or turned off.
2	Service Required: amber	Off – Normal operation. Steady on – A fault is present in the storage shelf.
3	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off.
4	Status Code Display	Not used for this product.
5	Drive Service Required: amber	Off – Normal operation. Steady on – A fault is present in the disk drive.
6	Power/Activity: green	On – The drive is installed and recognized by the system but there is no drive activity. Blink – The LED blinks randomly in response to data being written to or read from the drive. Off – The drive is powered off or the installed drive is not recognized by the system.

Storage Shelf Back Panel Status Indicators

The following figure shows the controls and indicators on the Oracle Database Appliance X3-2/X4-2 storage shelf (DE2-24P) back panel and drives.

Callout	Indicator/LED: Color	State Meaning
1	AC power fault indicator: amber	On – Indicates an AC power fault. Off – Normal operation.
2	Power supply status indicator: green	On – The power supply is operating normally. Off – The power supply is unplugged or turned off.
3	Fan fail indicator: amber	On – The fan is faulty. Off – Normal operation.
4	DC power fail indicator: amber	On – The power supply is faulty. Off – Normal operation.
5	SAS I/O Module status indicators: green or amber	OK – Lights green to indicate normal operation. Service Required – Lights amber to indicate a fault with the I/O module (top module is 0; bottom module is 1).
6	Reserved	This port is reserved for Oracle Service.
7	Network port (reserved)	This port is reserved for Oracle Service.
8	Host SAS port activity indicators (x4 per port): green	Random blinking – Indicates host SAS link activity. Off – No link activity.

Oracle Database Appliance Version 1 Status Indicators

This section describes the status indicators for the Oracle Database Appliance Version 1.

• Server Node Status Indicators

• Server Node Fan Indicators

• Storage and Boot Drive Status Indicators

• Power Supply Status Indicators

• Rear Server Node Status Indicators

• Server Node Internal LEDs

• Ethernet Port Indicators

Server Node Status Indicators

The following table lists and describes the general status indicators on the front and rear panel of each Oracle Database Appliance Version 1 server node.

Callout	Indicator/LED: Color	State Meaning
1	Locate button/LED: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off. It is also used to prove physical presence. Indicator Test Mode – Push and hold the Locate button for 5 seconds to activate the push to test feature, which causes all LEDs except disk activity and power supply LEDs to light for 15 seconds.
2	SP OK/Fault: bi-color	Off – No power is supplied to the SP or it is not functional. Amber – When lit indicates an SP fault. Green – When steady on indicates that Oracle ILOM is fully functional. If blinking, POST diagnostics are running, Oracle ILOM is booting, or firmware is updating. Note -  The amber LED indicates the status of the watchdog timer. The watchdog timer runs continuously, but it times out if it is not reset by Oracle ILOM. If it times out, the amber LED is lit and the green LED is extinguished.
3	Ready to Remove: blue	Off – Normal operation. Fast Blink – The system is preparing a customer-replaceable unit (CRU) (disk drive, fan module, or power supply) for safe removal but it is not ready yet. Steady on – The CRU can be safely removed.
4	Service Required: amber	Off – Normal operation. Steady on – A fault is present in system or a subsystem within the chassis.
5	Power/OK: green	This LED indicates the operational state of the chassis. This LED can be in the following states: Off – AC power is not present or the Oracle ILOM boot has not completed. Standby blink – Standby power is on and Oracle ILOM can be accessed, but full chassis power is off. The LED blinks at a 10 percent duty cycle (0.1 second on, 2.9 seconds off), that is, the light is on for a very short period of time. Slow blink – The startup sequence has been initiated on the host. The LED blinks at a 50 percent duty cycle, which is noticeably longer than the STANDBY BLINK. This pattern should begin immediately following powering on the system. This status indicates either 1) power-on self-test (POST) diagnostics running on system host or 2) the host is transitioning from the powered-on state to the standby state on shutdown. Steady on – The system is powered on and all host POST tests passed. The system is one of the following states: 1) the system host is ready to boot, or 2) the system host is booting the operating system (OS), or 3) the system host is running the OS.
6	Over temperature: amber	Off – Normal operation. Steady on – The system is experiencing an over-temperature warning condition. Note -  This is a warning indication, not a fatal over temperature. Failure to correct this can result in the system over heating and shutting down.
7	Rear Component Failure: amber	Off – Normal operation. Steady on – The system has detected a power supply fault, a fan fault, or a rear 2.5-inch disk drive fault. This fault condition is associated with chassis components located in the rear of the chassis. This fault might be caused by: Power supply failure (AC fault, 12V/3.3Vaux fault, or power supply fan fault) Rear fan failure Rear 2.5-inch disk failure

Server Node Fan Indicators

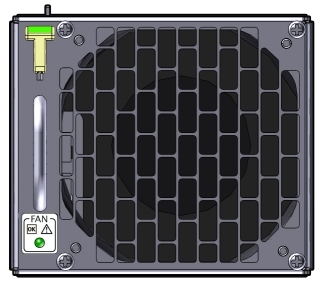

Each fan module for Oracle Database Appliance Version 1 has a single bi-colored LED indicating both fan OK and fan fault conditions. The LED lights green to indicate that the fan module is properly plugged into the system and operating within the expected RPM range for a given power management setting. The LED lights amber to indicate a fan fault.

Note:

The LEDs on the fan modules are not lit amber on initial system power-on. The fan amber LED only lights if Oracle ILOM detects a failure that indicates a faulty fan module or a missing fan that should be installed.

Indicator/LED: Color	State Meaning
OK: green	Steady on – The fan is functioning normally. Off – Chassis 3.3V_Standby power is off or there is a fan fault.
Service Required: amber	Off – Normal operation. Steady on – A fault has been detected with the fan. Note -  The front and rear panel Service Required LEDs are also lit if the system detects a fan module fault.

Storage and Boot Drive Status Indicators

Each storage drive for Oracle Database Appliance Version 1 includes three LEDs. They are the same on the front storage drives and the rear-mounted boot drives. See the following table.

Callout	Indicator/LED: Color	State Meaning
1	Ready to Remove: blue	Off – Normal operation. Fast blink – The system is preparing a disk drive for safe removal but it is not ready yet. Steady on – The disk drive can be safely removed.
2	Service Required: amber	Off – Normal operation. Steady on – A fault is present in the disk drive.
3	OK/Activity: green	On – The drive is installed and recognized by the system but there is no drive activity. Blink – The LED blinks randomly in response to data being written to or read from the drive. Off – The drive is powered off or the installed drive is not recognized by the system.

Power Supply Status Indicators

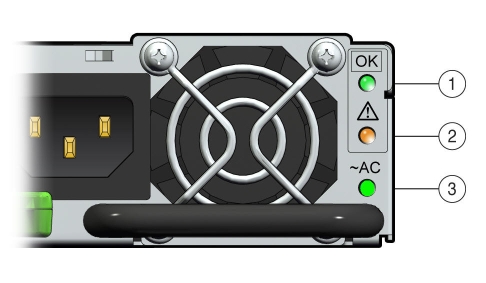

There are three status LEDs on each power supply for Oracle Database Appliance Version 1, as shown in the following table.

Callout	Indicator/LED: Color	State Meaning
1	OK: green	On – The power supply is operating normally. Off – The power supply is unplugged or turned off.
2	Service Required: amber	On – The power supply is faulty. The front REAR PS LED and the front and rear panel Service Required LEDs are also lit if the system detects a power supply fault. Off – Normal operation.
3	AC Present: green	On – The power supply is plugged in and AC power is available, regardless of system power state. Off – The power supply is unplugged or turned off.

Rear Server Node Status Indicators

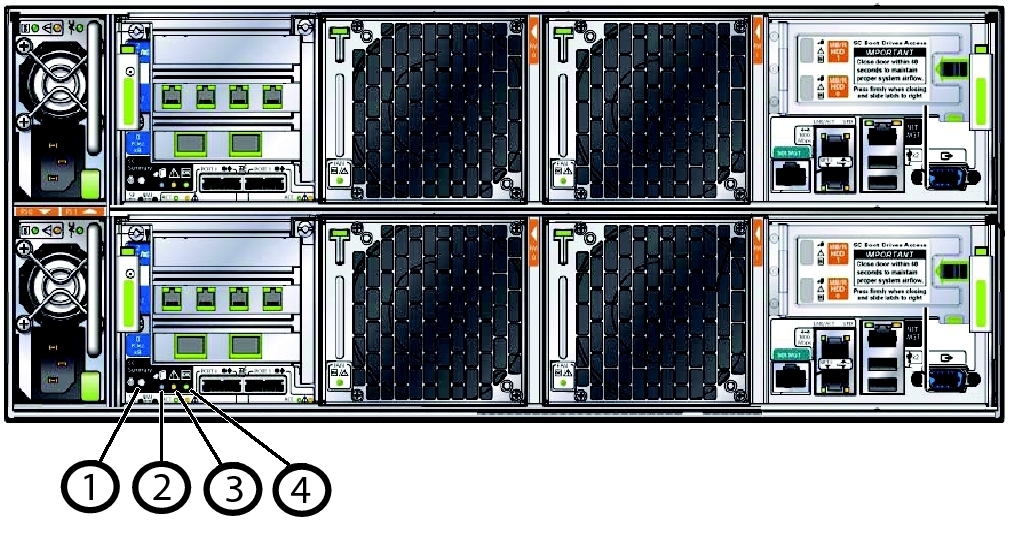

Each server node in Oracle Database Appliance Version 1 has four summary status LEDs that are located on its back panel, as shown in the following table.

Callout	Indicator/LED: Color	State Meaning
1	Locate: white	Off – Normal operation. Fast blink – This LED blinks to help locate the system. Operators can turn this indicator on and off remotely using Oracle ILOM. Pressing this button toggles the fast blink on or off. Indicator Test Mode – Push and hold the Locate button for 5 seconds to activate the push to test feature, which causes all LEDs except disk activity and power supply LEDs to light for 15 seconds.
2	Ready to Remove: blue	Off – Normal operation. Fast Blink – The system is preparing a customer-replaceable unit (CRU) (disk drive, fan module, or power supply) for safe removal but it is not ready yet. Steady on – The CRU can be safely removed.
3	Service Required: amber	Off – Normal operation. Steady on – A fault is present in system or a subsystem within the chassis.
4	Power/OK: green	This LED indicates the operational state of the chassis. This LED can be in the following states: Off – AC power is not present or the Oracle ILOM boot has not completed. Standby blink – Standby power is on and Oracle ILOM can be accessed, but full chassis power is off. The LED blinks at a 10 percent duty cycle (0.1 second on, 2.9 seconds off), that is, the light is on for a very short period of time. Slow blink – The startup sequence has been initiated on the host. The LED blinks at a 50 percent duty cycle, which is noticeably longer than the STANDBY BLINK. This pattern should begin immediately following powering on the system. This status indicates either 1) power-on self-test (POST) diagnostics running on system host or 2) the host is transitioning from the powered-on state to the standby state on shutdown. Steady on – The system is powered on and all host POST tests passed. The system is one of the following states: 1) the system host is ready to boot, or 2) the system host is booting the operating system (OS), or 3) the system host is running the OS.

Server Node Internal LEDs

The following section describes the internal LEDs for Oracle Database Appliance Version 1. Each server node contains the following internal LEDs:

Note:

A super capacitor (located on the motherboard) provides power to light the server node fault LEDs for up to 15 minutes after the server node is removed from a powered-on system chassis. After approximately 15 minutes, the capacitor discharges enough so that it cannot light the fault LEDs.

• Fault Remind Power Good LED.

  This green LED lights each time the Fault Remind button is pressed, if the capacitor has enough of a charge to light the fault LEDs. This LED is located next to the Fault Remind button.

  For the location of Fault Remind button and the Fault Remind Power Good LED, see Remove Faulty DIMMs.

• Memory DIMM Fault LEDs

  Each DIMM slot has an adjacent DIMM fault LED. If a DIMM fails, the adjacent LED lights when the Fault Remind button is pressed.

  For the location of Fault Remind button and the DIMM fault LEDs, see Remove Faulty DIMMs.

• CPU Fault LEDs

  Both CPUs have an associated CPU fault LED. If a CPU fails, the associated LED lights when the Fault Remind button is pressed.

  For the location of CPU fault LEDs, see Remove Processor (CPU).

• Ethernet Port LEDs

  Each server node has two host Ethernet ports (NET0 and NET1) and an SP network management port (NET MGT). Each of these has two LEDs that indicate link activity and port speed. See Ethernet Port Indicators.

Ethernet Port Indicators

Each server node in Oracle Database Appliance Version 1 has two host Ethernet ports (NET0 and NET1) and an SP network management port (NET MGT). Each of these has two LEDs that indicate link activity and port speed.

Callout	Indicator/LED: Color	State Meaning
1	Link Activity: green	Lights to indicate link activity.
2	Link Speed: bi-colored	Green – Link established at fastest speed. Amber – Link established at next fastest speed or slower speeds. Off – Link at slowest speed, which is 10 Mbps.
