2 Java Application Servers

2.1 Oracle WebLogic

The Oracle WebLogic server is mandatory for Agile e6.2.1.0.

After the Agile e6.2.1.0 installation, the following applications should be available in in one WebLogic domain with the default name "eSeries_domain":

• Web Presentation Service

• Java Client WebStart

• PLM-API (HTTP support)

• Web File Service

• Jvue Applet

• DaemonAdminServlet

Additionally, for each created application the Business Service and Web Services deployment have to be available in one WebLogic domain with default name "eSeries_domain_<application_name>".

The "eSeries_domain" can be accessed with the following link:

https://app.example.com:7102/console

The "eSeries_domain_<application_name>" can be accessed with the following link:

https://app.example.com:7106/console

To verify the availability of the above deployments, log in to your Oracle WebLogic domains and check the following:

The following applications have to be available in the domain "eSeries_domain":

• Daemon Admin Servlet

• HTTP Support

• Java Client

• JVue

• Streaming File Service

• VueLink

• Web Presentation Service

• Web Fileservice

The following context roots of these applications should be in working state:

Note: Use your Oracle WebLogic server name and HTTP port.

• Daemon Admin Servlet:

  https://app.example.com:7104/DaemonAdminServlet/

• HTTP Support:

  https://app.example.com:7104/plm-api-axis/services

• Java Client:

  https://app.example.com:7104/Jacc/

• JVue:

  http://app.dfm.example.com:8040/JVue/

• Streaming Fileservice:

  https://app.example.com:7104/StreamingFileService/

• VueLink:

  https://app.example.com:7104/VueLink/Vuelink/

• Web Fileservice:

  https://app.example.com:7104/FileService/

• Web Presentation Service:

  https://app.example.com:7104/AgilePlmWps/

These applications have to be available in the domain "eSeries_domain_<application_name>":

• Business Service

• Web Services

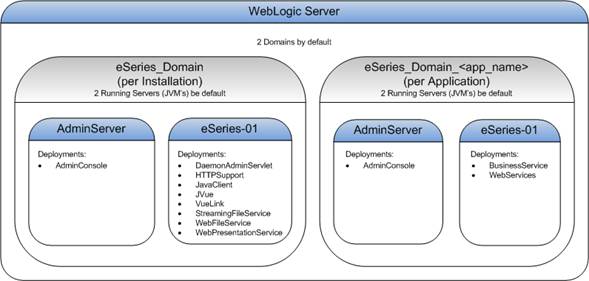

The following graphic shows the WebLogic deployment architecture after an Agile e6 installation.

Domains Directory: <MIDDLEWARE_HOME>/user_projects/domains

Server Directories: <DOMAIN_HOME>/servers/AdminServer (eSeries-01)

Further information about the Oracle WebLogic server administration can be found under Oracle WebLogic Server documentation > Oracle Fusion Middleware Documentation Library:

http://docs.oracle.com/middleware/1221/wls/index.html

2.2 Apache Tomcat

Tomcat is only supported for a limited set of deployments for a remote DFM site installation.

The following applications are supported:

• Java Client

• JVue

• Streaming File Service

• VueLink

• Web Fileservice

The following context roots of these applications should be in working state:

Note: Use your Apache Tomcat server name and HTTP port.

• Java Client:

  http://app.dfm.example.com:8040/Jacc/

• JVue:

  http://app.dfm.example.com:8040/JVue/agile-jvue-wrapper.jar

• Streaming Fileservice:

  http://app.dfm.example.com:8040/StreamingFileService/

• VueLink:

  http://app.dfm.example.com:8040/VueLink/Vuelink/

• Web Fileservice:

  http://app.dfm.example.com:8040/FileService/

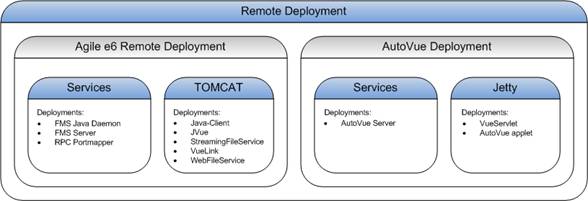

The following graphic shows the Remote Site deployment architecture after an Agile e6 installation.
