3 Automatic Diagnostic Collections

Oracle Trace File Analyzer monitors your logs for significant problems, such as internal errors like ORA-00600, or node evictions.

• Collecting Diagnostics Automatically
  This section explains automatic diagnostic collection concepts.
• Configuring Email Notification Details
  Configure Oracle Trace File Analyzer to send an email to the registered email address after an automatic collection completes.

3.1 Collecting Diagnostics Automatically

This section explains automatic diagnostic collection concepts.

If Oracle Trace File Analyzer detects any problems, then it carries out the following actions:

• Runs necessary diagnostics and collects all relevant log data at the time of a problem

• Trims log files around the time of the problem so that Oracle Trace File Analyzer collects only what is necessary for diagnosis

• Collects and packages all trimmed diagnostics from all nodes in the cluster, consolidating everything on a single node

• Stores diagnostic collections in the Oracle Trace File Analyzer repository

• Sends you email notification of the problem and details of diagnostic collection that is ready for upload to Oracle Support

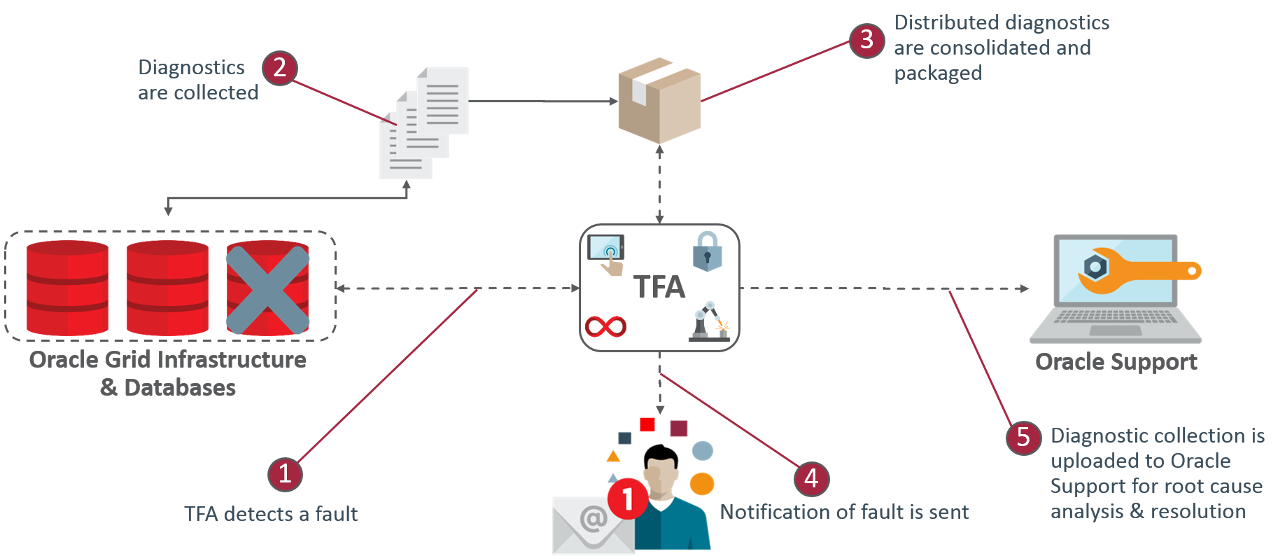

Figure 3-1 Automatic Diagnostic Collections

Description of "Figure 3-1 Automatic Diagnostic Collections"

Oracle Trace File Analyzer uses a flood control mechanism. Repeated errors do not flood the system with automatic collections.

Identifying an event triggers the start point for a collection and five minutes later Oracle Trace File Analyzer starts collecting diagnostic data. Starting five minutes later is to capture any other relevant events together. If events are still occurring after five minutes, then diagnostic collection continues to wait. Oracle Trace File Analyzer waits for 30 seconds with no events occurring, up to a further five minutes.

If events are still occurring after 10 minutes, then a diagnostic collection happens. A new collection point starts.

After the collection is complete, Oracle Trace File Analyzer sends email notification that includes the location of the collection, to the relevant recipients.

If your environment can make a connection to oracle.com, you can then use Oracle Trace File Analyzer to upload the collection to a Service Request.

$ tfactl set autodiagcollect=ON|OFF

Automatic collections are ON by default.

Table 3-1 Log Entries that Trigger Automatic collection

String Pattern	Log Monitored
ORA-297(01|02|03|08|09|10|40) ORA-00600 ORA-07445 ORA-04(69|([7-8][0-9]|9([0-3]|[5-8]))) ORA-32701 ORA-00494 System State dumped	Alert Log - Oracle Database Alert Log - Oracle ASM Alert Log - Oracle ASM Proxy Alert Log - Oracle ASM IO Server
CRS-016(07|10|11|12)	Alert Log - CRS

Additionally, when Oracle Cluster Health Advisor detects a problem event, Oracle Trace File Analyzer automatically triggers the relevant diagnostic collection.

3.2 Configuring Email Notification Details

Configure Oracle Trace File Analyzer to send an email to the registered email address after an automatic collection completes.

To send emails, configure the system on which Oracle Trace Analyzer is running. You must configure notification with a user email address to enable it to work.

To configure email notification details:

1. To set the notification email to use for a specific ORACLE_HOME, include the operating system owner in the command:

   tfactl set notificationAddress=os_user:email


   For example:

   tfactl set notificationAddress=oracle:[e-mail]


2. To set the notification email to use for any ORACLE_HOME:

   tfactl set notificationAddress=email


   For example:

   tfactl set notificationAddress=[e-mail]


3. Configure the SMTP server using tfactl set smtp.

   Set the SMTP parameters when prompted.

   Table 3-2 tfactl diagnosetfa Command Parameters

   Parameter	Description
   smtp.host	Specify the SMTP server host name.
   smtp.port	Specify the SMTP server port.
   smtp.user	Specify the SMTP user.
   smtp.password	Specify password for the SMTP user.
   smtp.auth	Set the Authentication flag to true or false.
   smtp.ssl	Set the SSL flag to true or false.
   smtp.from	Specify the from mail ID.
   smtp.to	Specify the comma-delimited list of recipient mail IDs.
   smtp.cc	Specify the comma-delimited list of CC mail IDs.
   smtp.bcc	Specify the comma-delimited list of BCC mail IDs.
   smtp.debug	Set the Debug flag to true or false.

   Note:

   You can view current SMTP configuration details using tfactl print smtp.

4. Verify SMTP configuration by sending a test email using tfactl sendmail email_address.
5. Do the following after receiving the notification email:
   1. To find the root cause, inspect the referenced collection details.
   2. If you can fix the issue, then resolve the underlying cause of the problem.
   3. If you do not know the root cause of the problem, then log an SR with Oracle Support, and upload the collection details.

Example 3-1 tfactl set smtp

# /u01/app/11.2.0.4/grid/bin/tfactl set smtp

.---------------------------.
| SMTP Server Configuration |
+---------------+-----------+
| Parameter | Value |
+---------------+-----------+
| smtp.auth | false |
| smtp.from | tfa |
| smtp.user | - |
| smtp.cc | - |
| smtp.port | 25 |
| smtp.bcc | - |
| smtp.password | ******* |
| smtp.host | localhost |
| smtp.to | - |
| smtp.debug | true |
| smtp.ssl | true |
'---------------+-----------'

Enter the SMTP property you want to update : smtp.host

Enter value for smtp.host : myhost.domain.com

SMTP Property smtp.host updated with myhost.domain.com

Do you want to continue ? [Y]|N : N

#
