DisbursementApprovalScreen

The DisbursementApprovalScreen provides the option to approve pending disbursements after they are created and processed as activities in OIPA.

Search Requirements

Search fields that are configured on the Disbursement Approval screen must define the group that is being searched on. The available groups are DisbursementApproval, Disbursement, DisbursementField, Activity, ActivityField, Transaction, Role, RoleField, Policy, PolicyField, Client and ClientField. The groups will support search on all columns in the corresponding table using the column name as the field name. For field tables like ActivityField, PolicyField, ClientField and DisbursementField, a search can be performed on the fieldname.

Totaling Currency Amounts

The Table section of the Disbursement Approval screen defines the columns that will display in the list of results when a search is performed. Configuration is supported to total the DisbursementAmount column. Currencies must be the same type. If they are mixed, then the amounts will not total.

Please see the XML Configuration Guide topic in this help system for a list of all elements, attributes and values needed for configuration. View Business Rules | Screen Rules | DisbursementApprovalScreen.

General Pane

The DisbursementApprovalScreen General pane displays the name of the rule, the properties of the screen and their associated values.

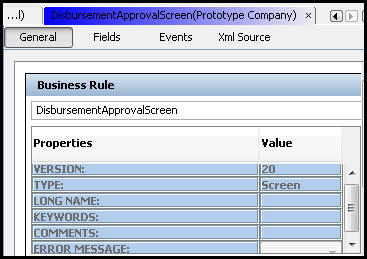

General Pane

Fields Pane

The Fields pane is used to create fields that will display on the DisbursementApprovalScreen. The top section of the visual configuration area is for fixed fields. Drag and drop the available fixed fields from the Palette window on the right side of the screen. Custom fields cannot be created for this section, but the display names of fixed fields can be changed as needed. Configure dynamic fields in the section under fixed fields. The functionality is exactly the same as the configuration for other fields panes. Please see the Fields Pane for more information.

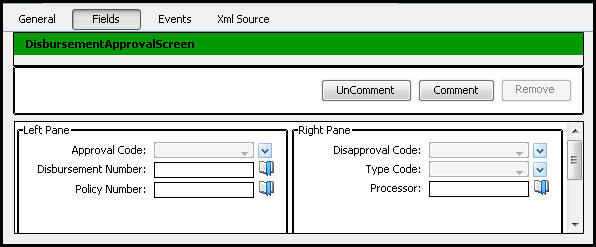

Fields Pane Visual Editing in Rules Palette for DisbursementApprovalScreen

Events Pane

This pane is used to create validations that will display on the screen. The functionality is exactly the same as described in the transaction section. Please see Events for more information.

XMLSource Pane

Configuration for this rule is done in XML via the XML Source pane. The XML Source pane includes XML Editor functionality that enhances the configuration experience. More detailed information on configuration using the XML Source pane can be found in the XML Source Editing section.
