vSTP supports 320K MPS SS7 traffic capacity at the system level. This allows vSTP to support redundancy and diversity at the signaling interfaces. That is, more than one active STP-MP server can support signaling interfaces pointing toward the same remote signaling point.
Topology
vSTP supports two topologies.

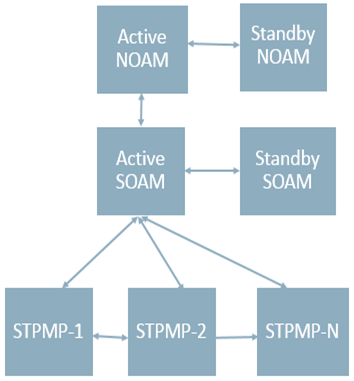

Figure 2-7 Only STP-MP site
Figure 2-8 STP-MP and DA-MP in a Site
Server Group Configuration
Figure 2-9 shows multiple STP servers in one server group.
Figure 2-9 Multiple STP Servers in a Server Group
HA Status

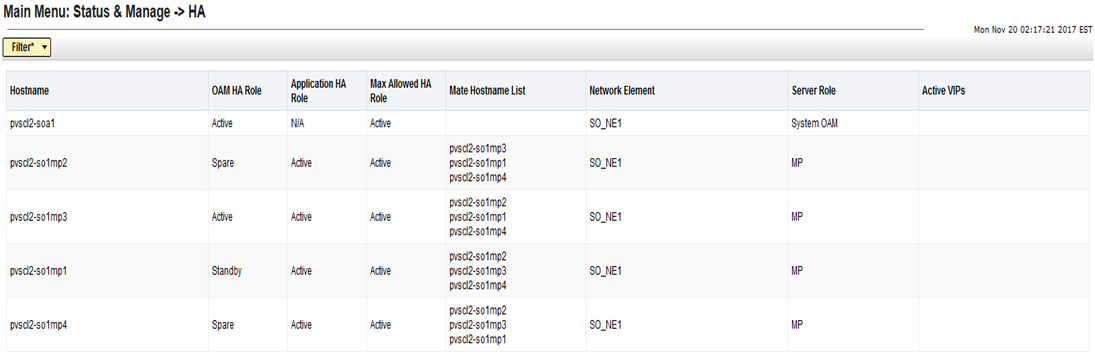

The HA role needs to be active for all STP servers as shown in Figure 2-10.
Figure 2-10 HA Role for STP Servers
