Allowed AFTPC Screening Actions

Figure 3-1 shows the screening actions of the allowed AFTPC screen.

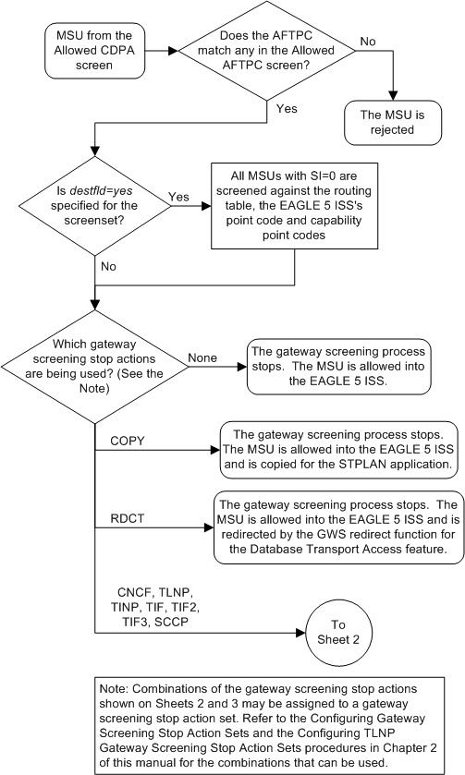

Figure 3-1 Allowed AFTPC Screening Actions

Sheet 1 of 2

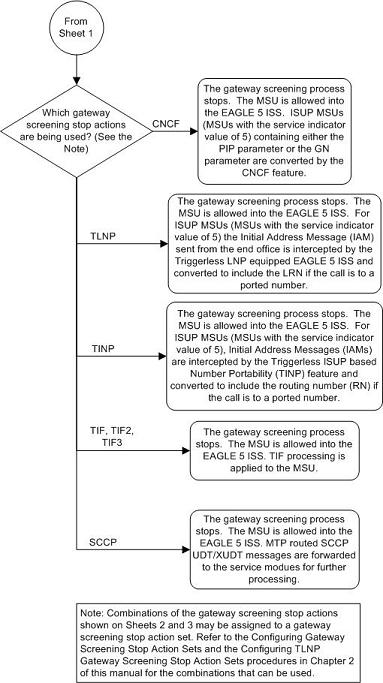

Sheet 2 of 2

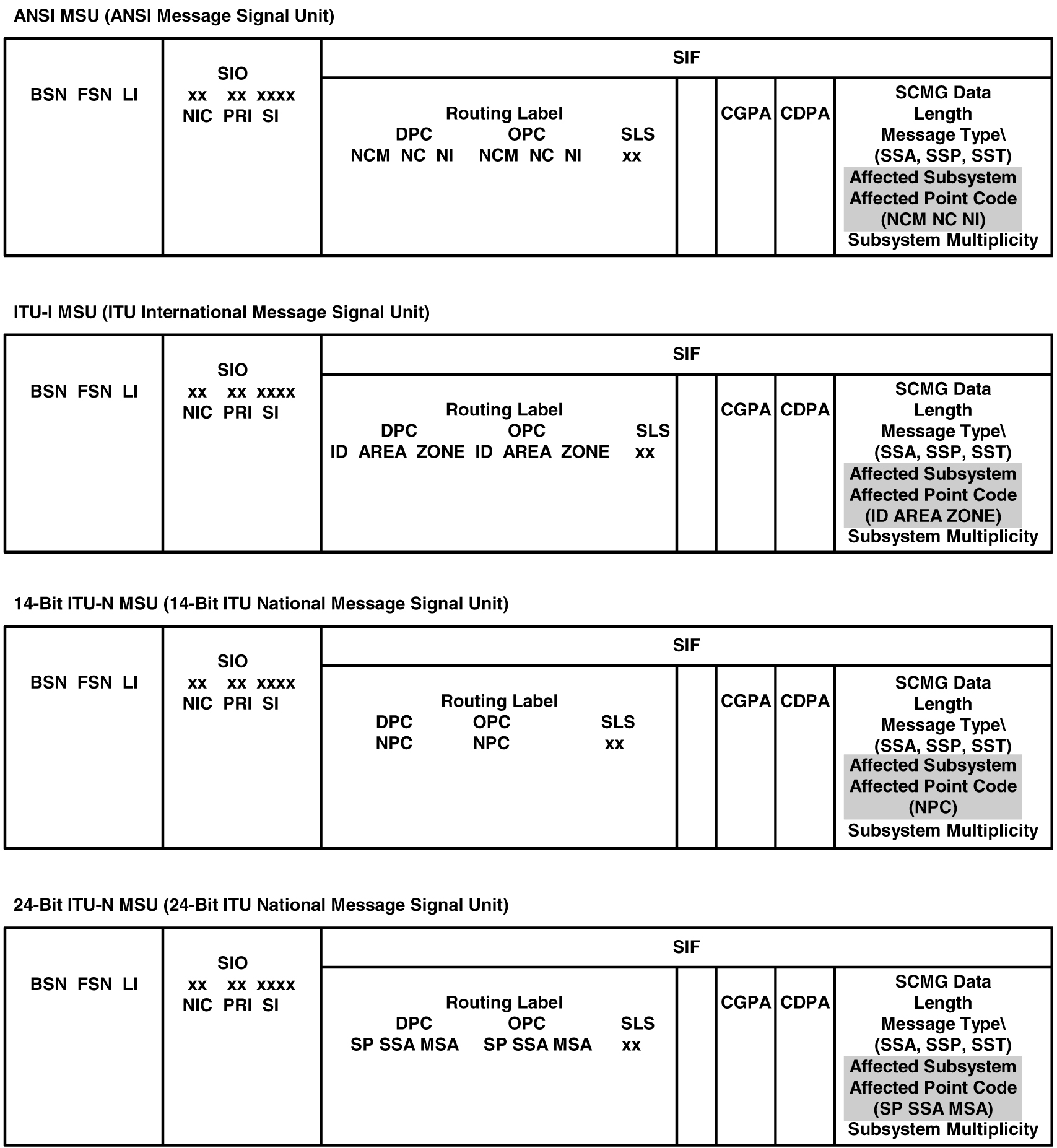

Figure 3-2 Allowed Affected Point Code Screening Function
